8STA1Y0205PB170 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 8STA1Y0205PB170

8STA1Y0205PB170: DescriptionCircular Connector, 5 Contact(s), Steel, Male, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size520KB，2 Pages; ManufacturerSOURIAU; Environmental Compliance

Download Datasheet Parametric View All

8STA1Y0205PB170 Overview

Circular Connector, 5 Contact(s), Steel, Male, Solder Terminal, Receptacle,

8STA1Y0205PB170 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	SOURIAU
Reach Compliance Code	unknown
ECCN code	EAR99
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	HERMETIC
Shell material	STEEL
Housing size	2
Termination type	SOLDER
Total number of contacts	5

Preview

Download Datasheet

View All

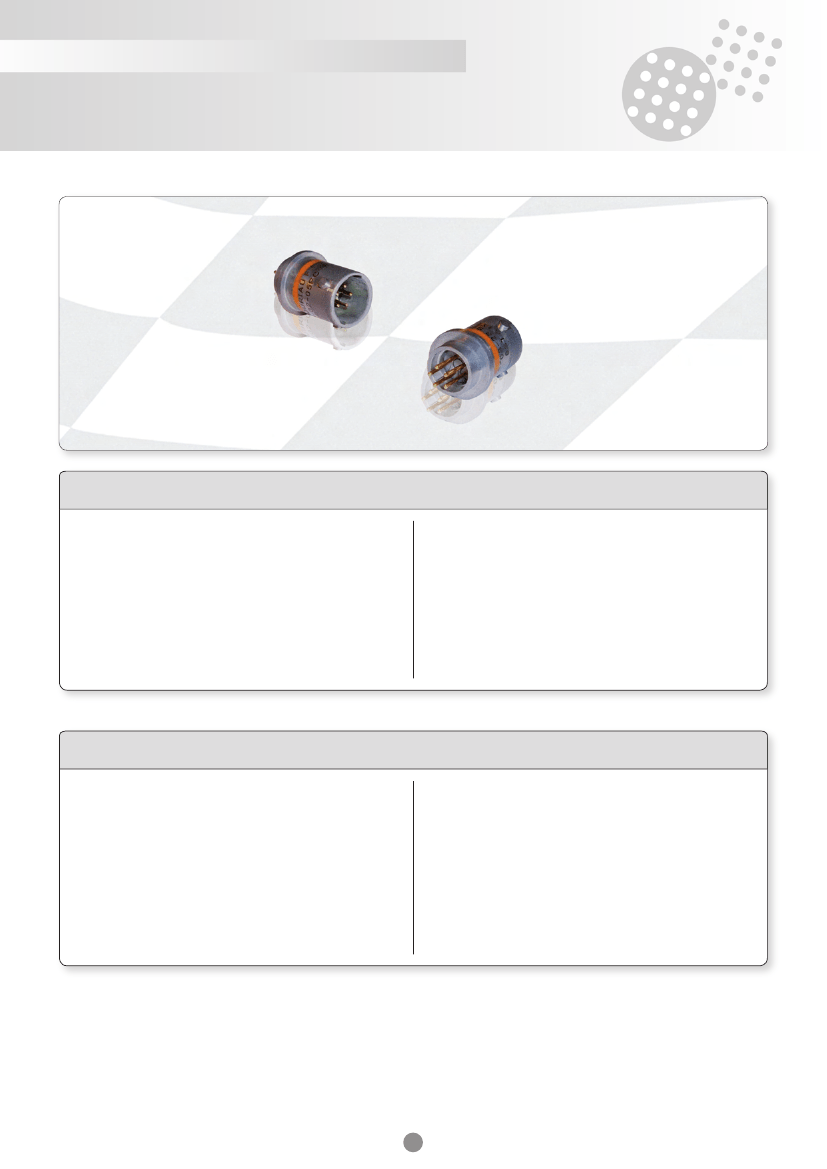

8STA Hermetic shell size 02

Features & Benefits

•

The smallest hermetic circular 5 way PC tail connector on

the market

• Lightweight 8STA connector

- Miniaturisation

Weight: 3 grammes

• Suitable for welding directly to sensor bodies

- Designed for weld fixing

• Excellent corrosion resistance

- Stainless steel body

• Excellent hermeticity

- Hermetic glass bead (1.10

-7

/s)

• Intermateable with standard 8STA plug size 02-05

- Standard plug 02-05

• Easy identification with colour coded bands

- 7

visual

keyway orientations

• Rapid & secure locking system with audible click

- Bayonet connector

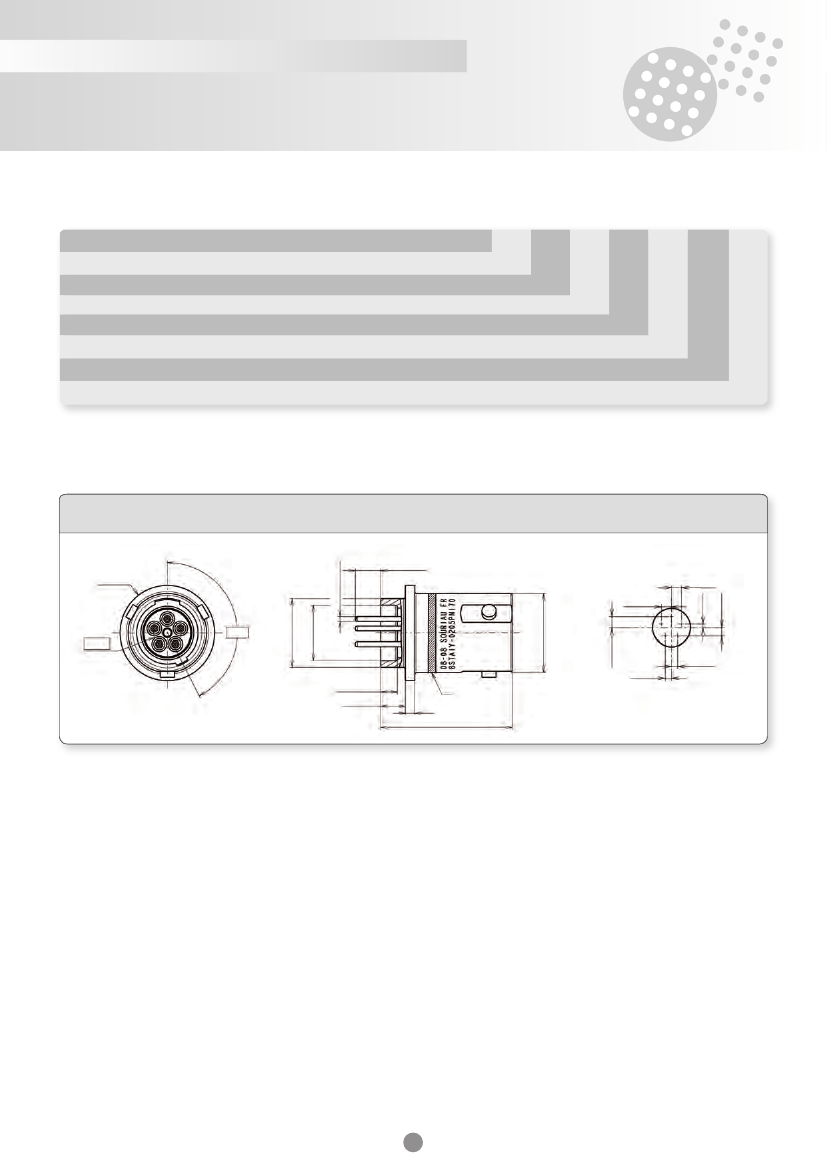

Technical characteristics

Mechanical

• Shell

• Shell plating

• Insulator

• Contact

• Contact plating

• Endurance

• Shock resistance

• Vibration resistance

Stainless steel

Passivated

Glass bead

Iron-Nickel (NiFe2)

Nickel

500 matings/unmatings

300 g for 3 ms and EIA-364-27

10 to 2000 Hz 30g

Electrical

• Test voltage

• Contact resistance

• Insulation resistance

• Contact rating

400 V (sea level)

2 mΩ

≥

5000 MΩ

(at

500 Vdc)

1.5 A

Climatic

• Temperature range

• Sealing mated connectors

• Salt spray

• Hermeticity

-55°C to +1

75°C

IP67

(1 metre for 30 min. minimum)

48 hours

1.10

-7
