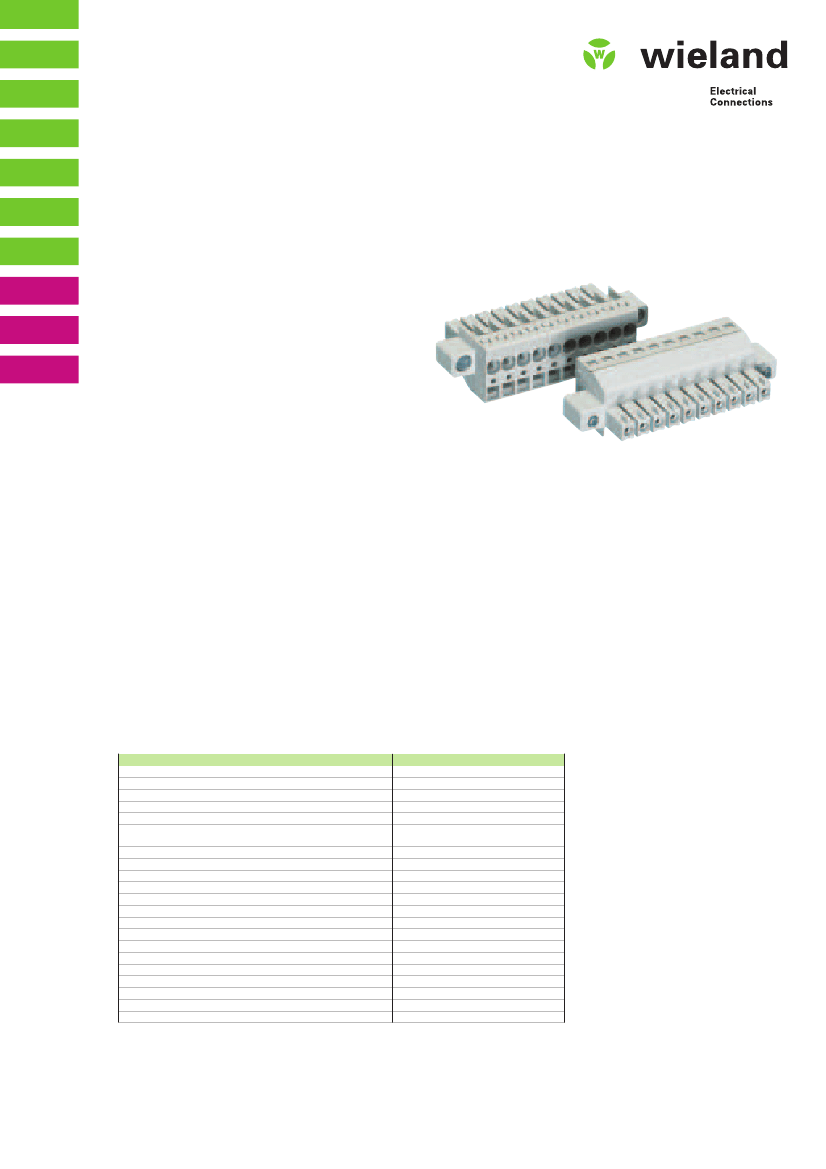

Type 8513 BFK...F
PCB plug connector with spring cage
connection and mounting flange
Characteristics
K
Plug connector for wire connection in spring
cage technology and with 3.50 mm spacing
K
For solid and fine-stranded wires
K
Conductor cross sections up to 1.50 mm
2
K
2 - 20 pole designs
K
Can be coded using standard coding pieces
K
Space for markings
K
Standard color pebble gray (similar to RAL 7032)
K
Additional colors: green, black
PC Board Terminals and Connectors
CUSTOMER INFORMATION
Advantages
K
K
K
K
High packing density
Vibration-proof
Force-fit connection to pin header
Compatible with pluggable connectors from competition
Description
wiecon
Type 8513 BFK F
PCB connector with spring clamp connection
Design
Spacing
Number of poles
Rated current
Rated voltage
Overvoltage category III / Pollution degree 3
Overvoltage category II / Pollution degree 2
UL, CSA, B, D
Rated peak voltage
Pollution degree
Material
Temperature range
Flammability according to UL 94
Conductor
– Rated cross section
– Wire range
– Insulation strip length
Pull-out forces
Approvals
monolithic
3.5 mm
2 - 20
8 A UL
5 A CSA
125 V (DIN EN 60664-1)
250 V (DIN EN 60664-1)
300 V
2.5 kV
3
PA 66
- 40° C – + 105° C
V0
1.5 mm
2
0.14 - 1.5 mm
2
solid/fine-stranded
8 mm
According to EN
CSA, UL
0142.3 H 11/06
Headquarters:
Wieland Electric GmbH
Brennerstraße 10-14
D-96052 Bamberg
Sales and Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax:
+49 (951) 93 24-198
www.wieland-electric.com
Technical information
Dimensions
Poles
10
L [mm]
45.4
Part No.
25.631.3253.0
25.631.3353.0
25.631.3453.0
25.631.3553.0
25.631.3653.0
25.631.3753.0
25.631.3853.0
25.631.3953.0
25.631.4053.0
25.631.4153.0
25.631.4253.0
25.631.4353.0
Type
8513BFK/14
8513BFK/15
8513BFK/16
8513BFK/17
8513BFK/18
8513BFK/19
8513BFK/20
Part no.
25.631.4453.0
25.631.4553.0
25.631.4653.0
25.631.4753.0
25.631.4853.0
25.631.4953.0
25.631.5053.0
AT Wieland
Components and system components
for the control cabinet
