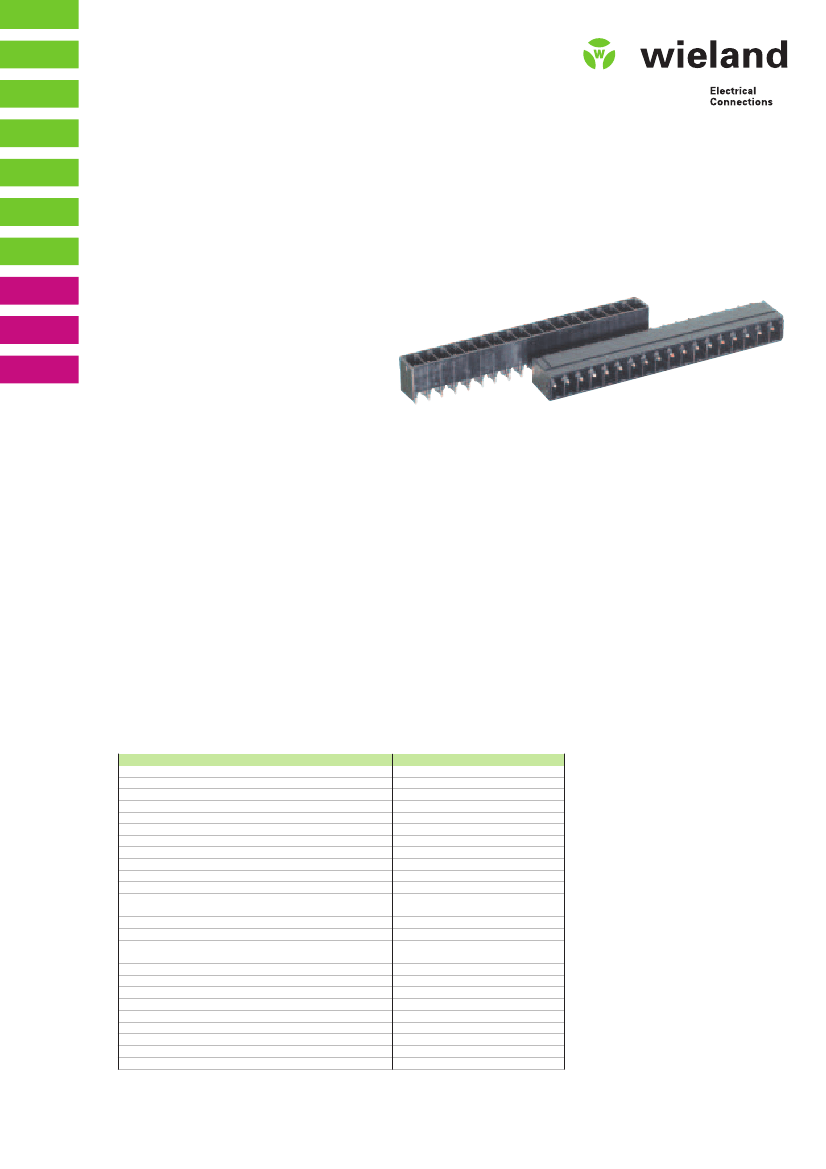

Type 8513S/...THR
Pin header for reflow process
Characteristics
K
Particularly suitable for the through-hole
reflow process of SMT technology
K
High temperature stability in
accordance with EN 61760-1
K
Highly accurate spacing that fits
the PC board and mating connector
K
Ready for automatic placement
K
Tape on reel, 2 - 12 pole
K
Straight and angled
designs, 2 - 20 pole
K
Standard color black (similar to RAL 9005)
PC Board Terminals and Connectors
CUSTOMER INFORMATION
Advantages
K
K
K
K
K
K
Applicable in the lead-free reflow process
High solder pad distances due to 0.8 x 0.8 pin
High CTI value
Placement possible on both sides of the PCB
Max. 380 pieces per reel
No manual or wave soldering
Description
wiecon
Type 8513S/...G/W THR
PCB pin header
Spacing
Number of poles
Box
Tape on reel
Tray
Pieces per reel
Straight
Angled
Rated current
Rated voltage
Rated peak voltage
Pin dimensions
Pin lengths
Pollution degree
Material
– CTI
– Halogen-free
– RoHS
Temperature range
– Dimensional stability at max. temperature
Flammability according to UL 94
Approvals
3.5 mm
2 - 20
2 - 12
Available on request
220 pieces
380 pieces
8 A (UL) 5 A (CSA)
125 V (DIN EN 60664-1)
300 V (UL, CSA)
2.5 kV
0.8 x 0.8 mm
2.6 mm, single-side placement
1.5 mm, double-side placement
3
PPA
> 600
yes
compliant
- 40° C – + 280° C
+ 280° C
V0
UL, CSA
0142.0 H 11/06
Headquarters:
Wieland Electric GmbH
Brennerstraße 10-14
D-96052 Bamberg
Sales and Marketing Center:
Wieland Electric GmbH
Benzstraße 9
D-96052 Bamberg
Phone +49 (951) 93 24-0
Fax:
+49 (951) 93 24-198
www.wieland-electric.com
Technical information
Temperature profile
350
25s bei 265°C
Temperature [°C]
300
250
200
150
100
50
0
0,0
50,0
100,0
150,0
200,0
250,0
300
217
M.P (Sn Ag 3,5)
.
< 4°C/s
< 4°C/s
< 4°C/s
15s bei 235°C
max. 60 s
Time [sec.]
AT Wieland
Components and system components
for the control cabinet
• DIN rail terminal blocks
– with screw connection
– with spring clamp connection
– with IDC connection
• Safety
– Safety relays
– Modular safety systems
• Fieldbus components
• Interface
– Power supplies
– Overvoltage protection
– Measuring and monitoring relays
– Time and switching relays
– Coupling relays/solid state relays
– Analog modules
– Passive interfaces
Components and system components
for field applications
• Remote automation
– Remote power distribution
– Remote fieldbus interface
• Industrial multipole connectors
– Modular multipole connectors
– High-density multipole connectors
– High-current multipole connectors
– Multipole connectors for
hazardous areas
– Bushings for control cabinets
– D-Sub connectors
• Round connectors
Empty housings and appliance
connectors/terminal strips
AT Schleicher
• PLC systems and CNC based control
systems
• Operator panels
• Application engineering &
system solutions
• Customized products
BIT Wieland
• Building installation systems
– Mains connectors IP20/IP65...IP68
– Bus connectors
– Combined connectors
– Low-voltage connectors
– Flexible flat cable systems
– Distribution systems
– Switching devices for EIB/KNX, LON,
Ethernet, radio control
– DIN rail terminal blocks for
electrical installations
– Overvoltage protection
PCB connectors Wieland
• PC board terminals/PC board connectors
– with screw connection
– with spring clamp connection
– with TOP connection
max. Profil / maximum profile
empfohlenes Profil / recommended profile
min. Profil / minimum profile
Schmelzpunkt / Melting Point (M.P
.)

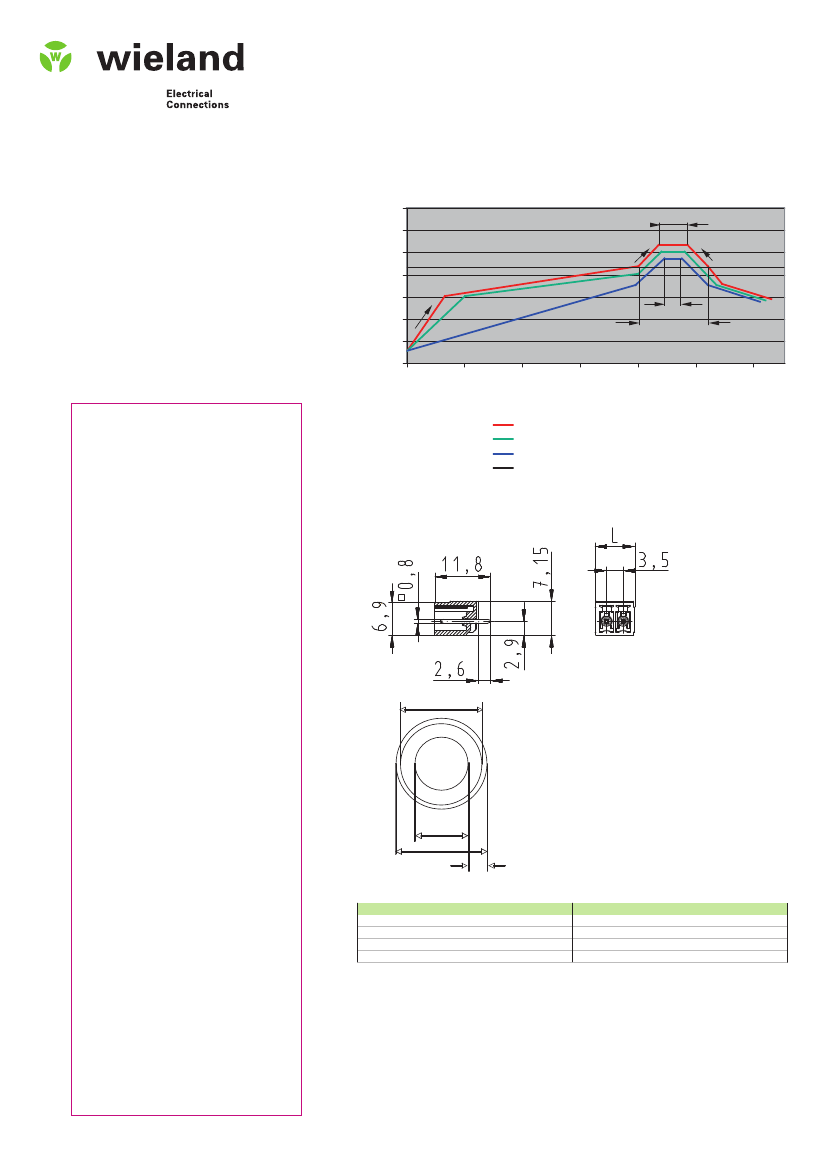

Dimensions
d
s
d
s
=
d
h
+ 2R - 0,1
d
s
= mask hole
d
h
= bore hole
d
p
= solder pad
R
= rest ring
d
h
1,2
d
p
2,0
R
0,35 0,4
xx = number of poles
Packaging:
8513S/2 G THR OB
8513S/3 G THR OB
8513S/2 W THR OB
8513S/3 W THR OB
Box
25.646.0206.0
25.646.xx06.0
25.647.0206.0
25.647.xx06.0
8513S/2
8513S/3
8513S/2
8513S/3
G THR OB
G THR OB
W THR OB
W THR OB
Tape on reel
25.646.0216.0
25.646.xx16.0
25.647.0216.0
25.647.xx16.0
P r o d u c t
R a n g e
