DL85B75-TP: DescriptionZener Diode, 75V V(Z), 2%, 1.3W, Silicon, Unidirectional, MELF-2; CategoryDiscrete semiconductor diode; File Size131KB，3 Pages; ManufacturerMicro Commercial Components (MCC); Environmental Compliance

Download Datasheet Parametric View All

DL85B75-TP Overview

Zener Diode, 75V V(Z), 2%, 1.3W, Silicon, Unidirectional, MELF-2

DL85B75-TP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Micro Commercial Components (MCC)
Parts packaging code	MELF
package instruction	MELF-2
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	LOW NOISE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	O-LELF-R2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1.3 W
Certification status	Not Qualified
Nominal reference voltage	75 V
surface mount	YES
technology	ZENER
Terminal surface	Matte Tin (Sn)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	2%
Working test current	4 mA

Preview

Download Datasheet

View All

MCC

TM

Micro Commercial Components

omponents

20736 Marilla

Street Chatsworth

!"#

$ % !"#

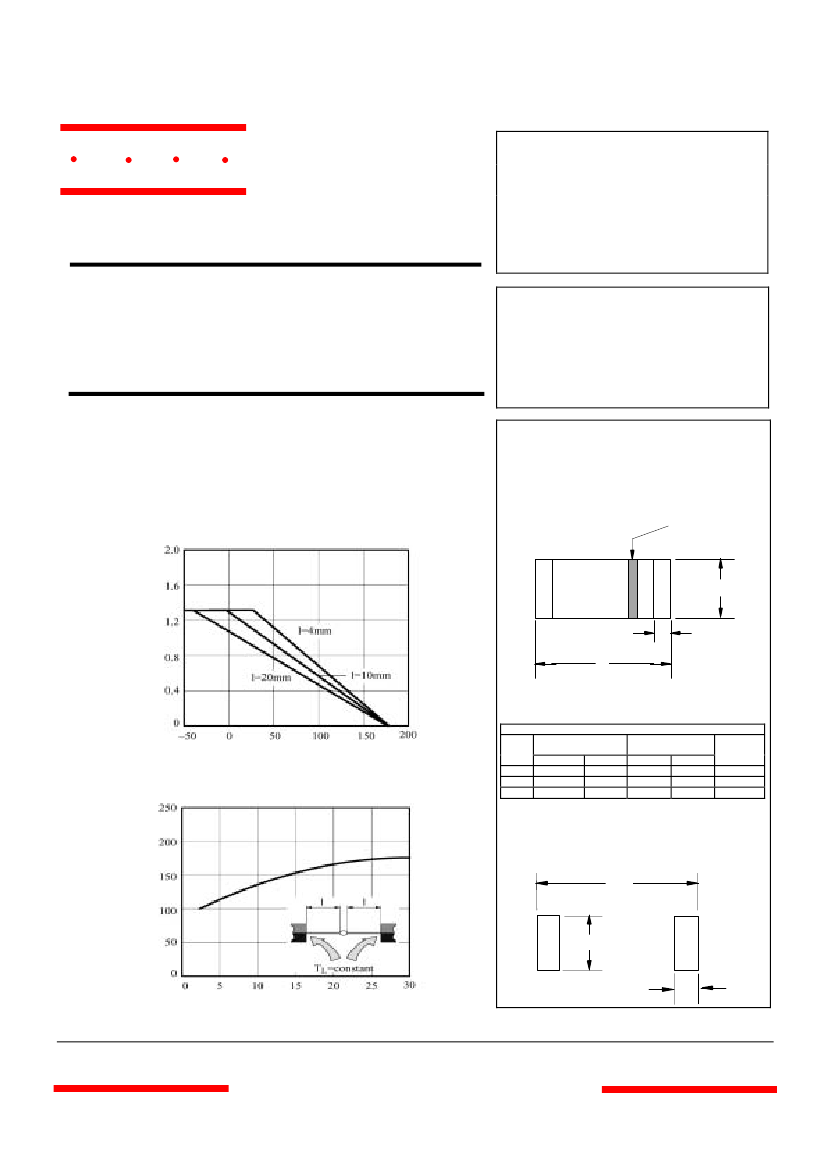

DL85C Series

Features

•

Low noise

Very high stability

Low reverse current

Very sharp reverse characteristic

Lead Free Finish/RoHS Compliant(Note 1) ("P" Suffix designates

RoHS Compliant. See ordering information)

1.3 Watt

Zener Diode

2.7 to

75

Volts

MELF

Maximum Ratings

Operating Temperature: -65 to +175

Storage Temperature: -65 to +175

DC Power Dissipation: 1.3 Watt @ L=4mm T

L

25

Forward Voltage @ 200mA: 1.0 Volts

Thermal Resistance: 110K/W Junction to Ambient

Figure1. Power Dissipation vs. Ambient Temperature

Ptot –Total Power Dissipation (W)

Cathode Mark

C

B

A

Tamb – Ambient Temperature( )

Figure2. Thermal Resistance vs. Lead Length

DIM

A

B

C

INCHES

MIN

.190

---

.095

MAX

.205

.022

.105

MM

MIN

4.80

---

2.40

MAX

5.20

.55

2.67

NOTE

Nominal

∅

R

thJA

– Therm. Resist. Junction/

Ambient (K/W)

.220”

.115”

.035”

L– Lead Length (mm)

Notes:1.Lead in Glass Exemption Applied, see EU Directive Annex 5.

www.mccsemi.com

Revision:

2

1 of 3

2008/02/01
