A-4030-02A197

Description
2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size49KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

A-4030-02A197 Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

A-4030-02A197 Parametric

Parameter NameAttribute value
Contact materialsBRASS
Terminal spacing2.54 mm
Total number of contacts2
Lead-freeYes
EU RoHS regulationsYes
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer Series4030
Contact surface matchingNOT SPECIFIED
Contact coated terminalsNOT SPECIFIED
Connection TypeDual board connector
Connector male and femalePin
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation methodstraight
Installation typeBOARD
Number of load rows1
Terminal typewelding
UL flammability code94V-0

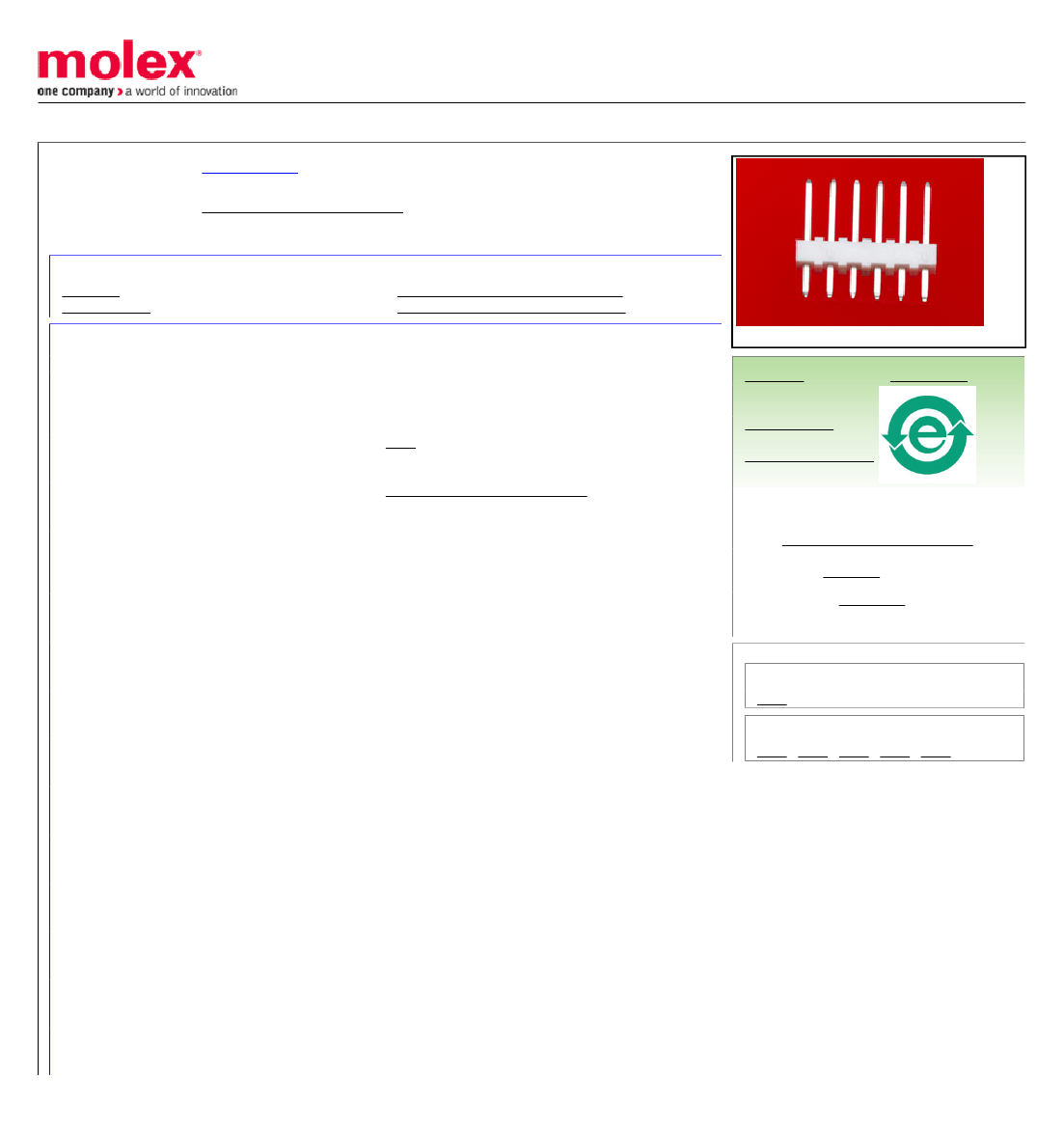

This document was generated on 04/25/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
22-03-2021
Active
KK® Interconnect System - Molex
KK® 254 Wire-to-Board Header, Single Row, Vertical, 2 Circuits, PA Polyamide Nylon,
Tin (Sn) Plating
Documents:
3D Model
Drawing (PDF)
Product Specification PS-10-07 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
LR19980
E29179
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Agency Certification
CSA
UL
General
Product Family
Series
Application
MolexKits
Overview
Product Name
UPC
PCB Headers
4030
Board-to-Board, Signal, Wire-to-Board
Yes
KK® Interconnect System - Molex
KK® 254
800753591837
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Compliant
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PC Tail Length
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Polarized to Mating Part
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
No
2
2
Natural (White)
25
94V-0
No
None
Brass
Tin
Tin
Nylon
0.139/g
1
Vertical
3.43mm
No
None
1.60mm
Bag
2.54mm
2.54mm
5.080µm
No
No
No
Yes
No
See Product Specification
Through Hole
Search Parts in this Series
4030Series
Mates With
2695 , 6471 , 7880 , 4455 , 7720
