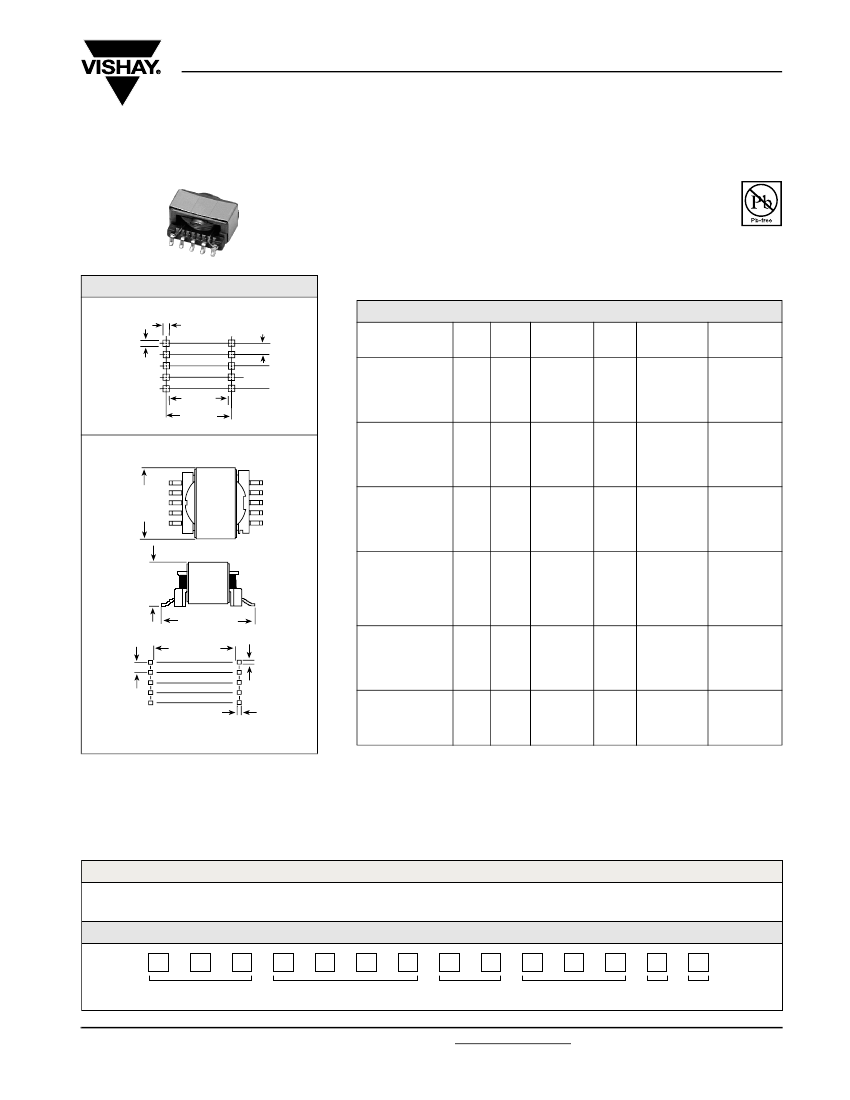

LPE-5047
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped Custom Configurations Available
ELECTRICAL SPECIFICATIONS
(Multiple winds are connected in parallel)
Inductance Range:
10 µH to 68 000 µH, measured at 0.10 V RMS
at 10 kHz without DC current, using an HP 4263A or HP 4284A
impedance analyzer
DC Resistance Range:
0.03
Ω
to 24.1
Ω,
measured at + 25 °C ± 5 °C
Rated Current Range:
2.29 amps to 0.07 amps
Dielectric Withstanding Voltage:
500 V RMS, 60 Hz, 5 seconds
RoHS
COMPLIANT
DIMENSIONS
in inches [millimeters]
Pad Layout
0.045 [1.14] Pad Dimensions
Typical, 10 places
0.079 [2.01]
0.045
[1.14]
0.414
[10.52]
0.459
[11.66]
Reference Only
Typical 4
places
STANDARD ELECTRICAL SPECIFICATIONS
MODEL
Ungapped
Models
LPE-5047-151NA
LPE-5047-221NA
LPE-5047-331NA
LPE-5047-471NA
LPE-5047-681NA
LPE-5047-102NA
LPE-5047-152NA
LPE-5047-222NA
LPE-5047-332NA
LPE-5047-472NA
LPE-5047-682NA
LPE-5047-103NA
LPE-5047-153NA
LPE-5047-223NA
LPE-5047-333NA
LPE-5047-473NA
LPE-5047-683NA
Gapped Models
LPE-5047-100MB
LPE-5047-150MB
LPE-5047-220MB
LPE-5047-330MB
LPE-5047-470MB
LPE-5047-680MB
LPE-5047-101MB
LPE-5047-151MB
LPE-5047-221MB
LPE-5047-331MB
LPE-5047-471MB
LPE-5047-681MB
LPE-5047-102MB
LPE-5047-152MB
LPE-5047-222MB
LPE-5047-332MB
LPE-5047-472MB
IND.
(µH)
150
220
330
470
680
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
68 000
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
IND.
TOL.
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 30 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
± 20 %
DCR MAX. RATED* SATURATING
SCHEMATIC MAX. DC CURRENT CURRENT**
LETTER
(Ohms)
(Amps)
(Amps)
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
A
B
B
B
C
D
D
D
D
E
E
E
E
E
E
E
E
E
0.20
0.24
0.29
0.35
0.42
0.51
0.63
0.76
1.00
2.24
2.70
3.27
6.26
7.58
9.50
18.5
24.1
0.03
0.04
0.05
0.09
0.13
0.15
0.24
0.37
0.55
0.85
1.29
1.96
2.38
3.66
5.47
8.48
13.2
0.79
0.72
0.65
0.59
0.54
0.49
0.44
0.40
0.35
0.24
0.21
0.19
0.14
0.13
0.11
0.08
0.07
2.29
2.07
1.68
1.35
1.11
1.01
0.81
0.65
0.53
0.43
0.35
0.28
0.26
0.21
0.17
0.14
0.11
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
2.690
2.230
1.860
1.540
1.300
1.085
0.900
0.740
0.610
0.500
0.420
0.350
0.290
0.240
0.195
0.160
0.135
Dimensional Outline
6
0.472
[11.99]
Max.
10
5
1
0.248
[6.30]
Max.
0.525 [13.34]
Max.
0.437 [11.10]
0.079
[2.01]
Typ.
0.028
[0.71]
0.028
[0.71]
Foot print Diagram
NOTE:
Pad layout guidelines per MIL-STD-275E
(printed wiring for electronic equipment).
Tolerances: xx ± 0.01" [± 0.25 mm]; xxx ± 0.005"
[± 0.12 mm]
The underside of these components contains
metal and thus should not come in contact with
active circuit traces.
* DC current that will create a maximum temperature rise of 30 °C when applied at + 25 °C
ambient. ** DC current that will typically reduce the initial inductance by 20 %
UNGAPPED MODELS:
Highest possible inductance with the lowest DCR and highest
Q capability. Beneficial in filter, impedance matching and line coupling devices.
GAPPED MODELS:
Capable of handling large amounts of DC current, tighter
inductance tolerance with better temperature stability than ungapped models. Beneficial
in DC to DC converters or other circuits carrying DC currents or requiring inductance
stability over a temperature range.
DESCRIPTION
LPE
5047
1000 µH
± 30 %
A
ER
e2
MODEL SIZE INDUCTANCE
VALUE
INDUCTANCE TOLERANCE CORE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
L
P
E
5
0
SIZE
4
7
E
R
1
0
INDUCTANCE
VALUE
2
N
TOL.
U
CORE
PRODUCT FAMILY
PACKAGE
CODE
Document Number: 34065
Revision: 17-Apr-07
For technical questions, contact: magnetics@vishay.com
www.vishay.com
157
LPE-5047
Vishay Dale
Surface Mount Transformers/Inductors,
Gapped and Ungapped Custom Configurations Available

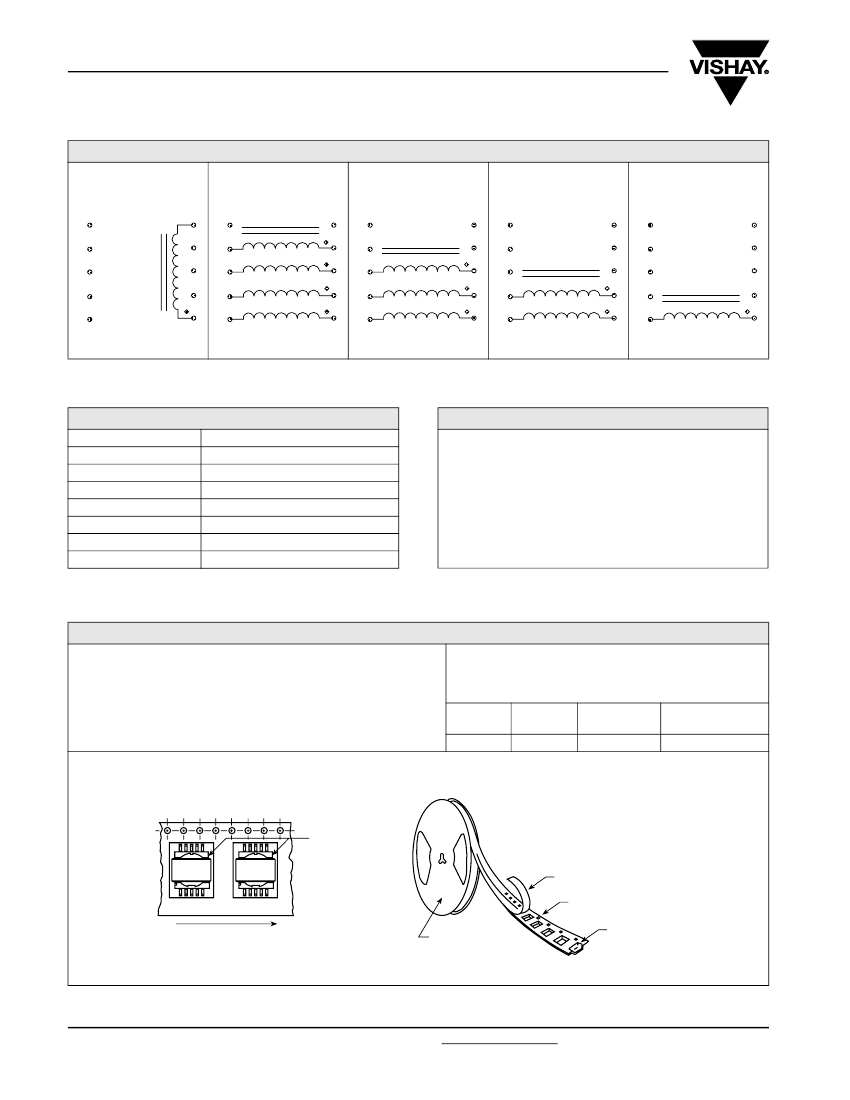

SCHEMATIC (TOP VIEW)
Schematic A
6
7
8
9
10
5
4
3
2
6
7
8
9
Schematic B
5
4
3
2
6
7
8
9
Schematic C
5
4
3
2
6
7
8
9
Schematic D
5
4
3
2
6
7
8
9
Schematic E
5
4
3
2
1
1 10
1 10
1 10
1 10
NOTE:
Schematic A is for Ungapped LPE Series
ENVIRONMENTAL PERFORMANCE
TEST
Thermal Cycling
High Humidity
Soldering Heat
Mechanical Shock
Vibration
Solderability
CONDITIONS
Withstands - 55 °C to + 125 °C
PART MARKING
Operating Temperature
- 55 °C to + 125 °C*
85 %
Tested to + 230 °C
Per MIL-STD-202, Method 213 (100G)
Per MIL-STD-202, Method 204 (20G)
Per industry standards
- Vishay Dale
- Date code
- Marking code (Suffix of model #)
- Pin 1 indicator
* Must be checked in end use application
PACKAGING
TAPE SPECIFICATIONS:
Carrier Tape Type: Conductive
Cover Tape Type: Anti-static
Cover Tape Adhesion to Carrier: 40 ± 30 grams
REEL SPECIFICATIONS:
Diameter (flange): 13" [330.2 mm]
Maximum Width (over flanges): 1.197" [30.4 mm]
Tape and Reel Orientation
STANDARDS:
All embossed carrier tape packaging will be
accomplished in compliance with latest revision of EIA-481
“Taping of Surface Mount Components for Automatic
Placement”.
MODEL
LPE-5047
TAPE
WIDTH
24 mm
COMPONENT
PITCH
16 mm
UNITS PER
13 INCH REEL
600
Pin 1
Indicator
Cover Tape
Carrier Tape
USER DIRECTION OF FEED
Embossed Cavity
Label Area
NOTE:
Top view shown with cover tape removed
www.vishay.com
158
For technical questions, contact: magnetics@vishay.com
Document Number: 34065
Revision: 17-Apr-07
