Wall-Mount EnclosurEs

FUSION G7™ aNd acceSSOrIeS

Mild stEEl

Wall-Mount EnclosurEs

FusIon G7™ and accEssorIEs

Spec-00539

63.422.2211

763.422.2600

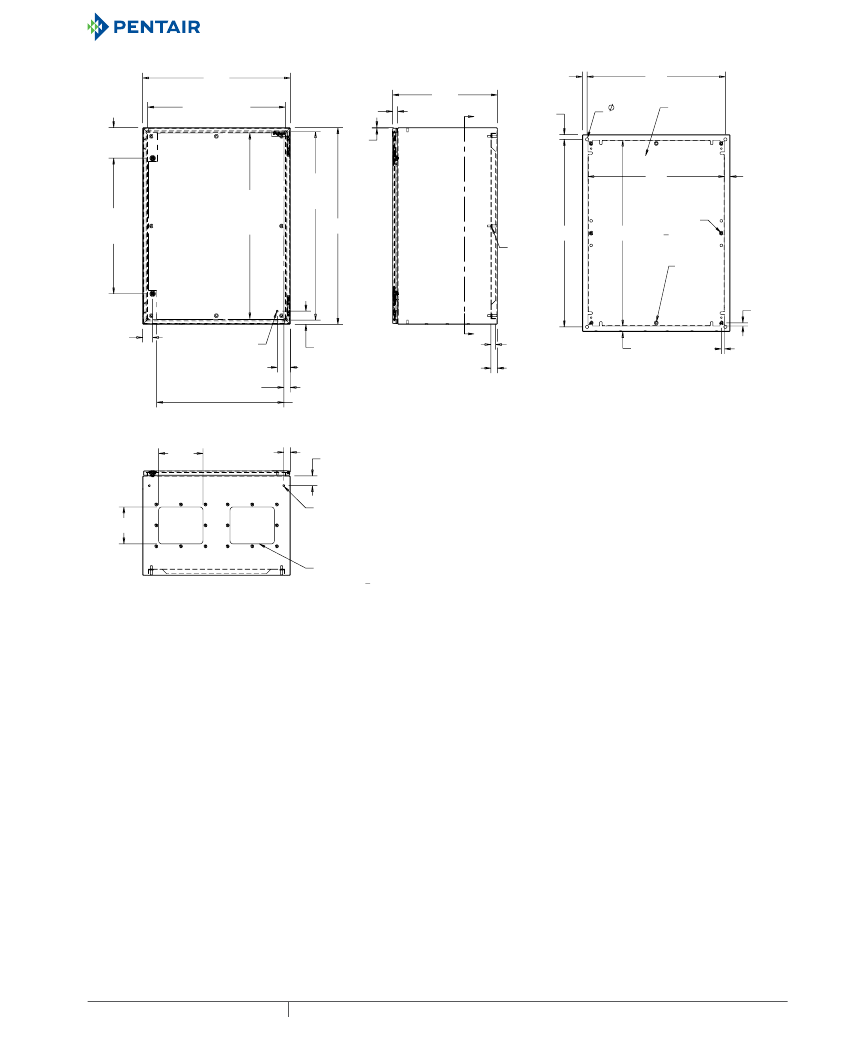

Fusion G7™, typE 4, 12

industry standards

Wall-mounting brackets required to maintain UL/CSA external

mounting requirement.

•

UL 508A Listed; Type 4, 12; File No. 61997

cUL Listed per CSA C22.2 No. 94; Type 4, 12; File No. 61997

NEMA/EEMAC Type 4, 12, 13

CSA File No. 42186: Type 4, 12

IEC 60529, IP66

Quarter-turn latch(es) with 3-mm double-bit insert

Corner-formed door

Simple, easy-to-remove and install hinge pins with captivation

clip

High-torque threadless studs and fasteners on door

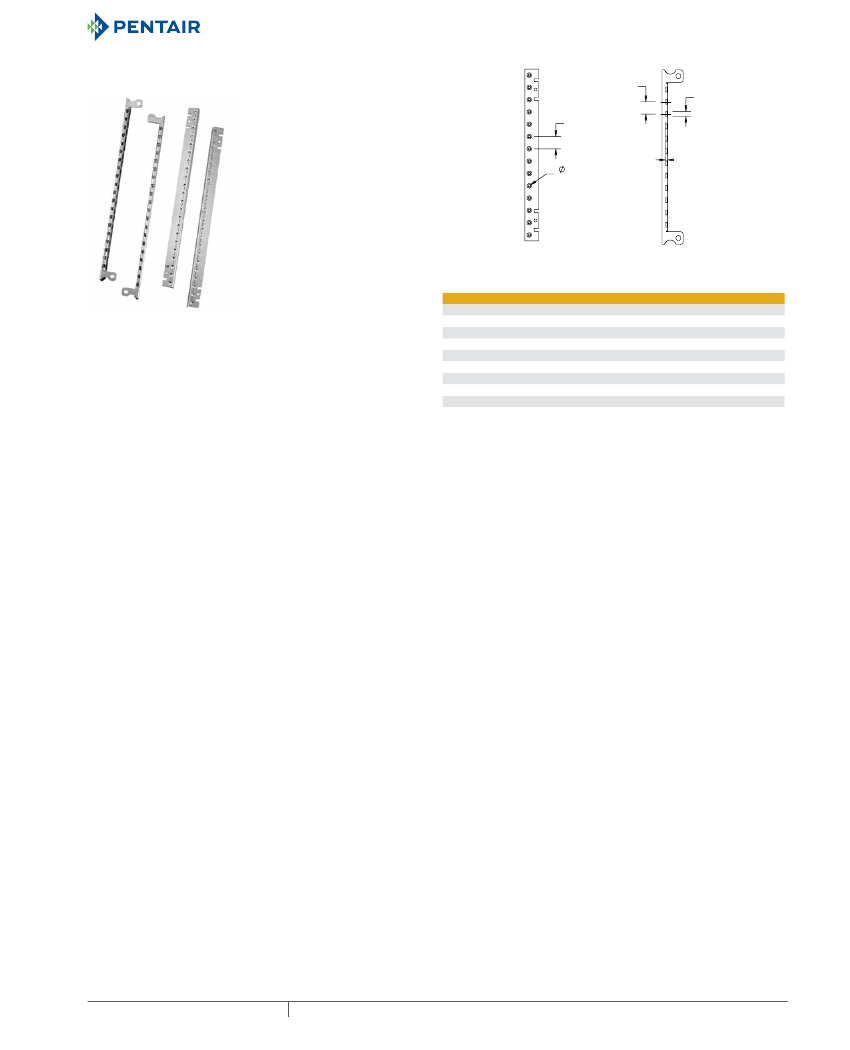

Wide assortment of user-friendly internal accessories to

increase internal mounting area capability and design flexibility

Includes hardware package with grounding and sealing hardware

and illustrated instruction sheet

Constructed from 1.2-mm, 1.5-mm and 2-mm thick steel (18, 16

and 14 gauge) (see table)

Seamless foam-in-place gasket

Reversible door with sealed hinges and hinge brackets

Gland plate(s) for enclosure bottom

Bonding provision on door; grounding studs (2) on body

Full-height galvanized steel back panel included

application

spEciFications

•

Innovative, metric-dimensioned wall-mount enclosure designed

to house and protect electrical and electronic components

in industrial environments. Provides traditional enclosure

functionality with scalable internal component mounting capability

using the optional internal mounting system and accessory

components.

FEaturEs

•

Ninety-degree external formed flange trough collar around body

RAL 7035 textured, light-gray polyester powder paint inside and out

opening

Panel is galvanized

Three-point latching on enclosures 1000-mm high and taller

Door alignment device on doors with 3-point latching and 800 mm

Bulletin: A4G

or wider

Pre-cut gland plate opening(s) in enclosure bottom

FinisH

Mild stEEl

SUBJECT TO CHANGE WITHOUT NOTICE

EQUIPMENT PROTECTION SOLUTIONS

Spec-00539 F
