Low Signal Relay
G6H

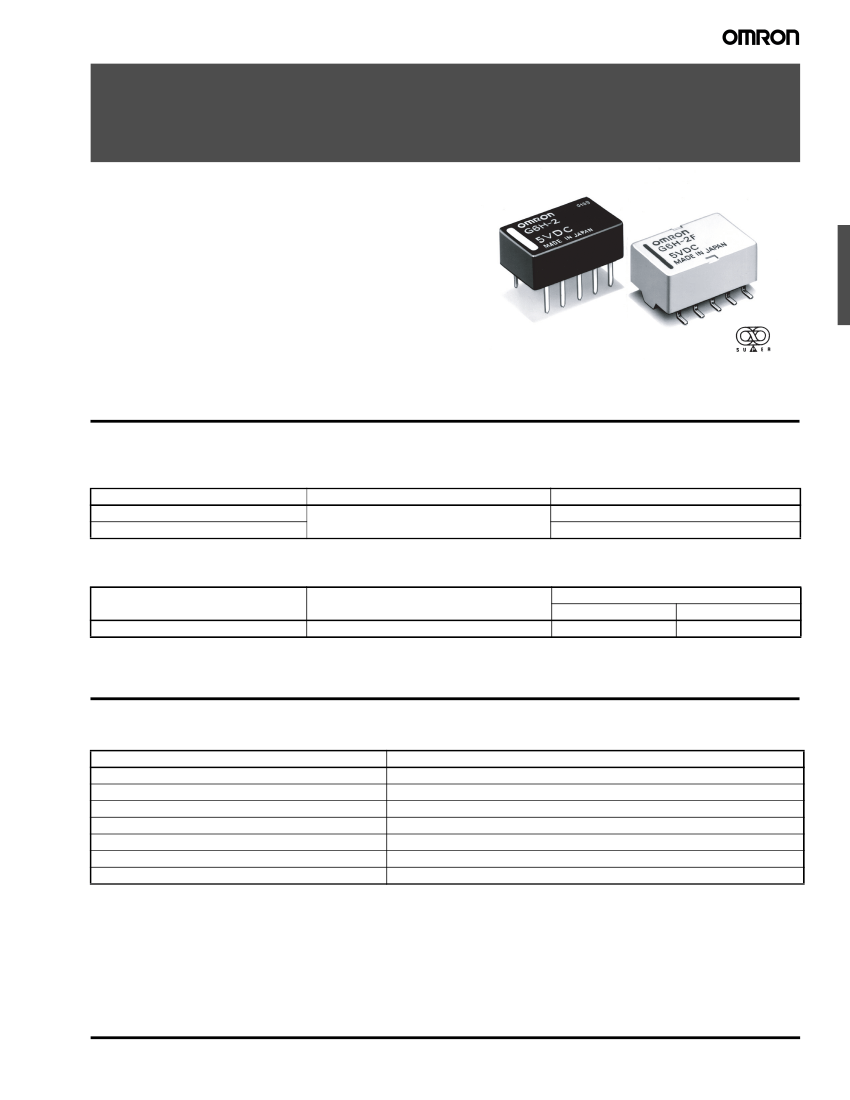

Ultra-compact, Ultra-sensitive DPDT Relay
• Compact size and low 5 mm profile.
• Low thermoelectromotive force.
• Low magnetic interference enables high-density mounting.
• Utilizes Omron’s moving-loop design.
• Highly stable magnetic circuit for latching endurance and
excellent resistance to vibration and shock.
• High sensitivity with low nominal power consumption.
• Single or dual coil latching types available.
• RoHS Compliant
R
C
Ordering Information
To Order: Select the part number and add the desired coil voltage rating, (e.g., G6H-2-DC6).
■
Non-latching
Terminal Type
Through-hole
Surface mount
DPDT
Contact form
G6H-2
G6H-2F
Model
■
Latching
Terminal Type
Through-hole
DPDT
Contact form
G6HU-2
Model
Single coil latching
Dual coil latching
G6HK-2
Specifications
■
Contact Data
Load
Rated load
Contact material
Carry current
Max. operating voltage
Max. operating current
Max. switching capacity
Min. permissible load (See note)
Ag (Au clad)
1A
125 VAC, 110 VDC
1A
62.50 VA, 33 W
10
μA,
10 mVDC
Resistive load (p.f. = 1)
0.50 A at 125 VAC, 1 A at 30 VDC
Note:
P level:
λ
60
= 0.1 x 10
–6
/operation
This value was measured at a switching frequency of 120 operations/min and the criterion of contact resistance is 50
Ω.
This value may vary
depending on the operating environment. Always double-check relay suitability under actual operating conditions.
Low Signal Relay
G6H
49
DISCONTINUED
■
Coil Data
Non-latching Type (G6H-2, G6H-2F)
Rated voltage
(VDC)
Rated current
(mA)
Coil
resistance
(Ω)
64.30
178
257
579
1,028
2,880
8,228
Coil inductance
(ref. value) (H)
Armature
OFF
0.025
0.065
0.11
0.24
0.43
1.20
—
Armature
ON
0.022
0.058
0.09
0.20
0.37
1.0
—
170% max. at
23°C
140% max. at
23°C
Approx. 200
Approx. 300
75% max.
Pick-up
voltage
Dropout
voltage
% of rated voltage
10% min.
200% max. at
23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 140
3
5
6
9
12
24
48
46.70
28.10
23.30
15.50
11.70
8.30
5.8
Single Coil Latching Type (G6HU-2)
Rated voltage
(VDC)
Rated current
(mA)
Coil
resistance
(Ω)
90
250
360
810
1,440
3,840
Coil inductance
(ref. value) (H)
Armature
OFF
0.034
0.11
0.14
0.33
0.60
1.6
Armature
ON
0.029
0.09
0.12
0.28
0.50
1.3
Approx. 150
75% max.
Set pick-up
voltage
Reset pick-up
voltage
% of rated voltage
75% max.
180% max. at
23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 100
3
5
6
9
12
24
33.30
20
16.70
11.10
8.30
6.25
Dual Coil Latching Type (G6HK-2)
Rated voltage Rated current
(VDC)
(mA)
Coil
resistance
(Ω)
45
125
180
405
720
1,920
Coil inductance
(ref. value) (H)
Armature
OFF
0.014
0.042
0.065
0.16
0.3
0.63
Armature
ON
0.0075
0.023
0.035
0.086
0.16
0.33
130% max. at
23°C
Approx. 300
75% max.
Set pick-up
voltage
Reset pick-up
voltage
% of rated voltage
75% max.
160% max. at
23°C
Maximum
voltage
Power
consumption
(mW)
Approx. 200
3
5
6
9
12
24
Note: 1.
2.
3.
4.
66.70
40
33.30
22.20
16.70
12.50
The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of
±10%.
Operating characteristics are measured at a coil temperature of 23°C with a tolerance of
±10%.
The maximum voltage is the highest voltage that can be imposed on the relay coil.
The maximum voltage that can be be applied when using the G6H-2F (at 85°C) is 115% (3 to 12 V) or 105% (24 V) of the rated voltage.
50
Low Signal Relay
G6H
DISCONTINUED
■
Characteristics
Contact resistance (See note 1)
Operate (set) time (See note 2)
Release (reset) time (See note 2)
Min. set/reset signal width
Operating frequency
(max.)
Mechanical
Electrical
50 mΩ max. (through-hole); 60 mΩ max. (surface mount)
Non-latching: 3 ms max. (approx. 2.0 ms)
Latching: 3ms max. (approx. 1.5 ms)
Non-latching: 2 ms max. (approx. 1.0 ms)
Latching: 3ms max. (approx. 1.5 ms)
5ms min. (at 23°C)
36,000 operations/hour
1,800 operations/hour (under rated load)
1,000 MΩ max. (at 500 VDC)
1,000 VAC, 50/60 Hz for 1 minute between coil and contacts
1,000 VAC, 50/60 Hz for 1 minute between contacts of different poles
750 VAC, 50/60 Hz for 1 minute between contacts of same pole
125 VAC, 50/60 Hz for 1 minute between set and reset coils (G6HK-2)
Surge withstand voltage
Vibration
Shock
Ambient temperature
Humidity
Service life
Weight
Mechanical
Electrical
1,500 V (10 x 160
μs)
between contacts of same polarity (conforms to FCC Part 68)
Mechanical durability
10 to 55 Hz; 5 mm double amplitude
Malfunction durability
10 to 55 Hz; 3 mm double amplitude
Mechanical durability
1,000 m/s
2
(approx. 100 G)
Malfunction durability
500 m/s
2
(approx. 50 G)
-40° to 70°C with no icing
5% to 85% RH
100 million operations min. (at 36,000 operations/hr)
200,000 operations min. (at 1,800 operations/hr) See “Characteristic Data”
Approx. 1.5 g
Insulation resistance (See note 3)
Dielectric strength
Note: 1.
The contact resistance was measured with 10 mA at 1 VDC with a fall-of-potential method.
2.
Values in parentheses are typical values unless otherwise stated.
3.
The insulation resistance was measured with a 500-VDC megohmmeter applied to the same parts as those for checking the dielectric strength.
(The insulation resistance between the set and reset coil (G6HK-2), however, is 100MΩ min. when measured with a 125-VDC megohmmeter).
4.
The above values are initial values.
■
Approvals
UL Recognized (File No. E41515) / CSA Certified (File No. LR31928) - - Ambient Temp. = 40°C
Type
G6H-2(F)
G6HU-2
G6HK-2
DPDT
Contact form
Coil rating
1.50 to 48 VDC
Contact ratings
2 A, 30 VDC
0.30 A, 110 VDC
0.50 A, 125 VAC
Note: 1.
The rated values approved by each of the safety standards (e.g., UL, CSA, TUV) may be different from the performance characteristics
individually defined in this catalog.
2.
In the interest of product improvement, specifications are subject to change.
Low Signal Relay
G6H
51
DISCONTINUED
■

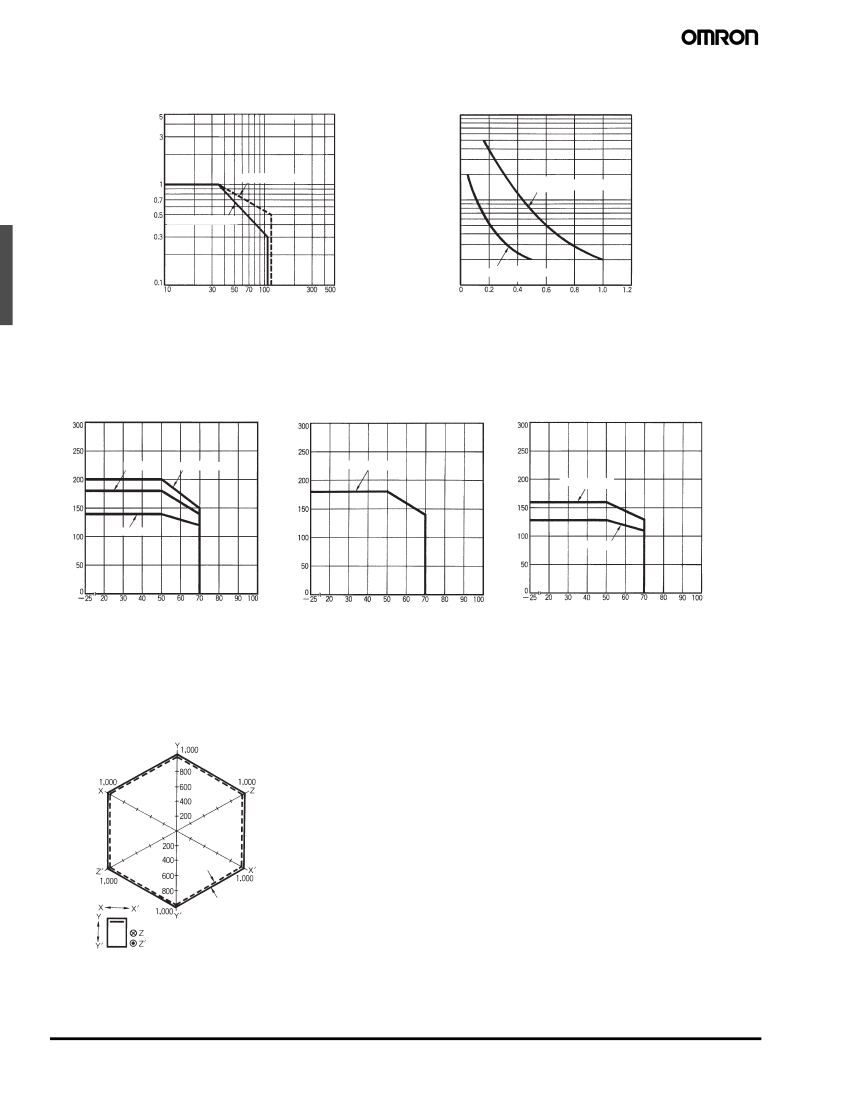

Characteristic Data
Maximum Switching Capacity
Rated operating current (A)
Electrical Service Life
Service life (x10
3
operations)
10,000
7,000
5,000
3,000
30-VDC resistive load
1,000
700
500
300
125-VAC resistive load
100
AC resistive load
DC resistive load
Rated operating
voltage
(V)
Rated operating current (A)
Ambient Temperature vs. Maximum Coil Voltage
Non-latching
(G6H-2)
Maximum coil
voltage
(%)
Single Coil Latching
(G6HU-2)
Maximum coil
voltage
(%)
Maximum coil
voltage
(%)
Dual Coil Latching
(G6HK-2)
24
VDC
3 to 24
VDC
3 to 24
VDC
3 to 12
VDC
48
VDC
24
VDC
Ambient temperature (°C)
Ambient temperature (°C)
Ambient temperature (°C)
Note:
The maximum coil
voltage
refers to the maximum
value
in a
varying
range of operating power
voltage,
not a continuous
voltage.
Malfunctioning Shock Resistance
(G6H-2)
5
VDC
Number
of Units: 10
NC
contact
Shock direction
NO
contact
Condition: The Units
were
shocked at the rate of 500 m/s
2
three times each in the
±X, ±Y,
and
±Z
directions
with
and
without voltage
imposed on the Units
until
the Units malfunctioned.
52
Low Signal Relay
G6H
DISCONTINUED

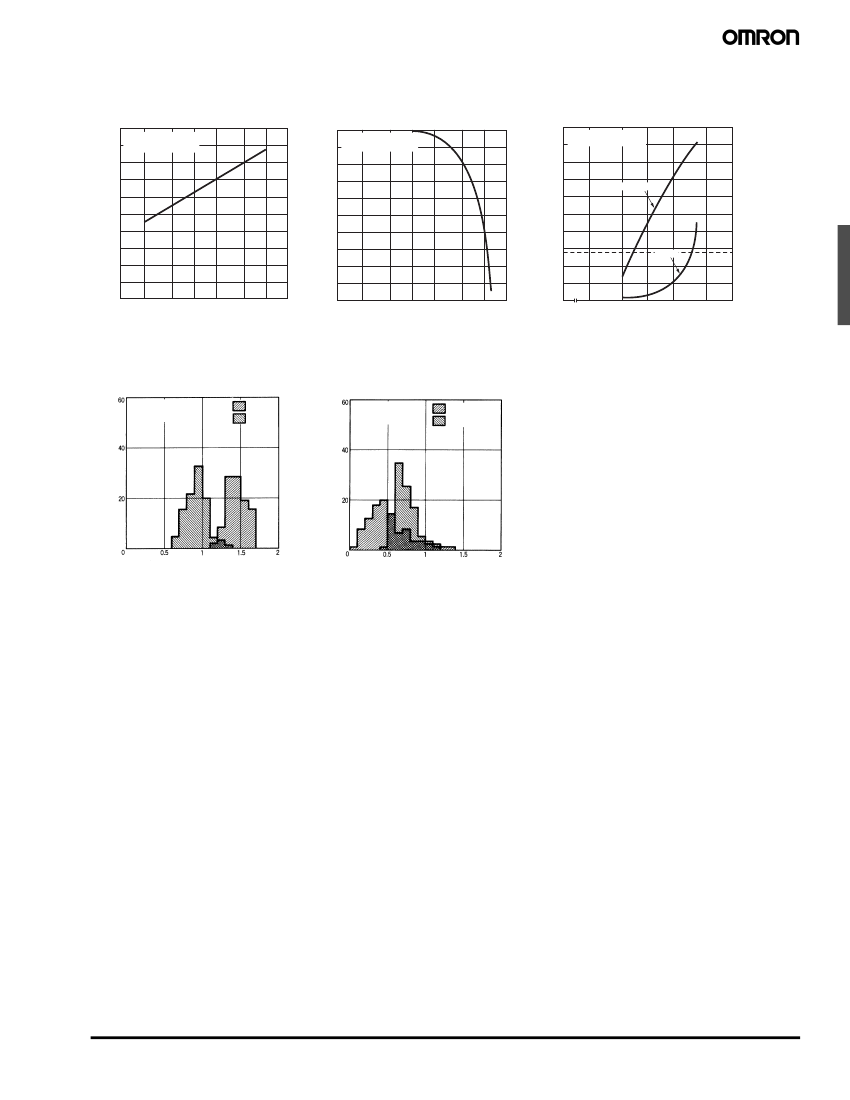

High-frequency Characteristics (See notes 1 and 2.)
Frequency vs. Isolation
(Average value)
Frequency vs. Insertion Loss
(Average value)
Frequency vs. Return Loss, V.SWR
(Average value)
Isolation (dB)
Insertion loss (dB)
Unit: G6H-2
Unit: G6H-2
Number of Units: 5
0
Unit: G6H-2
Number of Units: 5
Unit: G6H-2
Number of Units: 5
Return loss
10
10
50
1.0
V.SWR
5
100
0
2.0
20
50
100 200
500 1,000
Frequency (MHz)
0
20
50
100 200
500 1,000
20
0
20
50
100
200
1
500 1,000
Frequency (MHz)
Frequency (MHz)
Distribution of Operate and
Release Time (See note 1.)
Unit: G6H-2 at 5 VDC
Number of Units: 50
Operate
time
Release
time
Distribution of Bounce Time
(See note 1.)
Unit: G6H-2 at 5 VDC
Number of Units: 50
Operate bounce
time
Release
bounce time
Number of contact
Time (ms)
Number of contact
Time (ms)
Note: 1.
The ambient temperature is 23°C.
2.
High-frequency characteristics depend on the PCB to which the Relay is mounted. Always check these characteristics, including
endurance, in the actual machine before use.
Low Signal Relay
G6H
V.SWR
0
Return loss (dB)
0
53
