LS05-1B85-5-500W datasheet, PDF

Datasheet> All Categories > The sensor> LS05-1B85-5-500W

LS05-1B85-5-500W: DescriptionSensor/Transducer,; CategoryThe sensor; File Size316KB，2 Pages; ManufacturerStandex; Environmental Compliance

Download Datasheet Parametric Compare View All

LS05-1B85-5-500W Overview

Sensor/Transducer,

LS05-1B85-5-500W Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Standex
Reach Compliance Code	compliant

LS05-1B85-5-500W Preview

Series Datasheet

standexelectronics.com

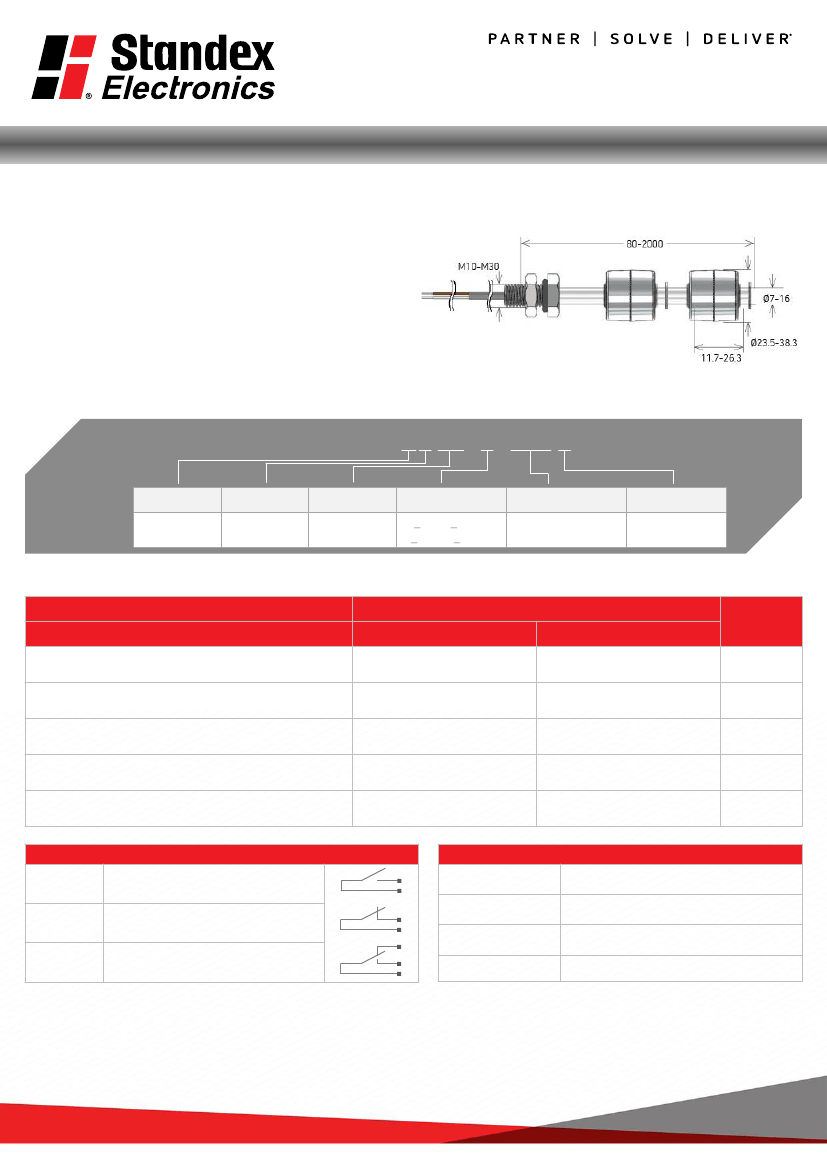

LS05 Series Level Sensors

➢

Features: Multiple Floats w/min. 1.5” Spacing, High Temp.

up to 200°C (SS), Other Cables & Connectors

➢

Applications: Single, Multi & Continuous Level Control,

Detection and Monitoring

➢

Markets: Automotive, Appliance, Aviation, Food &

Beverage, Industrial, Laboratory, Marine

Part Description:

Contact

Qty

LS05-0X00-0-000X

Switch

Model

66, 85

Contact

Form

A, B

Shaft

Length (mm)

1 = 55, 2 = 114

5 = 152, 7 = 220

Cable

Length (mm)

500, 1000, 5000

Termination

W = Stripped &

Tinned

Customer Options

Contact Data

Rated Power (max.)

Any DC combination of V&A not to exceed their individual max.’s

Switch Model

180

0.5

1.25

150

100

1000

1.0

2.5

150

Unit

mOhm

Switching Voltage (max.)

DC or peak AC

Switching Current (max.)

DC or peak AC

Carry Current (max.)

DC or peak AC

Contact Resistance (max.)

@ 0.5V & 50mA

Glossary Contact Form

Form A

Form B

Form C

NO = Normally Open Contacts

SPST = Single Pole Single Throw

NC = Normally Closed Contacts

SPST = Single Pole Single Throw

Changeover

SPDT = Single Pole Double Throw

Glossary Material

PP: Polypropylene

PA: Polyamide

NBR: Nitrile

Butadiene Rubber

SS: Stainless Steel

For water applications and dilute acids

For oil

For oil, gasoline & in high temperatures

For high temp. (>160°C)

Version 02

Page 1

05 Mar 2019

D. Küchler

USA: +1 866.782.6339 | salesusa@standexmeder.com

EMEA: +49 7731/8399-0 | info@standexmeder.com

APAC: +86 21/37606000 | salesasia@standexmeder.com

Series Datasheet

standexelectronics.com

LS05 Series Level Sensors

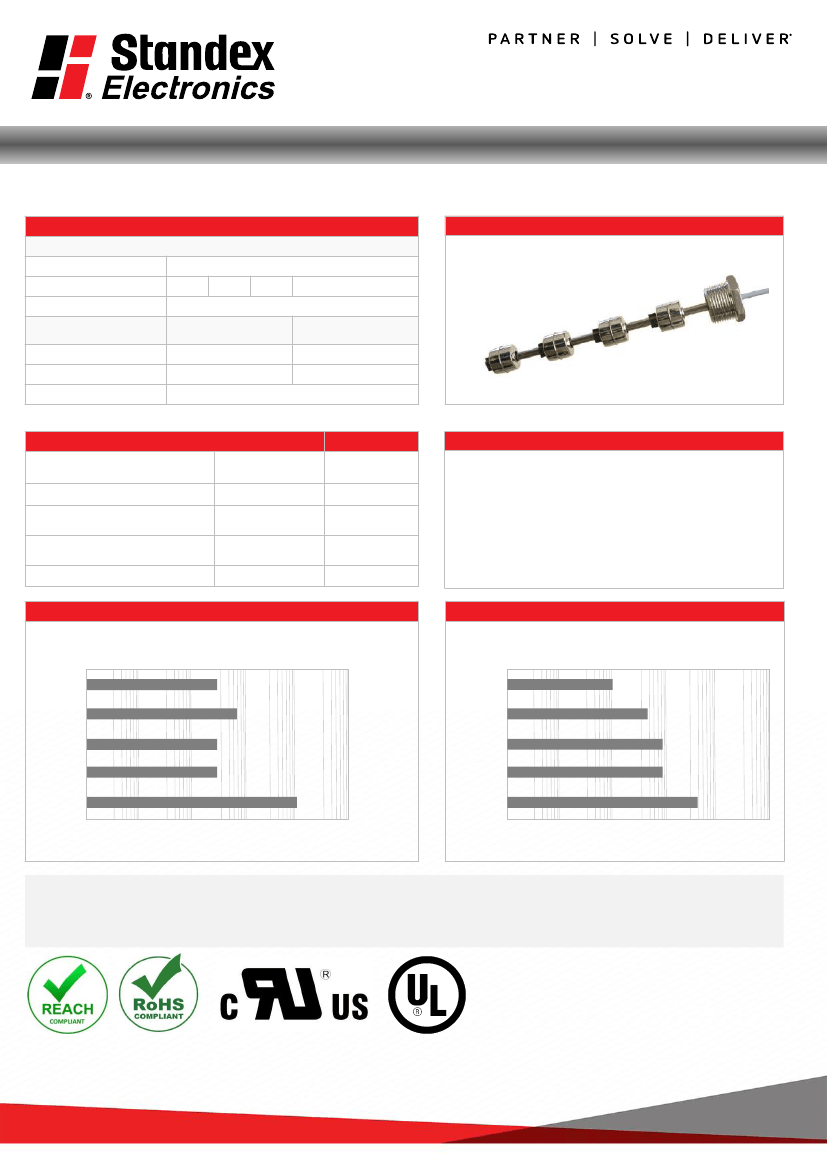

General Sensor Data

Materials

Stem, nut

Float

Seal

Cable Specifications

Cross Section (mm

)

Cable Material

Packing

Stainless Steel

NBR

High Voltage

(85 Switch Model)

LS05 Reed Sensor

Nitrile Rubber

Low Voltage

(66 Switch Model)

0.14

PVC

Bulk

0.25

Environmental Data

Shock Resistance (max.)

1/2 sine wave duration 11ms

Unit

-40 to 160

-20 to 120

-20 to 100

°C

Handling & Assembly Instructions

➢

Max torque of nuts 1Nm

Cable bending-radius is diameter x 15

Min. bending distance to housing is 5mm

Decrease switching distance by mounting on iron

Do not use magnetically inductive screws

Series resistor recommended for > 5m cable length

Vibration Resistance (max.)

Operating Temperature

Cable not moved

Operating Temperature

Cable moved

Storage Temperature

°C

Life Test Data

*Load increase reduces life expectancy of Reed Switches

Load

100V/10mA

20V/500mA

10V/100mA

10V/4mA

<5V/10mA

Life Test Data

*Load increase reduces life expectancy of Reed Switches

KSK-1A66

100V/10mA

20V/500mA

10V/100mA

KSK-1A85

10V/4mA

<5V/10mA

1,E+05

1,E+06

1,E+07

1,E+08

1,E+09

1,E+10

1,E+05

1,E+06

1,E+07

1,E+08

1,E+09

1,E+10

Typical Number of Operations

Please note: All technical specifications on this series datasheet refer to the standard product range. Modifications in the sense of technical progress are reserved. For

general information only. For more specific information, please consult the product datasheet, available upon request.

This series datasheet could contain technical inaccuracies or typographical errors. Changes are periodically made to the information herein. These change will be

incorporated in future revisions.

For deviating values, most current specifications and products please contact your nearest sales office.

Version 02

Page 2

05 Mar 2019

D. Küchler

USA: +1 866.782.6339 | salesusa@standexmeder.com

EMEA: +49 7731/8399-0 | info@standexmeder.com

APAC: +86 21/37606000 | salesasia@standexmeder.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
