A-DF15A-KG-TAG3-R datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> A-DF15A-KG-TAG3-R

Preview

A-DF15A-KG-TAG3-R: DescriptionD Type Connector, 15 Contact(s), Female, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size367KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric View All

A-DF15A-KG-TAG3-R Overview

D Type Connector, 15 Contact(s), Female, Solder Terminal, Locking, Plug

A-DF15A-KG-TAG3-R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ASSMANN
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT
body width	0.494 inch
subject depth	0.487 inch
body length	1.541 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	A-D
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.145 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

B

C

D

E

F

Scale

1:1

Drawn

Approved

11.17.11

Name

Chappell

Item No.

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

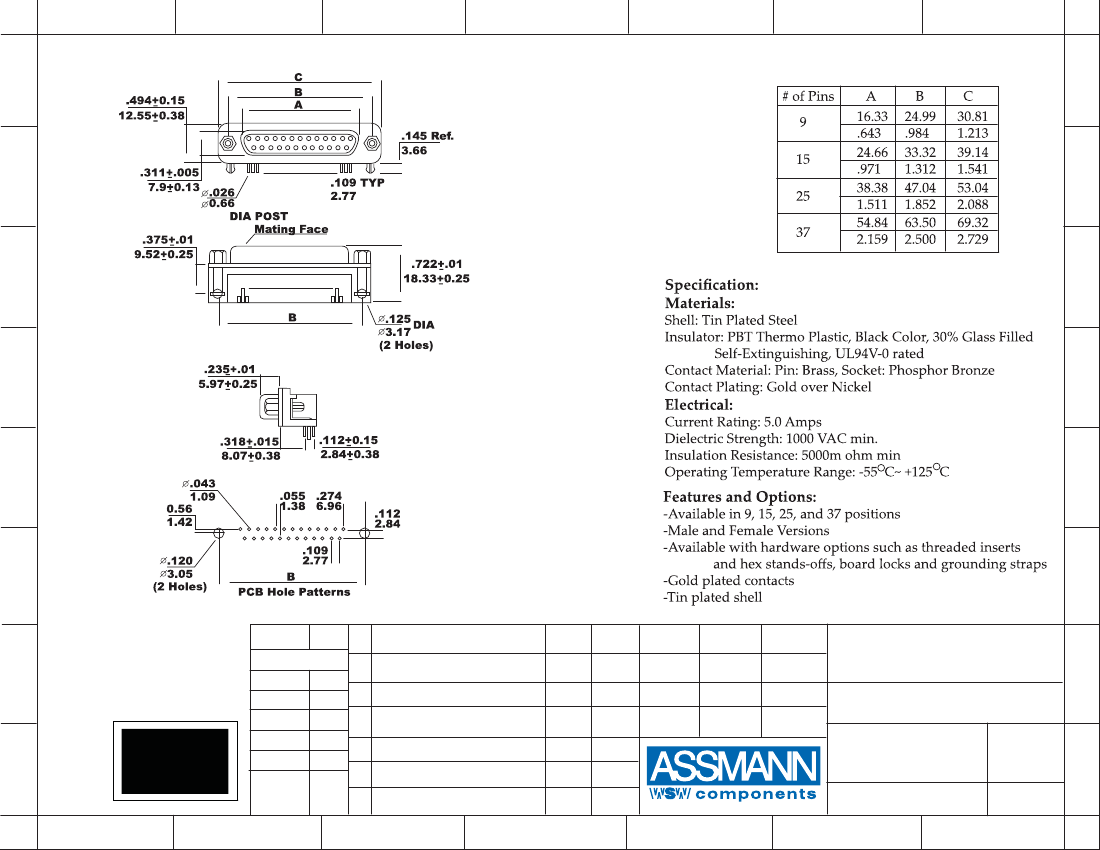

A-DxxxA-KG-Txxx3-R

Title

G

D-Sub Connector, Right Angle

Drawing No.

H

RoHS

Complaint

1

2

Angle

rev00

Sheet

H

Modification

Date

Name

Replace

3

4

5

6

7
