TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: LCP
FLAMMABILITY RATING: UL94-V0
COLOR: BEIGE
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 1.00 MM
ENVIRONMENTAL
OPERATING TEMPERATURE: -25 UP TO 85°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1 A
WORKING VOLTAGE: 50 VAC
INSULATOR RESISTANCE: >100 MΩ
DIELECTRIC WITHSTANDING VOLTAGE: 500 VAC/MN
CONTACT RESISTANCE: 20 mΩ MAX
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE REFLOW SOLDERING PROCESS
PACKAGING
TAPE & REEL WITH CAP

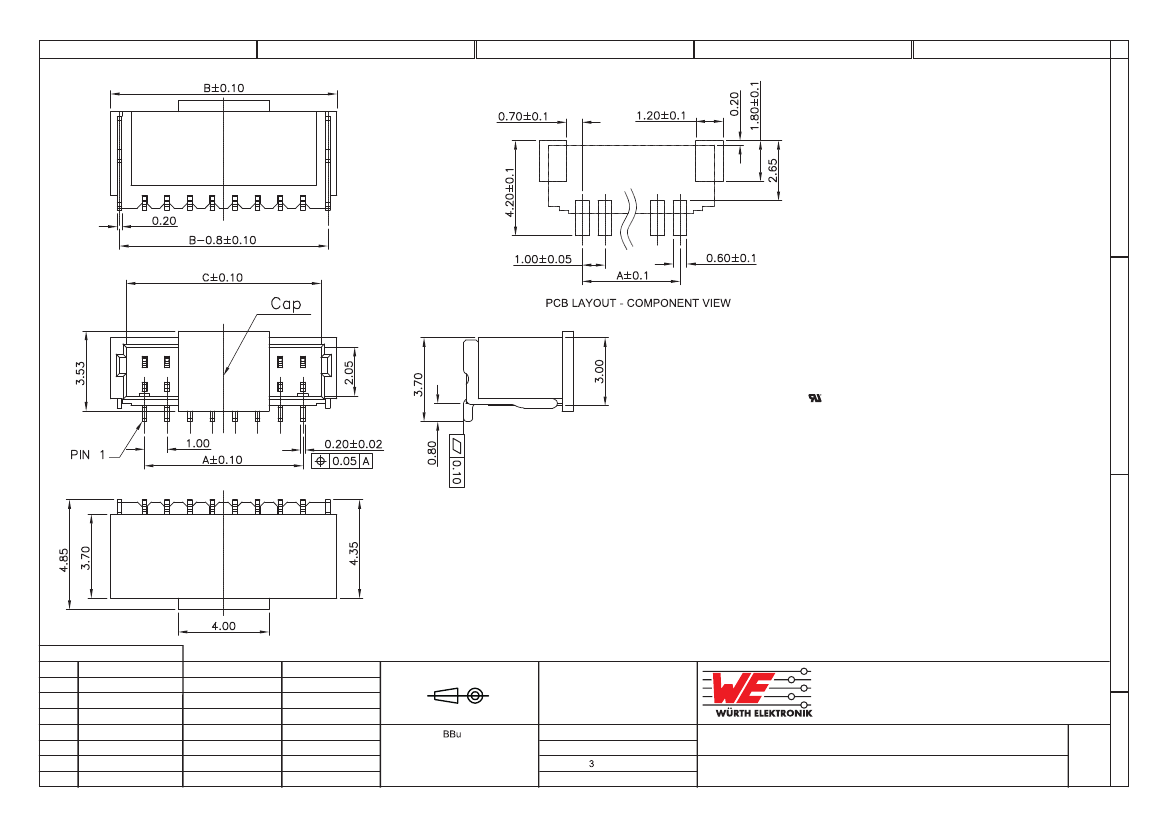

DIMENSION
A = NB. PIN -1
B = NB. PIN +2
C = NB. PIN +0.6
A
B
C
RoHS Compliant
PROJECTION:
E
D
C
B
A
REV
28-FEB-17
25-OCT-16
04-AUG-15
14-OCT-14
16-JUL-14
DATE
TPK
PCN
UPDATE
TPK DWG UPDATE
PDF
FILE
AK
AK
AK
QL
AS
BY
APPROVAL:
SCALE:
SHEET: 1/
DRAW: AK
WERI PART NO: 665 3xx 124 022
GENERAL TOLERANCE
.X = +/- 0.30
.XX = +/- 0.20
UNIT: MM
DESCRIPTION: WR-WTB 1.00 MM SMT MALE VERTICAL SHROUDED HEADER
SIZE
A4
D
1
2
3
4
5
A
B
C
RoHS Compliant

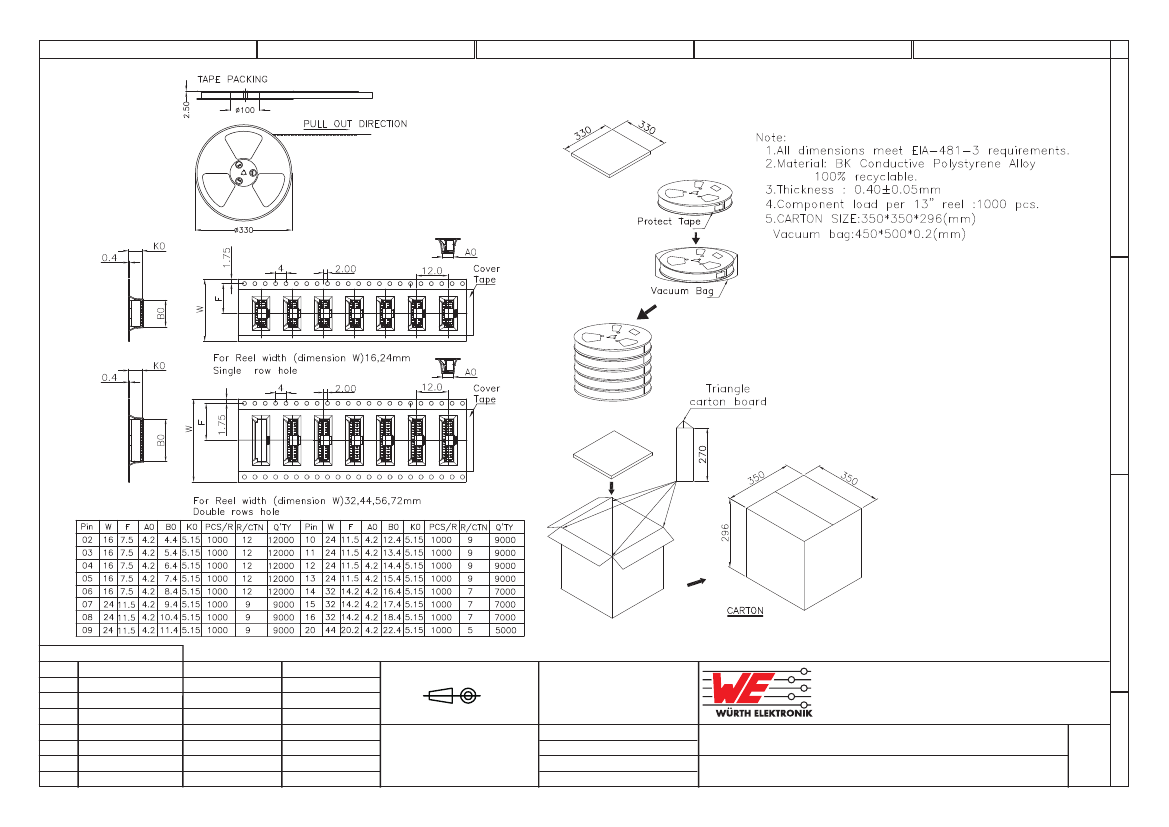

G
F
E
D
C
B
A
REV
DATE
FILE
BY
APPROVAL: BBu
SCALE:
SHEET: 2/3
DRAW: AS
WERI PART NO: 665 3xx 124 022
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: WR-WTB 1.00 MM SMT MALE VERTICAL SHROUDED HEADER
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
