B24B-PADSS-F

Description
10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size103KB,3 Pages
ManufacturerETC2
Download Datasheet Parametric View All

B24B-PADSS-F Overview

10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

B24B-PADSS-F Parametric

Parameter NameAttribute value
Contact materialsCOPPER ALLOY
Terminal spacing2 mm
Total number of contacts10
stateACTIVE
OptionsGENERAL PURPOSE
Manufacturer SeriesPAD
Contact surface matchingTIN OVER COPPER
Contact coated terminalsTIN OVER COPPER
Connection TypeTWO PART BOARD CONNECTOR
Connector male and femaleMALE
collocation informationMULTIPLE MATING PARTS AVAILABLE
Installation methodSTRAIGHT
Installation typeBOARD
Number of load rows2
Terminal typeSOLDER
UL flammability code94V-0

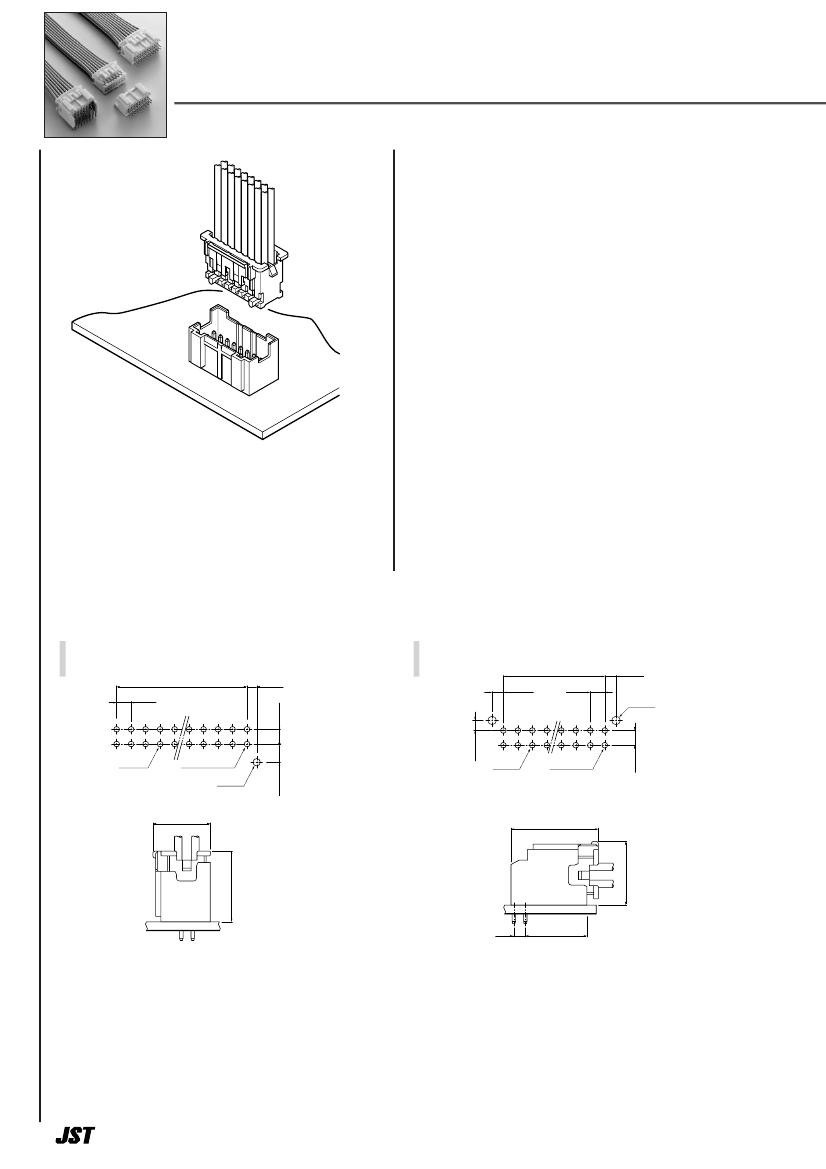

PAD
CONNECTOR
2.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10m
max.
After environmental testing/ 20m
max.
• Insulation resistance: 1,000M
min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Dual-row construction allows high density
mounting.
• Secure locking device
• Reliable contacts
• Insertion guide mechanism
• Polarizing boss
Standards ––––––––––––––––––––––
1
Certified LR20812
2
R50053749

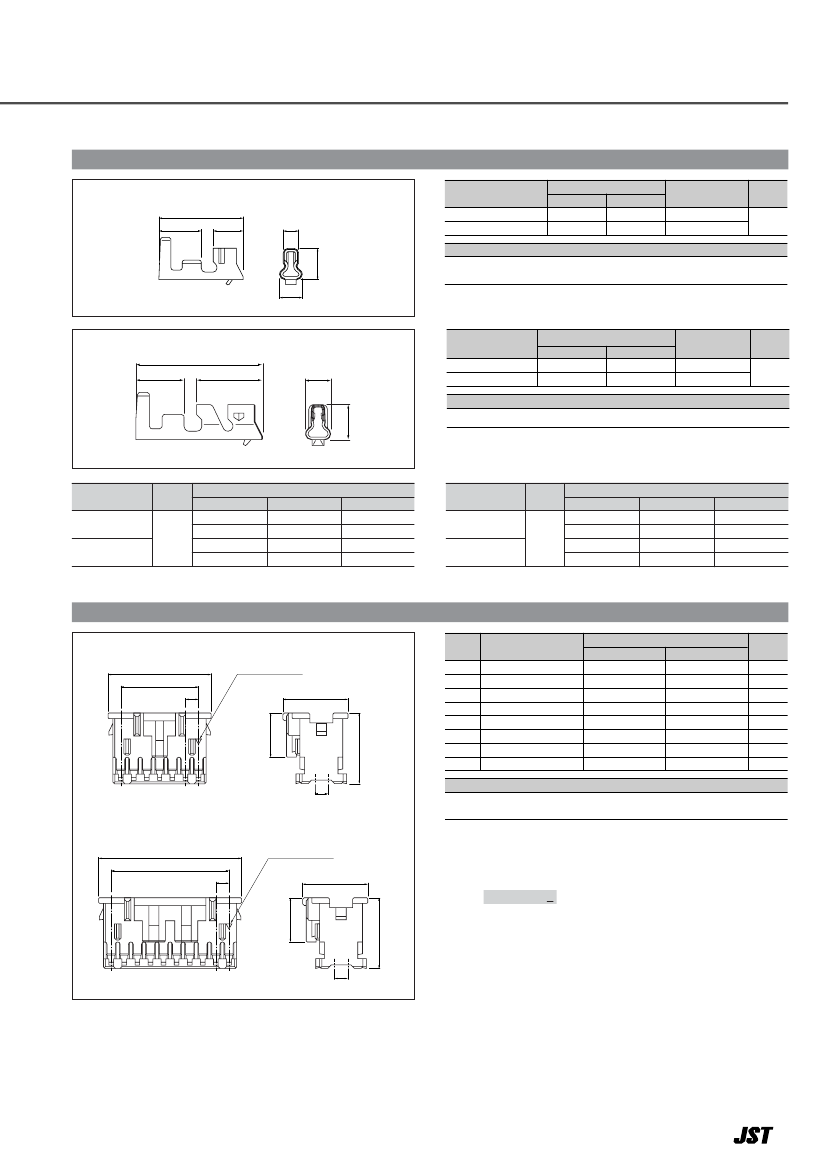

Side entry type
0
Recognized E60389
Top entry type
A
2
±0.05
±0.05
A
±0.05
1.3
±0.05
1.6
±0.05
2
±0.05
+0.1
φ1.1
 0
1.6
±0.05
2
±0.05
Even number circuits
Odd number circuits
+0.1
φ0.7
 0
Even number circuits
1.4
±0.05
Odd number circuits
+0.1
φ0.7
 0
+0.1
φ1
 0
(10)
2.5
±0.05
(15.4)
(12.4)
2
10.7
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. Hole dimensions differ according to the kind of PC board and piercing method. If PC boards made of hard material are used, the hole dimensions should
be larger. The dimensions above should serve as a guideline. Contact JST for details.
1
(11)
2
Circuit No.1
Circuit No.1
±0.05
