ES1A-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ES1A-T

ES1A-T: DescriptionRectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size97KB，8 Pages; ManufacturerRectron Semiconductor; Websitehttp://www.rectron.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ES1A-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ES1A-T	-	-	View	Buy Now

ES1A-T Overview

Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN

ES1A-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Rectron Semiconductor
package instruction	SMA, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.035 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

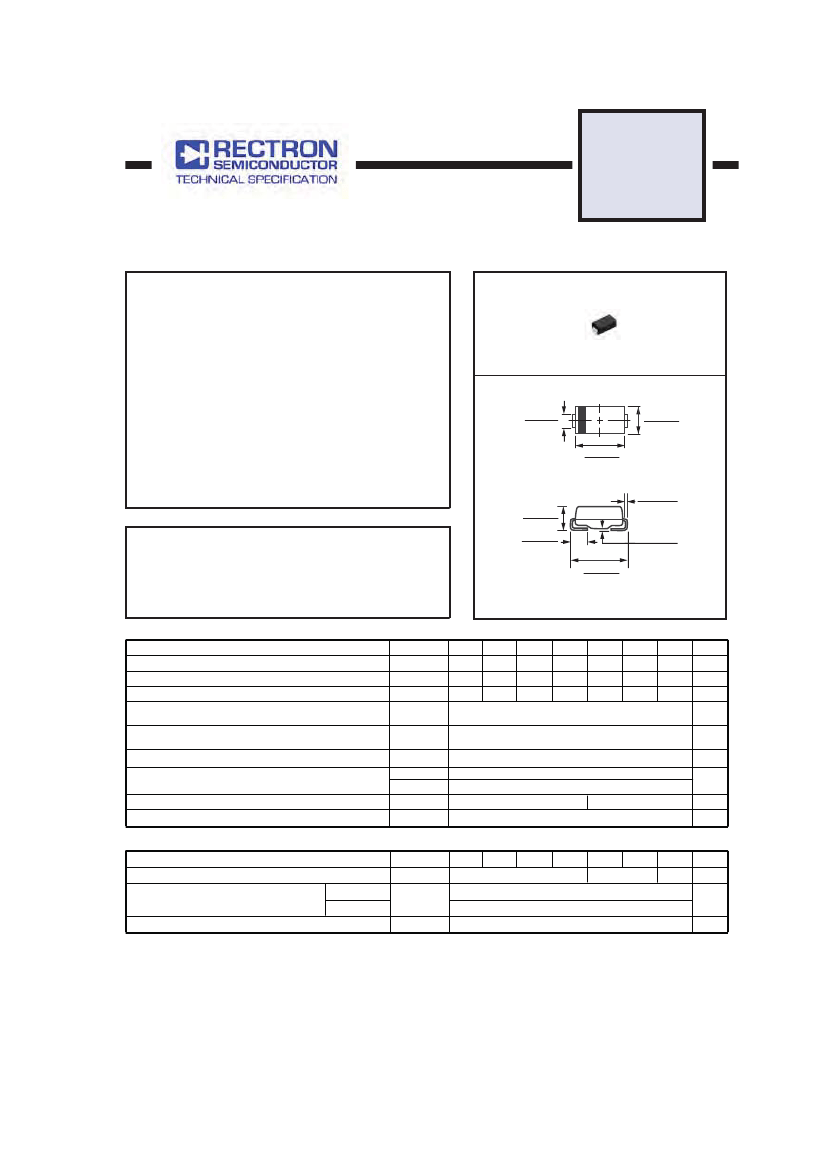

VOLTAGE RANGE 50 to 600 Volts CURRENT 1.0 Ampere

FEATURES

Glass passivated device

Ideal for surface mounted applications

Low leakage current

Metallurgically bonded construction

Mounting position: Any

Weight: 0.057 gram

SURFACE MOUNT GLASS PASSIVATED

SUPER FAST SILICON RECTIFIER

ES1A

THRU

ES1J

DO-214AC

MECHANICAL DATA

* Epoxy : Device has UL flammability classification 94V-0

0.067 (1.70 )

0.051 (1.29 )

0.110 ( 2.79 )

0.086 ( 2.18 )

0.180 ( 4.57 )

0.160 ( 4.06 )

0.012 ( 0.305 )

0.006 ( 0.152 )

0.091 ( 2.31 )

0.067 ( 1.70 )

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Resistive or inductive load.

0.059 ( 1.50 )

0.035 ( 0.89 )

0.008 ( 0.203 )

0.004 ( 0.102 )

0.209 ( 5.31 )

0.185 ( 4.70 )

Dimensions in inches and (millimeters)

MAXIMUM RATINGS

(@ T

=25

C unless otherwise noted)

RATINGS

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

at T

= 55 C

Peak Forward Surge Current 8.3 ms single half sine-wave

superimposed on rated load (JEDEC method)

Typical Current Square Time

Typical Thermal Resistance (Note 4)

Typical Junction Capacitance (Note 2)

Operating and Storage Temperature Range

ELECTRICAL CHARACTERISTICS

(@T

=25

C unless otherwise noted)

CHARACTERISTICS

Maximum Instantaneous Forward Voltage at 1.0A DC

Maximum DC Reverse Current

at Rated DC Blocking Voltage

Maximum Reverse Recovery Time (Note 1)

NOTES :

1. Reverse Re covery Test Conditions: I

= 0.5A, I

= -1.0A, I

= -0.25A

2. Measured at 1 MH

and applied reverse voltage of 4.0 volts

3. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”.

4. Thermal Resistance : Mounted on PCB.

= 25 C

= 100 C

SYMBOL

RRM

RMS

FSM

, T

STG

ES1A

ES1B

100

ES1C

150

105

150

ES1D

200

140

200

1.0

3.7

ES1E

300

210

300

ES1G

400

280

400

ES1J

600

420

600

UNITS

Volts

Amps

C/W

-55 to + 150

SYMBOL

ES1A

ES1B

ES1C

0.95

ES1D

ES1E

ES1G

ES1J

1.70

UNITS

Volts

Amps

1.25

5.0

100

trr

nSec

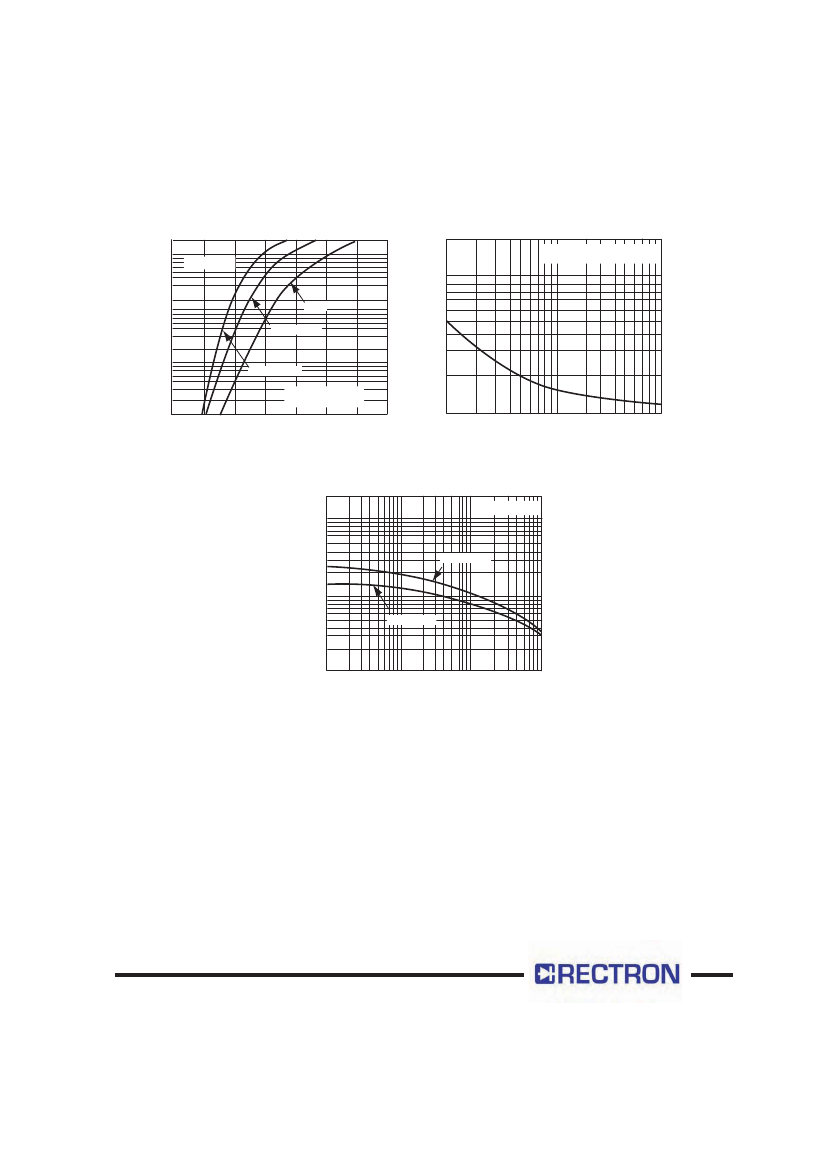

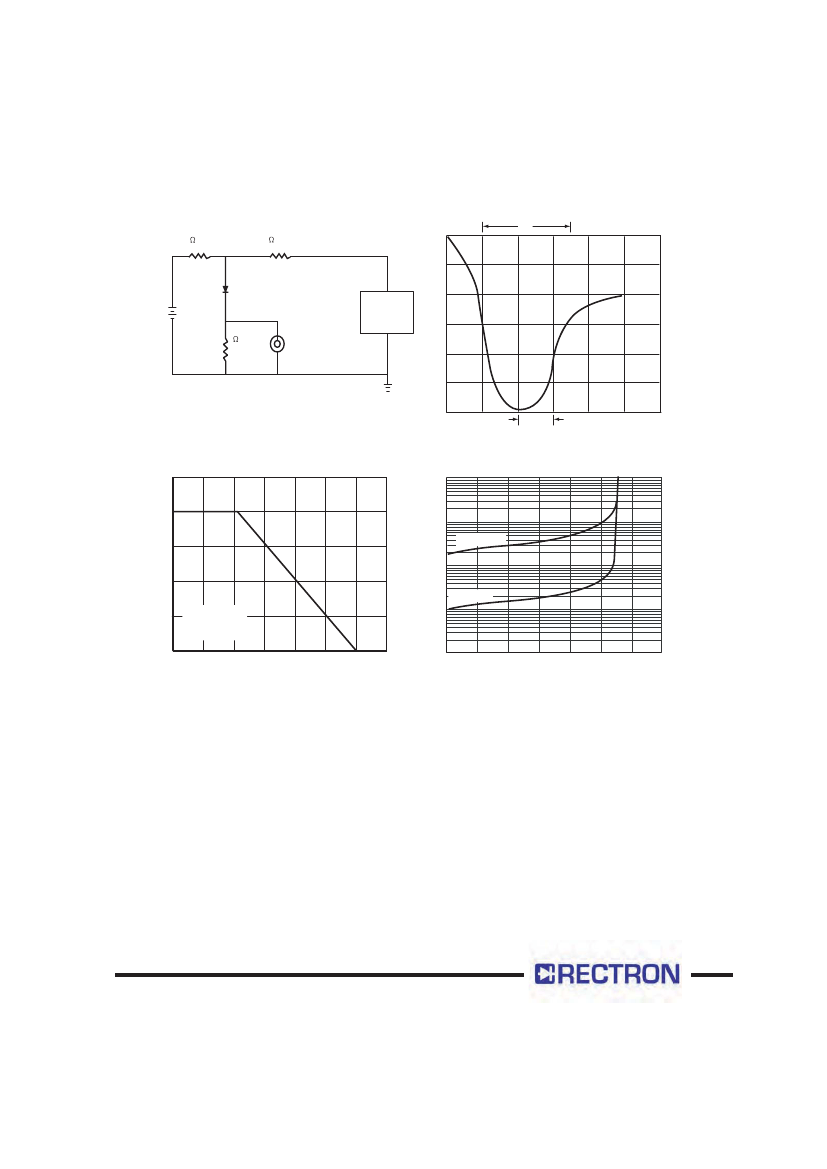

2015-11

REV: A

ES1A-T Related Products

	ES1A-T	ES1E-W	ES1E-T	ES1G-T	ES1J-T	ES1D-T	ES1D-W	ES1B-W
Description	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 300V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 300V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	SMA, 2 PIN	R-PDSO-C2	SMA, 2 PIN	SMA, 2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum repetitive peak reverse voltage	50 V	300 V	300 V	400 V	600 V	200 V	200 V	100 V
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Rectron Semiconductor	-	-	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor	Rectron Semiconductor
