M5M5V1B009J-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M5M5V1B009J-12

M5M5V1B009J-12: DescriptionStandard SRAM, 128KX9, 12ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36; Categorystorage storage; File Size179KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M5M5V1B009J-12 Overview

Standard SRAM, 128KX9, 12ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36

M5M5V1B009J-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	SOJ
package instruction	SOJ, SOJ36,.44
Contacts	36
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	12 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J36
JESD-609 code	e0
memory density	1179648 bit
Memory IC Type	STANDARD SRAM
memory width	9
Number of functions	1
Number of ports	1
Number of terminals	36
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX9
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ36,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.01 A
Minimum standby current	3 V
Maximum slew rate	0.19 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

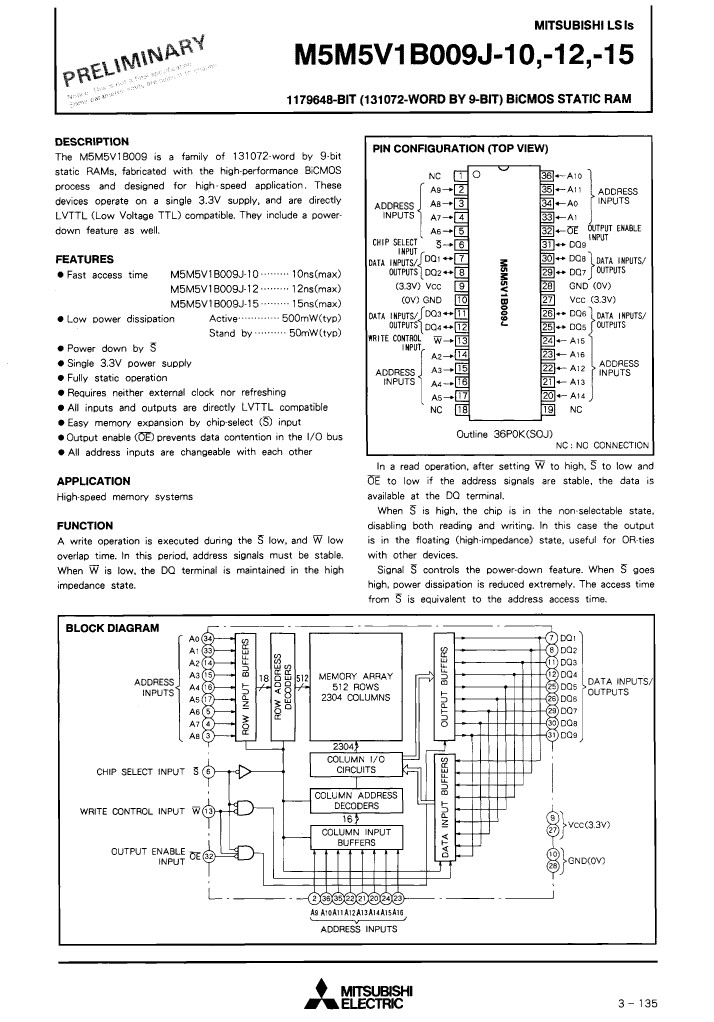

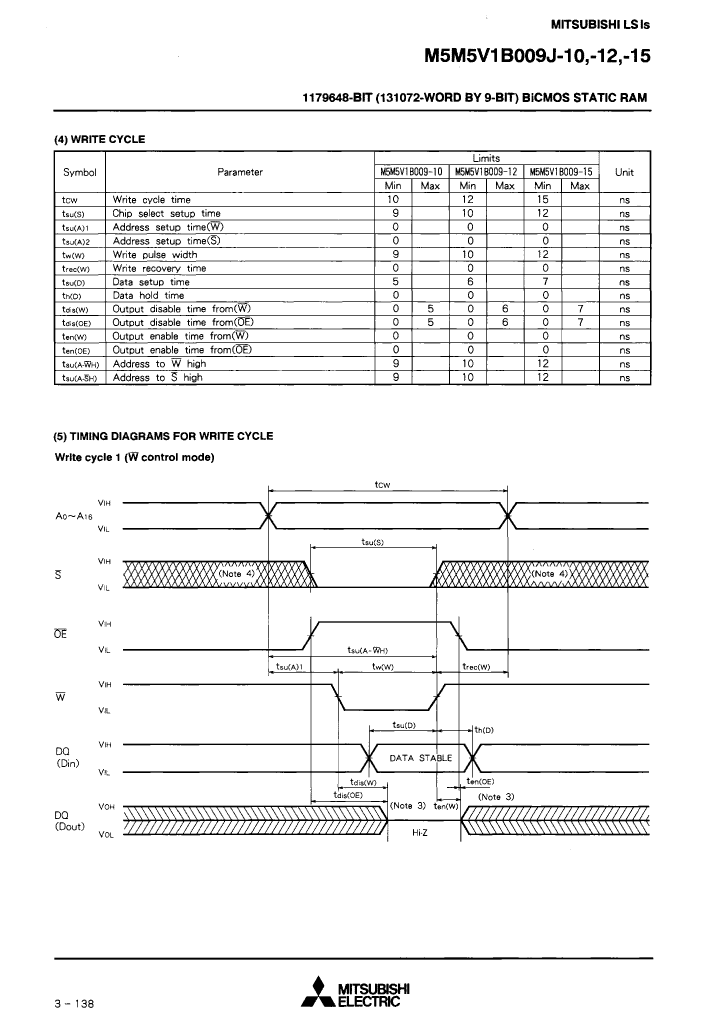

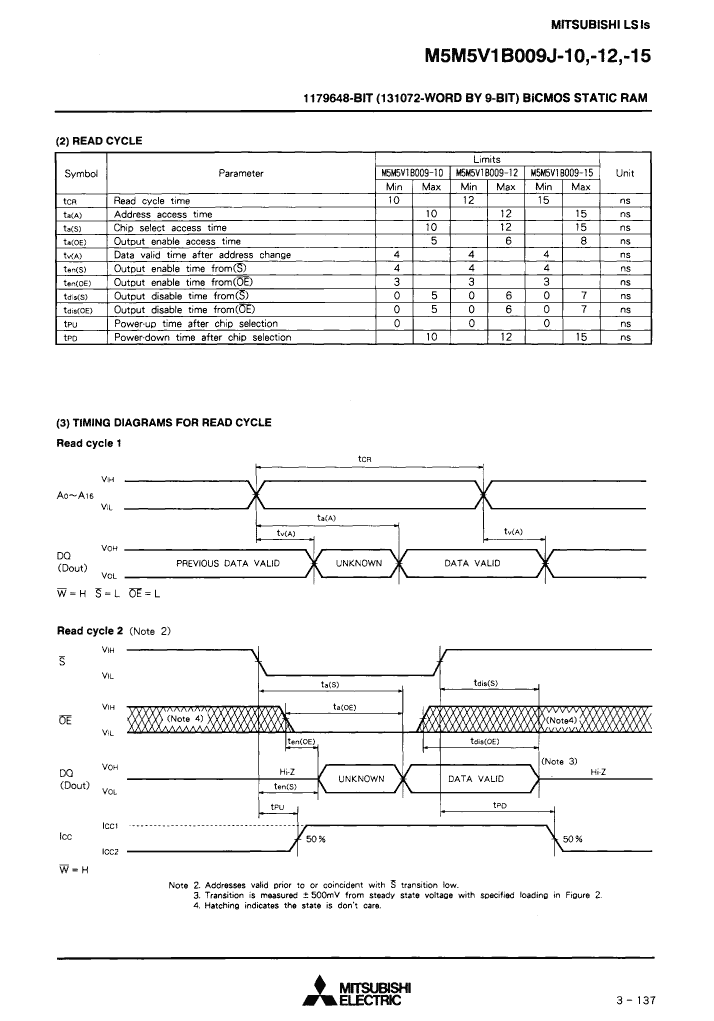

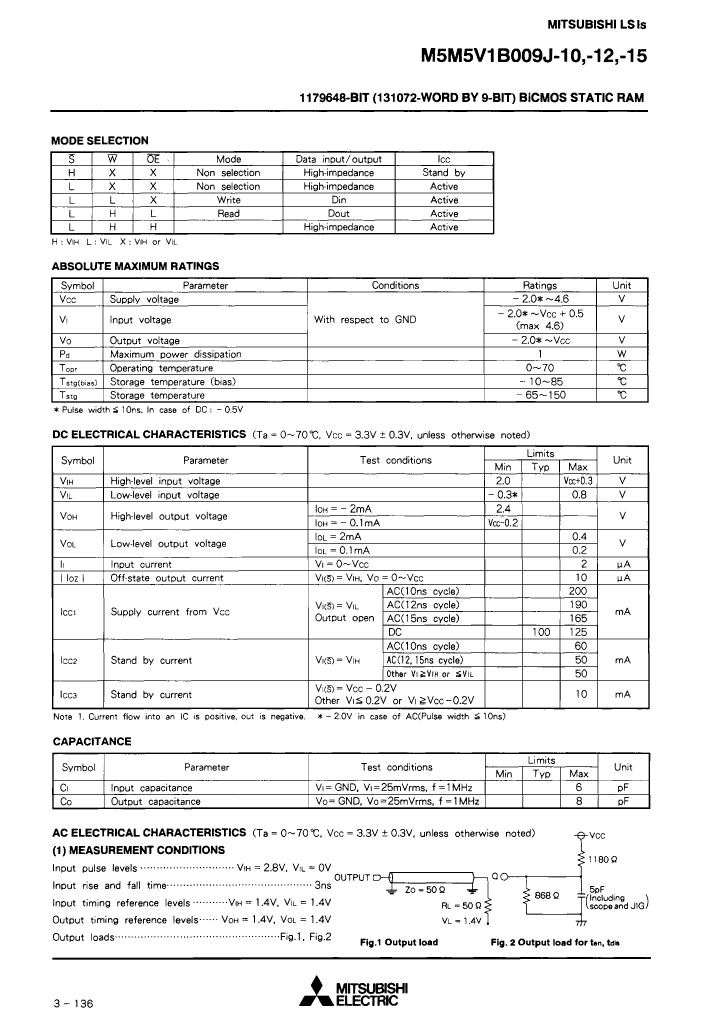

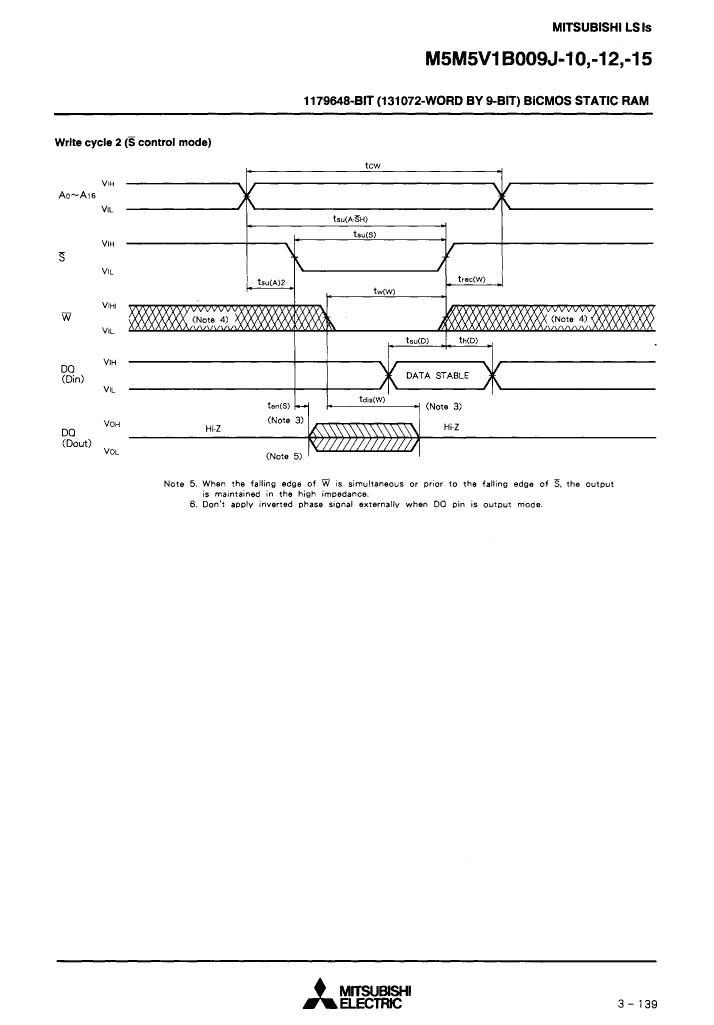

Preview

Download Datasheet

View All

M5M5V1B009J-12 Related Products

	M5M5V1B009J-12	M5M5V1B009J-15	M5M5V1B009J-15T	M5M5V1B009J-12T	M5M5V1B009J-10T
Description	Standard SRAM, 128KX9, 12ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 128KX9, 15ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 128KX9, 15ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 128KX9, 12ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36	Standard SRAM, 128KX9, 10ns, BICMOS, PDSO36, 0.400 INCH, PLASTIC, SOJ-36
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	SOJ, SOJ36,.44	SOJ, SOJ36,.44	SOJ,	SOJ,	SOJ,
Contacts	36	36	36	36	36
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	12 ns	15 ns	15 ns	12 ns	10 ns
JESD-30 code	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36	R-PDSO-J36
memory density	1179648 bit	1179648 bit	1179648 bit	1179648 bit	1179648 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	9	9	9	9	9
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	36	36	36	36	36
word count	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX9	128KX9	128KX9	128KX9	128KX9
Exportable	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
