LT1180CS datasheet, PDF - EEWORLD Datasheet

LT1180CS: DescriptionIC LINE TRANSCEIVER, PDSO18, PLASTIC, SOL-18, Line Driver or Receiver; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size579KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

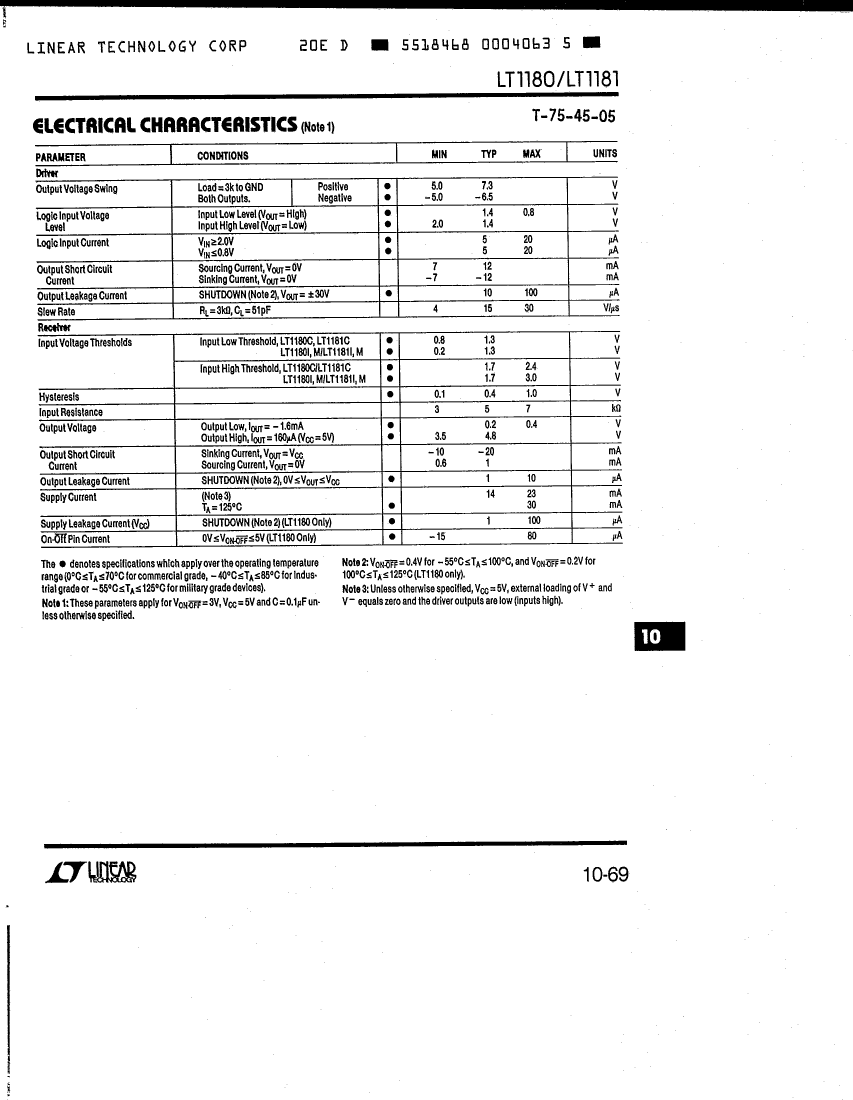

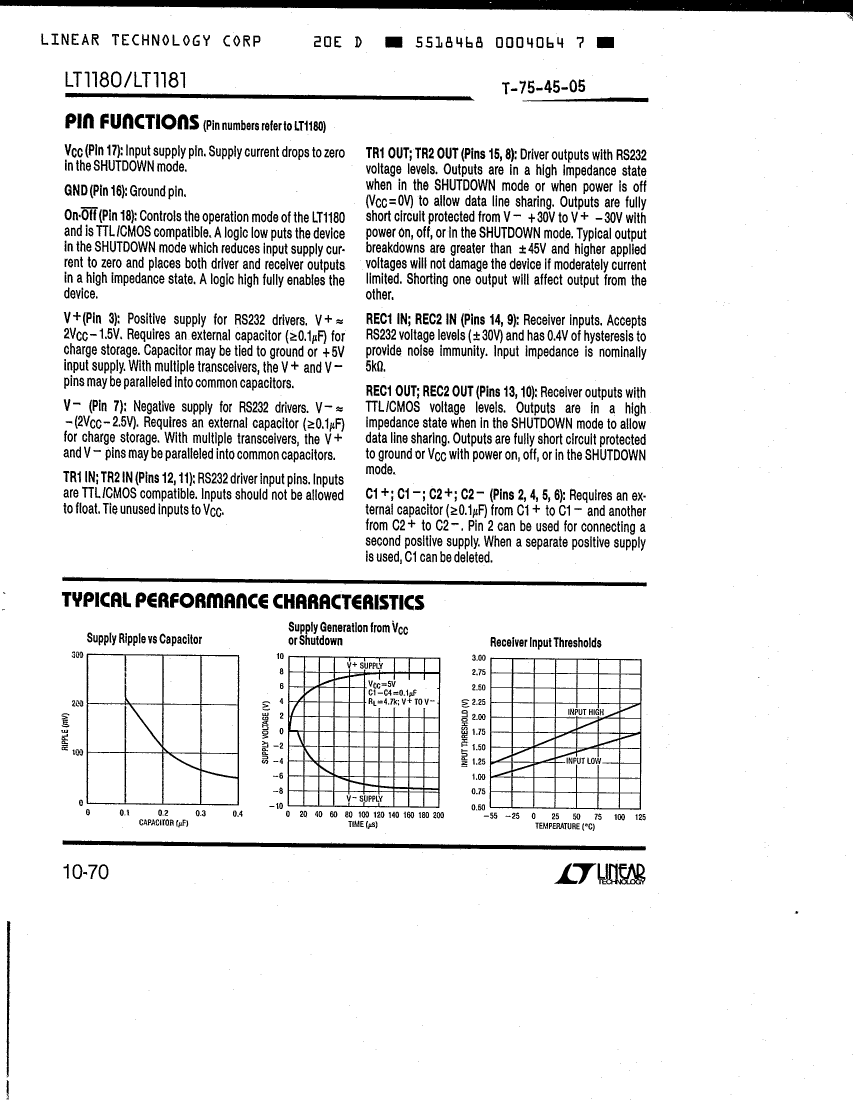

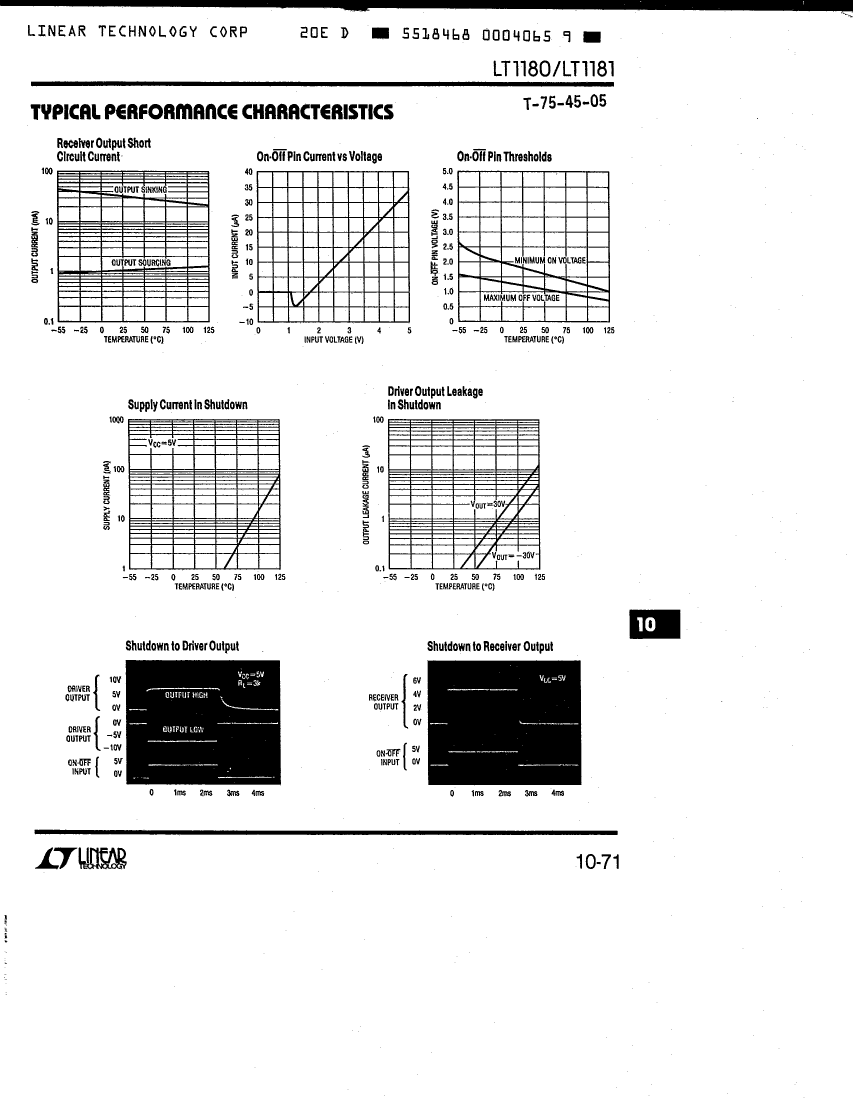

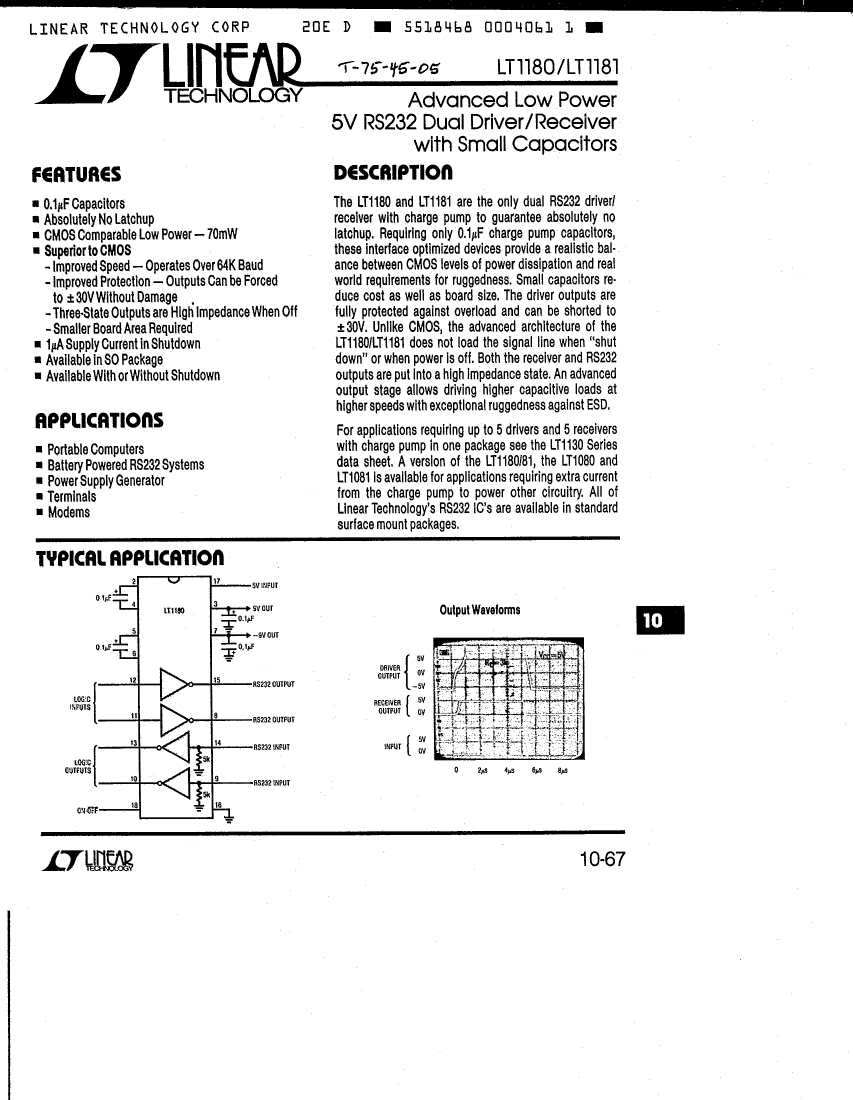

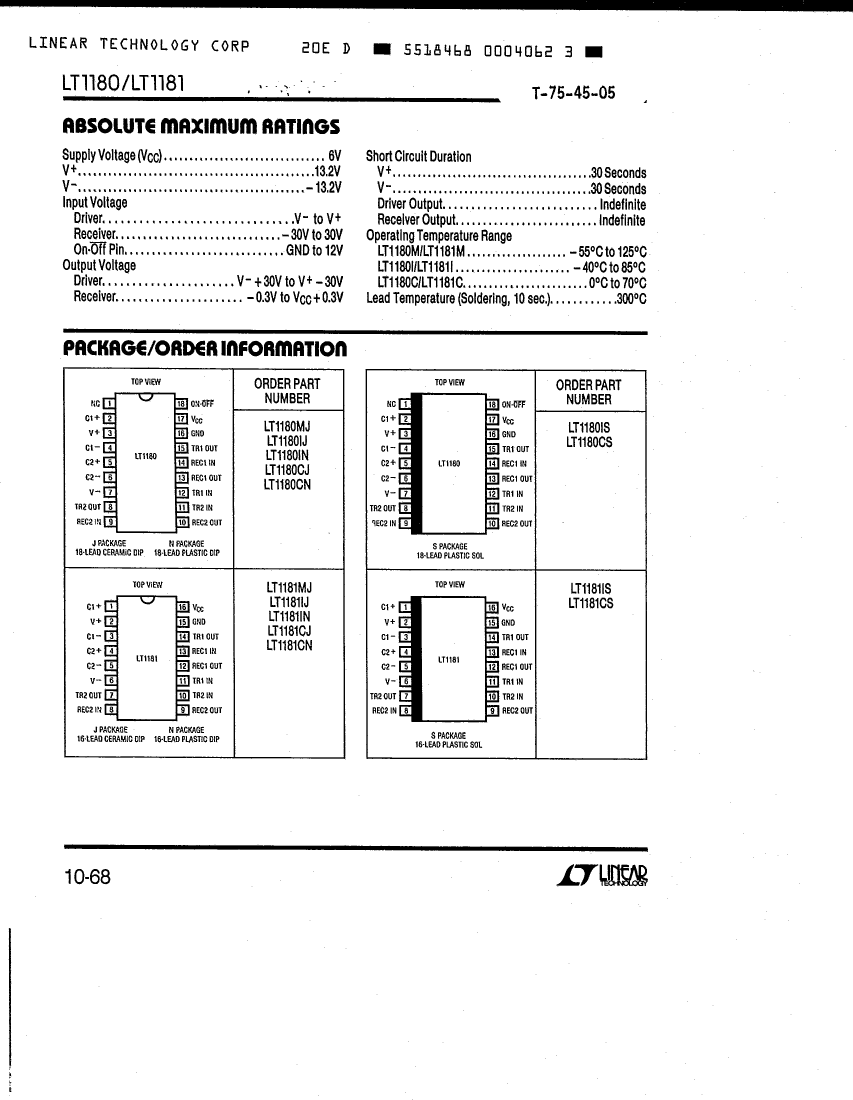

LT1180CS Overview

IC LINE TRANSCEIVER, PDSO18, PLASTIC, SOL-18, Line Driver or Receiver

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOIC
package instruction	SOP, SOP18,.4
Contacts	18
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EXTERNAL CHARGE PUMP
Differential output	NO
Number of drives	2
High level input current maximum value	0.00002 A
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
length	11.55 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	10 V
Output characteristics	3-STATE
Maximum output low current	0.0016 A
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	255
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Number of receiver bits	2
Maximum seat height	2.65 mm
Maximum slew rate	23 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	40
width	7.5 mm
