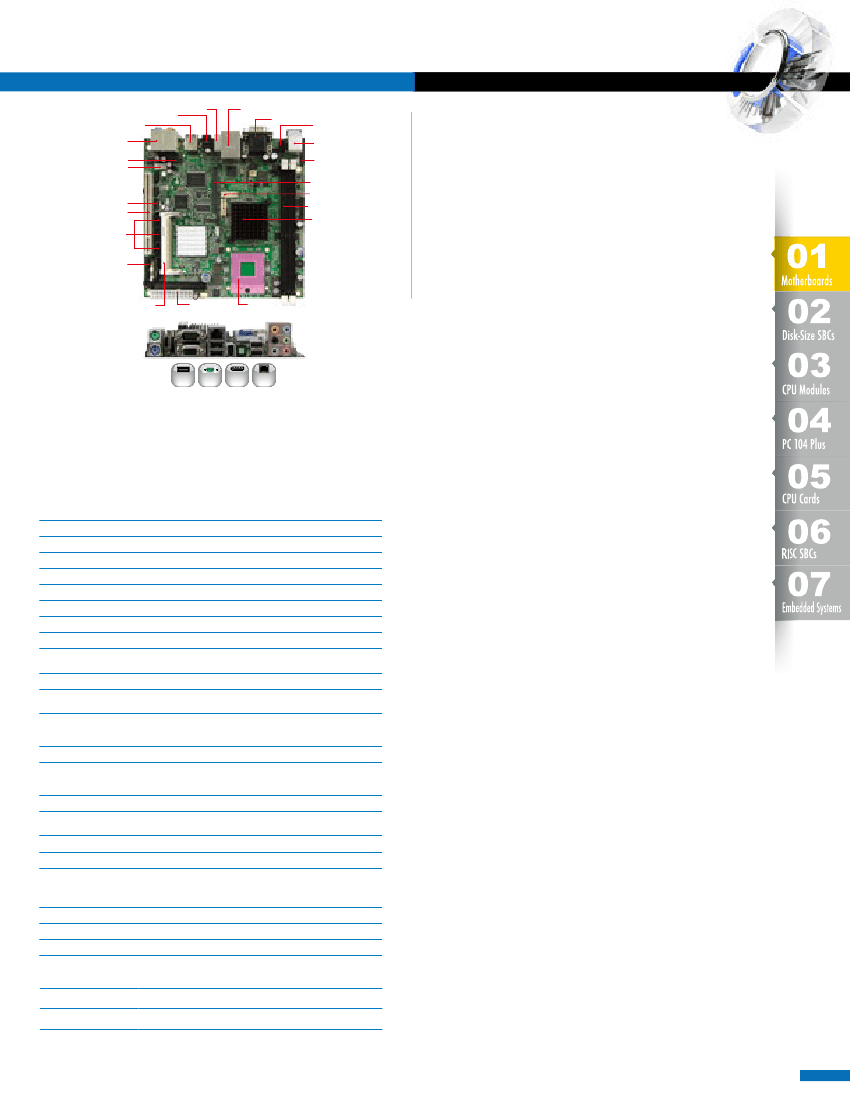

Socket P Intel
®
Core
™
2 Duo Mini-ITX
Motherboard w/ Intel
®
GME965 Chipset
Intel
®
Core™2 Duo-Based
SPDIF
USB
Audio
Digital I/O
CD In
1394
RJ-45/USB
COM/VGA
COM2
PS/2
KB/Mouse
FDD
SDVO Port
USB
PCI Slot
SATA II
LVDS
DDR2 Sockets
Intel
®
GME965
Chipset
MI910
PCI-E(x1)
Mini PCI
ATX Power
Socket P
6
USB
2
COM
2
SATA II
2
Gbe LAN
Features
● Supports Intel
®
Core™2 Duo / Celeron
®
processors, 533MHz/800MHz FSB
● 2x DDR2 DIMM, Max. 4GB
● Supports CRT, LVDS, optional DVI
● Gigabit LAN or dual Gigabit LAN
● 2x SATA II, 6x USB 2.0, 2x COM, 1394
● Watchdog timer, Digital I/O
● 1x Mini PCI, 1x PCI, 1x PCI-E(x1)
Specifications
CPU Socket
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
VGA Controller
VGA Memory
Display Interface
LAN Controller
Connector
I/O Chipset
USB
Audio
Others
Dimensions
Socket P for Intel
®
Core™2 Duo / Celeron
®
2x DDR2 DIMM, 533/667MHz, Max. 4GB
Intel
®
GME965 + ICH8M, 533MHz/800MHz FSB
Award
256 levels
CF socket (solder side)
Yes
1x PCI, 1x PCI-E(x1), 1x Mini PCI
Intel
®
GME965 built-in Graphics Media Accelerator X3100
supports CRT and LVDS
Supports DVMT 4.0; Max. shared memory - 384MB
Supports CRT and 24-bit dual channel LVDS,
optional DVI
Intel
®
82566DM Gigabit LAN
Marvell 88E8053 PCI-E Gigabit LAN (MI910EF*)
* MI910EF supports dual Gigabit LAN
RJ-45 on board
Winbond W83627EHG
1x IDE, 1x FDD, 1x KB, 1x mouse
1x RS-232, 1x RS232/422/485, 2x SATA II
4 ports on board, 2 ports via pin header
Intel
®
ICH8M built-in Intel
®
High Definition audio + AC97 codec
(ALC885) with 7.1 Channels
IrDA, 1394, Digital I/O (4-in/4-out)
170mm x 170mm (6.7“ x 6.7“)
Intel
®
Core™ 2 Duo 2.0GHz
Max. Power Requirement
w/ 2x 1GB DDR2
+3.3V: 1.53A
+5V: 4.70A
+5VSB: 0.29A +12V: 2.19A
Operating Temperature
0°C~60°C (32°F~140°F)
Storage Temperature
Relative Humidity
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Ordering Information
MI910E
MI910EF
Socket P GME965 Mini-ITX M/B with VGA, 1394, CF socket, Intel
®
Gigabit LAN
SSocket P GME965 Mini-ITX M/B with VGA, 1394, CF socket, Intel
®
Gigabit LAN and Marvell PCI-E Gigabit LAN
For user’s manual & datasheet download, visit www.ibase.com.tw
