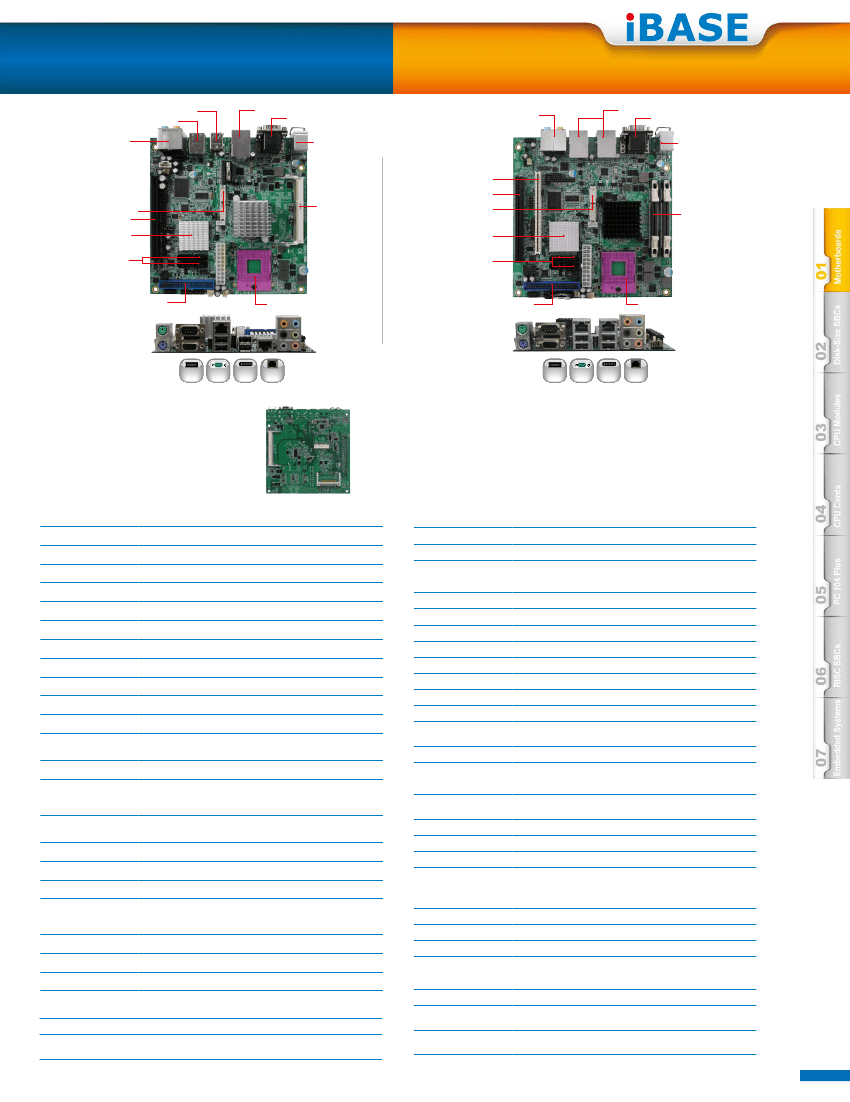

Mini-ITX Motherboard
MI945X
Socket P Intel Core™2 Duo Mini-ITX Motherboard
w/ Intel
®
GM45 Chipset
®
USB
RJ-45
Audio
RJ-45/USB
COM/VGA
KB/Mouse
MI945P
Socket P Intel
®
Core™2 Quad / Core™2 Duo Mini-ITX
Motherboard w/ Intel
®
GM45 Chipset
Audio
RJ-45/USB
COM/VGA
KB/Mouse
PCI Slot
PCI-E(x16)
LVDS
PCI-E(x16)
ICH9M
SATA II
DDR3
SO-DIMM
Sockets
LVDS
DDR2
SO-DIMM
Sockets
ICH9M
SATA II
IDE
Socket P
IDE
Socket P
10
USB
4
COM
4
SATA II
2
Gbe LAN
10
USB
4
COM
4
SATA II
2
Gbe LAN
● Supports Intel
®
Core™2 Duo processors,
667/800/1066MHz FSB
● 2x DDR3 SO-DIMM, Max. 4GB
● Onboard dual Gigabit LAN
● Integrated VGA for CRT & LVDS
● 4x SATA II, 8x USB 2.0, 4x COM, 1x IDE, 1x CF
● 1x PCI-E(x16), 1x Mini PCI-E
Features
● Supports Intel
®
Core™2 Quad / Core™2 Duo processors,
667/800/1066MHz FSB
● 2x DDR2 SO-DIMM , Max. 8GB
● Onboard dual Gigabit LAN
● Integrated VGA for CRT & LVDS
● 7.1 CH HD Audio
● 4x SATA II, 1x IDE, 8x USB 2.0, 4x COM
● 1x PCI-E(x16), 1x PCI
● Optional Intel
®
AMT 4.0, RAID
Features
Specifications
CPU Socket
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
VGA Controller
VGA Memory
Display Interface
LAN Controller
Connector
I/O Chipset
USB
Audio
Others
Dimensions
Socket P for Intel
Core™2 Duo processors
®
Specifications
CPU Socket
System Memory
System Chipset
BIOS
Watchdog Timer
SSD
H/W Monitor
Expansion Slots
VGA Controller
VGA Memory
Display Interface
LAN Controller
Connector
I/O Chipset
USB
Audio
Others
Dimensions
Socket P for Intel
®
Core™2 Quad / Core™2 Duo processors
2x DDR2 SO-DIMM, 667/800 MHz, Max. 8GB
Intel
®
GM45 + ICH9M, 667/800/1066 MHz FSB (MI945P)
Intel
®
GM45 + ICH9ME, 667/800/1066 MHz FSB (MI945PR,
MI945PA)
Award (MI945P, MI945PR) / AMI (MI945PA)
256 levels
N/A
Yes
1x PCI-E(x16), 1x PCI
Intel
®
GM45 integrated GMA 4500MHD
Supports DVMT 5.0; Max. shared memory - 1GB
Supports Direct X 10 for CRT & 18-bit/24-bit dual channel LVDS
Integrated Intel
®
82567LM Gigabit LAN
Intel
®
82574L PCI-E Gigabit LAN for 2
nd
LAN
RJ-45 on board
Winbond W83627DHG + Fintek 81216DG
1x IDE, 1x KB, 1x mouse,
3x RS232, 1x RS-232/422/485, 4x SATA II
4 ports on board
Pin header for 4 ports (USB 2.0)
Intel
®
ICH9M built-in HD audio w/ Realtek ALC888 codec for 7.1CH
Digital I/O (4 in, 4 out)
170mm x 170mm (6.7“ x 6.7“)
2x DDR3 SO-DIMM, 800/1066MHz, Max. 4GB
Intel
®
GM45 + ICH9M, 667/800/1066MHz FSB
Award
256 levels
CF socket (solder side)
Yes
1x PCI-E(x16), 1x Mini PCI-E
Intel
®
GM45 integrated GMA 4500MHD
Supports DVMT 5.0; Max. shared memory - 256MB
Supports DirectX 10 for CRT & 18-bit/24-bit dual channel LVDS
ICH9M integrated Intel 82567LM Gigabit LAN
Intel
®
82574L PCI-E Gigabit LAN for 2nd LAN
®
RJ-45 on board
Winbond W83627DHG-P + Fintek 81216G
1x IDE, 1x KB, 1x mouse,
3x RS232, 1x RS-232/422/485, 4x SATA II
4 ports on board
Pin header for 4 ports (USB 2.0)
Intel
®
ICH9M built-in HD audio w/ Realtek ALC888 codec for 7.1CH
Digital I/O (4 in, 4 out)
170mm x 170mm (6.7“ x 6.7“)
Intel
®
Core™2 Duo T9400 2.53GHz w/ 1GB DDR3-1066
Max. Power Requirement
+12V: 2.12A
+5V: 2.97A
Operating Temperature
Storage Temperature
Relative Humidity
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Intel
®
Core
™
2 Duo T9400 2.53GHz
w/ 1GB DDR3-1066
Max. Power Requirement
+12V: 2.12A
+5V: 2.97A
Operating Temperature
Storage Temperature
Relative Humidity
0°C~60°C (32°F~140°F)
-20°C~80°C (-4°F~176°F)
10%~90% (non-condensing)
Ordering Information
MI945P
MI945PR
MI945PA
Socket P GM45 Mini-ITX motherboard with VGA and dual Gigabit LAN
Socket P GM45 Mini-ITX motherboard with VGA and dual Gigabit
LAN, RAID
Socket P GM45 Mini-ITX motherboard with VGA and dual Gigabit
LAN, RAID, Intel
®
AMT 4.0
Remarks: 1. Specifications are subject to change without prior notice.
2. ODM/OEM is available.
3. For user’s manual & datasheet download, visit www.ibase.com.tw.
Ordering Information
MI945X
MI945XR
Socket P GM45 Mini-ITX motherboard with VGA and dual Gigabit LAN
Socket P GM45 Mini-ITX motherboard with VGA, dual Gigabit LAN
and RAID (ICH9ME)
