HY512260JC-70: DescriptionFast Page DRAM, 128KX16, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40; Categorystorage storage; File Size340KB，8 Pages; ManufacturerSK Hynix; Websitehttp://www.hynix.com/eng/

Download Datasheet Parametric Compare View All

HY512260JC-70 Overview

Fast Page DRAM, 128KX16, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40

HY512260JC-70 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SK Hynix
Parts packaging code	SOJ
package instruction	SOJ, SOJ40,.44
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-J40
JESD-609 code	e0
length	26.04 mm
memory density	2097152 bit
Memory IC Type	FAST PAGE DRAM
memory width	16
Number of functions	1
Number of ports	1
Number of terminals	40
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ40,.44
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
refresh cycle	512
Maximum seat height	3.76 mm
self refresh	NO
Maximum standby current	0.001 A
Maximum slew rate	0.09 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	10.16 mm

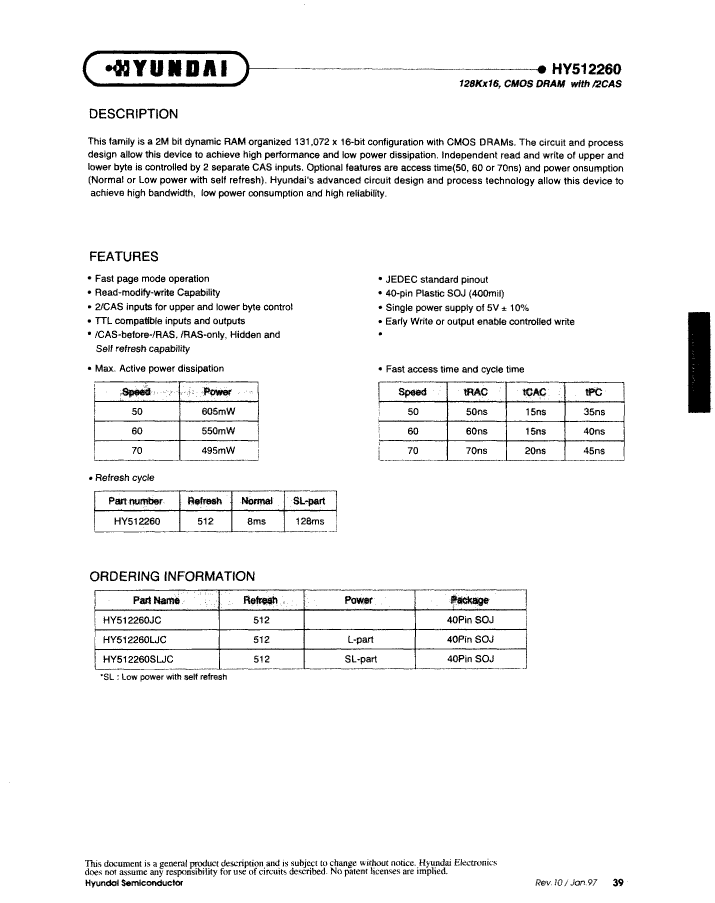

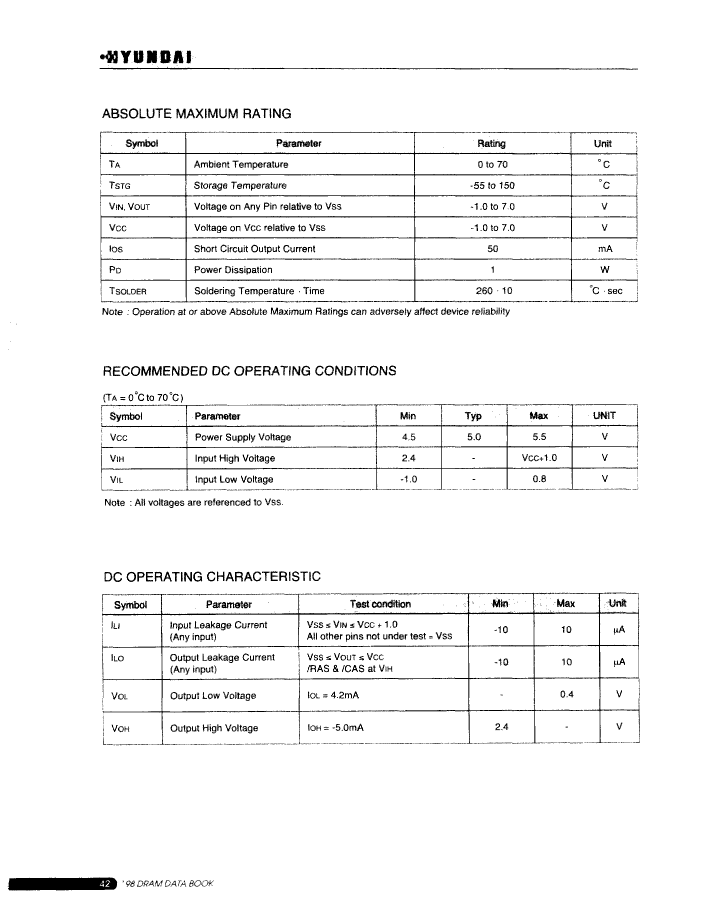

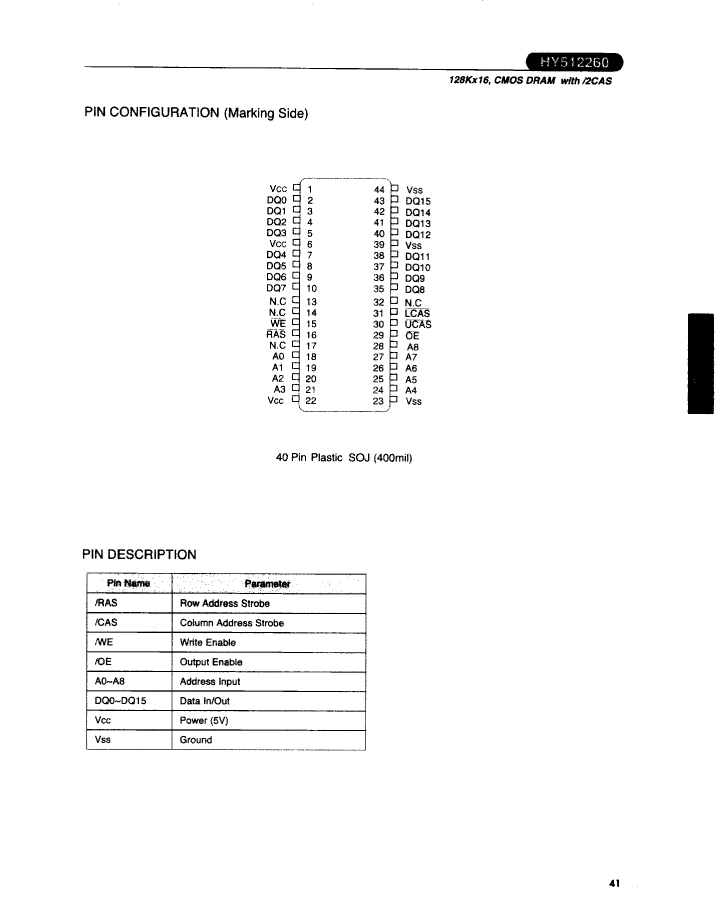

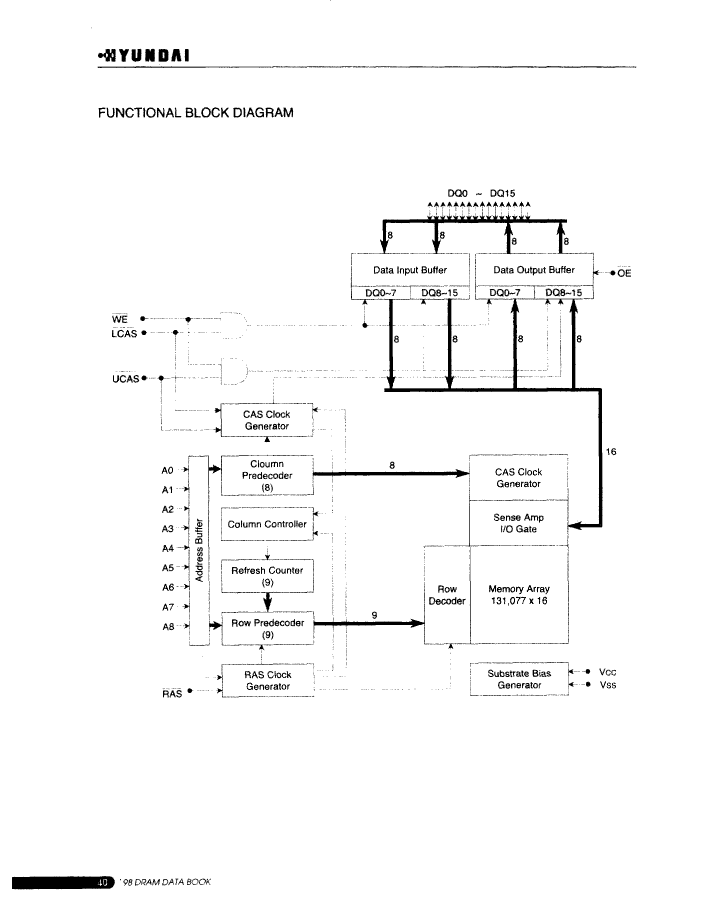

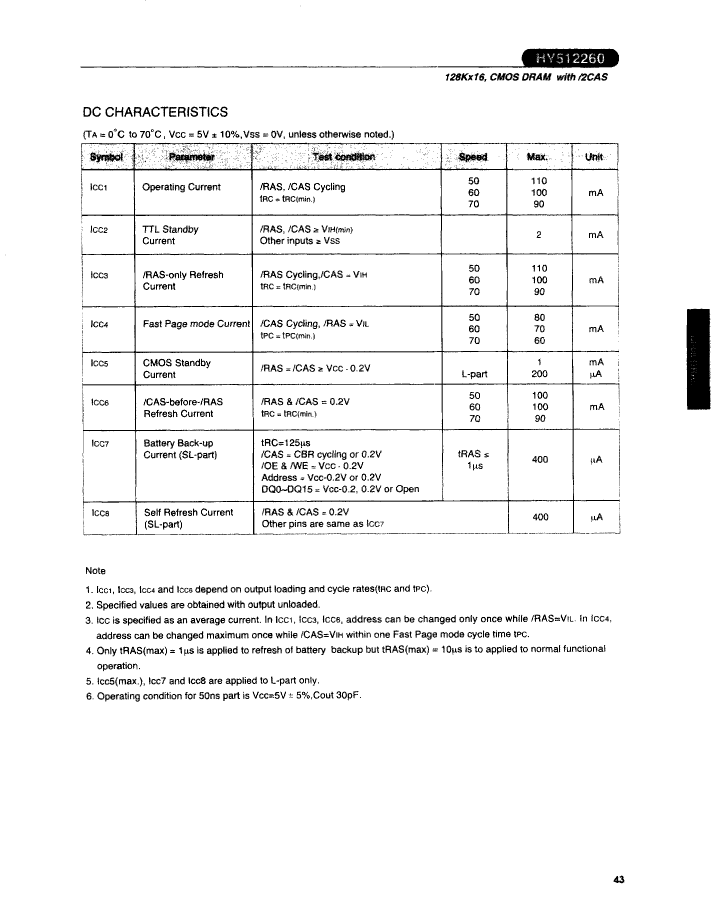

Preview

Download Datasheet

View All

HY512260JC-70 Related Products

	HY512260JC-70	HY512260JC-50	HY512260LJC-50	HY512260JC-60	HY512260LJC-70	HY512260SLJC-50	HY512260LJC-60	HY512260SLJC-60	HY512260SLJC-70
Description	Fast Page DRAM, 128KX16, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 50ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 50ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 50ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 60ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40	Fast Page DRAM, 128KX16, 70ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix	SK Hynix
Parts packaging code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
package instruction	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44	SOJ, SOJ40,.44
Contacts	40	40	40	40	40	40	40	40	40
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	70 ns	50 ns	50 ns	60 ns	70 ns	50 ns	60 ns	60 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40	R-PDSO-J40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
length	26.04 mm	26.04 mm	26.04 mm	26.04 mm	26.04 mm	26.04 mm	26.04 mm	26.04 mm	26.04 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM	FAST PAGE DRAM
memory width	16	16	16	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	40	40	40	40	40	40	40	40	40
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16	128KX16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ	SOJ
Encapsulate equivalent code	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44	SOJ40,.44
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	512	512	512	512	512	512	512	512	512
Maximum seat height	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm	3.76 mm
self refresh	NO	NO	NO	NO	NO	YES	NO	YES	YES
Maximum standby current	0.001 A	0.001 A	0.0002 A	0.001 A	0.0002 A	0.0002 A	0.0002 A	0.0002 A	0.0002 A
Maximum slew rate	0.09 mA	0.11 mA	0.11 mA	0.1 mA	0.09 mA	0.11 mA	0.1 mA	0.1 mA	0.09 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm	10.16 mm
