HD74LS258FP: DescriptionMultiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, FP-16DA; Categorylogic logic; File Size74KB，6 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

HD74LS258FP Overview

Multiplexer, LS Series, 4-Func, 2 Line Input, 1 Line Output, Inverted Output, TTL, PDSO16, FP-16DA

HD74LS258FP Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
Parts packaging code	SOIC
package instruction	SOP, SOP16,.3
Contacts	16
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G16
length	10.06 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.008 A
Number of functions	4
Number of entries	2
Output times	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	12 mA
Prop。Delay @ Nom-Sup	18 ns
propagation delay (tpd)	18 ns
Certification status	Not Qualified
Maximum seat height	2.2 mm
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.5 mm

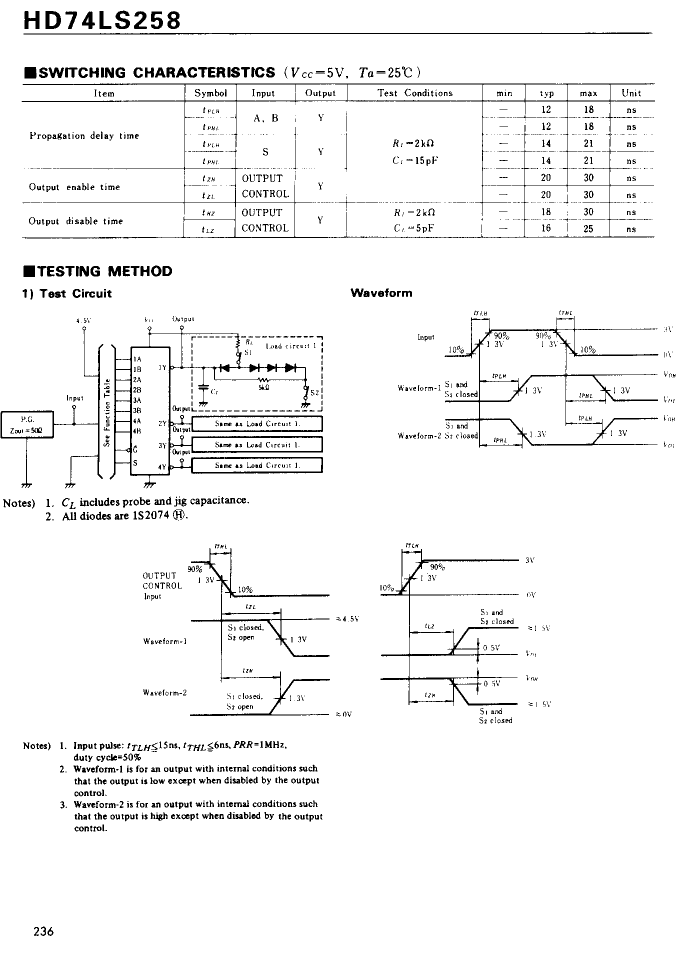

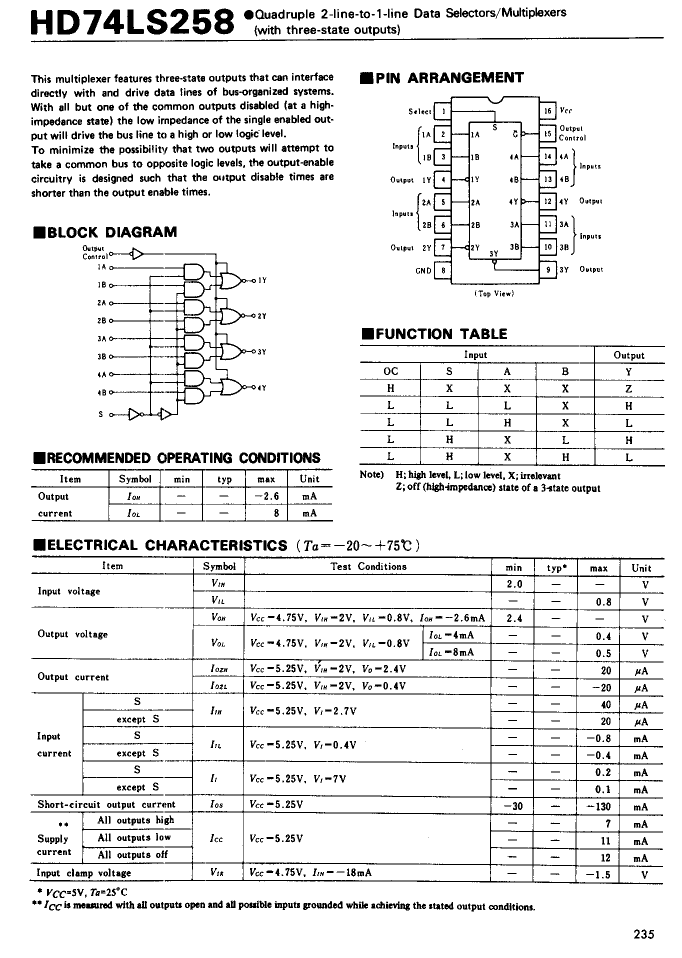

HD74LS258FP Preview

19.20

20.00 Max

16

9

7.40 Max

6.30

Unit: mm

1

1.3

1.11 Max

8

0.51 Min

2.54 Min 5.06 Max

7.62

2.54

±

0.25

0.48

±

0.10

0.25

– 0.05

0° – 15°

Hitachi Code

JEDEC

EIAJ

Weight (reference value)

+ 0.13

DP-16

Conforms

1.07 g

Unit: mm

10.06

10.5 Max

16

9

5.5

1

*0.22

±

0.05

0.20

±

0.04

8

0.80 Max

2.20 Max

0.20

7.80

+ 0.30

–

1.15

0° – 8°

0.70

±

0.20

1.27

*0.42

±

0.08

0.40

±

0.06

0.12 M

Hitachi Code

JEDEC

EIAJ

Weight (reference value)

FP-16DA

—

Conforms

0.24 g

*Dimension including the plating thickness

Base material dimension

0.10

±

0.10

0.15

Unit: mm

9.9

10.3 Max

16

9

3.95

1

1.27

0.635 Max

8

0.11

0.14

+ 0.04

–

1.75 Max

*0.22

±

0.03

0.20

±

0.03

0.10

6.10

+ 0.30

–

1.08

0° – 8°

0.67

0.60

+ 0.20

–

*0.42

±

0.08

0.40

±

0.06

0.15

0.25

M

*Dimension including the plating thickness

Base material dimension

Hitachi Code

JEDEC

EIAJ

Weight (reference value)

FP-16DN

Conforms

0.15 g

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
