XMS-10V

Description
2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER
CategoryThe connector
File Size227KB,6 Pages
ManufacturerETC2
Download Datasheet Parametric View All

XMS-10V Overview

2 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER

XMS-10V Parametric

Parameter NameAttribute value
Connector typeBOARD CONNECTOR
Contact materialsCOPPER ALLOY
Terminal spacing2.5 mm
Total number of contacts2
stateActive
Contact surface matchingTIN OVER COPPER
Contact coated terminalsTIN OVER COPPER
Connector male and femaleMALE
According to DINNO
Filter characteristicsNO
Comply with IECNO
jesd_609_codee3
Manufacturer SeriesXA
collocation informationMULTIPLE MATING PARTS AVAILABLE
Meet MILNO
hybrid connectionNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of load rows1
OptionsGENERAL PURPOSE
Terminal typeSOLDER
UL flammability code94V-0
dditional_featureTOP ENTRY, SHROUDED
XA
CONNECTOR
Emboss Tape
Radial Tape

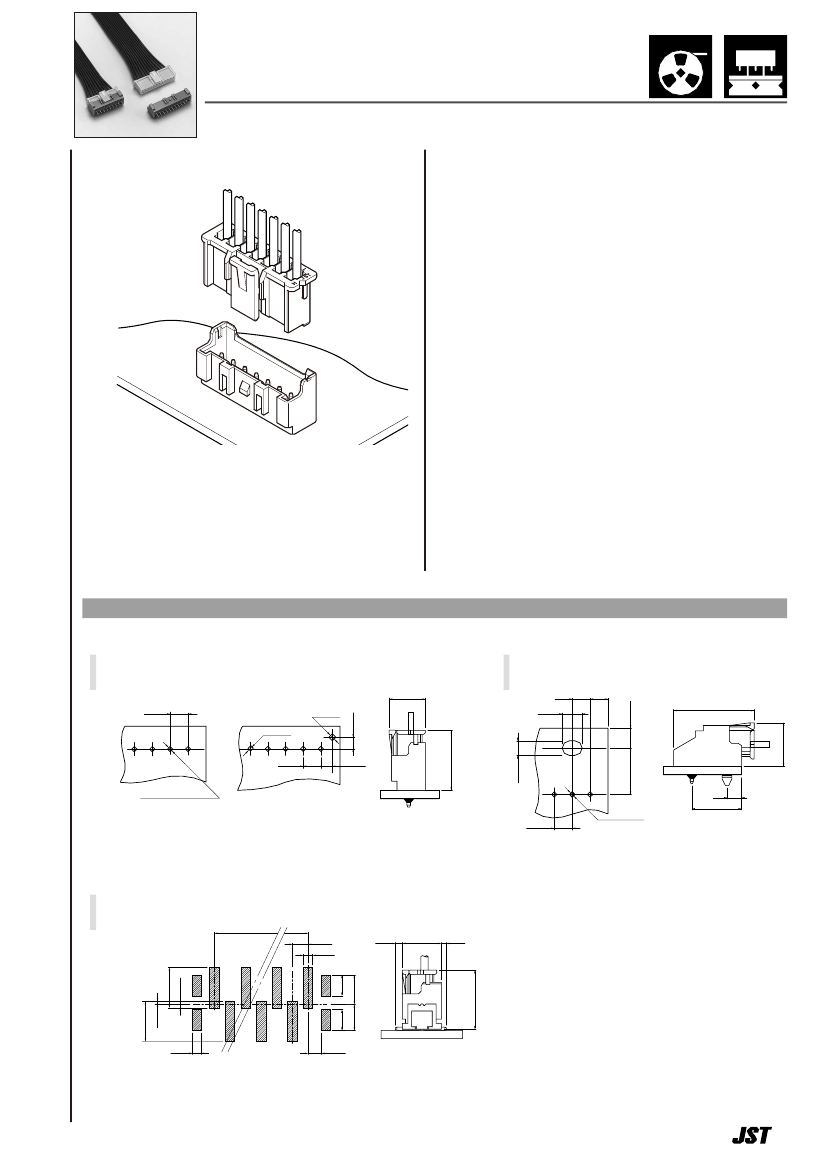

2.5mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3A AC DC (AWG #22, #20)
• Voltage rating: 250V AC DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
max.
After environmental testing/20m
max.
• Insulation resistance:
1,000M
min.
• Withstanding voltage: 1,000V AC/minute
• Applicable wire: AWG #28 to #20
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
• Secure locking device
• Solder crack preventive material
• Low insertion force
• Insertion guide mechanism
• Applicable to automatic board mounting
machine
• Polarizing boss
Standards–––––––––––––––––––––––
1
Certified LR20812
2
R9851220
0
Recognized E60389

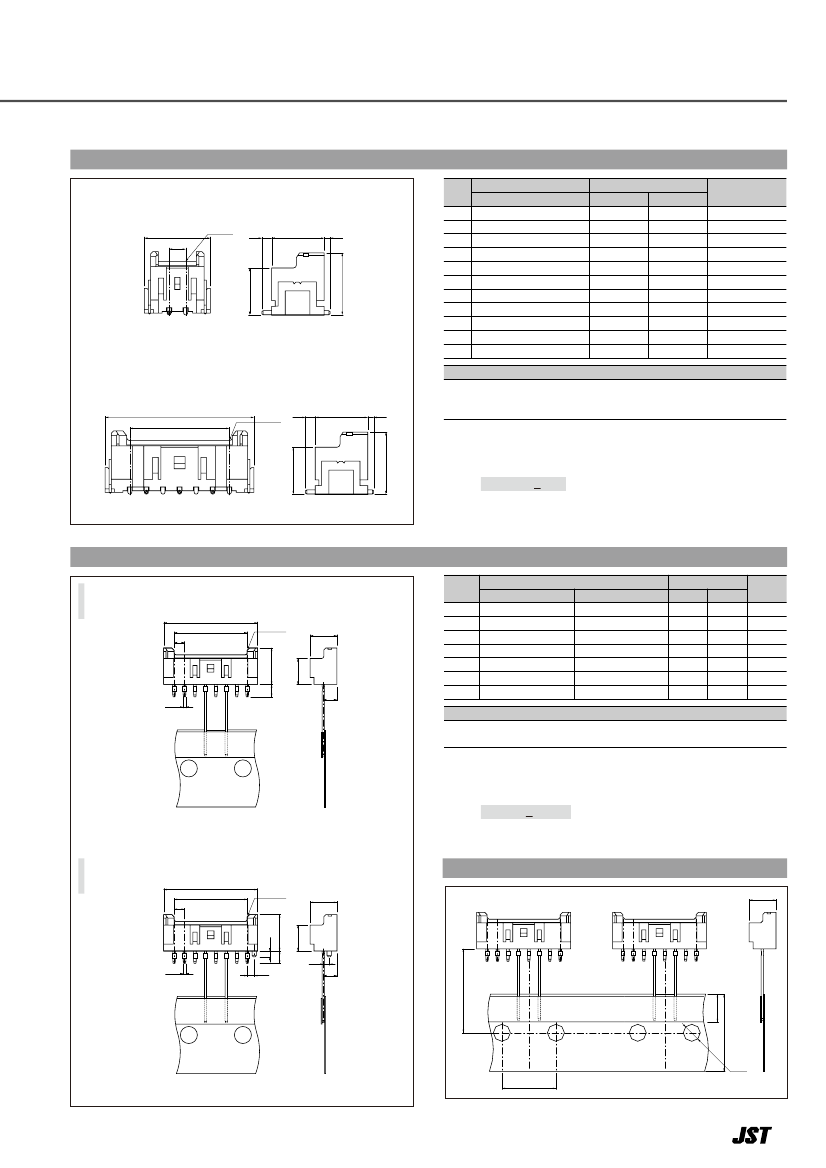

PC board layout (viewed from component side) and Assembly layout
〈Through-hole
type〉
Top entry type
without a boss
2.5
±0.05
Side entry type
with a boss
1.6
±0.05
(6.9)
φ1.2
+0.1
 0
D
±
0.05
2.8
±
0.05
2.5
min
2.7
min
(15.1)
(11.3)
φ0.9
+0.1
 0
φ0.9
+0.1
 0
2.5
±
0.05
6.5
±
0.05
2.5
±0.05
1.6
±0.05
2.0
±
0.05
2.7
9.2
Dimension D: Refer to the Model No. chart of header side entry type.
〈SMT
type〉
Top entry type
A
±0.05
2.5
±0.03
1.3
±0.1
(1.4)
(8.0)
(1.0)
6.2
±0.1
0.5
±0.03
3.3
±0.1
4.25
±0.1
4.65
±0.1
0.5
±0.03
6.2
±0.1
1.2
±0.1
2.3
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
3.3
±0.1
(11.9)
1
(8.1)
φ0.9
+0.1
 0
