884027214/10 | CS44ZB WHT C6A 4/23 U/UTP CPK 305M
CS44ZB Category 6A U/UTP Cable,low smoke zero halogen, white jacket, 4 pair count, 1000 ft (305 m)
length, CommPak
Product Classification
Portfolio
Product Type
Regional Availability
NETCONNECT®
Twisted pair cable
EMEA
Standards And Qualifications
EN50575 CPR Cable EuroClass
B2ca | s1 | d0 | a1

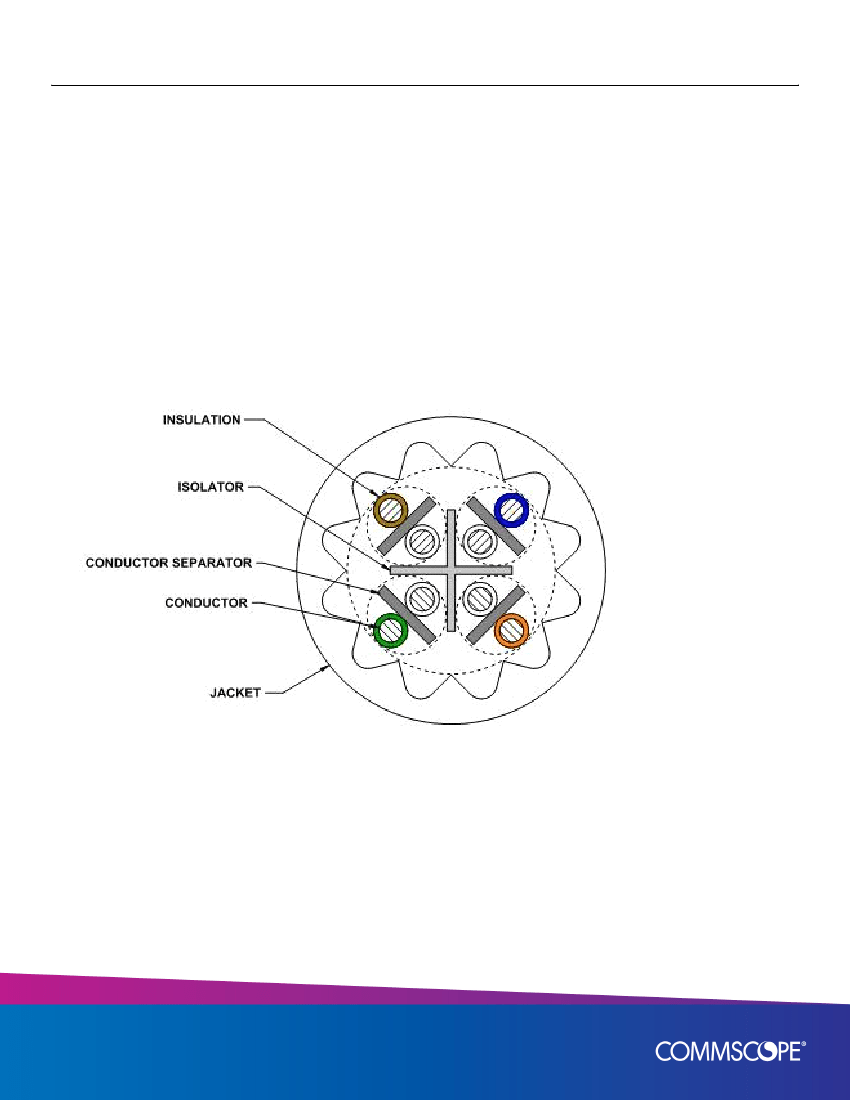

Cross Section Drawing
Construction Materials
Jacket Material
Conductor Material
Insulation Material
Separator Material
Separator 2 Material
Low Smoke Zero Halogen (LSZH)
Bare copper
Polyolefin
Polyolefin
Polyolefin
page 1 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
884027214/10 | CS44ZB WHT C6A 4/23 U/UTP CPK 305M
Dimensions
Cable Length
Cable Weight
Diameter Over Jacket, nominal
Jacket Thickness
305 m | 1000 ft
37.60 lb/kft
7.239 mm | 0.285 in
1.270 mm | 0.050 in
Electrical Specifications
ANSI/TIA Category
dc Resistance Unbalance, maximum
dc Resistance, maximum
Mutual Capacitance
Operating Frequency, maximum
Operating Voltage, maximum
Transmission Standards
6A
4%
7.61 ohms/100 m
6.0 nF/100 m @ 1 kHz
550 MHz
80 V
ANSI/TIA-568-C.2 | ISO/IEC 11801 Class EA
Nominal Velocity of Propagation (NVP)
66 %
Environmental Specifications
Environmental Space
Smoke Test Method
Acid Gas Test Method
Installation Temperature
Operating Temperature
Low Smoke Zero Halogen (LSZH)
IEC 61034-2
EN 50267-2-3
0 °C to +60 °C (+32 °F to +140 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type
Packaging Type
Pairs, quantity
Cable Component Type
Jacket Color
Product Number
Conductor Gauge, singles
Conductor Type, singles
Conductors, quantity
Separator Type
U/UTP (unshielded)
CommPak® box
4
Horizontal
White
CS44ZB
23 AWG
Solid
8
Isolator
Mechanical Specifications
Pulling Tension, maximum
11 kg | 25 lb
page 2 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
884027214/10 | CS44ZB WHT C6A 4/23 U/UTP CPK 305M
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
CENELEC
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
EN 50575 compliant, Declaration of Performance (DoP) available
page 3 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
884027214/10 | CS44ZB WHT C6A 4/23 U/UTP CPK 305M
Electrical Performance
Std
Typ
IL
NEXT
ACR
PSNEXT
PSACR
ACRF
PSACRF
RL
TCL
ELTCTL
Refers to the standard value listed under Transmission Standards in the Electrical Specifications above
Typical
Insertion Loss (dB/100m)
Near End Crosstalk (dB/100m)
Attenuation to Crosstalk Ratio (dB/100m)
Power Sum Near End Crosstalk (db/100m)
Power Sum Attenuation to Crosstalk Ratio (dB/100m)
Attenuation to Crosstalk Ratio - Far End (dB/100m)
Power Sum Attenuation to Crosstalk Ratio – Far End (dB/100m)
Return Loss (dB)
Transverse Conversion Loss (dB/100m)
Equal Level Transverse Conversion Transfer Loss (dB/100m)
Freq.
MHz
1
4
8
10
16
20
25
31.25
62.5
100
155
200
250
300
350
400
500
550
IL
Std
2.1
3.8
5.3
5.9
7.5
8.4
9.4
10.5
15.0
19.1
24.1
27.6
31.1
34.3
37.2
40.1
45.3
Typ
1.8
3.5
5.0
5.6
7.1
8.0
9.0
10.1
14.4
18.4
23.2
26.5
29.8
32.9
35.7
38.2
43.1
Std
NEXT
Typ
91.0
83.1
79.0
76.6
73.6
73.0
70.6
68.7
64.6
60.2
60.8
56.8
54.8
53.4
52.1
50.4
47.3
Std
72.2
61.5
55.4
53.4
48.8
46.4
44.0
41.4
32.4
25.2
17.4
12.2
7.3
2.9
-1.1
-4.8
ACR
Typ
89.2
79.6
73.9
71.0
66.5
65.0
61.7
58.7
50.3
41.9
37.7
30.4
25.1
20.5
16.4
12.2
4.2
PSNEXT
Std
72.3
63.3
58.8
57.3
54.2
52.8
51.3
49.9
45.4
42.3
39.4
37.8
36.3
35.1
34.1
33.3
31.8
Typ
89.0
81.0
76.9
74.7
71.5
71.0
68.8
66.9
62.7
58.7
58.8
55.0
52.8
51.4
50.1
48.3
45.5
PSACR
Std
70.2
59.5
53.4
51.4
46.8
44.4
42.0
39.4
30.4
23.2
15.4
10.2
5.3
0.9
-3.1
-6.8
-13.4
Typ
87.3
77.5
71.8
69.1
64.3
63.0
59.8
56.8
48.3
40.4
35.6
28.5
23.0
18.5
14.4
10.1
2.4
Std
ACRF
Typ
84.5
72.6
66.6
64.7
60.6
58.6
56.5
54.4
48.5
44.5
41.0
38.5
36.5
35.0
34.0
32.0
29.9
PSACRF
Std
64.8
52.8
46.7
44.8
40.7
38.8
36.8
34.9
28.9
24.8
21.0
18.8
16.8
15.3
13.9
12.8
10.8
Typ
82.5
70.5
64.4
62.5
58.2
56.2
54.2
52.1
46.0
42.2
38.7
36.3
34.2
32.5
31.4
30.0
27.8
Std
20.0
23.0
24.5
25.0
25.0
25.0
24.3
23.6
21.5
20.1
18.8
18.0
17.3
16.8
16.3
15.9
15.2
RL
Typ
33.0
34.6
37.3
38.4
39.6
38.9
38.7
39.3
36.3
35.8
33.1
33.0
32.6
32.5
33.2
34.2
34.6
TCL
Std
40.0
40.0
40.0
40.0
38.0
37.0
36.0
35.1
32.0
30.0
28.1
27.0
26.0
25.2
24.6
24.0
23.0
ELTCTL
Std
35.0
23.0
16.9
15.0
10.9
9.0
7.0
74.3
65.3
60.8
59.3
56.2
54.8
53.3
51.9
47.4
44.3
41.4
39.8
38.3
37.1
36.1
35.3
33.8
67.8
55.8
49.7
47.8
43.7
41.8
39.8
37.9
31.9
27.8
24.0
21.8
19.8
18.3
16.9
15.8
13.8
-11.4
page 4 of 4
March 25, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: January 9, 2019
