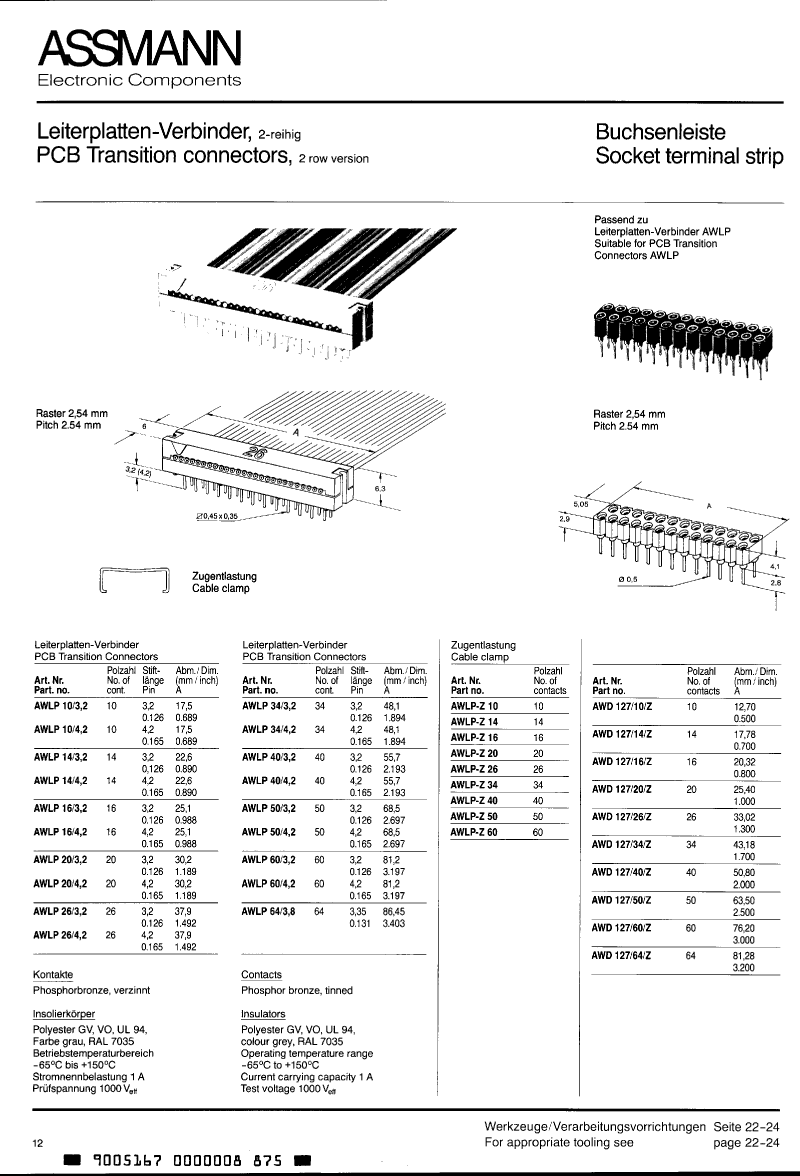

AWLP26/4,2: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/

Download Datasheet Parametric View All

AWLP26/4,2 Overview

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Gray Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ASSMANN
Reach Compliance Code	compliant
Other features	AVAILABLE CABLE CLAMP
body width	0.236 inch
subject depth	0.248 inch
body length	1.492 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact style	IDC
Dielectric withstand voltage	1000VAC V
Insulator color	GRAY
insulator material	POLYESTER
Manufacturer's serial number	AWLP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Termination type	SOLDER
Total number of contacts	26
