www.SunLED.com
Part Number:
XZAMG10C2
SURFACE MOUNT DISPLAY
Features
0.4 INCH CHARACTER HEIGHT.
LOW CURRENT OPERATION.
HIGH CONTRAST AND LIGHT OUTPUT.
EASY MOUNTING ON P.C. BOARDS OR SOCKETS.
CATEGORIZED FOR LUMINOUS INTENSITY.
MECHANICALLY RUGGED.
GRAY FACE, WHITE SEGMENT.
PACKAGE :500PCS / REEL.
RoHS COMPLIANT.
Notes:

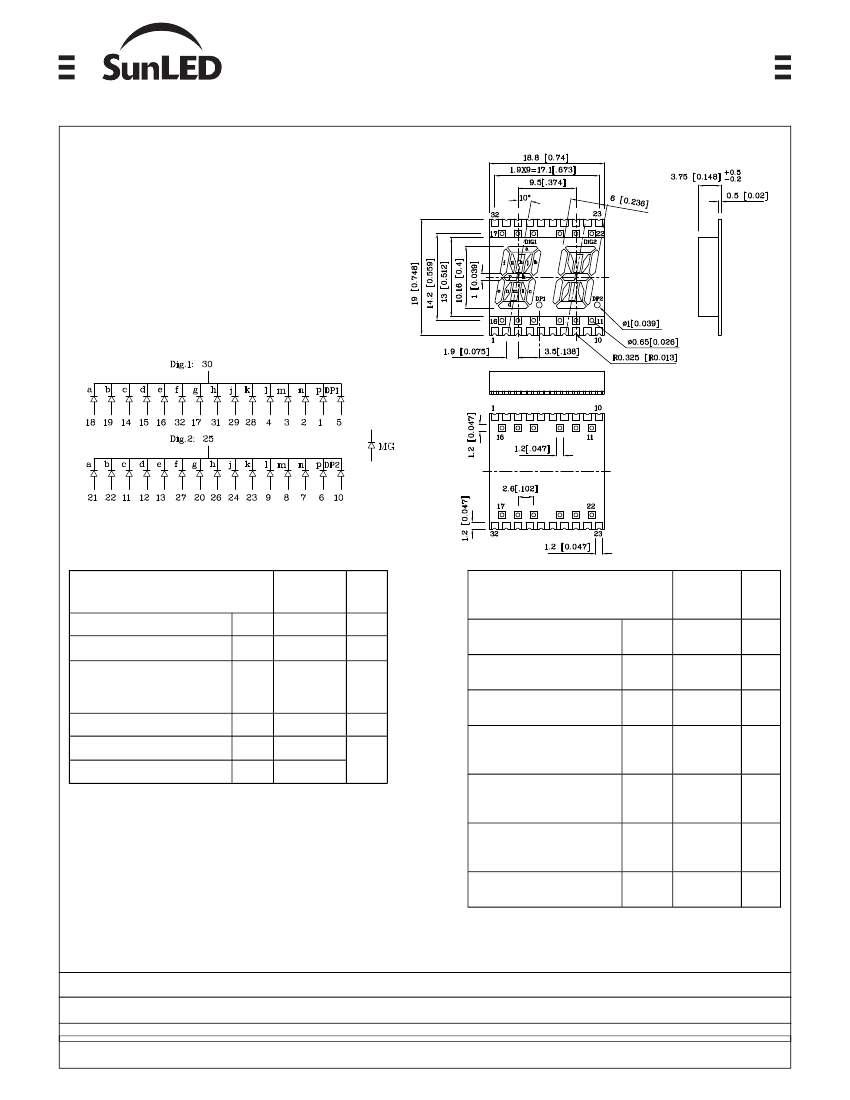

1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25(0.01") unless otherwise noted.
Absolute maximum ratings
(T
A
=25°C)
)
Reverse Voltage
Forward Current
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
Power Dissipation
Operating Temperature
Storage Temperature
V
R
I
F
i
FS
P
T
T
A
Tstg
MG
(GaP)
5
25
140
105
-40 ~ +85
-40 ~ +85
Unit
V
mA
mA
mW
°C
Operating Characteristics
(TA=25°C)
)
Forward Voltage (Typ.)
(I
F
=10mA)
Forward Voltage (Max.)
(I
F
=10mA)
Reverse Current
(V
R
=5V)
Wavelength of Peak
Emission
(I
F
=10mA)
Wavelength of Dominant
Emission
(I
F
=10mA)
Spectral Line Full Width At
Half-Maximum
(I
F
=10mA)
Capacitance
(V
F
=0V, f=1MHz)
Part
Number
Emitting
Color
Emitting
Material
Luminous
Intensity
(IF=10mA)
ucd
min.
XZAMG10C2
Green
GaP
1900
typ.
7490
565
Common Cathode, Rt. Hand Decimal
Wavelength
nm
λ
P
V
F
V
F
I
R
MG
(GaP)
2
2.5
10
Unit
V
V
uA
λ
P
565
nm
λ
D
568
nm
∆λ
C
30
nm
15
pF
Description
Published Date : MAY 25,2005
Drawing No : XDSA0874
V2
Checked : Shin Chi
P.1/3
www.SunLED.com
Part Number:
XZAMG10C2
SURFACE MOUNT DISPLAY

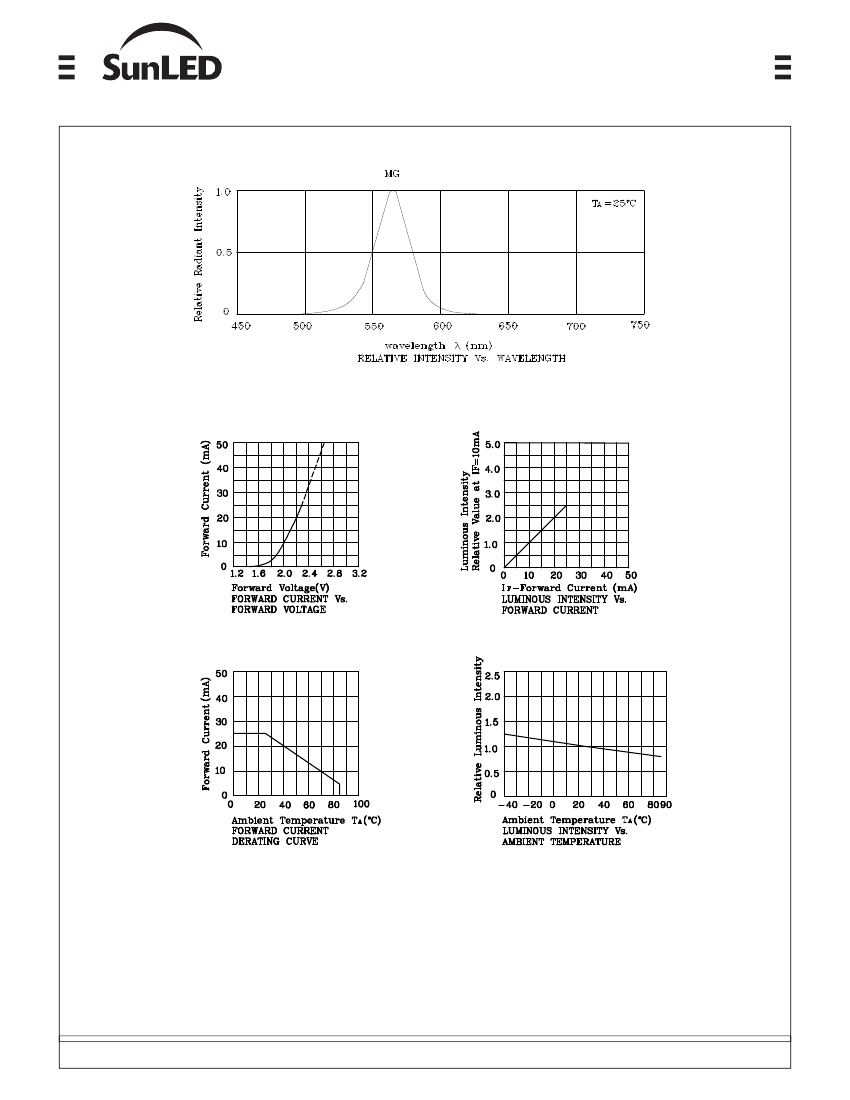

MG
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : MAY 25,2005
Drawing No : XDSA0874
V2
Checked : Shin Chi
P.2/3
www.SunLED.com
Part Number:
XZAMG10C2
SURFACE MOUNT DISPLAY

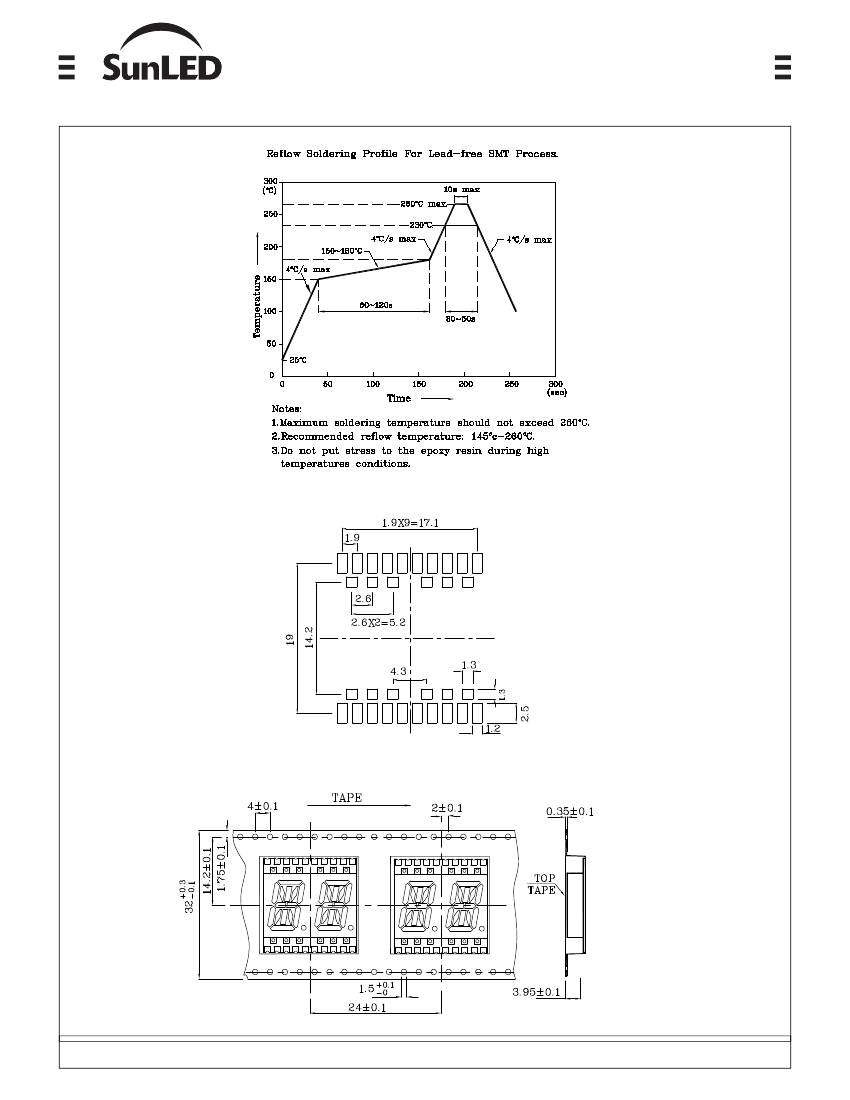

Recommended Soldering Pattern (Units : mm;Tolerance:
±
0.15)
Tape Specification (Units : mm)
Published Date : MAY 25,2005
Drawing No : XDSA0874
V2
Checked : Shin Chi
P.3/3
