XZBGK60W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> XZBGK60W

XZBGK60W: DescriptionSingle Color LED, Green, Water Clear, 2mm, 3 X 1.50 MM, 1.40 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size93KB，3 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric View All

XZBGK60W Overview

Single Color LED, Green, Water Clear, 2mm, 3 X 1.50 MM, 1.40 MM HEIGHT, SMD, 2 PIN

XZBGK60W Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	3 X 1.50 MM, 1.40 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	195.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.4 mm
method of packing	BULK
peak wavelength	515 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	3 mm
perspective	70 deg

XZBGK60W Preview

3.0x1.5 mm SMD CHIP LED LAMP

XZBGK60W

SUN LED

: sales@us.sunled.com

Web Site : www.sunled.com

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.2(0.0079")

unless otherwise noted.

Ab s o l u t e m a x i m u m r a t i n g s

( T

=25

Reverse voltage

Forward current

Forward current (peak)

1/10Duty cycle

0.1ms pulse width

Power dissipation

Operating temperature

Storage temperature

Tstg

BGK

( I n G a N)

130

105

-40 ~ +85

Un i t

Op e r a t i n g Ch a r a c t e r i s t i c s

( T

=25

Forward voltage (typ.)

(I F=20mA)

Forward voltage (max.)

(I F=20mA)

Reverse current

(VR=5V)

Wavelength at peak

emission

(I F=20mA)

Wavelength at Dominate

emission

(I F=20mA)

Spectral Line half-width

(I F=20mA)

Capacitance

(VF=0V, f=1MHz)

BGK

( I n G a N)

Un i t

°C

4.2

4.8

peak

515

λD

525

∆λ

P art

Nu m b e r

Em i t t i n g

Co l o r

Em i t t i n g

Ma te ria l

L e n s -c o l o r

L u min o u s

In t e n si t y

( I F = 20m A )

mc d

min .

ty p .

195

Wa v e l e n g t h

Vi e w i n g

An g l e

2θ1/2

XZBGK60W

Green

I nGaN

Water Clear

515

70°

Published Date : OCT 19,2002

Drawing No:XDSA1410

Checked : B.L.LIU

3-1

XZBGK60W

BGK

Published Date : OCT 19,2002

Drawing No:XDSA1410

Checked : B.L.LIU

3-2

XZBGK60W

!SMT

Reflow Soldering Instructions

!Recommended

Soldering Pattern (Units : mm; Tolerance:

0.1)

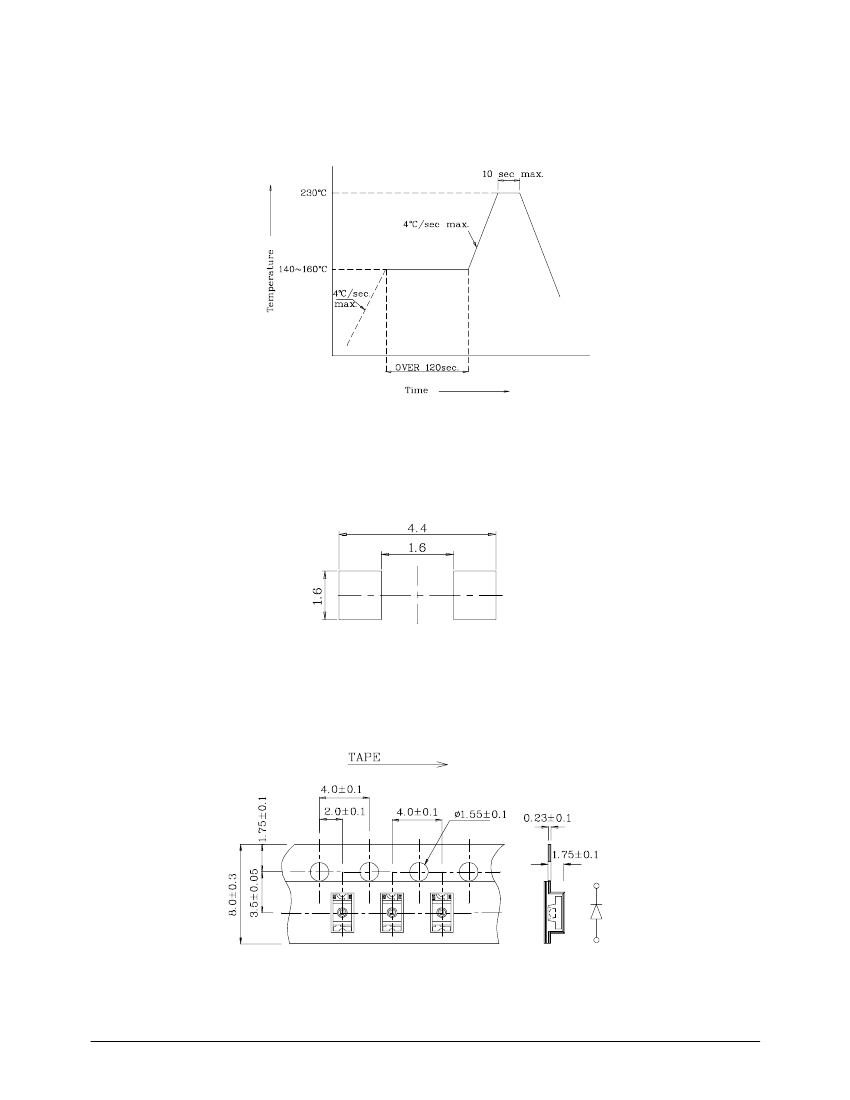

!Tape

Specification (Units : mm)

PACKAGE : 2000PCS / REEL.

Published Date : OCT 19,2002

Drawing No:XDSA1410

Checked : B.L.LIU

3-3
