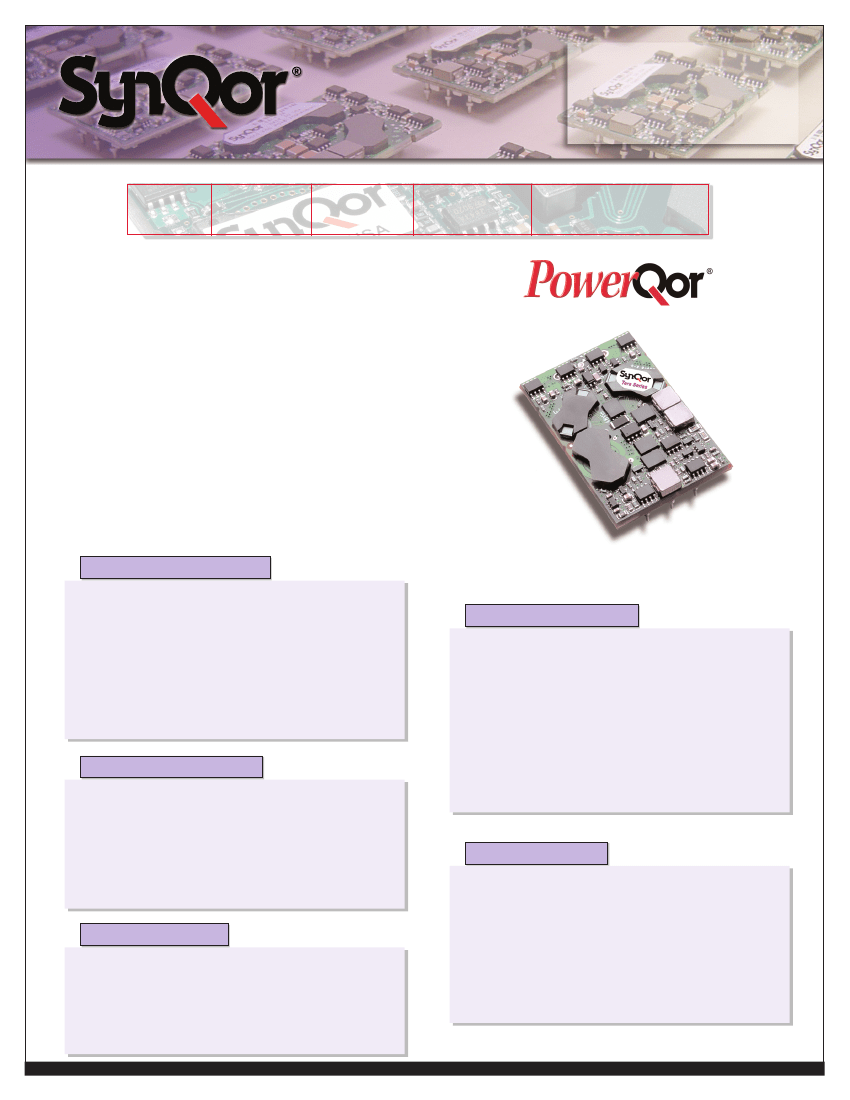

PQ60015QTA40
48V in
Input
1.5Vout
Output
40Amp
Current
2000Vdc
Isolation
Quar ter-brick
DC/DC Conver ter
The PQ60015QTA40 PowerQor Tera quarter-brick
converter is a next-generation, board-mountable, isolated,
fixed switching frequency DC/DC converter that uses
synchronous rectification to achieve extremely high
conversion efficiency. The power dissipated by the
converter is so low that a heatsink is not required, which
saves cost, weight, height, and application effort. All of
the power and control components are mounted to the
multi-layer PCB substrate with high-yield surface mount
technology. Since the PowerQor converter has no explicit
thermal interfaces, it is extremely reliable. The Tera series
offers the maximum useable output current for any
standard “quarter-brick” module.
Operational Features
• Ultra-high efficiency, 89% at half load, 85% at full load
• Delivers up to 40 amps of output current with minimal
derating - no heatsink required
• Wide input voltage range: 35V – 75V, with 100V
100ms input voltage transient capability
• Fixed frequency switching provides predictable EMI
performance
• No minimum load requirement means no preload
resistors required
PQ60015QTA40 Module
Pr otection Features
• Input under-voltage lockout disables converter at low
input voltage conditions
• Output current limit and short circuit protection protects
converter and load from permanent damage and
consequent hazardous conditions
• Active back bias limit prevents damage to converter
from external load induced pre-bias
• Output over-voltage protection protects load from
damaging voltages
• Thermal shutdown protects converter from abnormal
environmental conditions
Mechanical Features
• Industry standard quarter-brick pin-out configuration
• Industry standard size: 1.45” x 2.3” (36.8x58.4mm)
• Total height less than 0.43” (10.9mm), permits better
airflow and smaller card pitch
• Total weight: 1.5 oz. (42 grams)
• Flanged pins designed to permit surface mount
soldering (avoid wave solder) using FPiP technique
Safety Features
• 2000V, 30 MW input-to-output isolation provides
input/output ground separation
• UL 60950-1:2007
• CAN/CSA-C22.2 No. 60950-1:2007
• EN60950-1/A12:2011
• IEC 61000-4-2
Contr ol Features
• On/Off control referenced to input side (positive and
negative logic options are available)
• Remote sense for the output voltage compensates for
output distribution drops
• Output voltage trim permits custom voltages and voltage
margining
Product # PQ60015QTA40
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2QT651C Rev. D
1/2/2013
Page 1
Technical Specification

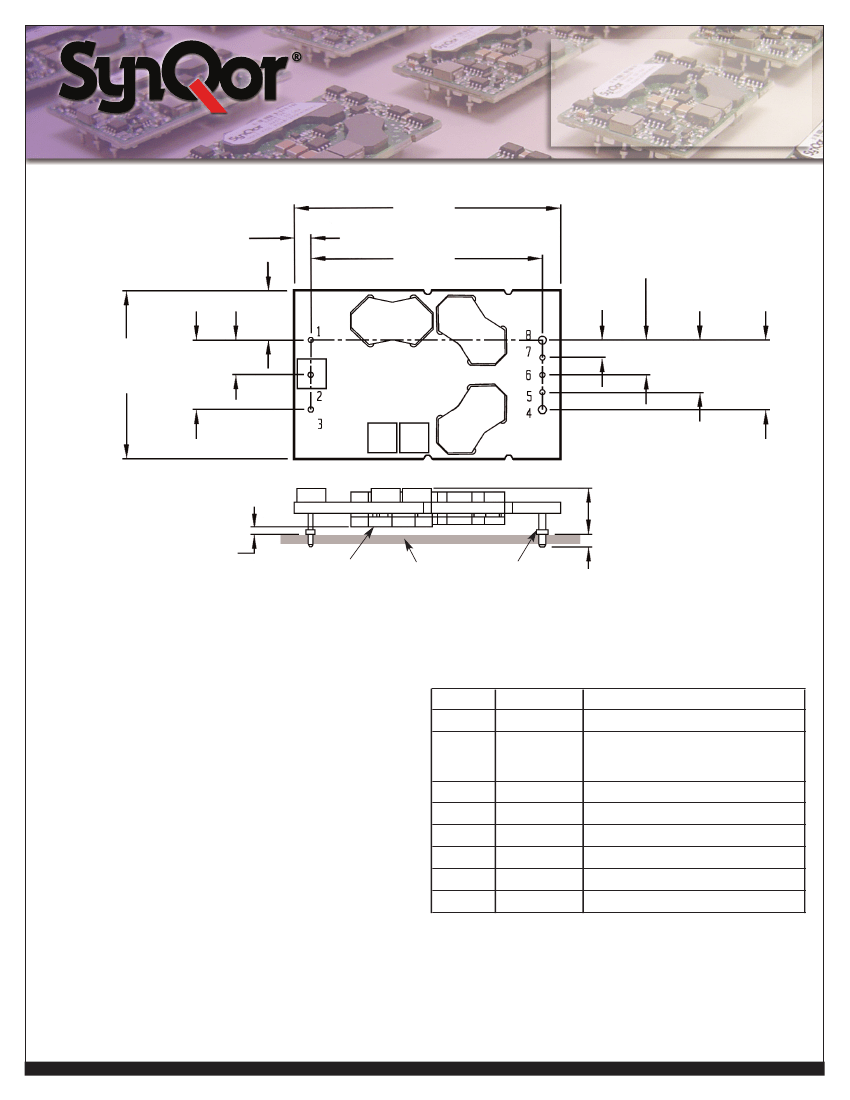

MECHANICAL
DIAGRAM
2.30
(58.4)
Input:
Output:
Current:
Package:
35-75 V
1.5 V
40 A
Quarter-brick
0.14
(3.6)
2.00
(50.8)
0.300
(7.62)
0.150
0.43
(10.9)
(3.81)
1.45
(36.8)
0.300
0.600
(15.24)
(7.62)
0.450
Top View
(11.43)
0.600
(15.24)
Bottom side
Clearance
See Note 9
0.43
(10.9)
0.060+.022/-.032
(1.52+.56/-.81)
Lowest
Component
Load Board
Flanged Pin
See Note 10
Side View
0.145
(3.68)
See Note 3
NOTES
1) Pins 1-3, 5-7 are 0.040” (1.02mm) diameter with 0.080”
(2.03 mm) diameter standoff shoulders.
2) Pins 4 and 8 are 0.062” (1.57 mm) diameter with
0.100” (2.54 mm) diameter standoff shoulders.
3) Other pin extension lengths available. Recommended pin
length is 0.03” (0.76mm) greater than the PCB thickness.
4) All Pins: Material - Copper Alloy
Finish - Matte Tin over Nickel plate
5) Undimensioned components are shown for visual
reference only.
6) All dimensions in inches (mm)
Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm)
x.xxx +/-0.010 in. (x.xx +/-0.25mm)
7) Weight: 1.5 oz. (42 g) typical
8) Workmanship: Meets or exceeds IPC-A-610C Class II
9)
UL/TUV standards require a clearance greater than 0.04”
(1.02mm) between input and output for Basic insulation. This
issue should be considered if any copper traces are on the
top side of the user’s board. Note that the ferrite cores are
considered part of the input/primary circuit.
PIN DESIGNATIONS
Pin No.
1
2
3
4
5
6
7
8
Notes:
1. SENSE(-) may be connected to Vout(-) or left open.
2. Leave TRIM pin open for nominal output voltage.
3. SENSE(+) may be connected to Vout(+) or left open.
Name
Vin(+)
ON/OFF
Vin(-)
Vout(-)
SENSE(-)
TRIM
SENSE(+)
Vout(+)
Function
Positive input voltage
TTL input to turn converter
on and off, referenced to
Vin(-), with internal pull up.
Negative input voltage
Negative output voltage
Negative remote sense
1
Output voltage trim
2
Positive remote sense
3
Positive output voltage
10)The flanged pins are designed to permit surface mount
soldeing (avoiding the wave soldering process) through
the use of the flanged pin-in-paste technique.
Product # PQ60015QTA40
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2QT651C Rev. D
1/2/2013
Page 2
Technical Specification
PQ60015QTA40 ELECTRICAL CHARACTERISTICS
Parameter
ABSOLUTE MAXIMUM RATINGS
Input:
Output:
Current:
Package:
35-75 V
1.5 V
40 A
Quarter-brick
T
A
=25°C, airflow rate=300 LFM, V
in
=48Vdc unless otherwise noted; full operating temperature range is -40°C to +100°C ambient
temperature with appropriate power derating. Specifications subject to change without notice.
Min.
Typ.
Max.
100
80
100
2000
100
125
18
48
33
29.5
3.5
45
1.6
150
6
95
1\5\3
47
1.485
1.500
+0.1 \ 2
+0.1 \ 2
+6
50
10
47.5
0.82
1.1
10
85
80
190
400
180
83
87
4
200
0
85
89
125
125
125
2000
30
8
240
75
34
30.5
4.5
2.8
60
3
0.01
Units
V
V
V
V
°C
°C
V
V
V
V
V
A
mA
mA
A
2
s
mV
mA
mA
A
µF\µH\µF
µF
V
%\mV
%\mV
mV
V
mV
mV
A
A
V
A
mA
µF
dB
mV
mV
µs
ms
ms
%
%
%
°C
°C
°C
V
M
W
pF
Notes & Conditions
continuous
continuous
100ms transient; square wave
Basic insulation, Pollution Degree 2
Input Voltage
Non-Operating
Operating
Operating Transient Protection
Isolation Voltage (input to output)
Operating Temperature
Storage Temperature
Voltage at ON/OFF input pin
Operating Input Voltage Range
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Voltage Hysteresis
Maximum Input Current
No-Load Input Current
Disabled Input Current
Inrush Current Transient Rating
Response to Input Transient
Input Reflected Ripple Current
Input Terminal Ripple Current
Recommended Input Fuse
Input Filter Component Values (C
1
\L\C
2
)
Recommended External Input Capacitance
-40
-55
-2
35
32
28.5
2.5
INPUT CHARACTERISTICS
100% Load, 35 Vin
7
1000V/ms input transient; Figure 17
P-P thru 10µH inductor; Figures 13 & 15
RMS; Figures 13 & 14
fast blow external fuse recommended
internal values, see Figure E
Typical ESR 0.1-0.2W, see Figure 13
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Regulation
Over Line
Over Load
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
1
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
Output DC Current-Limit Shutdown Voltage
Back-Drive Current Limit while Enabled
Back-Drive Current Limit while Disabled
Maximum Output Capacitance
Input Voltage Ripple Rejection
Output Voltage during Load Current Transient
For a Step Change in Output Current (0.1A/µs)
For a Step Change in Output Current (1A/µs)
Settling Time
Turn-On Transient
Turn-On Time
Start-Up Inhibit Time
Output Voltage Overshoot
100% Load
50% Load
Semiconductor Junction Temperature
Board Temperature
Transformer Temperature
Isolation Voltage (dielectric strength)
Isolation Resistance
Isolation Capacitance
2
1.515
+0.3 \ 5
+0.3 \ 5
+20
1.545
100
20
40
51
2.0
50
40,000
1.455
0
44
0.5
0
over sample, line, load, temperature & life
500MHz bandwidth; Figures 13 & 16
Full Load, see Figures 13 & 16
Full Load, see Figures 13 & 16
Subject to thermal derating; Figures 5-8
Output Voltage 10% Low; Figure 23
Negative current drawn from output
Negative current drawn from output
1.5Vout at 40A Resistive Load
120 Hz; Figure 20
50% to 75% to 50% Iout max; Figure 11
50% to 75% to 50% Iout max; Figure 12
to within 1% Vout nom
Full load, Vout=90% nom.; Figures 9 & 10
-40°C to +125°C; Figure F
10,000 µF load capacitance, Iout = 0A
Figures 1 - 4
Figures 1 - 4
Package rated to 150°C
UL rated max operating temp 130°C
See Figures 5 - 8 for derating curves
DYNAMIC CHARACTERISTICS
EFFICIENCY
TEMPERATURE LIMITS FOR POWER DERATING CURVES
ISOLATION CHARACTERISTICS
470
Note 1: For applications requiring reduced output voltage ripple and noise, consult SynQor applications support (e-mail: support@synqor.com)
Note 2: Higher values of isolation capacitance can be added external to the module.
Product # PQ60015QTA40
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2QT651C Rev. D
1/2/2013
Page 3
Technical Specification
ELECTRICAL CHARACTERISTICS (Continued)
Parameter
P
FEATURE CHARACTERISTICS
Input:
Output:
Current:
Package:
35-75 V
1.5 V
40 A
Quarter-brick
Min.
190
-2
2.4
2.4
-2
Typ.
210
105
Max.
230
0.8
18
18
0.8
Units
kHz
kHz
V
V
V
V
V
kW
%
%
%
°C
°C
Notes & Conditions
Regulation stage Switching Frequency
Isolation stage Switching Frequency
ON/OFF Control (Option P)
Off-State Voltage
On-State Voltage
ON/OFF Control (Option N)
Off-State Voltage
On-State Voltage
ON/OFF Control (Either Option)
Pull-Up Voltage
Pull-Up Resistance
Output Voltage Trim Range
Output Voltage Remote Sense Range
Output Over-Voltage Protection
Over-Temperature Shutdown
Over-Temperature Shutdown Restart Hysteresis
Load Current Scale Factor
Calculated MTBF (Telcordia)
Calculated MTBF (MIL-217)
Field Demonstrated MTBF
-20
124
Vin/6.5
40
129
125
10
800
2.1
1.75
9.2
+10
+10
134
Figures A, B
Measured across Pins 8 & 4; Figure C
Measured across Pins 8 & 4
Over full temp range; % of nominal Vout
Average PCB Temperature
See App Note: Output Load Current Calc.
RELIABILITY CHARACTERISTICS
10
6
Hrs.
TR-NWT-000332; 80% load,300LFM, 40oC Ta
10
6
Hrs.
MIL-HDBK-217F; 80% load, 300LFM, 40oC Ta
10
6
Hrs. See website for latest values
STANDARDS COMPLIANCE
Parameter
P
STANDARDS COMPLIANCE
Notes
Basic insulation
UL 60950-1:2007
CAN/CSA-C22.2 No. 60950-1:2007
EN60950-1/A12:2011
IEC 61000-4-2
Note: An external input fuse must always be used to meet these safety requirements. Contact SynQor for official safety certificates on new
releases or download from the SynQor website.
QUALIFICATION TESTING
Parameter
P
QUALIFICATION TESTING
# Units
32
5
5
10
5
5
5
15 pins
Test Conditions
10-55Hz sweep, 0.060” total excursion,1 min./sweep, 120 sweeps for 3 axis
Life Test
Vibration
Mechanical Shock
Temperature Cycling
Power/Thermal Cycling
Design Marginality
Humidity
Solderability
95% rated V
in
and load, units at derating point, 1000 hours
100g minimum, 2 drops in x and y axis, 1 drop in z axis
-40°C to 100°C, unit temp. ramp 15°C/min., 500 cycles
T
operating
= min to max, V
in
= min to max, full load, 100 cycles
T
min
-10°C to T
max
+10°C, 5°C steps, V
in
= min to max, 0-105% load
85°C, 85% RH, 1000 hours, 2 minutes on and 6 hours off
MIL-STD-883, method 2003
OPTIONS
SynQor provides various options for Logic Sense, Pin Length and Feature Set for this family of DC/DC converters. Please consult the
last page of this specification sheet for information on available options.
Product # PQ60015QTA40
Phone 1-888-567-9596
www.synqor.com
Doc.# 005-2QT651C Rev. D
1/2/2013
Page 4
Technical Specification
100
95
90
90
89
88
Input:
Output:
Current:
Package:
35-75 V
1.5 V
40 A
Quarter-brick
Efficiency (%)
Efficiency
(%)
36 Vin
85
80
75
70
65
60
0
4
8
12
16
20
24
28
32
48 Vin
75 Vin
36
40
87
86
85
84
83
82
0
100
200
300
400
25 C
40 C
55 C
500
Load Current (A)
Air Flow
(LFM)

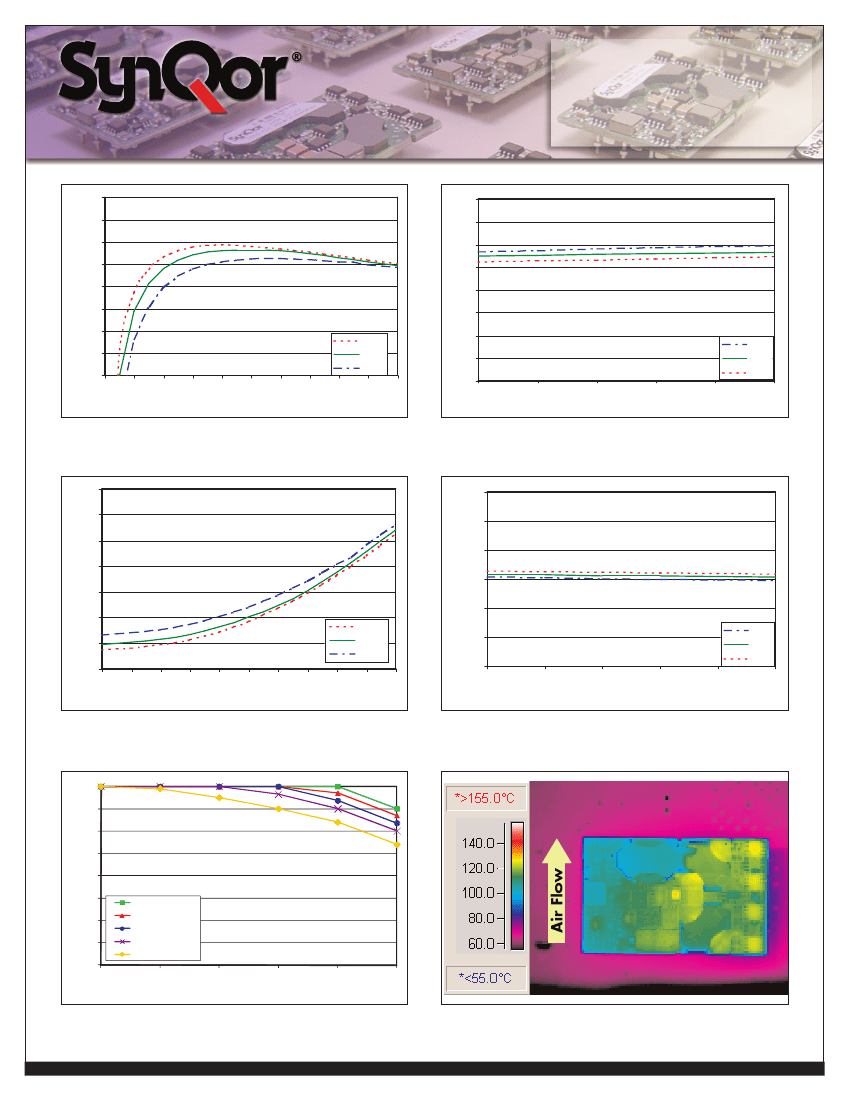

Figure 1:
Efficiency at nominal output voltage vs. load current for
minimum, nominal, and maximum input voltage at 25
°
C.
Figure 2:
Efficiency at nominal output voltage and 60% rated power vs.
airflow rate for ambient air temperatures of 25
°
C, 40
°
C, and 55
°
C
(nominal input voltage).
8.0
7.0
Power Dissipation (W)
14
12
Power Dissipation (W)
10
8
6
4
2
0
0
4
8
12
16
20
24
28
32
36
40
6.0
5.0
4.0
3.0
2.0
0
100
200
300
400
25 C
40 C
55 C
36 Vin
48 Vin
75 Vin
500
Load Current (A)
Air Flow (LFM)
Figure 3:
Power dissipation at nominal output voltage vs. load current
for minimum, nominal, and maximum input voltage at 25
°
C.
Figure 4:
Power dissipation at nominal output voltage and 60% rated
power vs. airflow rate for ambient air temperatures of 25
°
C, 40
°
C, and
55
°
C (nominal input voltage).
40
35
30
)
A
(
t
20
I
o
15
10
5
0
0
25
40
55
70
85
400 LFM (2.0 m/s)
300 LFM (1.5 m/s)
200 LFM (1.0 m/s)
100 LFM (0.5 m/s)
0 LFM (0 m/s)
u
25
Ambient Air Temperature (
o
C)
Semiconductor junction temperature
is within 1°C of surface temperature
Figure 5:
Maximum output power derating curves vs. ambient air
temperature for airflow rates of 0 LFM through 400 LFM with air
flowing across the converter from pin 3 to pin 1 (nominal input voltage).
Product # PQ60015QTA40
Phone 1-888-567-9596
Figure 6:
Thermal plot of converter at 40 amp load current with 55
°
C
air flowing at the rate of 200 LFM. Air is flowing across the converter
from pin 3 to pin 1 (nominal input voltage).
Doc.# 005-2QT651C Rev. D
1/2/2013
Page 5
www.synqor.com
京公网安备 11010802033920号
EEWORLD
