25.627.0653.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 25.627.0653.0

25.627.0653.0: DescriptionStrip Terminal Block, 8A, 1 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size74KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

25.627.0653.0 Overview

Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)

25.627.0653.0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLYAMIDE, 94V-0
Fastening method	PLUG IN
Manufacturer's serial number	8813S
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	6
Rated current	8 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	14 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

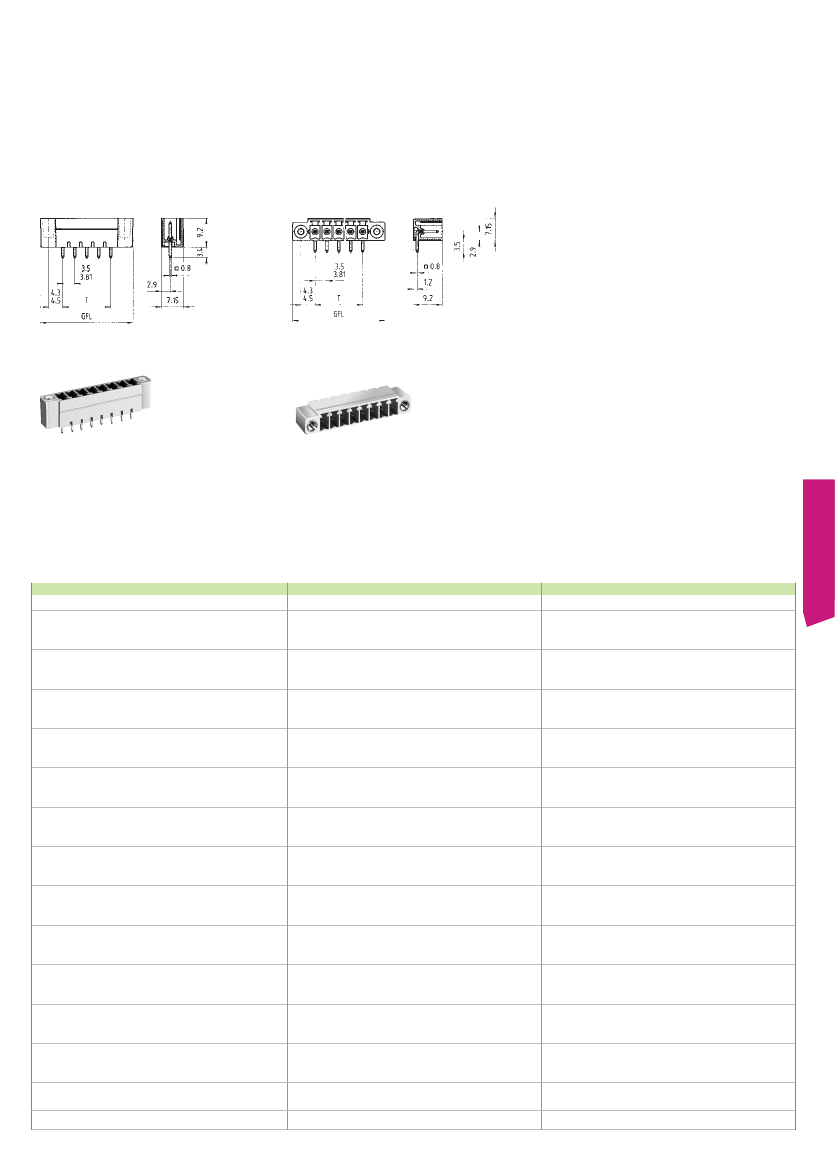

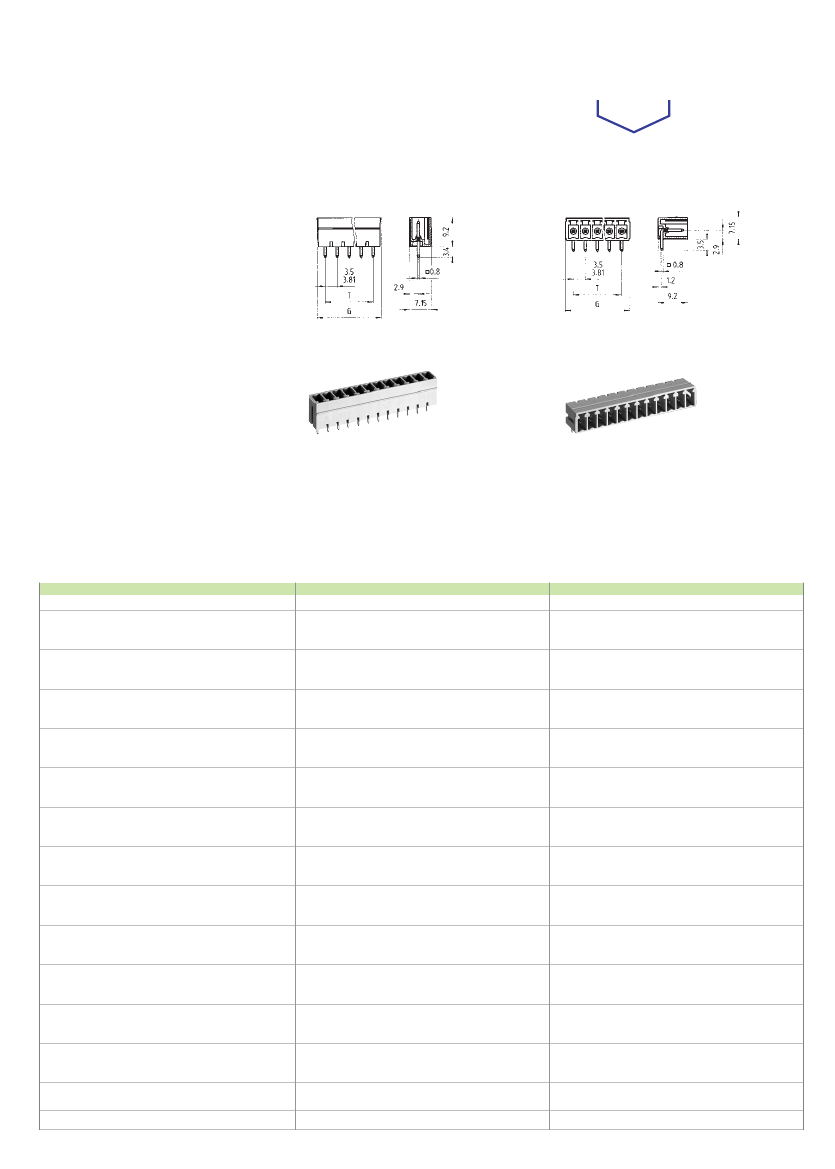

wiecon

Insulated headers for PC boards

Spacings: 3.50/3.81 mm

codable

PCB

1.5 mm

Rated current:

125 V/2.5 kV/3 – Overvoltage category III

250 V/2.5 kV/2 – Overvoltage category II

*690 V/2.5 kV/1 – Overvoltage category I

Approvals for type 8513 available soon

* max. 600 V for ungrounded networks or expected

overvoltage

≤

3 kV for L

≥

2.00 mm and

≤

2.5 kV for 2.0 mm > L

≥

1.5 mm

Solder pin 0.8 x 0.8 mm

Bore hole Ø 1.2 mm

Solder pin 0.8 x 0.8 mm

Bore hole Ø 1.2 mm

Type 8513 S/... G, 8813 S/... G

vertical mount

Rated voltages: VDE 0110

UL ratings

CSA ratings

Approvals

Std. pack

GFL

Poles

Type 8513 S/... W, 8813 S/... W

horizontal mount

300 V

Part no.

300 V

Part no.

Spacing: 3.50 mm

100

17.40

20.90

24.40

27.90

31.40

34.90

38.40

41.90

45.40

48.90

52.40

55.90

59.40

62.90

66.40

8.40

11.90

15.40

18.90

22.40

25.90

29.40

32.90

36.40

39.90

43.40

46.90

50.40

53.90

57.40

3.50

7.00

10.50

14.00

17.50

21.00

24.50

28.00

31.50

35.00

38.50

42.00

45.50

49.00

52.50

unmarked

25.646.0253.0

25.646.0353.0

25.646.0453.0

25.646.0553.0

25.646.0653.0

25.646.0753.0

25.646.0853.0

25.646.0953.0

25.646.1053.0

25.646.1153.0

25.646.1253.0

25.646.1353.0

25.646.1453.0

25.646.1553.0

25.646.1653.0

unmarked

25.647.0253.0

25.647.0353.0

25.647.0453.0

25.647.0553.0

25.647.0653.0

25.647.0753.0

25.647.0853.0

25.647.0953.0

25.647.1053.0

25.647.1153.0

25.647.1253.0

25.647.1353.0

25.647.1453.0

25.647.1553.0

25.647.1653.0

17 to 20pole upon request

Spacing: 3.81 mm

100

18.01

21.82

25.63

29.44

33.25

37.06

40.87

44.68

48.49

52.30

56.11

59.92

63.73

67.54

71.35

9.01

12.82

16.63

20.44

24.25

28.06

31.87

35.68

39.49

43.30

47.11

50.92

54.73

58.54

62.35

3.81

7.62

11.43

15.24

19.05

22.86

26.67

30.48

34.29

38.10

41.91

45.72

49.53

53.34

57.15

unmarked

25.626.0253.0

25.626.0353.0

25.626.0453.0

25.626.0553.0

25.626.0653.0

25.626.0753.0

25.626.0853.0

25.626.0953.0

25.626.1053.0

25.626.1153.0

25.626.1253.0

25.626.1353.0

25.626.1453.0

25.626.1553.0

25.626.1653.0

unmarked

25.627.0253.0

25.627.0353.0

25.627.0453.0

25.627.0553.0

25.627.0653.0

25.627.0753.0

25.627.0853.0

25.627.0953.0

25.627.1053.0

25.627.1153.0

25.627.1253.0

25.627.1353.0

25.627.1453.0

25.627.1553.0

25.627.1653.0

17 to 20pole upon request

Accessories:

Coding piece

100

(strip)

Coding studs are molded into plugs; remove with

knife at desired coding location

05.561.0053.0

284

25.627.0653.0 Related Products

	25.627.0653.0	25.627.0253.0	25.627.0853.0	25.627.1053.0	25.626.0653.0
Description	Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)	Strip Terminal Block, 8A, 1 Row(s), 1 Deck(s)
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0	POLYAMIDE, 94V-0
Fastening method	PLUG IN	PLUG IN	PLUG IN	PLUG IN	PLUG IN
Manufacturer's serial number	8813S	8813S	8813S	8813S	8813S
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of layers	1	1	1	1	1
Rows	1	1	1	1	1
Number of channels	6	2	8	10	6
Rated current	8 A	8 A	8 A	8 A	8 A
Rated voltage	300 V	300 V	300 V	300 V	300 V
safety certificate	UL; CSA	UL; CSA	UL; CSA	UL; CSA	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK	STRIP TERMINAL BLOCK
Wire gauge	14 AWG	14 AWG	14 AWG	14 AWG	14 AWG
Base Number Matches	1	1	1	1	1
