TSPB15U50SMS2G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> TSPB15U50SMS2G

TSPB15U50SMS2G: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size193KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/

Download Datasheet Parametric Compare View All

TSPB15U50SMS2G Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 50V V(RRM), Silicon,

TSPB15U50SMS2G Parametric

Parameter Name	Attribute value
Maker	Taiwan Semiconductor
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.56 V
JESD-30 code	R-PDSO-F3
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	2000 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL

TSPB15U50SMS2G Preview

TSPB15U50S

Taiwan Semiconductor

Trench Schottky Rectifier

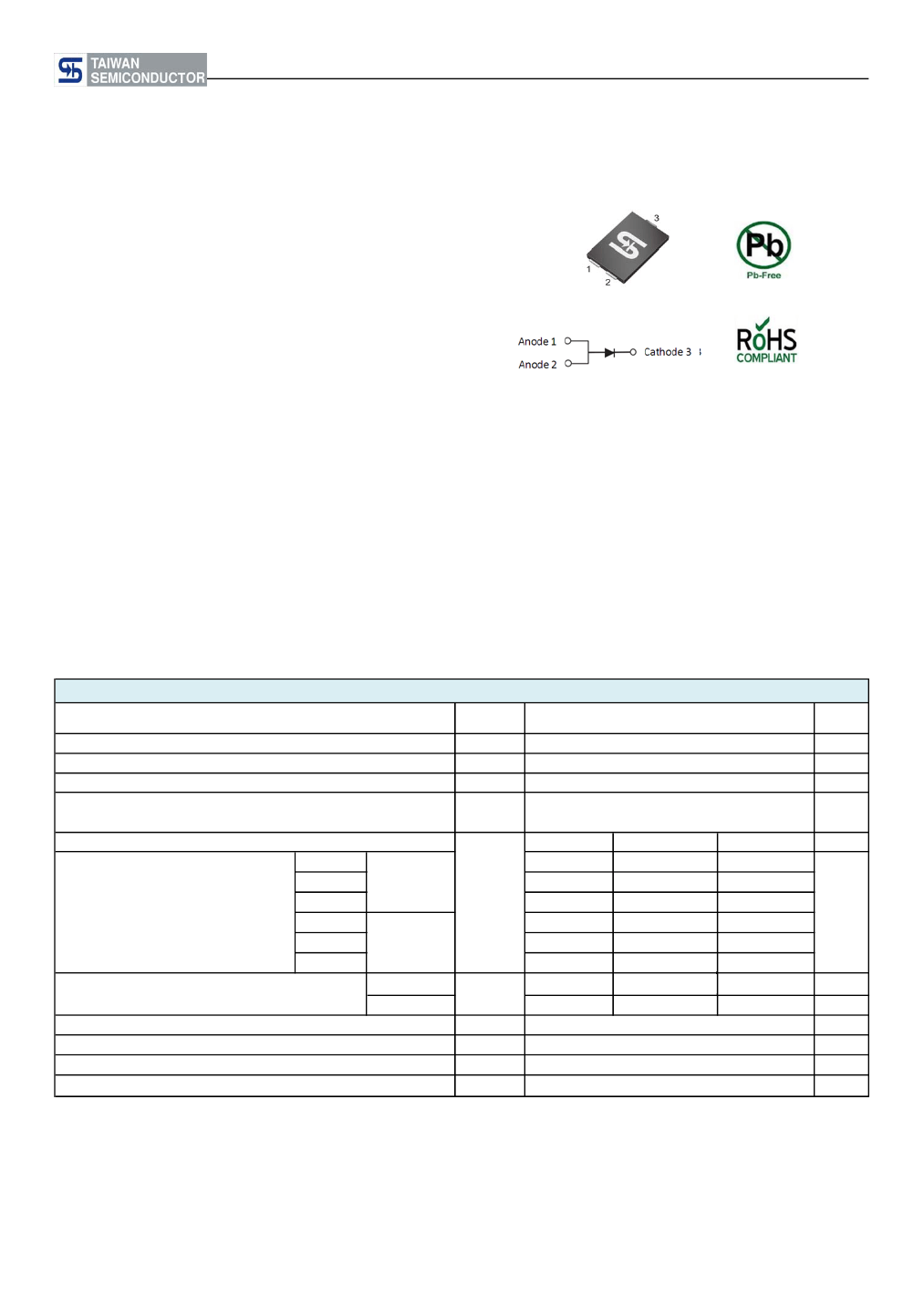

FEATURES

- Patented Trench Schottky technology

- Excellent high temperature stability

- Low forward voltage

- Low power loss/ High efficiency

- High forward surge capability

- Ideal for automated placement

- Moisture sensitivity level: level 1, per J-STD-020

- Compliant to RoHS Directive 2011/65/EU and

in accordance to WEEE 2002/96/EC

- Halogen-free according to IEC 61249-2-21 definition

SMPC4.0

TYPICAL APPLICATIONS

Trench Schottky barrier rectifier are designed for high frequency

miniature switched mode power supplies such as adapters, lighting

and on-board DC/DC converters.

MECHANICAL DATA

Case:

SMPC4.0

Molding compound, UL flammability classification rating 94V-0

Base P/N with suffix "M" on P/N - commercial grade

Base P/N with suffix "G" on packing code - green compound (halogen-free)

Terminal:

Matte tin plated leads, solderable per JESD22-B102

Meet JESD 201 class 1A whisker test

Polarity:

Indicated by cathode band

Weight:

0.095g (approximately)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

=25

C unless otherwise noted)

PARAMETER

Marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current

Peak forward surge current, 8.3 ms single half sine-wave

superimposed on rated load per diode

= 5A

= 7.5A

Maximum instantaneous forward voltage

per diode (Note 1)

= 15A

= 5A

= 7.5A

= 15A

Maximum instantaneous reverse current per diode at

rated reverse voltage

Maximum DC reverse voltage

Typical thermal resistance per diode

Operating temperature range

Storage temperature range

Note 1: Pulse Test with Pulse Width=300μs, 1% Duty Cycle

= 25°C

= 125°C

θJC

STG

= 125°C

= 25°C

RRM

F(AV)

FSM

MIN

SYMBOL

TSPB15U50S

15U50

200

TYP

0.37

0.40

0.48

0.26

0.31

0.44

140

- 55 to +150

UNIT

MAX

0.56

0.50

2000

140

µA

C/W

Document Number: DS_D1408064

Version: C14

TSPB15U50S

Taiwan Semiconductor

ORDERING INFORMATION

PART NO.

TSPB15U50S

PART NO.

SUFFIX

PACKING CODE

SUFFIX

PACKAGE

SMPC4.0

PACKING

1,500/ 7" Plastic reel

6,000/ 13" Plastic reel

Note 1: Whole series with green compound

EXAMPLE

PREFERRED P/N

TSPB15U50SMS1G

PART NO.

TSPB15U50S

PART NO.

SUFFIX

PACKING CODE

SUFFIX

DESCRIPTION

Commercial grade

Green compound

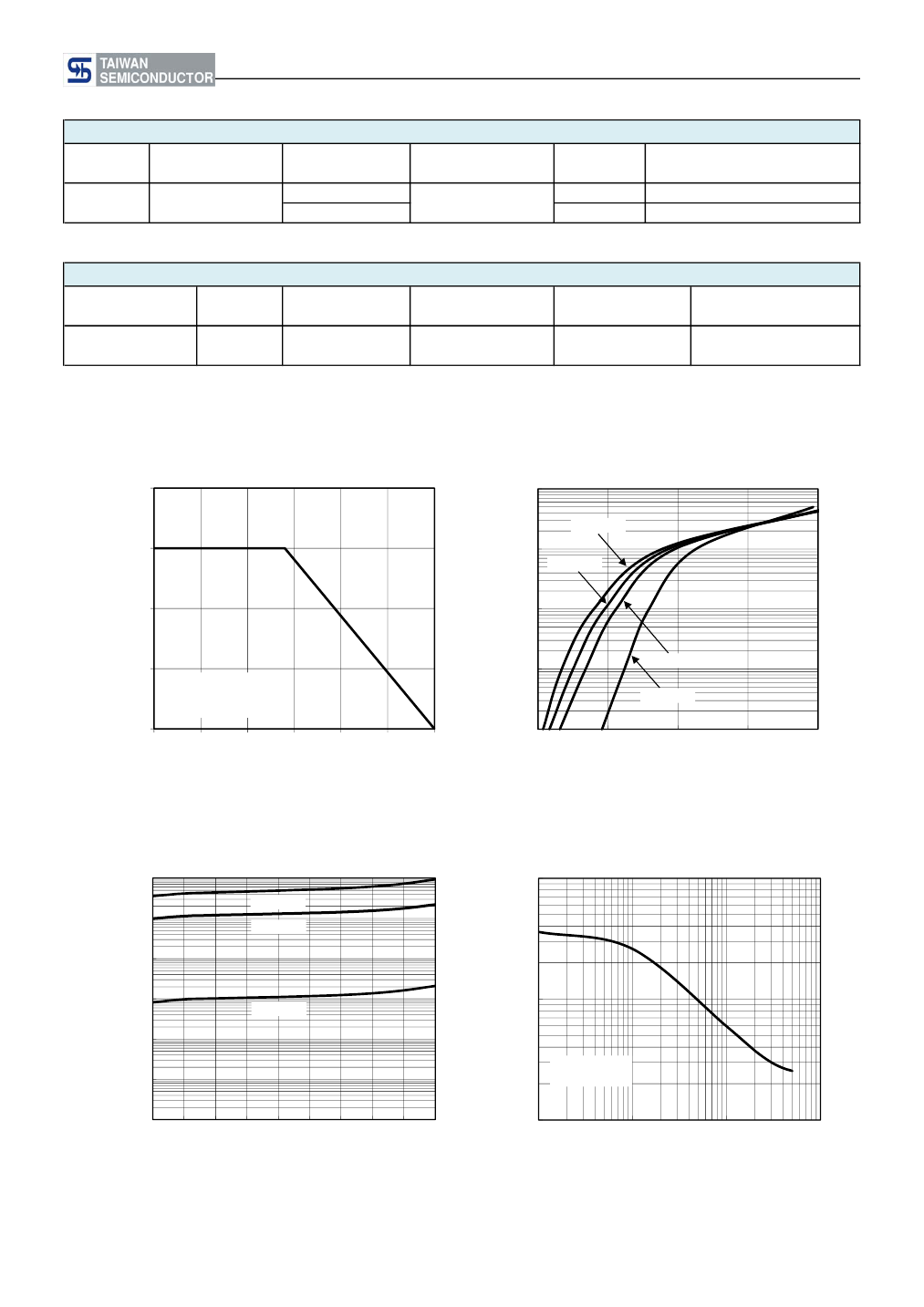

RATINGS AND CHARACTERISTICS CURVES

=25

C unless otherwise noted)

FIG.1 FORWARD CURRENT DERATING CURVE

INSTANTANEOUS FORWARD CURRENT (A)

FIG. 2 TYPICAL FORWARD CHARACTERISTICS

100

=150

=125

AVERAGE FORWARD CURRENT (A)

0.1

=100

=25

WITH HEATSINK

30mm x 30mm 4 oz.

pad PCB

100

125

150

0.01

0.2

0.4

0.6

0.8

FORWARD VOLTAGE (V)

CASE TEMPERATURE (

100

INSTANTANEOUS REVERSE CURRENT (mA)

FIG. 3 TYPICAL REVERSE

CHARACTERISTICS

=125

=100

CAPACITANCE (pF)

FIG. 4 TYPICAL JUNCTION CAPACITANCE

10000

0.1

=25

1000

0.01

0.001

f=1.0MHz

sig

=50mV

p-p

0.0001

100

PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)

100

0.1

100

REVERSE VOLTAGE (V)

Document Number: DS_D1408064

Version: C14

TSPB15U50S

Taiwan Semiconductor

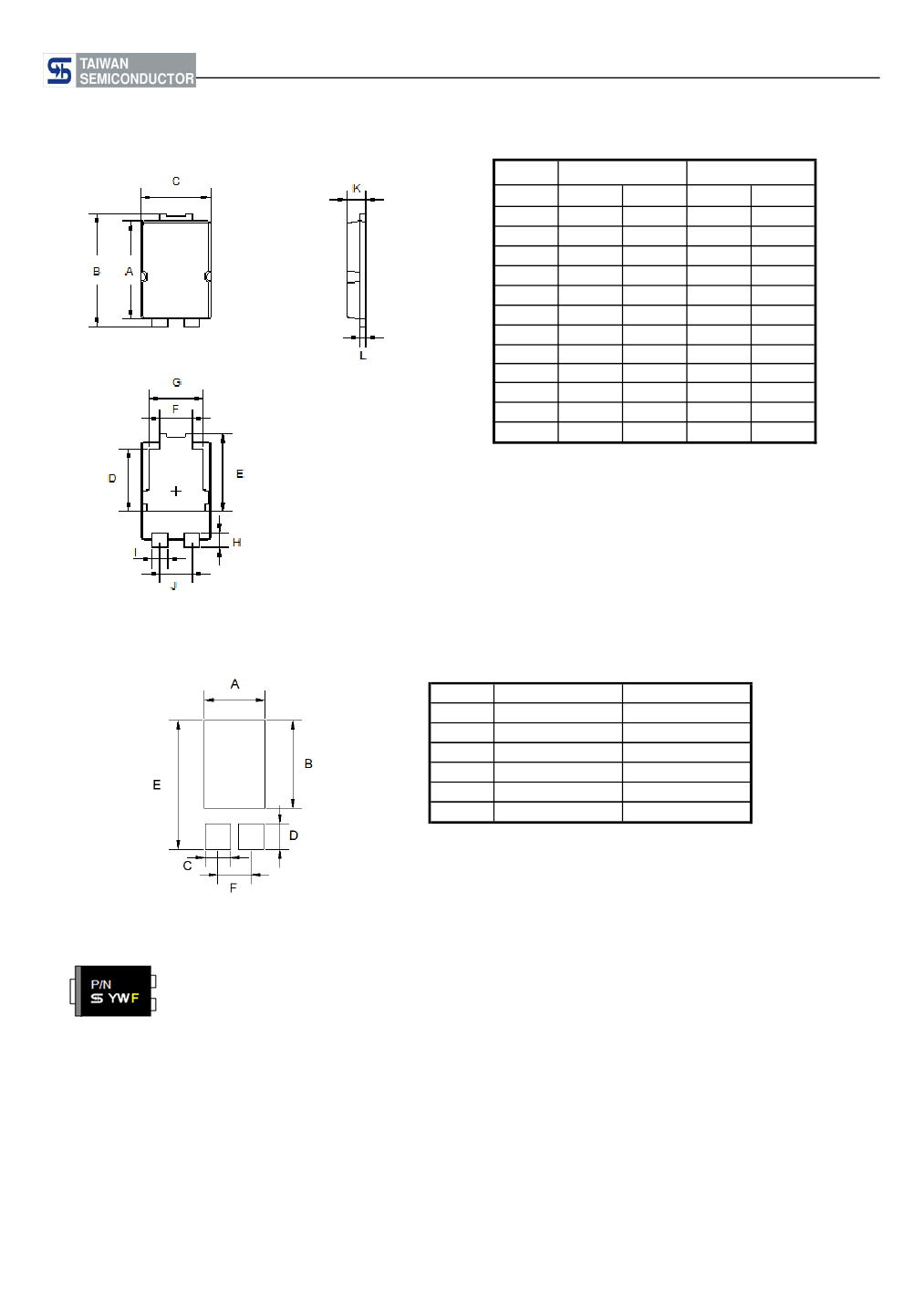

PACKAGE OUTLINE DIMENSIONS

SMPC4.0

DIM.

Unit (mm)

Min

5.55

6.35

3.95

3.40

4.25

1.69

2.95

0.70

0.75

1.69

1.00

0.20

Max

5.65

6.65

4.05

3.70

4.55

1.99

3.25

1.00

1.05

1.99

1.20

0.40

Unit (inch)

Min

0.219

0.250

0.156

0.134

0.167

0.067

0.116

0.028

0.030

0.067

0.039

0.008

Max

0.222

0.262

0.159

0.146

0.179

0.078

0.128

0.039

0.041

0.078

0.047

0.016

SUGGESTED PAD LAYOUT

Symbol

Unit (mm)

4.80

4.72

1.40

1.27

6.80

1.04

Unit (inch)

0.189

0.186

0.055

0.050

0.268

0.041

MARKING DIAGRAM

P/N

= Marking Code

= Date Code

= Factory Code

Document Number: DS_D1408064

Version: C14

TSPB15U50S

Taiwan Semiconductor

CREAT BY ART

Notice

Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,

assumes no responsibility or liability for any errors inaccuracies.

Information contained herein is intended to provide a product description only. No license, express or implied,to

any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of

sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,

relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,

merchantability, or infringement of any patent, copyright, or other intellectual property right.

The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.

Customers using or seling these products for use in such applications do so at their own risk and agree to fully

indemnify TSC for any damages resulting from such improper use or sale.

Document Number: DS_D1408064

Version: C14
