B84131-M1-G125 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> B84131-M1-G125

B84131-M1-G125: DescriptionThree Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE; CategoryAnalog mixed-signal IC filter; File Size62KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance; Related ProductsFound19parts with similar functions to B84131-M1-G125

Download Datasheet Parametric Compare View All

B84131-M1-G125 Overview

Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE

B84131-M1-G125 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
package instruction	METAL PACKAGE
Reach Compliance Code	not_compliant
Factory Lead Time	10 weeks
filter type	THREE PHASE EMI FILTER
high	80 mm
high potential	2700 V
Maximum leakage current	3.5 mA
length	149 mm
Manufacturer's serial number	B84131
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L149XB104XH80 (mm)
Rated current	25 A
Rated voltage	250 V
width	104 mm

Preview

Download Datasheet

View All

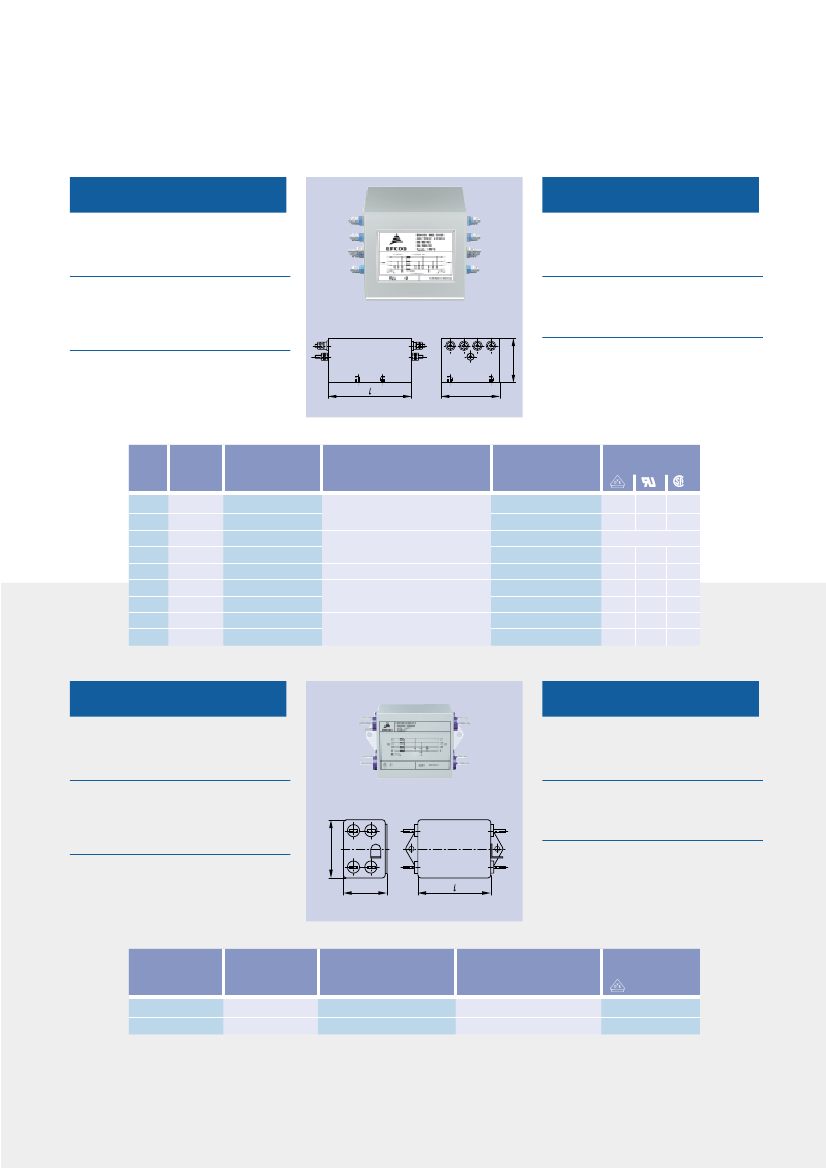

4-Leiter-Filter

4-Line Filters

Anlagen und Systeme

B84131

Für 3-Phasen-Systeme

Metallgehäuse

Flachstecker / Schraubanschlüsse

Bemessungs-

spannung U

Klimakategorie:

440/250 V~,

50/60 Hz

25/085/21

Installations and systems

B84131

For 3-phase systems

Metal case

Tab connectors / screw terminals

Rated voltage V

: 440/250 V~,

50/60 Hz

Climatic category: 25/085/21

SSB1898-Q

Prinzipdarstellung

Schematic representation

125

Abl

leak

< 3,5

Maße

Dimensions

h (mm)

135

149

104

149

104

149

104

149

104

141

131

122

141

131

122

220

150

220

150

Anschlüsse

Terminals

Flachstecker / Tab connector

Gewinde / Thread M6

Gewinde / Thread 10-32 UNF

Gewinde / Thread M6

Gewinde / Thread M10

Bestellnummer

Ordering code

B84131-A6-A1

B84131-M3-A116

B84131-M1-G125

B84131-M1-G135

B84131-M1-H135

B84131-M2-G150

B84131-M2-G163

B84131-M4-G180

B84131-M4-G225

Approbationen

Approvals

in Vorb./pending

Anlagen und Systeme

B84108

Für 3-Phasen-Systeme

Metallgehäuse

Flachstecker

Bemessungs-

spannung U

Klimakategorie:

440/250 V~,

50/60 Hz

25/085/21

Installations and systems

B84108

For 3-phase systems

Metal case

Tab connectors

Rated voltage V

: 440/250 V~,

50/60 Hz

Climatic category: 25/085/21

SSB1899-Y

Abl

leak

< 3,5

Maße

Dimensions

h (mm)

63,5

50,8

63,5

50,8

Bestellnummer

Ordering code

B84108-S1004-A110

B84108-S1004-A120

Approbationen

Approvals

EPCOS AG

B84131-M1-G125 Related Products

	B84131-M1-G125	B84131-M3-A116	B84131-M2-G150	B84131-M4-G180	B84131-M4-G225	B84131-M1-G135	B84131-M2-G163	B84131-A6-A1
Description	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE	Three Phase EMI Filter, 250V, 50/60HzHz, METAL PACKAGE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	compli
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	80 mm	50 mm	122 mm	150 mm	150 mm	80 mm	122 mm	46 mm
Maximum leakage current	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA
length	149 mm	149 mm	141 mm	220 mm	220 mm	149 mm	141 mm	135 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L149XB104XH80 (mm)	L149XB104XH50 (mm)	L141XB131XH122 (mm)	L220XB150XH150 (mm)	L220XB150XH150 (mm)	L149XB104XH80 (mm)	L141XB131XH122 (mm)	L135XB62XH46 (mm)
Rated current	25 A	16 A	50 A	80 A	125 A	35 A	63 A	6 A
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
width	104 mm	104 mm	131 mm	150 mm	150 mm	104 mm	131 mm	62 mm
package instruction	METAL PACKAGE	-	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE	METAL PACKAGE
high potential	2700 V	2700 V	2700 V	-	2700 V	2700 V	2700 V	2700 V
Manufacturer's serial number	B84131	B84131	B84131	-	B84131	B84131	B84131	B84131
