B84144A0025R120 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> B84144A0025R120

B84144A0025R120: DescriptionThree Phase EMI Filter, 300V, 50/60HzHz,; CategoryAnalog mixed-signal IC filter; File Size691KB，14 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B84144A0025R120 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B84144A0025R120	-	-	View	Buy Now

B84144A0025R120 Overview

Three Phase EMI Filter, 300V, 50/60HzHz,

B84144A0025R120 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK Corporation
Reach Compliance Code	not_compliant
Certification	UL; CUL; ENEC-10
filter type	THREE PHASE EMI FILTER
high	60 mm
high potential	2720 V
Maximum leakage current	3.5 mA
length	200 mm
Installation type	PANEL MOUNT
working frequency	50/60Hz Hz
physical size	L200.0XB80.0XH60.0 (mm)/L7.874XB3.15XH2.362 (inch)
Rated current	25 A
Rated voltage	300 V
width	80 mm

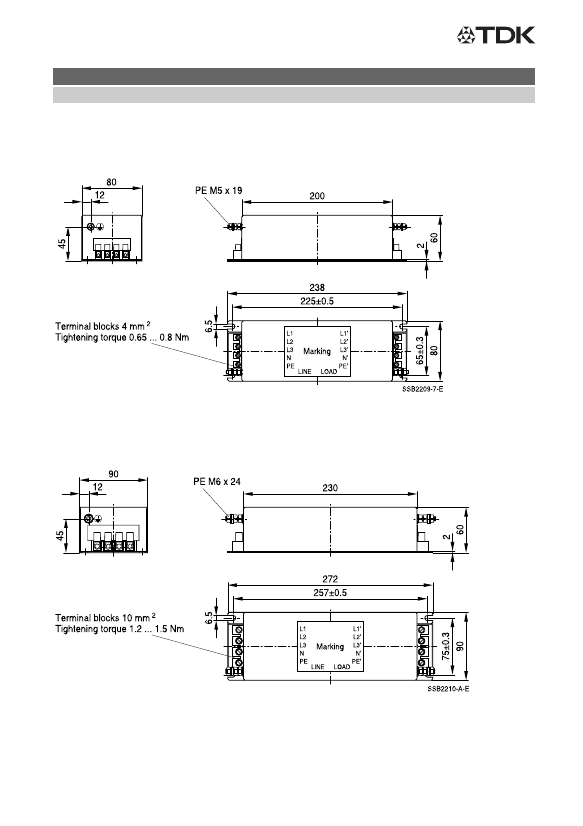

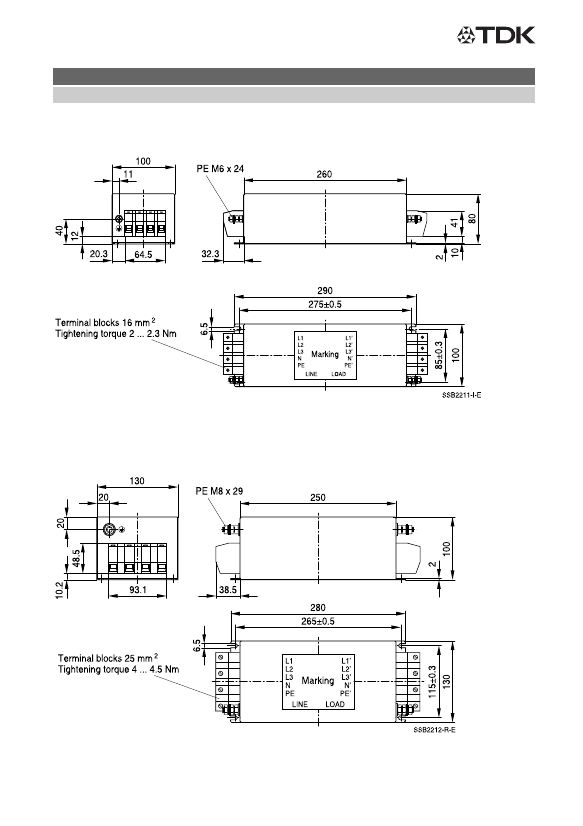

Preview

Download Datasheet

View All

EMC filters

4-line filters

for converters and power electronics

Series/Type:

Date:

B84144A*R120

May 2014

information contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

B84144A0025R120 Related Products

	B84144A0025R120	B84144A0200R120	B84144A0016R120	B84144A0036R120	B84144A0090R120	B84144A0150R120	B84144A0008R120	B84144A0050R120
Description	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,	Three Phase EMI Filter, 300V, 50/60HzHz,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	_compli
Certification	UL; CUL; ENEC-10	UL; CUL; ENEC-10	UL; CUL; ENEC-10	UL; CUL; ENEC-10	UL; CUL; ENEC-10	UL; CUL; ENEC-10	UL; CUL; ENEC-10	UL; CUL; ENEC-10
filter type	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER
high	60 mm	130 mm	60 mm	60 mm	100 mm	130 mm	60 mm	60 mm
high potential	2720 V	2720 V	2720 V	2720 V	2720 V	2720 V	2720 V	2720 V
Maximum leakage current	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA	3.5 mA
length	200 mm	250 mm	200 mm	230 mm	250 mm	250 mm	200 mm	230 mm
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
working frequency	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz	50/60Hz Hz
physical size	L200.0XB80.0XH60.0 (mm)/L7.874XB3.15XH2.362 (inch)	L250.0XB160.0XH130.0 (mm)/L9.843XB6.299XH5.118 (inch)	L200.0XB80.0XH60.0 (mm)/L7.874XB3.15XH2.362 (inch)	L230.0XB90.0XH60.0 (mm)/L9.055XB3.543XH2.362 (inch)	L250.0XB130.0XH100.0 (mm)/L9.843XB5.118XH3.937 (inch)	L250.0XB160.0XH130.0 (mm)/L9.843XB6.299XH5.118 (inch)	L200.0XB80.0XH60.0 (mm)/L7.874XB3.15XH2.362 (inch)	L230.0XB90.0XH60.0 (mm)/L9.055XB3.543XH2.362 (inch)
Rated current	25 A	200 A	16 A	36 A	90 A	150 A	8 A	50 A
Rated voltage	300 V	300 V	300 V	300 V	300 V	300 V	300 V	300 V
width	80 mm	160 mm	80 mm	90 mm	130 mm	160 mm	80 mm	90 mm
Maker	TDK Corporation	-	-	-	TDK Corporation	TDK Corporation	TDK Corporation	TDK Corporation
