Surge arrester

2-electrode arrester

Series/Type:

Ordering code:

Date:

Version:

S80-A90X

B88069X1673T602

2015-10-19

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then

change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

Surge arrester

(header 1 + top left bar):

Identification/Classification 2

2-electrode arrester

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

B88069X1673T602

Series/Type: (bottom right header bar)

S80-A90X

Preliminary data (optional):

Department:

PPD AB PD / PPD AB PM

Date:

2015-10-19

Version:



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Surge arrester

2-electrode arrester

B88069X1673T602

S80-A90X

Features



Standard size



Fast response time



Very high current rating



Stable performance over life



Very low capacitance



High insulation resistance



Excellent SMD handling



RoHS-compatible

Applications



Consumer electronic

Alarm systems

Electrical specifications

DC spark-over voltage

1) 2)

Tolerance

Min.

Max.

Impulse spark-over voltage

at 100 V/µs - for 99% of measured values

- typical values of distribution

at 1 kV/µs

- for 99% of measured values

- typical values of distribution

Service life

10 operations

1 operation

10 operations

[5× (+) & 5× ()]

1 operation

300 operations

Insulation resistance at 50 V

Capacitance at 1 MHz

Arc voltage at 1 A

Glow to arc transition current

Glow voltage

Weight

Operation and storage temperature

Climatic category (IEC 60068-1)

Marking, blue positive

±20

108

< 500

< 450

< 600

< 550

100

> 10

< 1.5

~ 15

< 0.5

~ 60

~ 1.5

40

... +125

40/125/21

90 YY O

- Nominal voltage

- Year of production

- Non radioactive

G

°C

50 Hz, 1 s

50 Hz; 0.18 s (9 cycles)

8/20 µs

10/350 µs

10/1000 µs

At delivery AQL 0.65 level II, DIN ISO 2859

In ionized mode

Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.

PPD AB PD / PPD AB PM

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 5

2015-10-19

Surge arrester

2-electrode arrester

B88069X1673T602

S80-A90X

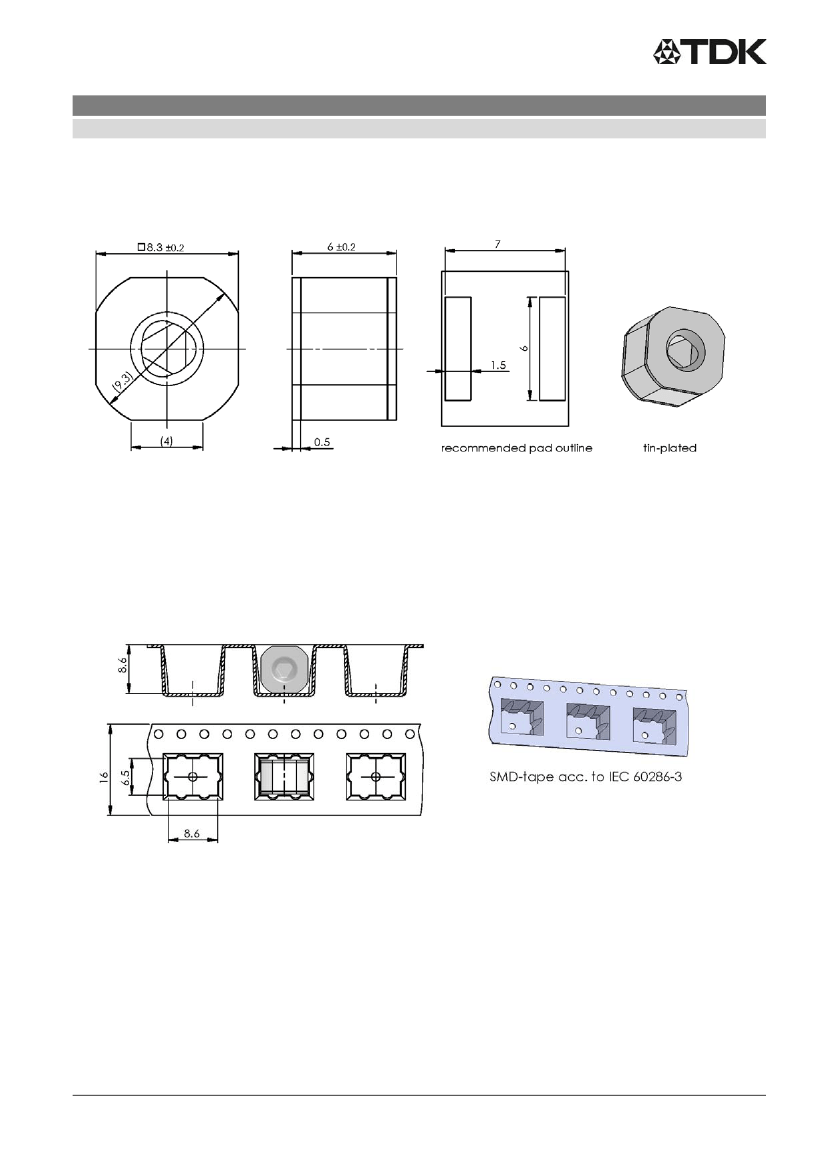

Dimensional drawing in mm

Ordering code and packing advice

B88069X1673T602 = 600 pcs. on SMD-tape

PPD AB PD / PPD AB PM

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 5

2015-10-19

Surge arrester

2-electrode arrester

B88069X1673T602

S80-A90X

Soldering parameter

Reflow soldering

Reflow profile

features

Preheat and soak

- Temperature min

- Temperature max

- Time

Average ramp-up

rate

Liquidous

temperature

Time at liquidous

Peak package body

temperature *,

Classification

temperature **

Time (t

) ** within

5 °C of the specified

classification

temperature (T

)

Average ramp-down

rate

Time 25 °C to peak

temperature

Sn- Pb eutectic

assembly

smin

smax

smin

to t

smax

to T

, T

100 °C

150 °C

60 ... 120 s

max. 3 °C/ s

183 °C

60 ... 150 s

220 ... 235 °C **

Pb-free

assembly

150 °C

200 °C

60 ... 180 s

max. 3 °C/ s

217 °C

60 ... 150 s

245 ... 260 °C **

20 s ***

30 s ***

to T

smax

max. 6 °C/ s

max. 6 min

max. 6 °C/ s

max. 8 min

Tolerance for peak profile temperature (T

) is defined as a supplier minimum

and a user maximum.

** = For details please refer to JEDEC J-STD-020D.

*** = Tolerance for time at peak profile temperature (t

) is defined as a supplier

minimum and a user maximum.

Cautions and warnings



Do not operate surge arresters in power supply networks, whose maximum operating voltage

exceeds the minimum spark-over voltage of the surge arresters.

Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the

event of overload the connectors may fail or the component may be destroyed.

Surge arresters must be handled with care and must not be dropped.

Do not continue to use damaged surge arresters.

SMD surge arresters should be soldered within 24 month after shipment.
