Surge arrester
2-electrode arrester
B88069X4211T902
ES300XSMD
Features
Extremely small size
Very fast response time
Stable performance over life
Extremely low capacitance
High insulation resistance
Excellent SMD handling
RoHS-compatible
Electrical specifications
DC spark-over voltage
1) 2)
Applications
Modem
XDSL-splitter
Tuner
300
± 15
< 500
< 450
< 600
< 550
2.5
5
>1
<1
~ 11
< 0.5
~ 130
~ 0.3
-40 ... +90
40/ 90/ 21
ES 300 YY O
ES
300
YY
O
- Series
- Nominal voltage
- Year of production
- Non radioactive
V
%
V
V
V
V
kA
kA
G
Ω
pF
V
A
V
g
°C
Impulse spark-over voltage
at 100 V/µs - for 99 % of measured values
- typical values of distribution
at 1 kV/µs
Service life
10 operations
1 operation
- for 99 % of measured values
- typical values of distribution
8/20 µs
8/20 µs
Insulation resistance at 100 V
dc
Capacitance at 1 MHz
Arc voltage at 1 A
Glow to arc transition current
Glow voltage
Weight
Operation and storage temperature
Climatic category (IEC 60068-1)
Marking, red positive
1)
2)
At delivery AQL 0.65 level II, DIN ISO 2859
In ionized mode
Terms in accordance with ITU-T Rec. K.12 and DIN 57845/VDE0845
KB AB E / KB AB PM
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 4
Issue 03 / 2006-09-26
Surge arrester
2-electrode arrester
B88069X4211T902
ES300XSMD

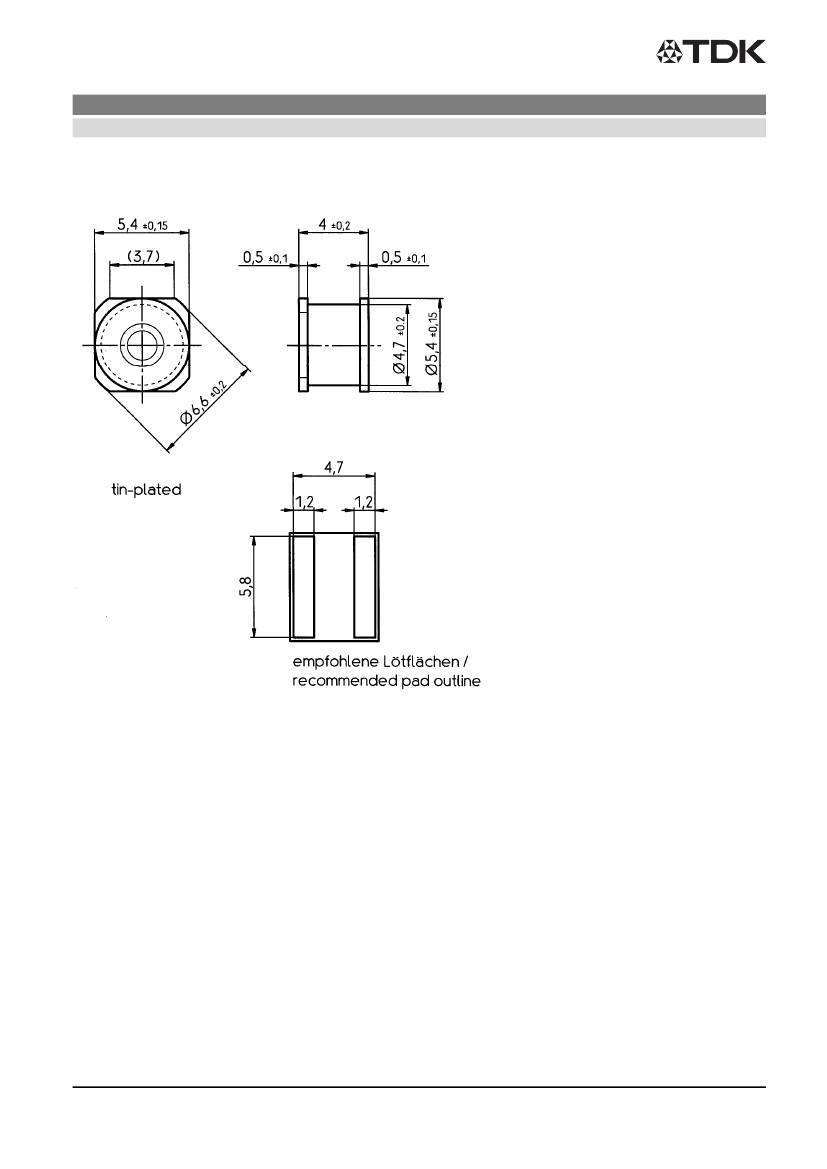

Dimensional drawing
