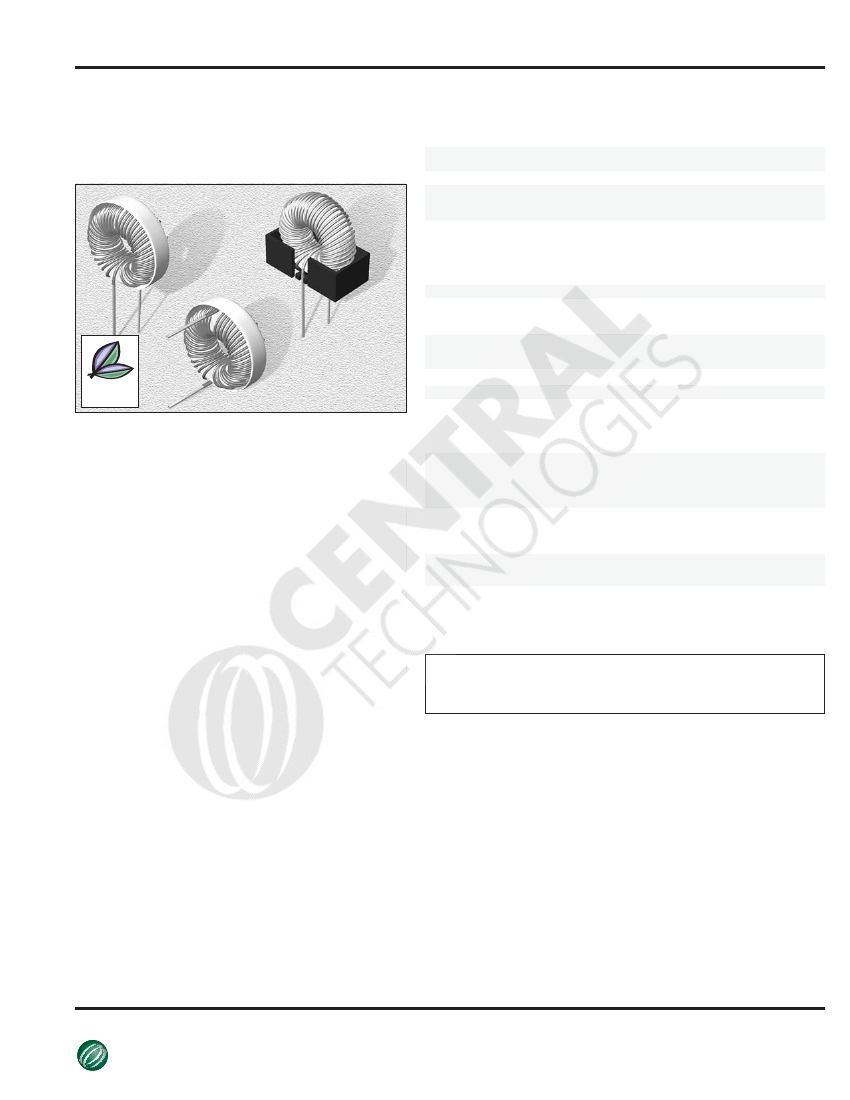

Toroids - Radial
ctparts.com
SPECIFICATIONS
Parts are marked to indicate tolerance available.
K = ±10%, L = ±15%, M = ±20%
High Current
Power Toroids
Part Number
CT30F-100K-_
CT44F-100K-_
CT44F-121K-_
CT44F-102K-_
CT50F-5R0K-_
CT50F-100K-_
CT50F-250K-_
CT50F-101K-_
CT50F-251K-_
CT50F-102K-_
CT60F-331K-_
CT67F-250K-_
CT67F-500K-_
CT67F-101K-_
CT68F-100K-_
CT68F-250K-_
CT68F-500K-_
CT72F-251K-_
Inductance
(µH)
10
10
120
1000
5.0
10
25
100
250
1000
330
25
50
100
10
25
50
250
500
25
100
250
960
8200
10
250
500
750
1000
50
100
200
470
120
250
560
10
L Test
Freq. (kHz)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
Rated DC
(A)
2.5
3.0
1.1
.50
5.0
3.0
2.5
2.0
1.0
1.0
2.5
5.5
5.0
2.5
6.0
5.0
3.0
1.0
2.0
6.0
5.0
3.0
1.0
1.0
5.0
5.0
6.0
4.5
4.0
7.0
5.0
3.0
6.0
10.0
8.0
5.0
10.0
Dia.
(mm)
10.5
14.2
14.2
14.2
15.2
16.5
13.5
15.5
16.0
16.5
19.0
22.0
21.0
20.0
20.8
21.0
22.0
21.5
23.7
28.0
25.0
25.0
24.0
24.0
27.9
29.0
29.0
30.5
29.2
33.0
33.5
32.0
35.0
42.0
40.0
36.8
44.0
Width
(mm)
5.5
8.5
7.5
6.0
7.6
8.5
6.5
8.5
8.0
9.0
9.5
11.0
13.0
8.5
8.2
8.2
10.0
9.0
11.0
9.5
12.0
12.0
11.0
12.0
12.7
13.0
15.5
14.5
15.0
16.0
17.5
14.0
22.0
21.0
20.0
22.2
18.0
Wire
(AWG)
24
20
23
30
18
18
23
22
24
26
24
18
18
23
18
18
19
21
22
16
18
20
25
20
17
18
18
19
20
15
16
22
16
12
14
18
12
Optional Klip
Mount
KM-1
KM-1
KM-2
KM-2
KM-3
KM-2
KM-2
KM-3
KM-2
KM-3
KM-3
KM-3
KM-3
KM-3
KM-3
KM-4
KM-4
KM-4
KM-4
KM-4
KM-4
KM-5
KM-5
KM-5
KM-5
KM-5
KM-5
KM-5
KM-5
KM-5
KM-5
–
–
–
–
–
–
Compliant
RoHS
Not shown at actual size.
CT77F-501K-_
CT80F-250K-_
CT80F-101K-_
CT80F-251K-_
CT80F-961K-_
CT80F-822M-_
CT94F-100M-_
CT94F-251K-_
CT94F-501K-_
CT94F-751K-_
CT94F-102K-_
CT106F-500K-_
CT106F-101K-_
CT106F-201K-_
CT106F-471K-_
CT130F-121K-_
CT130F-251M-_
CT130F-561M-_
CT141F-100K-_
CHARACTERISTICS
Description:
Vertical or Horizontal toroid inductor
Applications:
EMI/RFI filter and heavy duty applications
Operating Temperature:
-20°C to +80°C
Inductance Tolerance:
±10%, ±15% & ±20%
Inductance Ranges:
0.5 µH to 10.0 µH
Testing:
Tested on an HP4284A at 1.0 kHz
Packaging:
Bulk pack
Material:
Iron powder or ferrite cores
Current Capabilities:
0.5 A to 10.0 A
Optional Tape:
UL glass tape
Styles:
Vertical, Horizontal & Klip Mount
How to order CT Toroids:
Vertical Mount w/ Tape:
CT30-100K-TV
Horizontal Mount w/ Tape:
CT30-100K-TH
Toroid w/ Base:
CTB30-100K
Vertical or Horizontal Toroids w/ no Tape:
Only add V or H
Miscellaneous:
RoHS Compliant.
Detailed specification sheets
are available upon request.
Additional Information:
Additional electrical & physical
information available upon request.
Samples available. See website for ordering information.
This is a representation of some of the more common toroid
series types we produce. For values or sizes not shown ask
for a specific requirement.
04.27.12
CENTRAL
Manufacturer of Passive Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2012 by CT Magnetics, DBA Central Technologies. All rights reserved.
CT Magnetics reserves the right to make improvements or change specifications without notice
TECHNOLOGIES
Toroids - Radial
ctparts.com

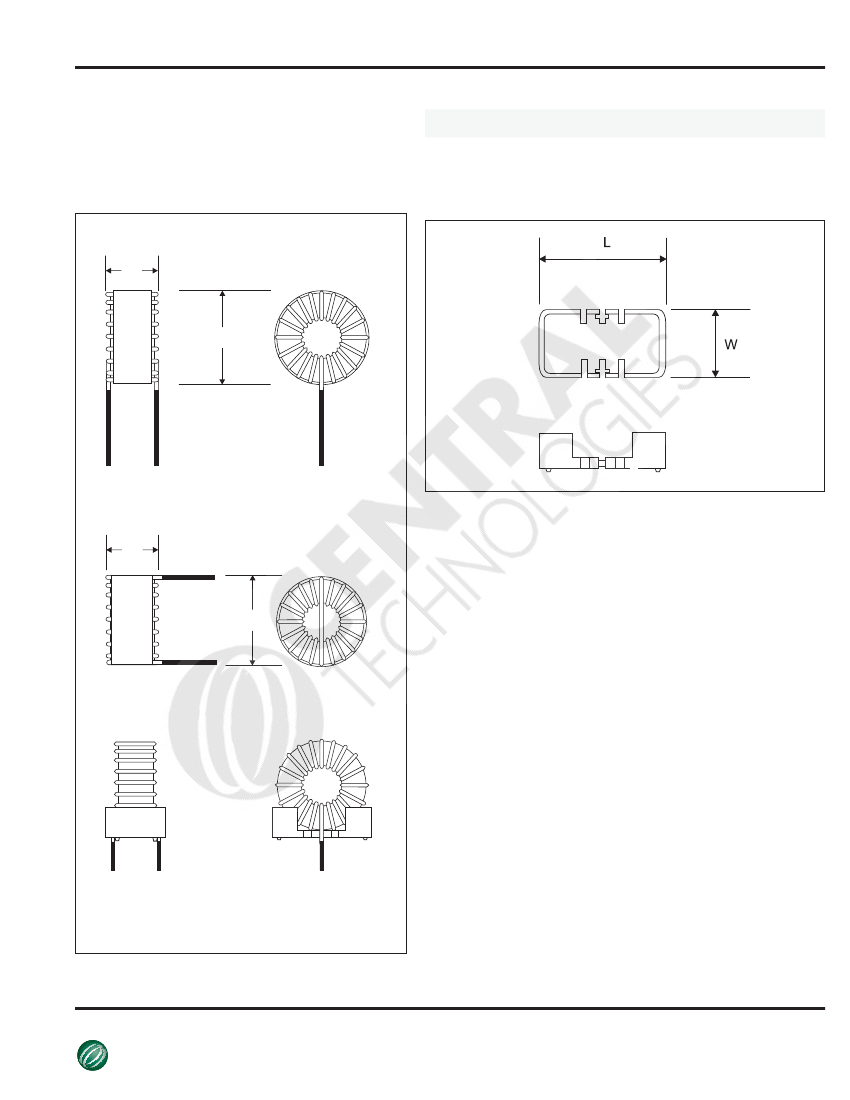

PHYSICAL DIMENSIONS
High Current
Power Toroids
W
Klip
Mount #
KM-1
KM-2
KM-3
KM-4
KM-5
Length
14.7
16.5
21.0
24.1
31.7
Width
8.6
11.4
11.4
15.2
17.7
AWG
Sizes
21-24
18-24
18-24
17-22
17-22
D
Vertical Toroid (taped)
W
D
Horizontal Toroid (taped)
Klip Mount Toroid
*See klip mount size chart
04.27.12
CENTRAL
Manufacturer of Passive Components
800-684-5322
Inside US
949-453-1811
Outside US
Copyright © 2012 by CT Magnetics, DBA Central Technologies. All rights reserved.
