NMC-L0603NPO3R9B100TRPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-L0603NPO3R9B100TRPF

NMC-L0603NPO3R9B100TRPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 100V, 2.56% +Tol, 2.56% -Tol, C0G, 30ppm/Cel TC, 0.0000039uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size135KB，4 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NMC-L0603NPO3R9B100TRPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 100V, 2.56% +Tol, 2.56% -Tol, C0G, 30ppm/Cel TC, 0.0000039uF, Surface Mount, 0603, CHIP, ROHS COMPLIANT

NMC-L0603NPO3R9B100TRPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Nichicon
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	17 weeks
capacitance	0.0000039 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1 mm
JESD-609 code	e3
length	1.6 mm
Manufacturer's serial number	NMC-L
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	2.5641%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, PAPER
positive tolerance	2.5641%
Rated (DC) voltage (URdc)	100 V
series	NMC-L
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
width	0.8 mm

Preview

Download Datasheet

View All

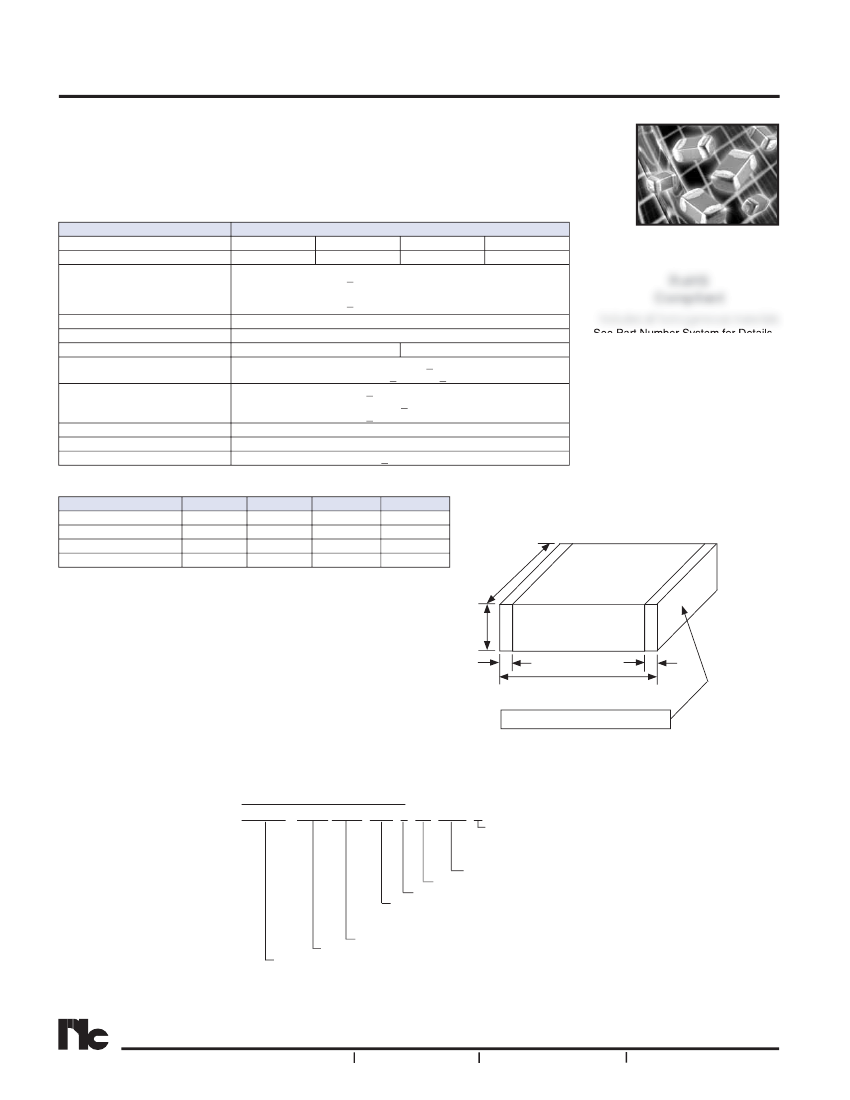

Multilayer Ceramic Chip Capacitors

FEATURES

• LOWER ESR - HIGH Q at HIGH FREQUENCY

• STABLE NPO CHARACTERISTICS OVER TEMPERATURE AND VOLTAGE

• EIA 0201, 0402, 0603 & 0805 CASE SIZES

• WIDE CAPACITANCE (UP TO 3,300pF) & VOLTAGE RANGE (UP TO 100VDC)

SPECIFICATIONS

Case Sizes

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltage

Q Factor

ESR

insulation Resistance

Dielectric Withstanding Voltage

Test Conditions

NPO

0402

0603

0805

0.5pF ~ 470pF 0.5pF ~ 3300pF 1.0pF ~ 150pF

NMC-L Series

0201

1.0pF ~ 15pF

Cap. Values < 5pF: ±0.1pF(B), ±0.25pF(C)

Cap. Values 5pF ~ 8.2pF: ±0.25pF(C), ±0.5pF(D)

Cap. Values >10pF: ±1%(F), ±2%(G), ±5% (J)

-55°C ~ +125°C

0 ± 30PPM/°C

16Vdc, 25Vdc, 50Vdc

16Vdc, 25Vdc, 50Vdc & 100Vdc

Cap. Values <30pF: Q > 400 + 20C

Cap. Values >30pF: Q > 1000

Cap. Values < 2.2pF: <1000mΩ@900MHz ± 100MHz

Cap. Values 2.2pF ~ 470pF: <500mΩ@900MHz ± 100MHz

Cap. Values >470pF: <500mΩ@60MHz ± 10MHz

10,000 Megohms min. @ +25°C

250% of rated voltage for 1 ~ 5 seconds

1.0 ± 0.2Vrms, 1MHz ±10% (<1000pF) or 1KHz ± 10% (>1000pF)

RoHS

Compliant

Includes all homogeneous materials

*See Part Number System for Details

EIA Case Size

Length (L)

Width (W)

Thickness (T)

Termination Width (P)

0201

0402

0603

0.6 ± 0.05 1.0 ± 0.05

1.6 ±0.10

0.3 ± 0.05 0.5 ± 0.05

0.8 ± 0.10

0.33 max. 0.60 max.

1.0 max.

0.10 ~ 0.20 0.15 ~ 0.30 0.12 ~ 0.55

0805

2.0 ±0.10

1.25 ± 0.10

1.3 max.

0.25 ~ 0.71

100% Sn over Ni barrier

PART NUMBER SYSTEM

NMC-L 0603 NPO 100 J 50 TRP F

RoHS Compliant

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, ﬁrst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

Series

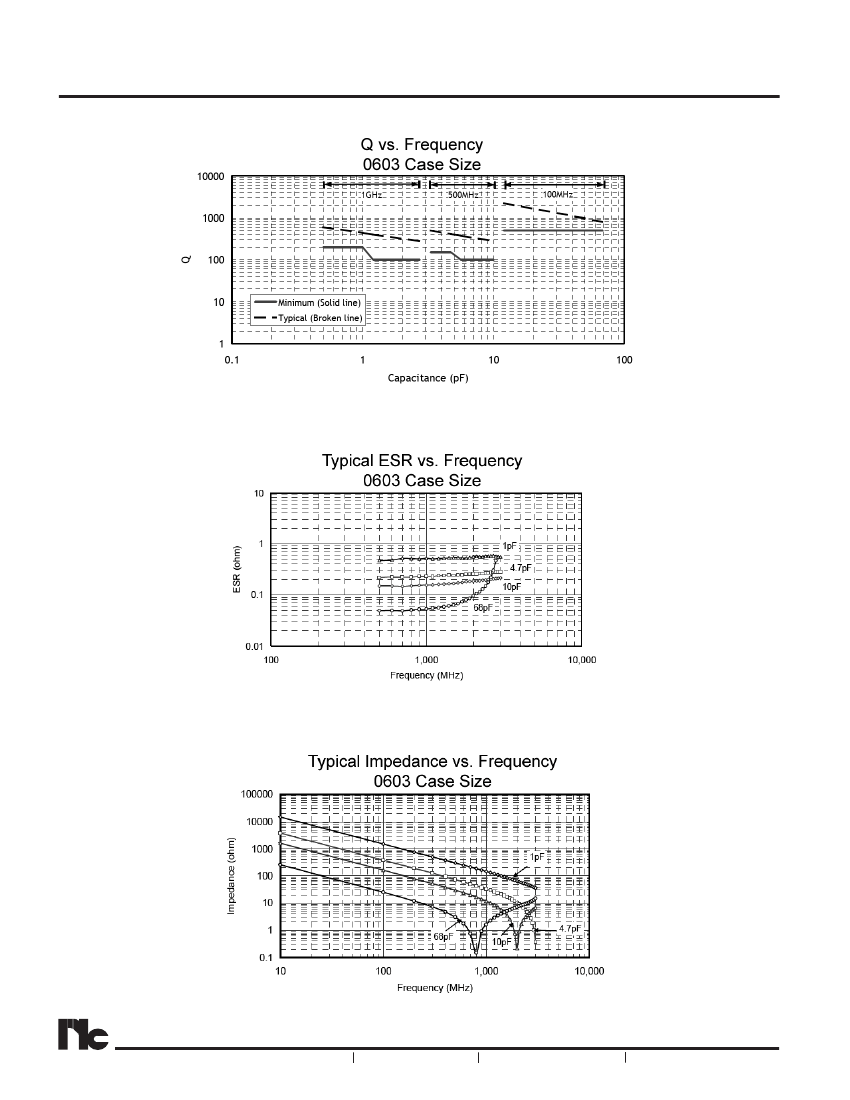

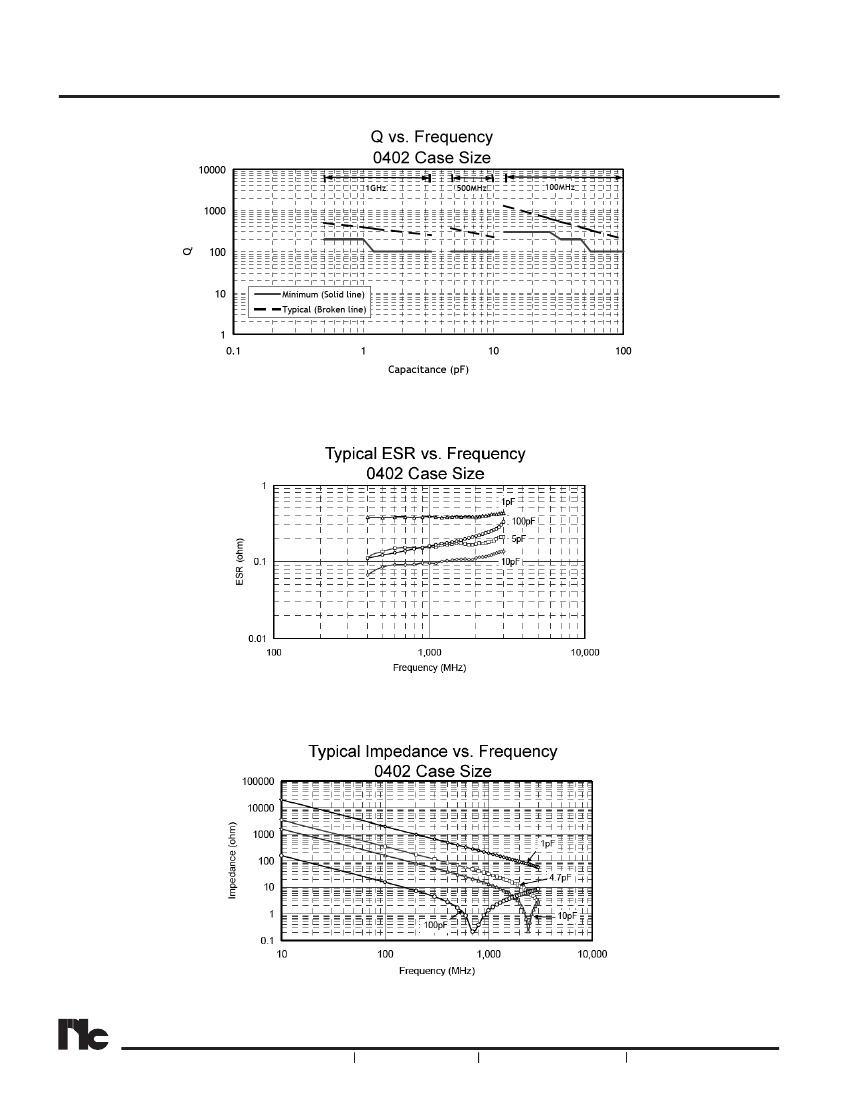

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

Recommended Resources
