DM54L93J/883

Description
Binary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDIP14, CERAMIC, DIP-14
Categorylogic    logic
File Size758KB,4 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

DM54L93J/883 Overview

Binary Counter, TTL/H/L Series, Asynchronous, Negative Edge Triggered, 3-Bit, Up Direction, TTL, CDIP14, CERAMIC, DIP-14

DM54L93J/883 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerRochester Electronics
Parts packaging codeDIP
package instructionDIP,
Contacts14
Reach Compliance Codeunknown
Other featuresDIVIDE BY 2 AND DIVIDE BY 8 FUNCTIONS
Counting directionUP
seriesTTL/H/L
JESD-30 codeR-GDIP-T14
JESD-609 codee0
length19.43 mm
Load/preset inputYES
Logic integrated circuit typeBINARY COUNTER
Operating modeASYNCHRONOUS
Number of digits3
Number of functions2
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typeNEGATIVE EDGE
width7.62 mm

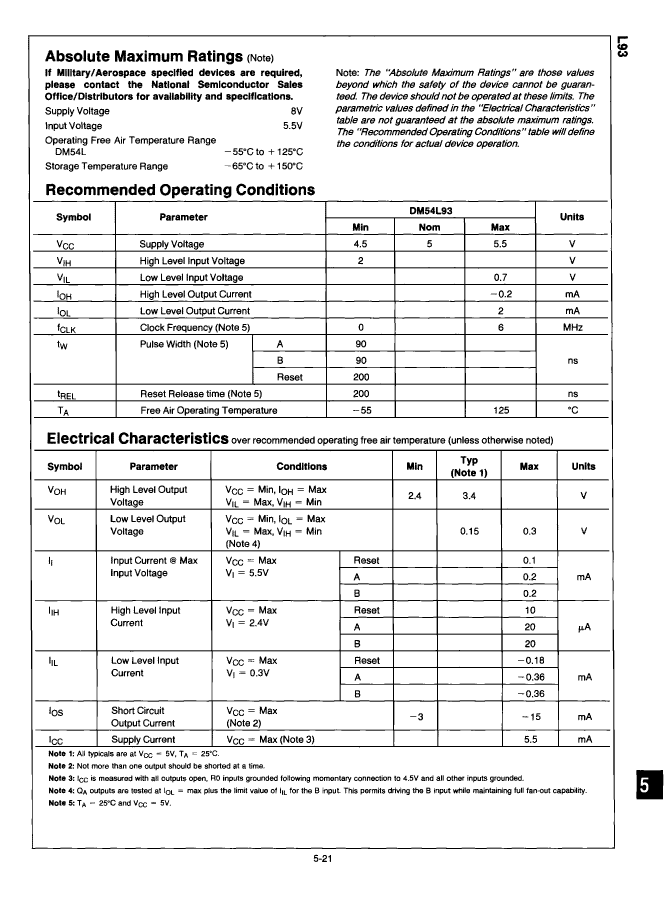

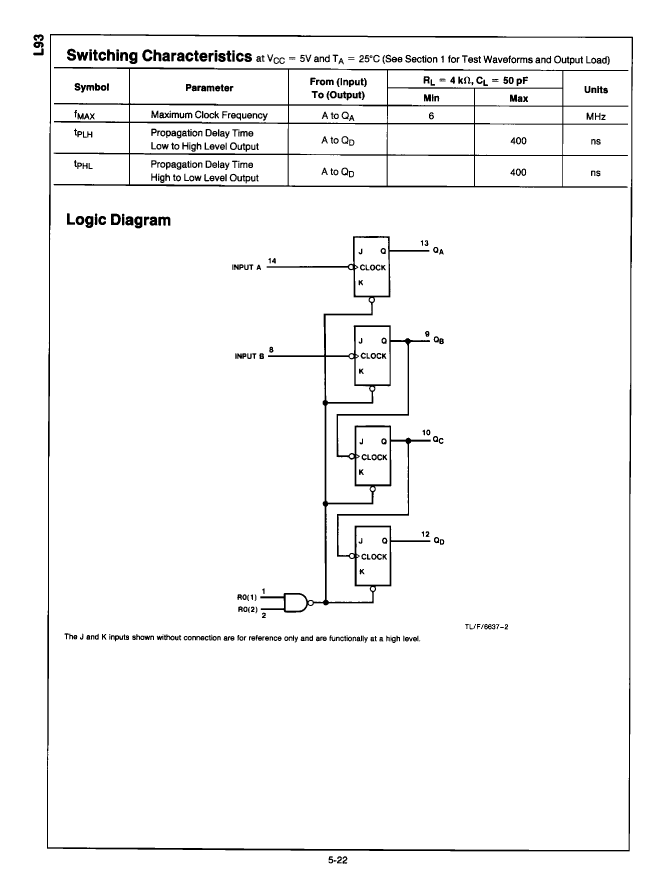

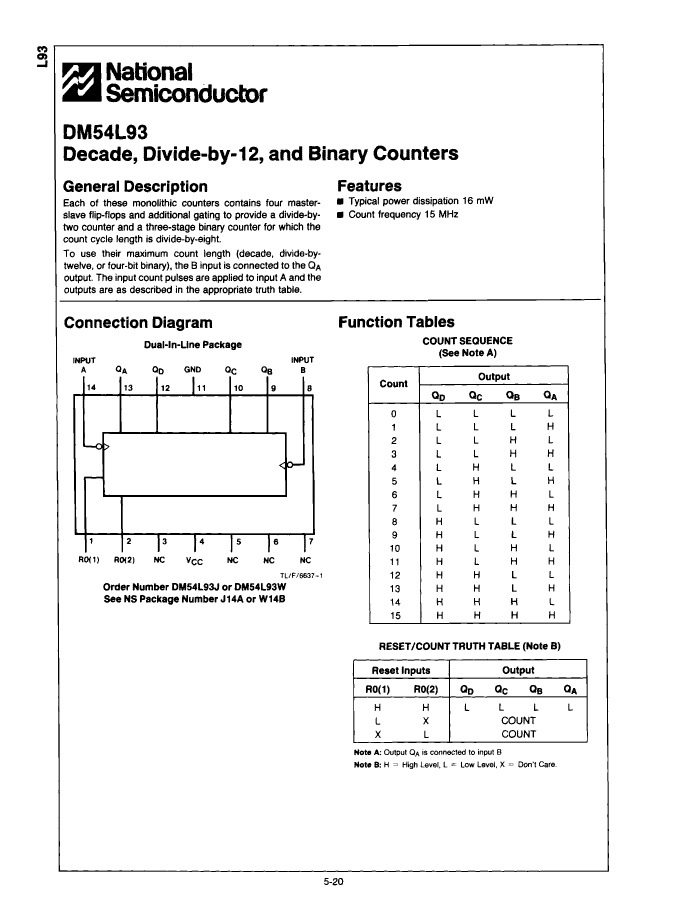

DM54L93J/883 Preview
