DV74HC04AN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74HC04AN

DV74HC04AN: DescriptionInverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size456KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HC04AN Overview

Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDIP14, PLASTIC, DIP-14

DV74HC04AN Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDIP-T14
length	18.86 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.004 A
Number of functions	6
Number of entries	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14(UNSPEC)
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	110 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	4.69 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

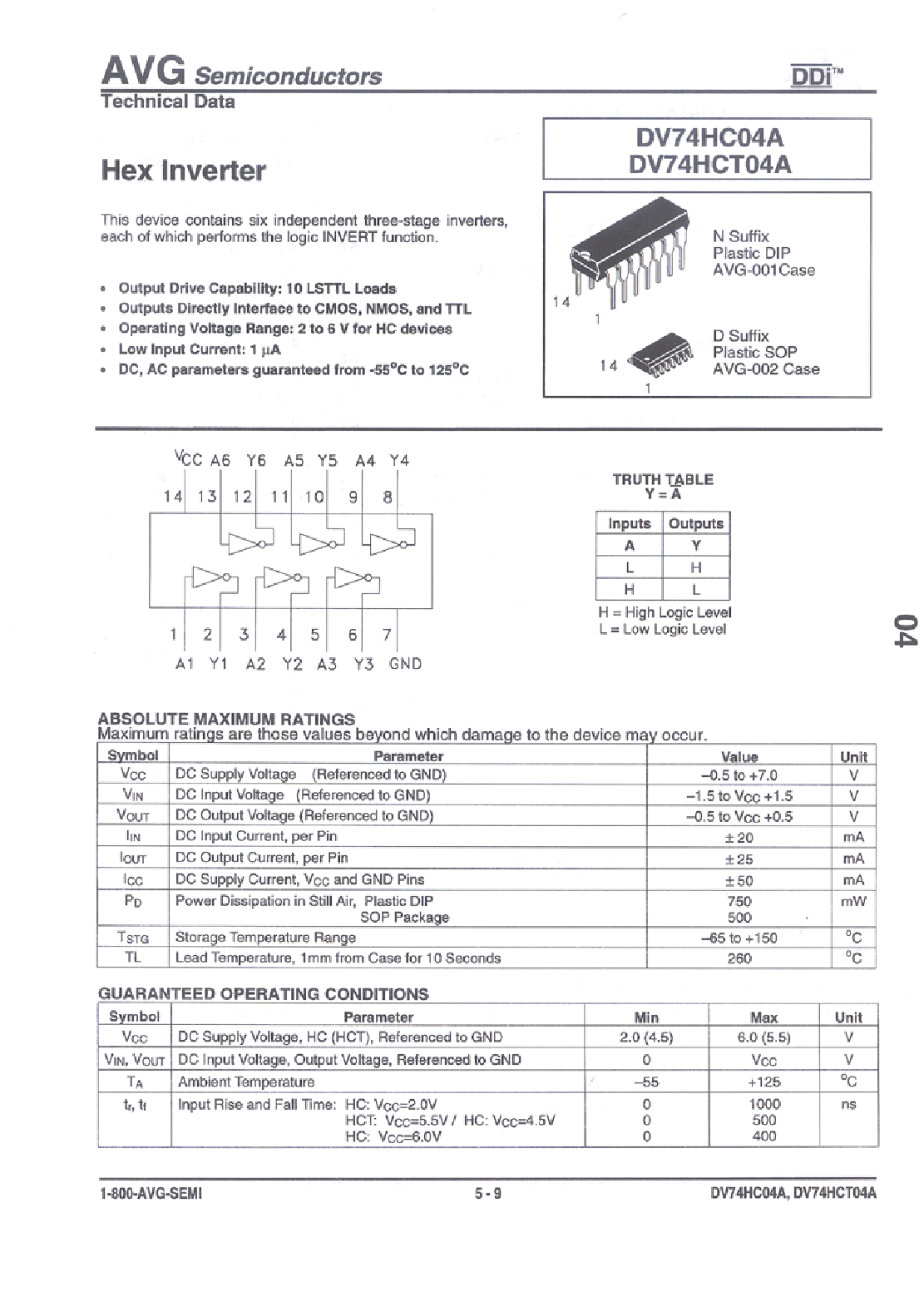

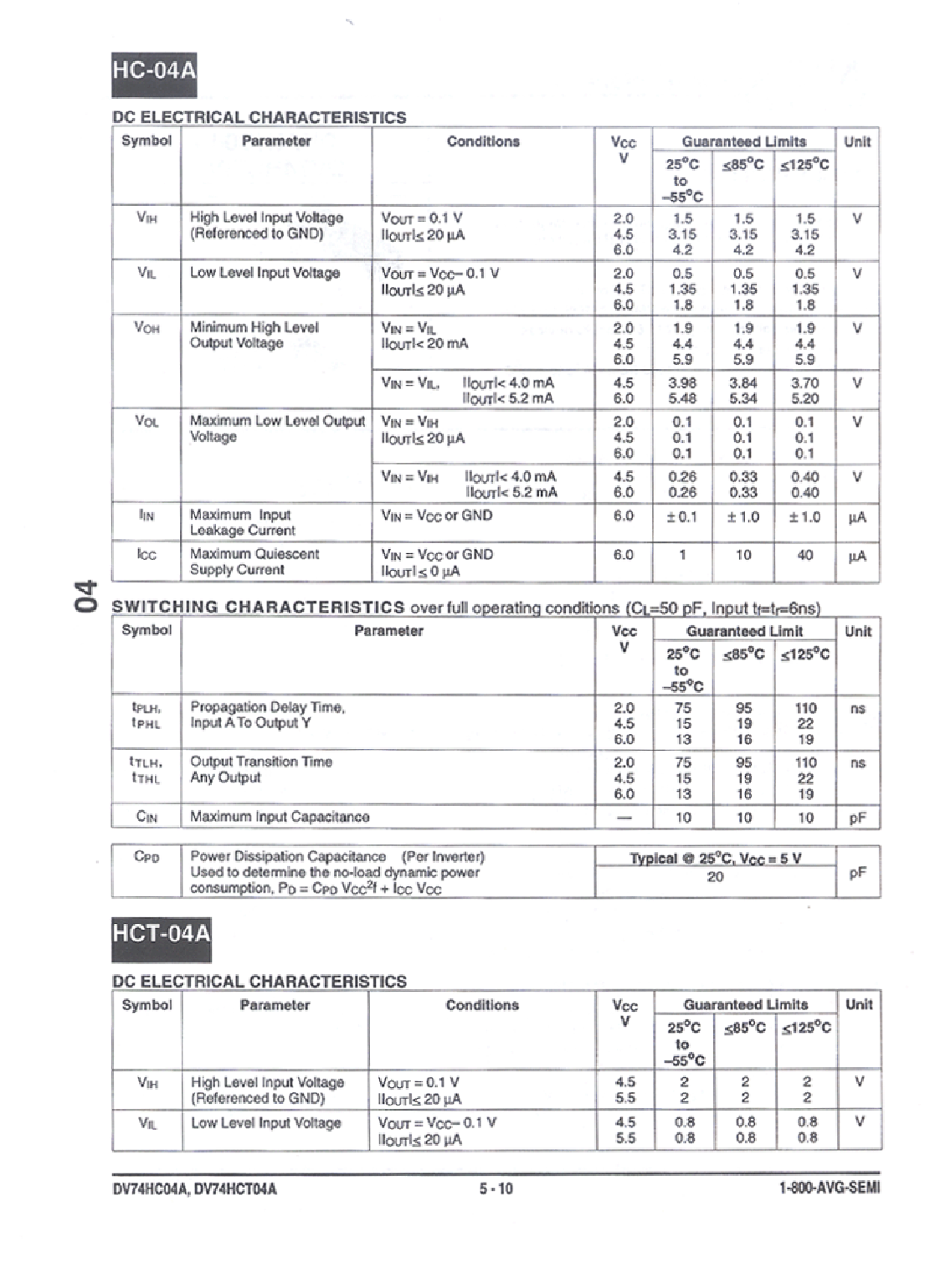

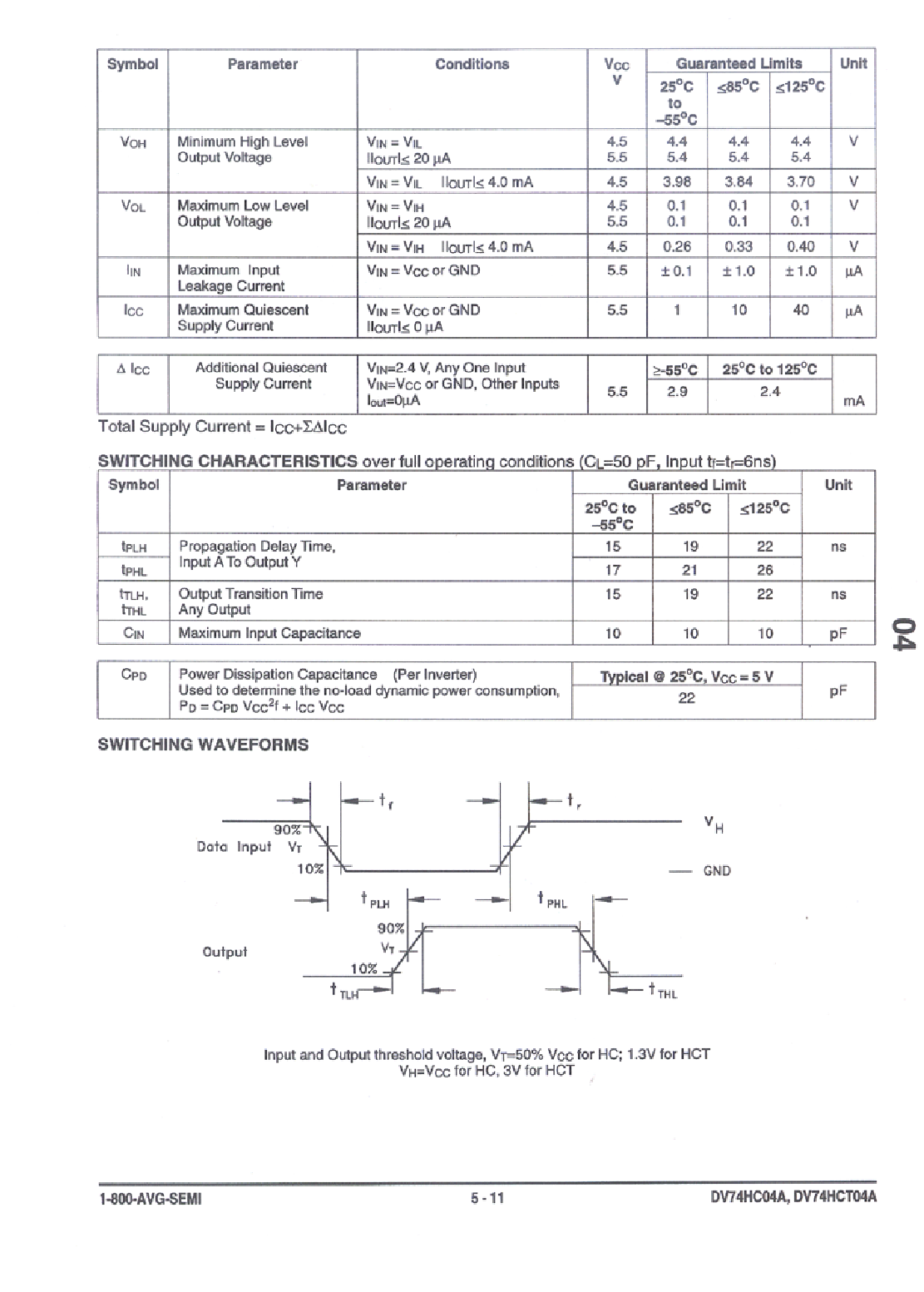

Preview

Download Datasheet

View All

DV74HC04AN Related Products

	DV74HC04AN	DV74HCT04AD	DV74HC04AD	DV74HCT04AN
Description	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDIP14, PLASTIC, DIP-14	Inverter, HCT Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, SOP-14	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14, PLASTIC, SOP-14	Inverter, HCT Series, 6-Func, 1-Input, CMOS, PDIP14, PLASTIC, DIP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	DIP	SOIC	SOIC	DIP
package instruction	PLASTIC, DIP-14	PLASTIC, SOP-14	PLASTIC, SOP-14	DIP, DIP14(UNSPEC)
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	HC/UH	HCT	HC/UH	HCT
JESD-30 code	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
length	18.86 mm	8.65 mm	8.65 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	6	6	6	6
Number of entries	1	1	1	1
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP
Encapsulate equivalent code	DIP14(UNSPEC)	SOP14(UNSPEC)	SOP14(UNSPEC)	DIP14(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
power supply	2/6 V	5 V	2/6 V	5 V
Prop。Delay @ Nom-Sup	22 ns	22 ns	22 ns	22 ns
propagation delay (tpd)	110 ns	26 ns	110 ns	26 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
Maximum seat height	4.69 mm	1.75 mm	1.75 mm	4.69 mm
Maximum supply voltage (Vsup)	6 V	5.5 V	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V	2 V	4.5 V
Nominal supply voltage (Vsup)	4.5 V	5 V	4.5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	3.9 mm	3.9 mm	7.62 mm
