RoHS Compliant
Serial ATA Flash Drive
Specifications for SAFD 18P
June 26
th
, 2013
Version 1.4
Apacer Technology Inc.
4 Fl., 75 Hsin Tai Wu Rd., Sec.1, Xizhi, New Taipei City, Taiwan 221
Tel: +886-2-2698-2888
www.apacer.com
Fax: +886-2-2698-2889
th
Serial ATA Flash Drive
APS18P6Axxxx-5XXX
Features:
Standard Serial ATA Interface
–
Serial ATA Revision 2.6
–
SATA 3.0 Gbps
–
ATA-compatible command set
Capacities
–
8, 16, 32, 64, 128 GB
Performance*
–
Burst read/write: 300 MB/sec
–
Sustained read: up to 260 MB/sec
–
Sustained write: up to 215 MB/sec
Intelligent endurance design
–
Built-in hardware ECC, enabling up to
16/24 bit correction per 1024 bytes
–
Static wear-leveling scheme together
with dynamical block allocation to
significantly increase the lifetime of a
flash device and optimize the disk
performance
–
Flash bad-block management
–
S.M.A.R.T.
–
Power Failure Management
–
ATA Secure Erase
–
TRIM
NAND Flash Type:
SLC
*Varies
from capacities. The values addressed for performance and power consumption are typical and may vary depending on settings
and platforms.
**
Non-operating
Temperature ranges
–
Operating:
Standard: 0°C to 70°C (32 ~ 158°
F)
Extended: -40°C to 85°C (-40° ~ 185°
F)
–
Storage: -40° to 100° (-40° ~ 212°
C
C
F)
Supply voltage
–
3.3V & 5V
Power consumption (typical)*
–
Active mode: 978 mA
–
Idle mode: 303 mA
Form factor
–
1.8 inch (78.5 x 54 x 5, unit: mm)
Connector
–
7-pin SATA male connector
–
9-pin SATA power connector
Shock & Vibration**
–
Shock: 1500 G
–
Vibration: 15 G
MTBF >
2,000,000 hours
RoHS compliant
1
© 2013 Apacer Technology Inc.
Rev. 1.4
Serial ATA Flash Drive
APS18P6Axxxx-5XXX
Table of Contents
1. Product Description ................................................................................................. 3
1.1 Introduction .................................................................................................................................................3
1.2 Functional Block Diagram..........................................................................................................................3
1.3 ATA Mode Support.....................................................................................................................................4
1.4 Capacity Specification.................................................................................................................................4
1.5 Performance.................................................................................................................................................4
1.6 Pin Assignments ..........................................................................................................................................5
2. Software Interface .................................................................................................... 7
2.1 Command Set ..............................................................................................................................................7
2.2 S.M.A.R.T. ...................................................................................................................................................8
3. Flash Management ................................................................................................... 9
3.1 Error Correction/Detection ........................................................................................................................9
3.2 Flash Block Management ...........................................................................................................................9
3.3 Wear Leveling..............................................................................................................................................9
3.4 Power Failure Management .......................................................................................................................9
3.5 ATA Secure Erase .......................................................................................................................................9
3.6 TRIM..........................................................................................................................................................10
4. Environmental Specifications ............................................................................... 11
4.1 Environments.............................................................................................................................................11
4.2 Mean Time Between Failures (MTBF)....................................................................................................11
4.3 Certification and Compliance ..................................................................................................................11
5. Electrical Characteristics ...................................................................................... 12
5.1 Operating Voltage .....................................................................................................................................12
5.2 Power Consumption..................................................................................................................................12
6. Physical Characteristics........................................................................................ 13
7. Product Ordering Information ............................................................................... 15
7.1 Product Code Designations ......................................................................................................................15
7.2 Valid Combinations...................................................................................................................................16
2
© 2013 Apacer Technology Inc.
Rev. 1.4
Serial ATA Flash Drive
APS18P6Axxxx-5XXX
1. Product Description
1.1
Introduction
Apacer’s Serial ATA Flash Drive (SAFD) is a solid-state disk (SSD) drive that contains a controller, embedded
firmware, and flash media along with a male connector. Using NAND flash memory devices, the drive
transfers data between the host and the storage devices at a radical high speed, making it a great partner for
embedded systems and servers.
SAFD 18P drive is designed with a single-chip controller, offering capacities of up to 128 gigabytes and
providing full support for the SATA 3.0 Gbps high-speed interface standard. It can operate at sustained
access rates of up to higher than 260 megabytes per second, providing an ideal solution for industrial
applications.
In addition, SAFD 18P adopts the Apacer-specific static wear-leveling scheme to allow uniform use of all
storage blocks, ensuring that the lifetime of a flash media can be significantly increased and the disk
performance is optimized as well. SAFD 18P provides the S.M.A.R.T. feature that follows the SATA Rev. 2.6,
ATA/ATAPI specifications and uses the standard SMART command B0h to read data from the drive. This
feature protects the user from unscheduled downtime by monitoring and storing critical drive performance.
1.2
Functional Block Diagram

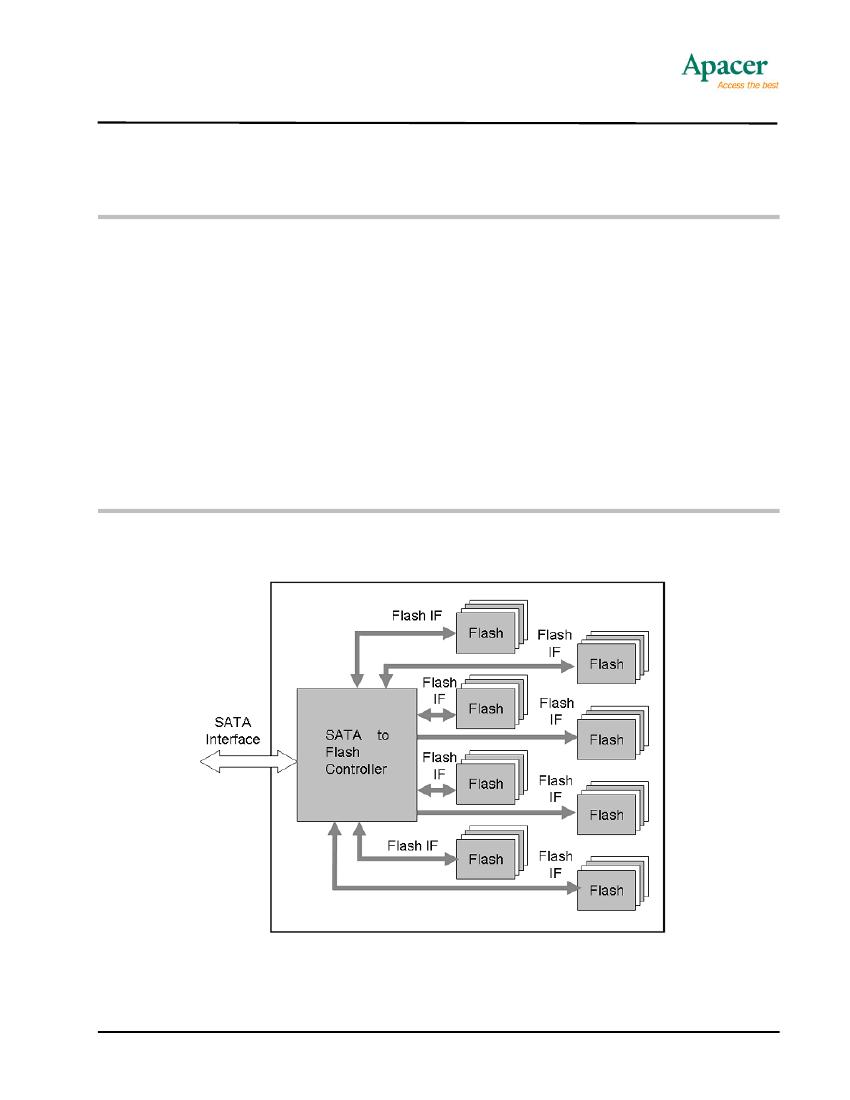

SAFD 18P drive includes a single-chip SATA Controller and the flash media, as well as the SATA standard
interface. The controller integrates the flash management unit with the controller itself to support multi-channel,
multi-bank flash arrays. Figure 1-1 shows the functional block diagram.
Figure 1-1
Apacer SAFD 18P block diagram
3
© 2013 Apacer Technology Inc.
Rev. 1.4
Serial ATA Flash Drive
APS18P6Axxxx-5XXX
1.3
ATA Mode Support
Up to PIO mode-4
Up to Multiword DMA mode-2
Up to UDMA mode-4
SAFD 18P provides ATA mode support as follows:
1.4
Capacity Specification
Capacity specification of SAFD 18P product family is available as shown in Table 1-1. It lists the specific
capacity, the default numbers of logical cylinders and heads, and the number of logical sectors per track for
each product line.
Table 1-1
Capacity specification
Capacity
8 GB
16 GB
32 GB
64 GB
128 GB
Total Bytes*
7,012,196,352
16,013,942,784
32,017,047,552
64,023,257,088
128,035,676,10
Cylinders
13,587
16383
16,383
16383
16383
Heads
16
16
16
16
16
Sectors
63
63
63
63
63
Max LBA**
13,695,696
31,277,232
62,533,296
125,045,44
250,069,60
*Display of total bytes varies from file systems.
**Cylinders, heads or sectors are not applicable for these capacities. Only LBA addressing applies.
***Notes: 1 GB = 1,000,000,000 bytes; 1 sector = 512 bytes.
LBA count addressed in the table above indicates total user storage capacity and will remain the same throughout the lifespan of
the device. However, the total usable capacity of the SSD is most likely to be less than the total physical capacity because a small
portion of the capacity is reserved for device maintenance usages.
1.5
Performance
Performance of SAFD 18P is shown in Table 1-2.
Table 1-2
Performance specifications
Capacity
Performance
Sustained Read
(MB/s)
Sustained Write
(MB/s)
8 GB
255
100
16 GB
260
205
32 GB
260
190
64 GB
260
215
128 GB
245
165
Note:
Performances vary from flash configurations and host system configurations.
Read/write performance is measured using CrystalDiskMark under Windows XP operating sytem.
