TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: NYLON 66
FLAMABILITY RATING: UL94-V0
COLOR: WHITE
CONTACT MATERIAL: COPPER ALLOY
CONTACT TYPE: STAMPED
CONTACT PLATING: TIN
QUALITY CLASS: 25 MATING CYCLES
PITCH: 4.20 MM
5
A
LAST CKT.
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 6 TO 9 A
CKT.#1
NB CIRCUITS
AMPERES
2-3
9
4-6
8
7-10
7
12-24
6
WORKING VOLTAGE: 600 VAC
INSULATOR RESISTANCE: >1000 MOHM
DIELECTRIC WITHSTANDING VOLTAGE: 1500 VAC/MN
CONTACT RESISTANCE: 10 mOHM MAX
B
CKT.#2
STANDARD
CERTIFIED: E323964
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING PROCESS

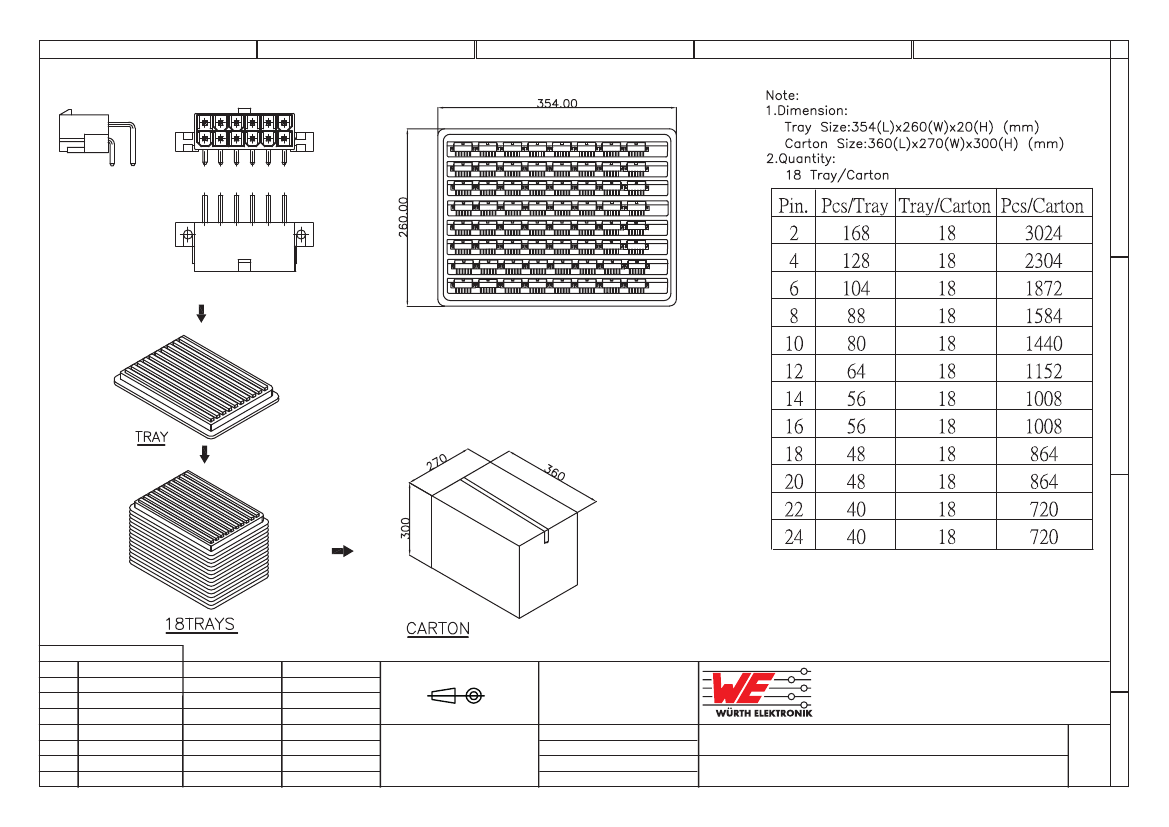

PACKAGING
TRAY
DIMENSION
A = 4.20 x (NB. PIN / 2 - 1)
B = 4.20 x (NB. PIN / 2) + 1.20
C = A + 9.00
D = A + 15.40
C
RoHS Compliant
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
J
I
H
REV
01-JUL-15
13-FEB-14
DATE
PINNING
CORRECTIONS
FILE
AK
QL
BY
APPROVAL: BBu
UNIT: MM
SCALE:
SHEET: 1/3
DRAW: MIKE

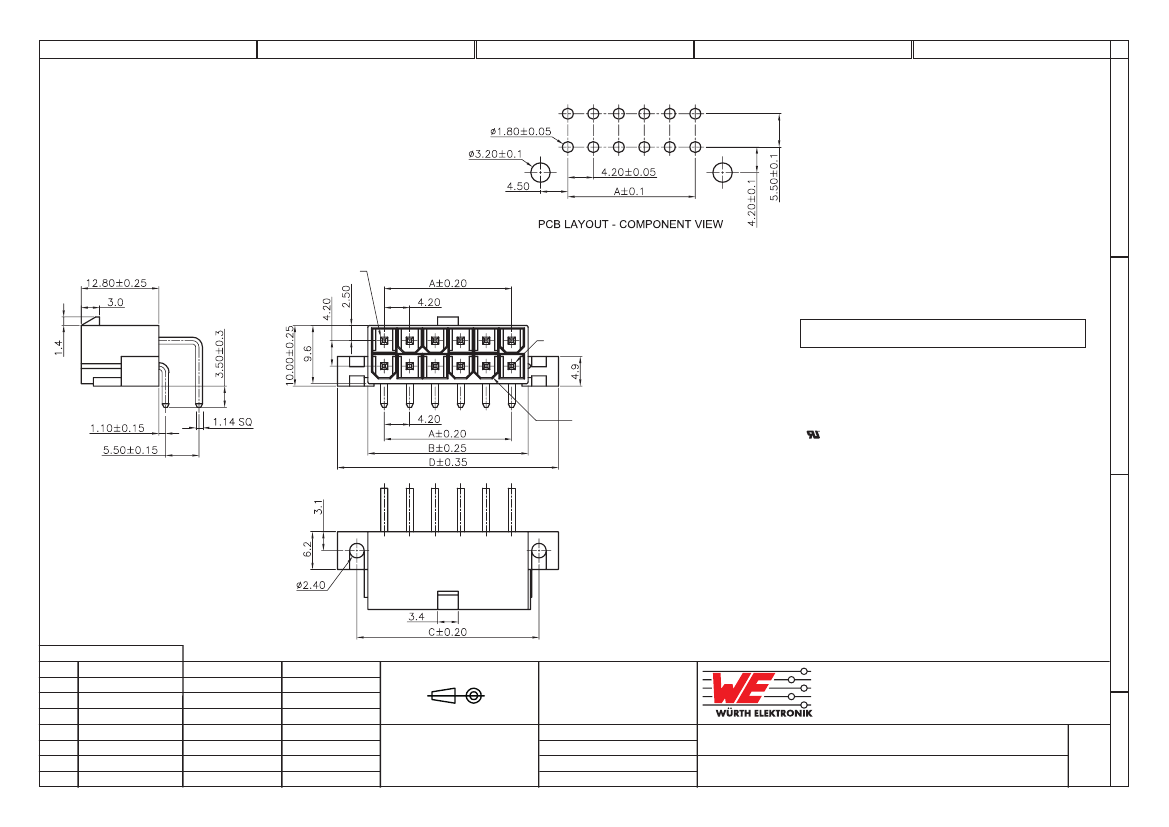

DESCRIPTION: 4.20MM MALE DUAL ROW RIGHT ANGLE HEADER WITH
MOUNTING FLANGES
WERI PART NO: 649 0xx 210 22
SIZE
A4
D
1
2
3
4
5
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
DATE
FILE
BY
APPROVAL: BBu
SCALE:
SHEET: 2/3
DRAW: PEARL
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: 4.20MM MALE DUAL ROW RIGHT ANGLE HEADER WITH
MOUNTING FLANGES
WERI PART NO: 649 0xx 210 22
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 3/3
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
