MSMLG5.0A – MSMLG170CAe3, MSMLJ5.0A – MSMLJ170CAe3 Surface
Mount 3000 Watt Transient Voltage Suppressor
1
Product Overview
The MSMLG5.0A–MSMLG170CA and the MSMLJ5.0A–MSMLJ170CA series of high-reliability transient
voltage suppressors (TVS) protect circuits from voltage spikes containing up to 3000 W (10/1000 μs

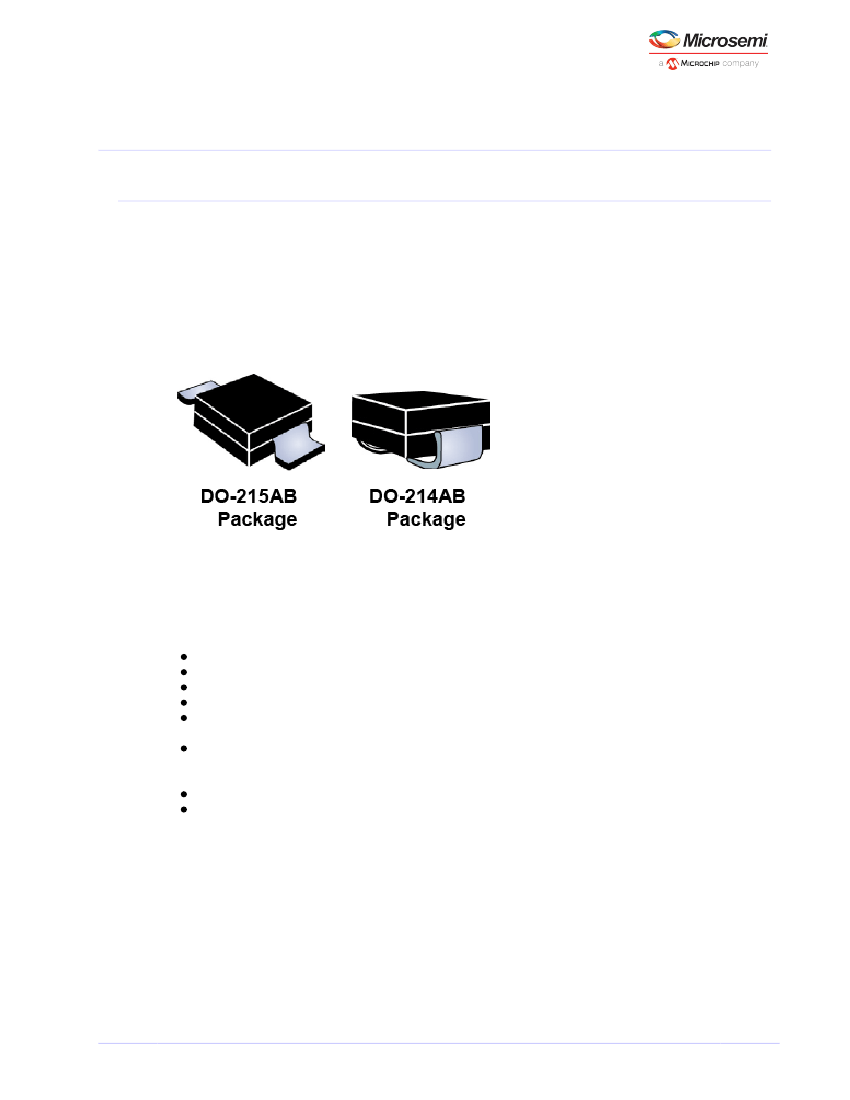

model pulse). The SMLG gull-wing design in the DO-215AB package allows for visible solder connections.
The SMLJ J-bend design in the DO-214AB package allows for greater PC board mounting density.
Selections include unidirectional and bidirectional as well as RoHS-compliant versions. These are
available with a variety of upscreening options for enhanced reliability. They protect against the
secondary effects of lightning per IEC61000-4-5 and against voltage pulses from inductive switching
environments and induced by RF radiation. Since their response time is virtually instantaneous, they can
also be used in protection from ESD and EFT per IEC61000-4-2 and IEC61000-4-4.
For the latest information, visit our website
www.microsemi.com
.
1.1
Features
The following are key features of the MSMLG5.0A through MSMLG170CAe3 and the MSMLJ5.0A
through MSMLJ170CAe3 devices:
High-reliability devices with fabrication and assembly lot traceability for all M prefix devices
All devices are 100% surge tested
3σ lot norm screening performed on standby current (I
D
) for all M prefix devices
Available in both unidirectional and bidirectional versions
Moisture classification is “Level 1” with no dry pack required per IPC/JEDEC J-STD-020B for all M
prefix devices.
Enhanced reliability screening options with M prefix are available in reference to MIL-PRF-19500.
Refer to
High Reliability Up-Screened Plastic Products Portfolio
for more details on the screening
options (see Part Nomenclature for all available options).
RoHS compliant versions available
Axial-lead equivalent packages for thru-hole mounting are available as M5KP5.0A to M5KP110CA
with 5000 W rating (contact Microsemi for other surface mount options).
Microsemi Proprietary and Confidential. MSMLG5.0A–MSMLG170CAe3, MSMLJ5.0A–MSMLJ170CAe3 Datasheet Revision D
1
1.2
Applications and Benefits
The following are benefits of the MSMLG5.0A through MSMLG170CAe3 and the MSMLJ5.0A through
MSMLJ170CAe3 devices.
Suppresses transients up to 3000 W (10/1000 µs test pulse—see
Figure 2 (see page 7)
)
Protection from switching transients and induced RF
Protection from ESD, and EFT per IEC 61000-4-2 and IEC 61000-4-4
Secondary lightning protection per IEC 61000-4-5 with 42 Ω source impedance:
Class 1 and 2: SML 5.0A to SML 170A or CA
Class 3: SML 5.0A to SML 150A or CA
Class 4: SML 5.0A to SML 75A or CA
Secondary lightning protection per IEC 61000-4-5 with 12 Ω source impedance:
Class 1: SML 5.0A to SML 170A or CA
Class 2: SML 5.0A to SML 90A or CA
Class 3: SML 5.0A to SML 48A or CA
Class 4: SML 5.0A to SML 24A or CA
Secondary lightning protection per IEC 61000-4-5 with 2 Ω source impedance:
Class 2: SML 5.0A to SML 43A or CA
Class 3: SML 5.0A to SML 22A or CA
Class 4: SML 5.0A to SML10A or CA
Microsemi Proprietary and Confidential. MSMLG5.0A–MSMLG170CAe3, MSMLJ5.0A–MSMLJ170CAe3 Datasheet Revision D
2
1.3
Part Nomenclature
The following table lists the part nomenclature for the MSMLG5.0A through MSMLG170CAe3 and the
MSMLJ5.0 through MSMLJ170CAe3 devices.
Table 1 • MXSMLG5.0CAe3 Part Nomenclature
MX
Reliability level
*
M (controlled product)
MA (aviconics grade) MX (reference JANTX)
MXL (MX life)
Blank = commercial
*(see
Hirel Non-Hermetic Product Portfolio
)
SM
L
G or J
5.0
C
Surface-mount package
3000 W power level
Gull-wing or J-bend lead frame
Reverse standoff voltage
Uni/bidirectional
(see
Typical Electrical Performance (see page 5)
table)
C = Bidirectional
Blank = Undirectional
A
e3
± 5% Tolerance level
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
1.4
Symbols and Definitions
The following table lists the symbols and definitions used for the MSMLG5.0A through MSMLG170CAe3
and the MSMLJ5.0 through MSMLJ170CAe3 devices.
Table 2 • Symbols and Definitions
Symbol
I
(BR)
I
D
I
F
I
PP
P
PP
V
(BR)
V
C
V
WM
Value
Breakdown current
Standby current
Forward current
Peak impulse current
Peak pulse Power
Minimum breakdown voltage
Clamping voltage
Rated working standoff voltage
Definition
The current used for measuring breakdown voltage V
(BR)
.
The current at the rated standoff voltage V
WM
.
The forward current dc value, no alternating component.
The peak current during the impulse.
The peak power dissipation resulting from peak impulse current I
PP
.
The minimum voltage the device will exhibit at a specified current.
Clamping voltage at I
PP
(peak pulse current) at the specified pulse
conditions (typically shown as maximum value).
The maximum peak voltage that can be applied over the operating
temperature range.
Microsemi Proprietary and Confidential. MSMLG5.0A–MSMLG170CAe3, MSMLJ5.0A–MSMLJ170CAe3 Datasheet Revision D
3
2
Electrical Specifications
This section shows the electrical specifications for the MSMLG5.0A–MSMLG170CA and the MSMLJ5.0A–
MSMLJ170CA devices.
2.1
Maximum Ratings
The following table shows you the absolute maximum ratings for the MSMLG5.0A–MSMLG170CA and
the MSMLJ5.0A–MSMLJ170CA devices.
Table 3 • Absolute Maximum Ratings
Parameter/Test Conditions
Junction and storage temperature
Thermal resistance junction-to-lead
Thermal resistance junction-to-ambient
1
Peak pulse power dissipation at 25 °C
(10/1000 μs, see Figures 1, 2, and 3).
Impulse repetition rate (duty factor)
t
clamping
(0 V to V
(BR)
min)
Unidirectional
Bidirectional
Rated average power dissipation
TL = 45 °C
TL = 25 °C
Maximum forward surge current
2
Solder temperature at 10 s
I
FSM
T
SP
P
M(AV)
Symbol
T
J
and T
STG
R
θJL
R
θJA
P
PP
df
t
clamping
Value
–65 to 150
17.5
77.5
3000
0.01 or
less
<100
<5
6
1.61
1
200
260
A (pk)
°C
W
%
ps
ns
W
Unit
°C
°C/W
Notes:
1. When mounted on FR4 PC board (1 oz Cu) with recommended mounting pad (see pad layout).
2. Peak impulse of 8.3 ms half-sine wave at 25 °C (unidirectional only).
Microsemi Proprietary and Confidential. MSMLG5.0A–MSMLG170CAe3, MSMLJ5.0A–MSMLJ170CAe3 Datasheet Revision D
4
2.2
Typical Electrical Performance
The following table shows the Electrical characteristics for the MSMLG5.0A–MSMLG170CA and the
MSMLJ5.05A–MSMLJ170CA devices at 25 °C unless otherwise specified.
For bidirectional device types, indicate a CA suffix after the part number (i.e. MSMLG170CA).
Table 4 • Typical Electrical Performance
Part Number
V
WM
Reverse
Standoff
Voltage
J-bend
SMLJ5.0A
SMLJ6.0A
SMLJ6.5A
SMLJ7.0A
SMLJ7.5A
SMLJ8.0A
SMLJ8.5A
SMLJ9.0A
SMLJ10A
SMLJ11A
SMLJ12A
SMLJ13A
SMLJ14A
SMLJ15A
SMLJ16A
SMLJ17A
SMLJ18A
SMLJ20A
SMLJ22A
SMLJ24A
SMLJ26A
SMLJ28A
SMLJ30A
SMLJ33A
SMLJ36A
SMLJ40A
SMLJ43A
SMLJ45A
SMLJ48A
SMLJ51A
SMLJ54A
SMLJ58A
SMLJ60A
SMLJ64A
SMLJ70A
SMLJ75A
(V)
5.0
6.0
6.5
7.0
7.5
8.0
8.5
9.0
10
11
12
13
14
15
16
17
18
20
22
24
26
28
30
33
36
40
43
45
48
51
54
58
60
64
70
75
V
BR
Breakdown
Voltage at I
(BR)
I
BR
Test
Current
V
C
Max
Clamping
Voltage
at I
PP
(V)
9.2
10.3
11.2
12.0
12.9
13.6
14.4
15.4
17.0
18.2
19.9
21.5
23.2
24.4
26.0
27.6
29.2
32.4
35.5
38.9
42.1
45.4
48.4
53.3
58.1
64.5
69.4
72.7
77.4
82.4
87.1
93.6
96.8
103.0
113
121
I
PP
Max
Peak
Pulse
Current
(A)
326.0
291.3
267.9
250.0
232.6
220.6
208.4
194.8
176.4
164.8
150.6
139.4
129.4
123.0
115.4
106.6
102.8
92.6
84.4
77.2
71.2
66.0
62.0
56.2
51.6
46.4
43.2
41.2
38.8
36.4
34.4
32.0
31.0
29.2
26.6
24.8
I
D
Max
Stand-by
Current
at V
WM
(µA)
1000
1000
500
200
100
50
25
10
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
Gull-wing
SMLG5.0A
SMLG6.0A
SMLG6.5A
SMLG7.0A
SMLG7.5A
SMLG8.0A
SMLG8.5A
SMLG9.0A
SMLG10A
SMLG11A
SMLG12A
SMLG13A
SMLG14A
SMLG15A
SMLG16A
SMLG17A
SMLG18A
SMLG20A
SMLG22A
SMLG24A
SMLG26A
SMLG28A
SMLG30A
SMLG33A
SMLG36A
SMLG40A
SMLG43A
SMLG45A
SMLG48A
SMLG51A
SMLG54A
SMLG58A
SMLG60A
SMLG64A
SMLG70A
SMLG75A
(V)
6.40 – 7.00
6.67 – 7.37
7.22 – 7.98
7.78 – 8.60
8.33 – 9.21
8.89 – 9.83
9.44 – 10.4
10.0 – 11.1
11.1 – 12.3
12.2 – 13.5
13.3 – 14.7
14.4 – 15.9
15.6 – 17.2
16.7 – 18.5
17.8 – 19.7
18.9 – 20.9
20.0 – 22.1
22.2 – 24.5
24.4 – 26.9
26.7 – 29.5
28.9 – 31.9
31.1 – 34.4
33.3 – 36.8
36.7 – 40.6
40.0 – 44.2
44.4 – 49.1
47.8 – 52.8
50.0 – 55.3
53.3 – 58.9
56.7 – 62.7
60.0 – 66.3
64.4 – 71.2
66.7 – 73.7
71.1 – 78.6
77.8 – 86.0
83.3 – 92.1
(mA)
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Microsemi Proprietary and Confidential. MSMLG5.0A–MSMLG170CAe3, MSMLJ5.0A–MSMLJ170CAe3 Datasheet Revision D
5
Analog electronics
