Surge arrester

2-electrode arrester

Series/Type:

Ordering code:

Date:

Version:

G31-A90X

B88069X9361B502

2015-09-30

Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the table and then

change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.

Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!

Identification/Classification 1

Surge arrester

(header 1 + top left bar):

Identification/Classification 2

2-electrode arrester

(header 2 + bottom left header bar):

Ordering code: (top right header bar)

B88069X9361B502

Series/Type: (bottom right header bar)

G31-A90X

Preliminary data (optional):

Department:

PPD AB PD / PPD AB PM

Date:

2015-09-30

Version:



EPCOS AG 2015. Reproduction, publication and dissemination of this publication, enclosures hereto and the information

contained therein without EPCOS' prior express consent is prohibited.

EPCOS AG is a TDK Group Company.

Surge arrester

2-electrode arrester

B88069X9361B502

G31-A90X

Features

Very small size

Very fast response time

Stable performance over life

Very low capacitance

High insulation resistance

RoHS-compatible

Applications

ESD protection

Applications with limited space

Electrical specifications

DC spark-over voltage

1) 2)

Tolerance

Min.

Max.

Impulse spark-over voltage

at 100 V/µs - for 99% of measured values

- typical values of distribution

at 1 kV/µs

- for 99% of measured values

- typical values of distribution

Service life

300 operations

10 operations

[5× (+) & 5× (–)]

1 operation

200 operations

Insulation resistance at 50 V

Capacitance at 1 MHz

Arc voltage at 1 A

Glow to arc transition current

Glow voltage

Weight

Operation and storage temperature

Climatic category (IEC 60068-1)

Marking

±20

108

< 400

< 300

< 650

< 600

100

500

< 0.5

~ 10

< 1.0

~ 60

~ 0.2

−40

... +90

40/090/21

without

GΩ

°C

8/20 µs

contact discharge

At delivery AQL 0.65 level II, DIN ISO 2859

In ionized mode

Tests according to ITU-T Rec. K. 12 and UL 1449

Contact discharge parameters: 1500 pF, 10 kV, 20

Ω

Terms in accordance with ITU-T Rec. K.12; IEC 61663-2 and IEC 61643-311.

PPD AB PD / PPD AB PM

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 2 of 5

2015-09-30

Surge arrester

2-electrode arrester

B88069X9361B502

G31-A90X

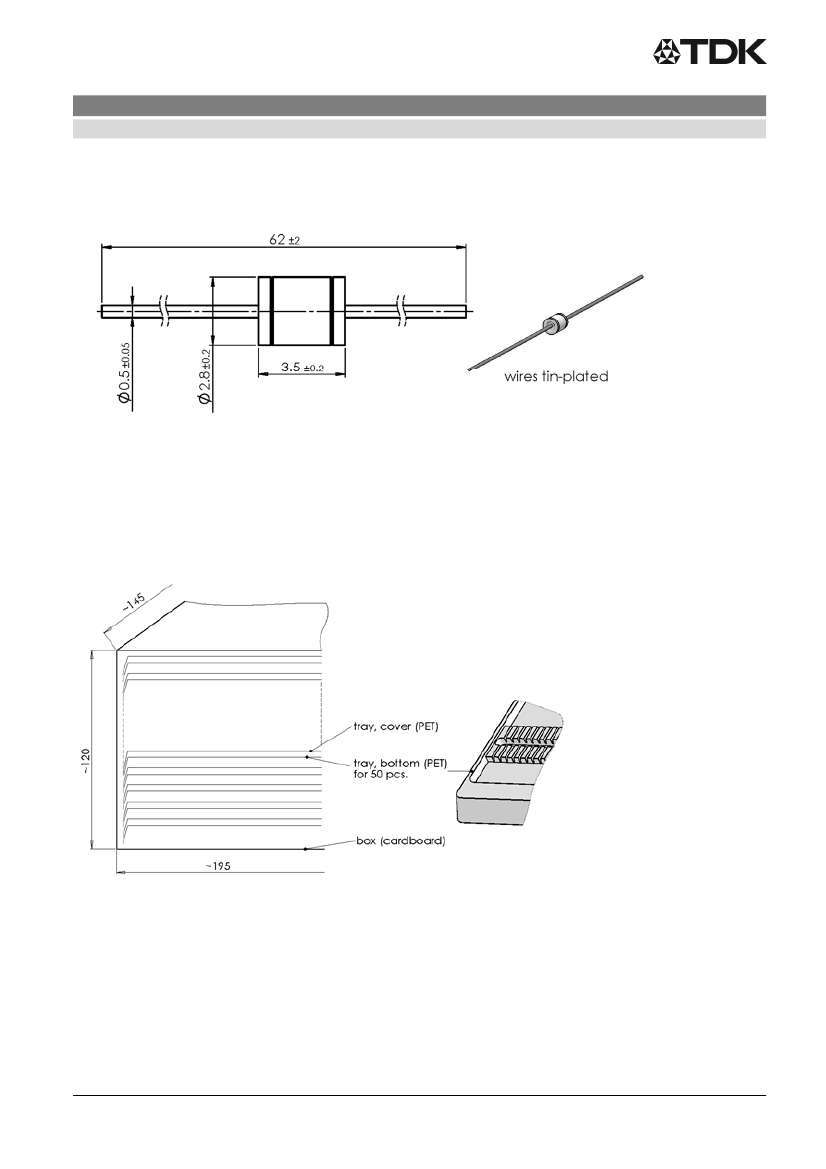

Dimensional drawing in mm

Ordering codes and packing advices

B88069X9361B502 = 500 pcs. on trays (50 pcs. per tray)

PPD AB PD / PPD AB PM

Please read

Cautions and warnings

and

Important notes

at the end of this document.

Page 3 of 5

2015-09-30

Surge arrester

2-electrode arrester

B88069X9361B502

G31-A90X

Soldering parameter

Wave soldering

Wave profile features

Solder

Solder bath temperature

Dwell time

Pb-free assembly

Sn 95.5 / Ag 3.8 / Cu 0.7

263 (±3) °C

<3s

Soldering profile applied to a single soldering process.

Cautions and warnings

Do not operate surge arresters in power supply networks, whose maximum operating voltage

exceeds the minimum spark-over voltage of the surge arresters.

Surge arresters may become hot in the event of longer periods of current stress (burn risk). In the

event of overload the connectors may fail or the component may be destroyed.

If the contacts of the surge arresters are defective, current load can cause sparks and loud

noises.

Surge arresters must be handled with care and must not be dropped.

Do not continue to use damaged surge arresters.

Display of ordering codes for EPCOS products

The ordering code for one and the same EPCOS product can be represented differently in data

sheets, data books, other publications, on the EPCOS website, or in order-related documents such as

shipping notes, order confirmations and product labels.

The varying representations of the

ordering codes are due to different processes employed and do not affect the specifications of

the respective products.

Detailed information can be found on the Internet under

www.epcos.com/orderingcodes
