THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
A1
SQUARE NUT PART INFORMATION ADDED
13APR2018
RK
PS
D
L
NOTES:
1. MATERIALS AND FINISH:
HOUSING : PA 6.6, UL 94-V0, COLOR: BLACK
TERMINAL: PHOSPHOR BRONZE, TIN PLATED.
SQUARE NUT : BRASS, NICKEL PLATED.
2. MECHANICAL
MAX. INSERTION FORCE PER POLE
MIN. WITHDRAWAL FORCE PER POLE
MIN. PC BOARD HOLES DIAMETER
MAX. PC BOARD THICKNESS
3. ELECTRICAL
WIRE RANGE
MAX. VOLTAGE
MAX CURRENT
CONTACT RESISTANCE
INSULATION RESISTANCE
:
:
:
:
:
:
:
:
:
3.0
1.5
1.2
2.4
N
N
mm
mm
D
SQUARE NUT
2 PLC
TERMINAL
14-30 AWG
300 V
11 A
<15 m Ohm
>1000 M Ohm (500V DC)
C
HOUSING
1776189
-3
AS SHOWN
4. OPERATING TEMPERATURE RANGE: -40°C TO +110°C
5. CONNECTOR ASSEMBLY INCLUDED 2 SQUARE NUTS
LOADED IN CAVITY.
6
NOT CUMULATIVE TOLERANCE.
PRELIMINARY PART NO.
90.80
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
NO OF
POSN
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
2- 1776189 -3
2- 1776189 -2
2- 1776189 -1
2- 1776189 -0
1- 1776189 -9
1- 1776189 -8
1- 1776189 -7
1- 1776189 -6
1- 1776189 -5
1- 1776189 -4
1- 1776189 -3
1- 1776189 -2
1- 1776189 -1
1- 1776189 -0
1776189 -9
1776189 -8
1776189 -7
1776189 -6
1776189 -5
1776189 -4
1776189 -3
1776189 -2
PART
NUMBER
TE Connectivity
NAME
C
POLARIZATION
KEY SLOT
CAVITY FOR M2.5
FIXING SCREW
2 PLC
7.25
0.15
3.0 TYP
9.2
0.2
7
87.30
83.80
80.30
76.80
73.30
69.80
3.4
0.30
TYP
66.30
62.80
59.30
55.80
52.30
48.80
45.30
41.80
38.30
34.80
31.30
27.80
24.30
20.80
17.30
B
4.50
REF
6
3.50
0.05
TYP
0.80
TYP
0.02
0.80
TYP
8.00
0.15
0.02
B
SECTION
A-A
1.2
TYP
+0.1
0
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
L
S.WELDON
C.RICHARD
16SEP2004
16SEP2004
16SEP2004
A
3.50
mm
APVD
A
RECOMMENDED PC BOARD LAYOUT
1471-9 (3/13)
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.3
0.25
-
-
PRODUCT SPEC
C.RICHARD
APPLICATION SPEC
-
2°
SEE NOTES
SEE NOTES
WEIGHT
-
-
CUSTOMER DRAWING
A2
00779
SIZE

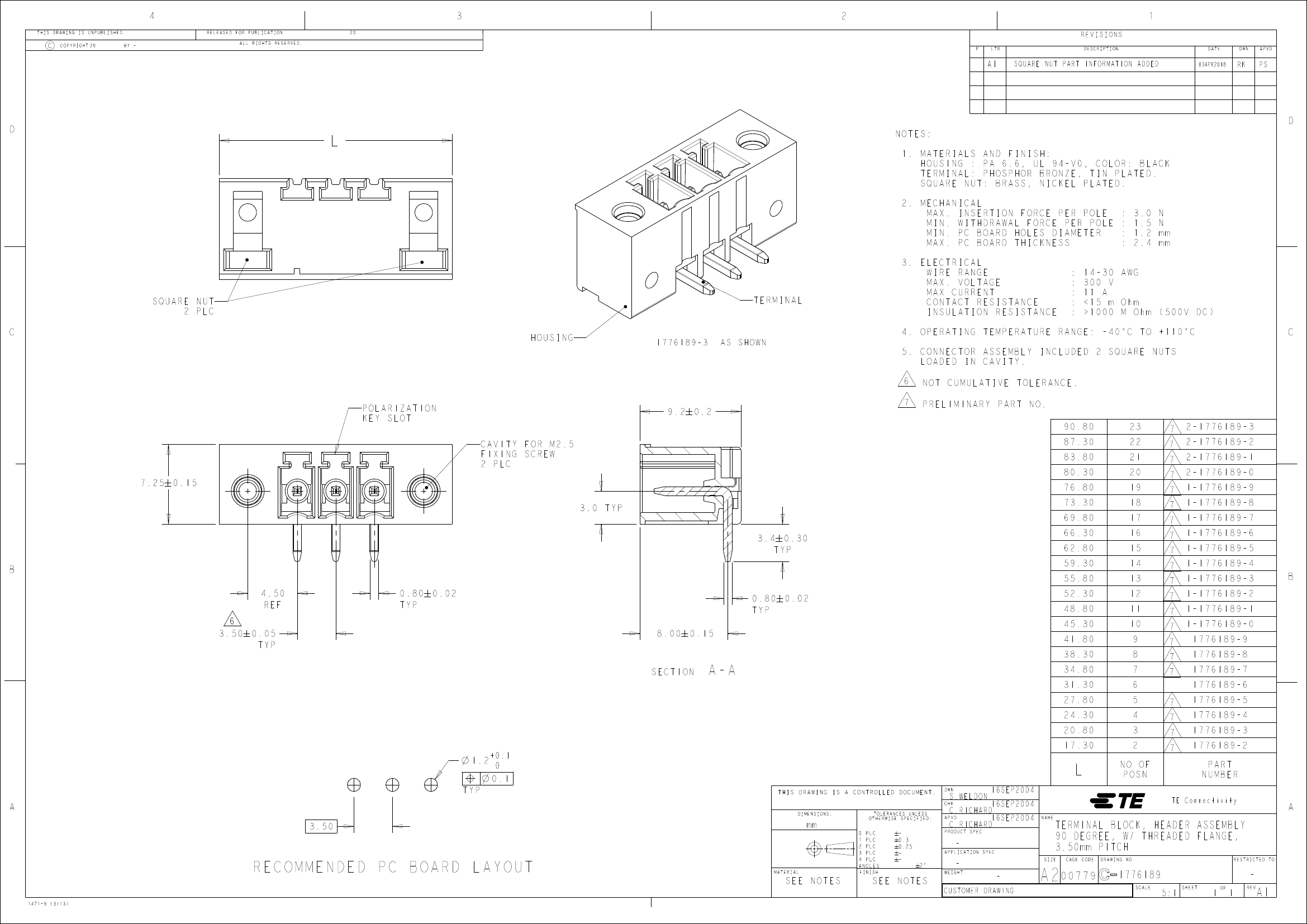

TERMINAL BLOCK, HEADER ASSEMBLY
90 DEGREE, W/ THREADED FLANGE,
3.50mm PITCH
CAGE CODE
DRAWING NO
RESTRICTED TO
1776189
SCALE
5:1
SHEET
1
OF
1
REV
-
A1
