4-1879291-3

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID
CategoryPassive components    capacitor
File Size182KB，4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

4-1879291-3 Online Shopping

Suppliers Part Number Price MOQ In stock
4-1879291-3 - - View Buy Now

4-1879291-3 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID

4-1879291-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
package instruction,
Reach Compliance Codecompliant
Factory Lead Time12 weeks 1 day
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
Number of terminals2

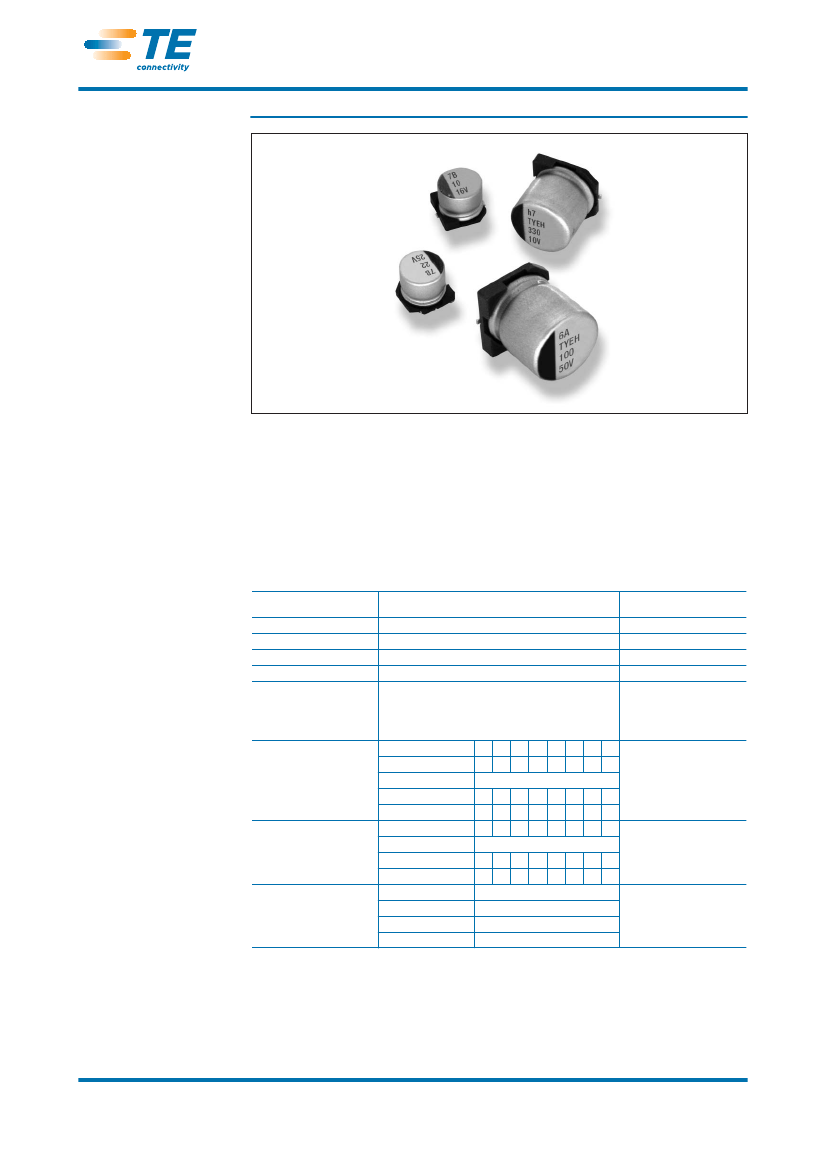

4-1879291-3 Preview

Surface Mount Aluminum Electrolytic Capacitors
Type TYEH 105°C Series
Key Features
I
High temperature surface
mount aluminum
electrolytic capacitors
105°C temperature rating
1000 to 2000 hours load
life assured
Wide capacitance range
Taped and Reeled
15” diameter reel size
Designed for reflow
soldering
RoHS Compliant
I
I
I
I
I
I
I
TE Connectivity’s vertical chip-type aluminum electrolytic capacitors are designed for
surface mounting in high density PCB population.
Supplied on tape and reel for use with automatic placement equipment.
The TYEH series offers miniature case sizes with an extended temperature range (-40°C to
+105°C) and voltage ratings up to 100V dc. Suitable for applications requiring
reliability under more demanding conditions.
Characteristics - Electrical
Test Conditions
JIS C5101-1,-18
Operating Temp. Range
Rated Voltage
Capacitance
Capacitance Tolerance
Leakage Current
-40°C ~ +105°C
DC 6.3 ~ 100V
0.1 ~ 1000μF
±20%
0.01CV or 3μA whichever is greater
—
105°C
105°C
120Hz, 20°C
C = rated capacitance (μF)
V = rated DC working
voltage (V)
Temperature = 20°C
Dissipation Factor
(Tan∂)
Rated Voltage
Case L = 5.3
Case L = 6.5~10
Case dia = 6.3
Case dia = 8~10
Low Temperature
Characteristics
Rated Voltage
Impedance Ratio (max)
Z(-25°C)/Z(+20°C)
Z(-40°C)/Z(+20°C)
Load Life Test
Case L = 5.3
Test Time
Capacitance Change
Dissipation Factor
Leakage Current
4
8
3
5
2
4
2
3
2
3
2
3
2
3
2
3
Specification satisfied when the
capacitors are restored to 20°C
after the rated voltage applied
for 1000 hrs at 105°C
120Hz
0.32 0.28 0.24 0.18 0.15 0.14 -
-
0.3 0.26 0.22 0.16 0.13 0.12 0.11 0.1
6.3 10 16 25 35 50 63 100
6.3 10 16 25 35 50 63 100
0.3 0.3 0.22 0.16 0.13 0.12 -
-
120Hz, 20°C
1000 Hrs
Within ±20% of initial value
Less than 200% of specified value
Within specified value
2-1773448-7 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Surface Mount Aluminum Electrolytic Capacitors
Type TYEH 105°C Series
Characteristics - Electrical (cont.)
Load Life Test
Case L = 6.5~10
Test Time
Capacitance Change
6.3V
10~16V
25~100V
Dissipation Factor
6.3~16V
25~100V
Leakage Current
Shelf Life Test
Ripple Current &
Multipliers Frequency
Test Time
Frequency (Hz)
Multiplier ≤16VDC
Multiplier 25~35VDC
Multiplier 50~63VDC
Multiplier 100VDC
Less than 300% of specified value
Less than 200% of specified value
Within specified value
1000 hrs
50
0.8
0.8
0.8
0.7
120
1.0
1.0
1.0
1.0
1k
1.15
1.25
1.35
1.35
10k and above
1.25
1.4
1.5
1.5
—
Other items same as those
for load life test
Within ±30% of initial value
Within ±25% of initial value
Within ±20% of initial value
Specification satisfied when the
capacitors are restored to 20°C
after the rated voltage applied
for 2000 hrs at 105°C
2000 Hrs
Product Availability Chart
Rated Voltage (V.DC)
Capacitance
μF
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
Code
104
224
334
474
105
225
335
475
106
226
336
476
107
227
337
477
108
8 x 10
8 x 10
10 x 10
4 x 5.3
5 x 5.3
5 x 5.3
5 x 5.3
5 x 5.3
4 x 5.3
5 x 5.3
4 x 5.3
5 x 5.3
4 x 5.3
5 x 5.3
6.3
Dia x L
10
Dia x L
16
Dia x L
25
Dia x L
35
Dia x L
50
Dia x L
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
5 x 5.3
6.3 X 5.3
8 x 6.5
8 x 10
10 x 10
8 x 10
10 x 10
8 x 10
8 x 10
10 x 10
6.3 x 5.3 6.3 x 5.3 6.3 x 5.7 6.3 x 7.7
8 x 6.5
6.3 x 5.3 6.3 x 5.3 6.3 x 5.3
8 x 6.5
6.3 x 5.3 6.3 x 5.3 6.3 x 5.3 6.3 x 7.7
8 x 6.5
6.3 x 7.7 6.3 x 7.7
8 x 10
8 x 10
8 x 10
10 x 10
10 x 10
10 x 10
8 x 10
10 x 10
8 x 10
10 x 10
10 x 10
8 x 10
8 x 10
10 x 10
10 x 10
10 x 10
8 x 10
10 x 10
10 x 10
8 x 10
8 x 10
6.3 x 7.7
8 x 10
8 x 10
10 x 10
10 x 10
10 x 10
63
Dia x L
100
Dia x L
6.3 x 5.3 6.3 x 5.3
Standard Product Table
Rated
Voltage Capacitance
V.DC
μF
6.3
6.3
6.3
6.3
6.3
6.3
6.3
10
22
33
47
100
330
470
1000
22
Capacitance
Code
226
336
476
107
337
477
108
226
Case
Size
Dia x L
4 x 5.3
5 x 5.3
5 x 5.3
6.3 x 5.3
8 x 10
8 x 10
10 x 10
5 x 5.3
Case
Code
D55
E55
E55
F55
G10
G10
H10
E55
Dissipation
Factor
(%)*
30
30
30
30
30
30
30
26
Ripple
Current
(mA)*
21
30
36
61
178
210
440
25
Part
Number
TYEH0J226D55MTR
TYEH0J336E55MTR
TYEH0J476E55MTR
TYEH0J107F55MTR
TYEH0J337G10MTR
TYEH0J477G10MTR
TYEH0J108H10MTR
TYEH1A226E55MTR
2-1773448-7 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Surface Mount Aluminum Electrolytic Capacitors
Type TYEH 105°C Series
Standard Product Table (cont.)
Rated
Voltage Capacitance
V.DC
μF
10
10
10
10
10
10
10
10
10
10
16
16
16
16
16
16
16
16
16
16
16
25
25
25
25
25
25
25
25
25
25
25
25
35
35
35
35
35
35
35
35
35
35
50
50
50
50
50
50
50
50
50
50
50
50
*
Capacitance
Code
336
476
107
107
227
227
337
477
477
108
106
226
336
476
107
227
227
337
337
477
477
475
106
226
336
476
476
107
107
227
227
337
477
475
106
226
336
336
476
107
107
227
337
104
224
334
474
105
225
335
475
106
226
336
336
Case
Size
Dia x L
5 x 5.3
6.3 x 5.3
6.3 x 5.3
8 x 6.5
6.3 x 7.7
8 x 10
8 x 10
8 x 10
10 x 10
10 x 10
4 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
6.3 x 5.3
6.3 x 7.7
10 x 10
8 x 10
10 x 10
8 x 10
10 x 10
4 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.3
6.3 x 5.3
8 x 6.5
6.3 x 7.7
8 x 10
8 x 10
10 x 10
10 x 10
10 x 10
4 x 5.3
5 x 5.3
6.3 x 5.3
6.3 x 5.7
8 x 6.5
8 x 10
8 x 10
10 x 10
10 x 10
10 x 10
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
4 x 5.3
5 x 5.3
6.3 X 5.3
8 x 6.5
6.3 x 7.7
8 x 10
Case
Code
E55
F55
F55
G68
F80
G10
G10
G10
H10
H10
D55
E55
F55
F55
F55
F80
H10
G10
H10
G10
H10
D55
E55
F55
F55
F55
G68
F80
G10
G10
H10
H10
H10
D55
E55
F55
F60
G68
G10
G10
H10
H10
H10
D55
D55
D55
D55
D55
D55
D55
E55
F55
G68
F80
G10
Dissipation
Factor
(%)*
26
26
26
26
28
26
26
26
26
26
22
22
22
22
22
24
22
22
22
22
22
16
16
16
16
16
16
18
16
16
16
16
16
13
13
13
15
13
13
13
13
13
13
12
12
12
12
12
12
12
12
12
12
14
12
Ripple
Current
(mA)*
31
43
65
110
105
178
215
250
324
440
16
28
40
47
70
110
324
300
324
330
324
12
21
36
44
60
110
85
178
178
324
324
350
14
23
50
60
110
178
215
324
324
350
2.0
3.0
4.0
5.0
7.0
10
12
17
26
65
60
99
Part
Number
TYEH1A336E55MTR
TYEH1A476F55MTR
TYEH1A107F55MTR
TYEH1A107G68MTR
TYEH1A227F80MTR
TYEH1A227G10MTR
TYEH1A337G10MTR
TYEH1A477G10MTR
TYEH1A477H10MTR
TYEH1A108H10MTR
TYEH1C106D55MTR
TYEH1C226E55MTR
TYEH1C336F55MTR
TYEH1C476F55MTR
TYEH1C107F55MTR
TYEH1C227F80MTR
TYEH1C227H10MTR
TYEH1C337G10MTR
TYEH1C337H10MTR
TYEH1C477G10MTR
TYEH1C477H10MTR
TYEH1E475D55MTR
TYEH1E106E55MTR
TYEH1E226F55MTR
TYEH1E336F55MTR
TYEH1E476F55MTR
TYEH1E476G68MTR
TYEH1E107F80MTR
TYEH1E107G10MTR
TYEH1E227G10MTR
TYEH1E227H10MTR
TYEH1E337H10MTR
TYEH1E477H10MTR
TYEH1V475D55MTR
TYEH1V106E55MTR
TYEH1V226F55MTR
TYEH1V336F60MTR
TYEH1V336G68MTR
TYEH1V476G10MTR
TYEH1V107G10MTR
TYEH1V107H10MTR
TYEH1V227H10MTR
TYEH1V337H10MTR
TYEH1H104D55MTR
TYEH1H224D55MTR
TYEH1H334D55MTR
TYEH1H474D55MTR
TYEH1H105D55MTR
TYEH1H225D55MTR
TYEH1H335D55MTR
TYEH1H475E55MTR
TYEH1H106F55MTR
TYEH1H226G68MTR
TYEH1H336F80MTR
TYEH1H336G10MTR
33
47
100
100
220
220
330
470
470
1000
10
22
33
47
100
220
220
330
330
470
470
4.7
10
22
33
47
47
100
100
220
220
330
470
4.7
10
22
33
33
47
100
100
220
330
0.1
0.22
0.33
0.47
1.0
2.2
3.3
4.7
10
22
33
33
2-1773448-7 CIS BI 06/2011
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
For email, phone or live chat, go to:
te.com/help
Surface Mount Aluminum Electrolytic Capacitors
Type TYEH 105°C Series
Standard Product Table (cont.)
Rated
Voltage Capacitance
V.DC
μF
50
50
50
50
50
63
63
63
63
100
100
100
100
47
47
100
100
220
22
33
47
47
10
22
22
33
Capacitance
Code
476
476
107
107
227
226
336
476
476
106
226
226
336
Case
Size
Dia x L
6.3 x 7.7
8 x 10
8 x 10
10 x 10
10 x 10
8 x 10
10 x 10
8 x 10
10 x 10
8 x 10
8 x 10
10 x 10
10 x 10
Case
Code
F80
G10
G10
H10
H10
G10
H10
G10
H10
G10
G10
H10
H10
Dissipation
Factor
(%)*
14
12
12
12
12
11
11
11
11
10
10
10
10
Ripple
Current
(mA)*
70
99
135
160
210
99
160
140
160
67
100
133
150
Part
Number
TYEH1H476F80MTR
TYEH1H476G10MTR
TYEH1H107G10MTR
TYEH1H107H10MTR
TYEH1H227H10MTR
TYEH1J226G10MTR
TYEH1J336H10MTR
TYEH1J476G10MTR
TYEH1J476H10MTR
TYEH2A106G10MTR
TYEH2A226G10MTR
TYEH2A226H10MTR
TYEH2A336H10MTR
* DF measured at 120Hz, 20°C
* RC measured at 120Hz, 105°C
Dimensions
Case
Code
D55
E55
F55
F80
G68
G10
H10
Dimensions (mm)
Dia
4.0
5.0
6.3
6.3
8.0
8.0
10
L
5.3±0.3
5.3±0.3
5.3±0.3
7.7±0.3
6.5±0.3
10±0.5
10±0.5
A
4.3
5.3
6.6
6.6
8.4
8.4
10.4
B
4.3
5.3
6.6
6.6
8.4
8.4
10.4
C
2.0
2.3
2.7
2.7
3.4
3.0
3.3
W
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.5 to 0.8
0.7 to 1.1
0.7 to 1.1
P±0.2
1.0
1.5
2.0
2.0
2.3
3.1
4.7
How to Order
TYEH
Common Part
0J
Voltage Code
0J (6.3V)
1A (10V)
1C (16V)
1E (25V)
1V (35V)
1H (50V)
1J (63V)
2A (100V)
226
Capacitance
D55
Case Code
M
Tolerance
TR
Packaging
TR = 15" Reels
TYEH
e.g. 226
e.g. D55
M (20%)
D55 Case - 2000 pcs
E55,F55, F80 and
G68 Case - 1000 pcs
G10 and H10
Case - 500 pcs
TE Connectivity, TE connectivity (logo) and TE (logo) are trademarks.
Other logos, product and Company names mentioned herein may be trademarks of their respective owners.
While TE has made every reasonable effort to ensure the accuracy of the information in this datasheet, TE does not guarantee that it is error-free, nor does TE make any other
representation, warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein
at any time without notice. TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantabili-
ty or fitness for a particular purpose. The dimensions in this datasheet are for reference purposes only and are subject to change without notice. Specifications are subject to change
without notice. Consult TE for the latest dimensions and design specifications.
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

4-1879291-3 Related Products

4-1879291-3 4-1879291-2 5-1879291-0 5-1879291-6 5-1879291-7 5-1879291-9
Description CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID
Is it Rohs certified? conform to conform to conform to conform to conform to conform to
Reach Compliance Code compliant compliant compliant compliant compliant compliant
Capacitor type ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET)
Number of terminals 2 2 2 2 2 2
Maker TE Connectivity TE Connectivity TE Connectivity TE Connectivity TE Connectivity -
Factory Lead Time 12 weeks 1 day 12 weeks 1 day 12 weeks 1 day 12 weeks 1 day 12 weeks 1 day -

Recommended Resources

Specially connected bandpass filter

remote thermometer

One ABB soft starter starts four motors

LT1044 negative voltage generator circuit diagram

Oscillators used in electronic musical instruments

Computer motherboard circuit diagram 815 2_18

What do the channels in an A/D converter mean?
Do you mean input?...
@wangjian Analog electronics
Summary of NUCLEO-L452RE review activities (led by forum members jackfrost, zhjb1, and dql2016)
[size=2]Event details: [url=https://bbs.eeworld.com.cn/thread-531734-1-1.html]Click here[/url][/size] [size=2][font=微软雅黑][color=#4169e1]Evaluation time: [/color]June 12-July 12[/font][/size] [list] [*...
nmg stm32/stm8
Basic knowledge of Zigbee
Build a small IoT system based on Zigbee, and start recording your learning process today 1. The essence of the Zigbee protocol stack is a real-time kernel (RTOS) + a set of communication protocols.2....
fish001 Wireless Connectivity
CTRL+ALT+DEL: Restart 2020
We wrap up the year with a thoughtful post from Brent Dietz, who expresses how we all felt about 2020. Beyond that, he has some good news, especially for the semiconductor industry. He thinks this pas...
兰博 RF/Wirelessly
Nboot has problems downloading eboot
A 2440 development board is burned with NBoot, and then Eboot.nb0 is downloaded through the serial port. void ComDownload() { int i,tmp; unsigned short checkSum=0,dnCS; unsigned long DownloadFileSize,...
paraller Embedded System
[TI's first low-power design competition] + First try of SPI-driven OLED
[i=s]This post was last edited by azhiking on 2014-11-18 21:08[/i] Use MSP430FR5969 to drive OLED with SPI interface. OLED uses SSD1603 driver chip. First, the picture:Chinese characters and ASCII cod...
azhiking Microcontroller MCU
Shortcut:   L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components

  1. CTTCCA451M2R5T
  2. GI822-E3/51
  3. YC324-FK-0721KL
  4. GRM0222C1E8R3DA03
  5. 92418-412LF
  6. VE-J00-IX
  7. 0508X7R683P2P2
  8. W21518R2FA
  9. MMSZ5260A-AU
  10. GD32F101ZKT6
  11. B2011H-16P-YL
  12. A2005WV-N-S-F-2x18P-A

Popular Articles

  1. The difference between voltage type inverter and current type inverter
  2. Renesas Electronics Accelerates Deep Learning Development for ADAS and Autonomous Driving Applications
  3. ELEXCON2021: See the innovation of national technology products and applications
  4. Will the battery eat up the electric drive?
  5. STC51 MCU serial communication program
  6. iQOO 9/Pro series is available for pre-order: equipped with Snapdragon 8 and the first to use Samsung GN5 sensor
  7. Apple has begun to provide repair services for individual Face ID parts such as iPhone 13/12
  8. Samsung S22 Pioneer has a bug and is no longer the "first mover"
  9. See how Elmo servo drives optimize automated guided vehicles (AGVs)
  10. What indicators will affect the noise floor (DANL) of the spectrum analyzer?

Technical ResourceMore

  1. SDIO interface dual channel 11ax dual band WiFi Bluetooth 2 in 1 WiFi6 module AP6275S datasheet
  2. High-performance SPWM inverter power supply control strategy with capacitor current feedback
  3. PWM_PFM control circuit of switching power supply
  4. Commonly used Verdi shortcut keys
  5. Proteus simulation example (AT90X) - ADDC practice program.rar
  6. 51 MCU timing initial value calculator
  7. Altium-Common 3D Package Library (Step) [Common SMD] SOT-223_MP04A.rar
  8. Labview car instrument program
  9. 100 Examples of DC-DC Boost Drive Circuits
  10. Basic points of switching power supply PCB layout (classic)

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 575  1805  1958  1475  176  12  37  40  30  4
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
