5-1499678-1: DescriptionPHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN; CategoryThe connector The connector; File Size376KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

5-1499678-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1499678-1	-	-	View	Buy Now

5-1499678-1 Overview

PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN

5-1499678-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
body width	0.281 inch
subject depth	0.525 inch
body length	0.462 inch
Body/casing type	PLUG
Cable type	WIRE, SOLID
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V
Insulation resistance	500000000 Ω
Insulator color	ORANGE
insulator material	POLYCARBONATE
Manufacturer's serial number	1499678
Installation method	STRAIGHT
Number of ports	1
Number of rows loaded	1
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Plating thickness	7u inch
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Total number of contacts	8
Maximum wire diameter	23 AWG
Minimum wire diameter	24 AWG

Preview

Download Datasheet

View All

8

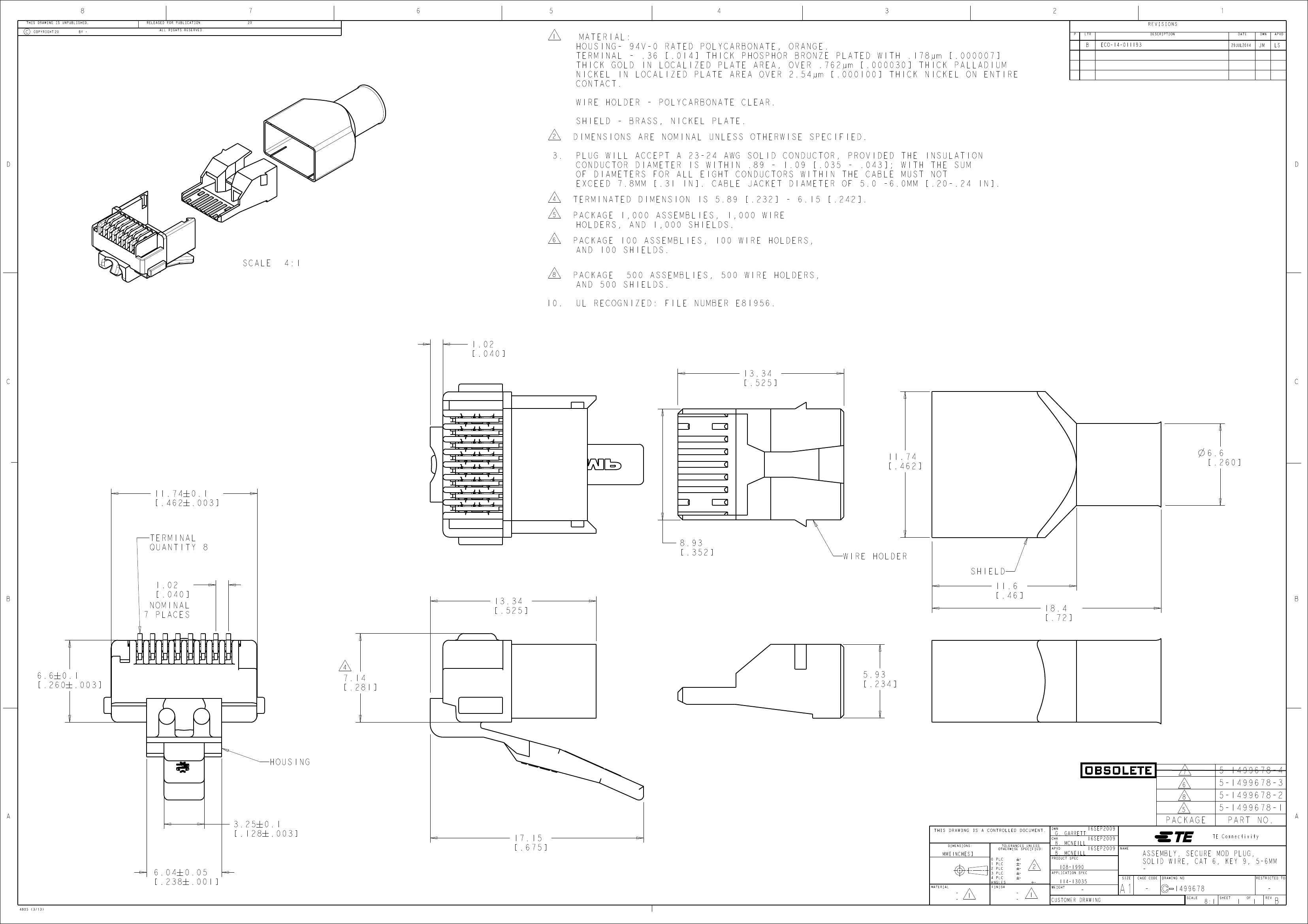

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

1

4

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

MATERIAL:

HOUSING- 94V-0 RATED POLYCARBONATE, ORANGE.

TERMINAL - .36 [.014] THICK PHOSPHOR BRONZE PLATED WITH .178µm [.000007]

THICK GOLD IN LOCALIZED PLATE AREA, OVER .762µm [.000030] THICK PALLADIUM

NICKEL IN LOCALIZED PLATE AREA OVER 2.54µm [.000100] THICK NICKEL ON ENTIRE

CONTACT.

WIRE HOLDER - POLYCARBONATE CLEAR.

SHIELD - BRASS, NICKEL PLATE.

B

ECO-14-011193

29JUL2014

JM

LS

2

DIMENSIONS ARE NOMINAL UNLESS OTHERWISE SPECIFIED.

PLUG WILL ACCEPT A 23-24 AWG SOLID CONDUCTOR, PROVIDED THE INSULATION

CONDUCTOR DIAMETER IS WITHIN .89 - 1.09 [.035 - .043]; WITH THE SUM

OF DIAMETERS FOR ALL EIGHT CONDUCTORS WITHIN THE CABLE MUST NOT

EXCEED 7.8MM [.31 IN]. CABLE JACKET DIAMETER OF 5.0 -6.0MM [.20-.24 IN].

TERMINATED DIMENSION IS 5.89 [.232] - 6.15 [.242].

PACKAGE 1,000 ASSEMBLIES, 1,000 WIRE

HOLDERS, AND 1,000 SHIELDS.

PACKAGE 100 ASSEMBLIES, 100 WIRE HOLDERS,

AND 100 SHIELDS.

PACKAGE 500 ASSEMBLIES, 500 WIRE HOLDERS,

AND 500 SHIELDS.

UL RECOGNIZED: FILE NUMBER E81956.

D

3.

4

5

6

SCALE

4:1

8

10.

1.02

[ .040 ]

C

13.34

[ .525 ]

C

11.74

[ .462 ]

11.74

[ .462

0.1

.003 ]

6.6

[ .260 ]

TERMINAL

QUANTITY 8

8.93

[ .352 ]

WIRE HOLDER

SHIELD

11.6

[ .46 ]

B

1.02

[ .040 ]

NOMINAL

7 PLACES

13.34

[ .525 ]

18.4

[ .72 ]

B

6.6 0.1

[ .260 .003 ]

4

7.14

[ .281 ]

5.93

[ .234 ]

HOUSING

7

6

8

5

5-1499678-4

5-1499678-3

5-1499678-2

5-1499678-1

PART NO.

TE Connectivity

A

3.25 0.1

[ .128 .003 ]

17.15

[ .675 ]

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

G. GARRETT

B. MCNEILL

108-1990

16SEP2009

NAME

PACKAGE

A

MM[INCHES]

APVD

6.04 0.05

[ .238 .001 ]

4805 (3/13)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

PRODUCT SPEC

2

-

APPLICATION SPEC

-

1

-

WEIGHT

114-13035

1

-

CUSTOMER DRAWING

A1

SIZE

CAGE CODE

ASSEMBLY, SECURE MOD PLUG,

SOLID WIRE, CAT 6, KEY 9, 5-6MM

-

DRAWING NO

RESTRICTED TO

-

1499678

SCALE

8:1

SHEET

1

OF

1

REV

-

B

5-1499678-1 Related Products

	5-1499678-1	5-1499678-4	5-1499678-3
Description	PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN	PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN	PHONE CONNECTOR,CABLE MNT,PLUG,8 CONTACTS,PIN
Reach Compliance Code	unknown	unknown	unknown
body width	0.281 inch	0.281 inch	0.281 inch
subject depth	0.525 inch	0.525 inch	0.525 inch
body length	0.462 inch	0.462 inch	0.462 inch
Body/casing type	PLUG	PLUG	PLUG
Cable type	WIRE, SOLID	WIRE, SOLID	WIRE, SOLID
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU-PD-NI ON NI	AU-PD-NI ON NI	AU-PD-NI ON NI
Contact point gender	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	ORANGE	ORANGE	ORANGE
insulator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
Manufacturer's serial number	1499678	1499678	1499678
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of ports	1	1	1
Number of rows loaded	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Plating thickness	7u inch	7u inch	7u inch
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL
Shell material	BRASS	BRASS	BRASS
Total number of contacts	8	8	8
Maximum wire diameter	23 AWG	23 AWG	23 AWG
Minimum wire diameter	24 AWG	24 AWG	24 AWG
Is Samacsys	-	N	N
