6-2057691-1 Overview

IMP,R3PR8C,LG0.37F,Sn

6-2057691-1 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Objectid	1478959039
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.8
Board mount options	PEG
body width	0.59 inch
subject depth	0.953 inch
body length	0.898 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number	2057691
Plug contact pitch	0.074 inch
Match contact row spacing	0.053 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	9
Number of rows loaded	9
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.3462 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.8796 mm
Termination type	PRESS FIT
Total number of contacts	72

Preview

Download Datasheet

View All

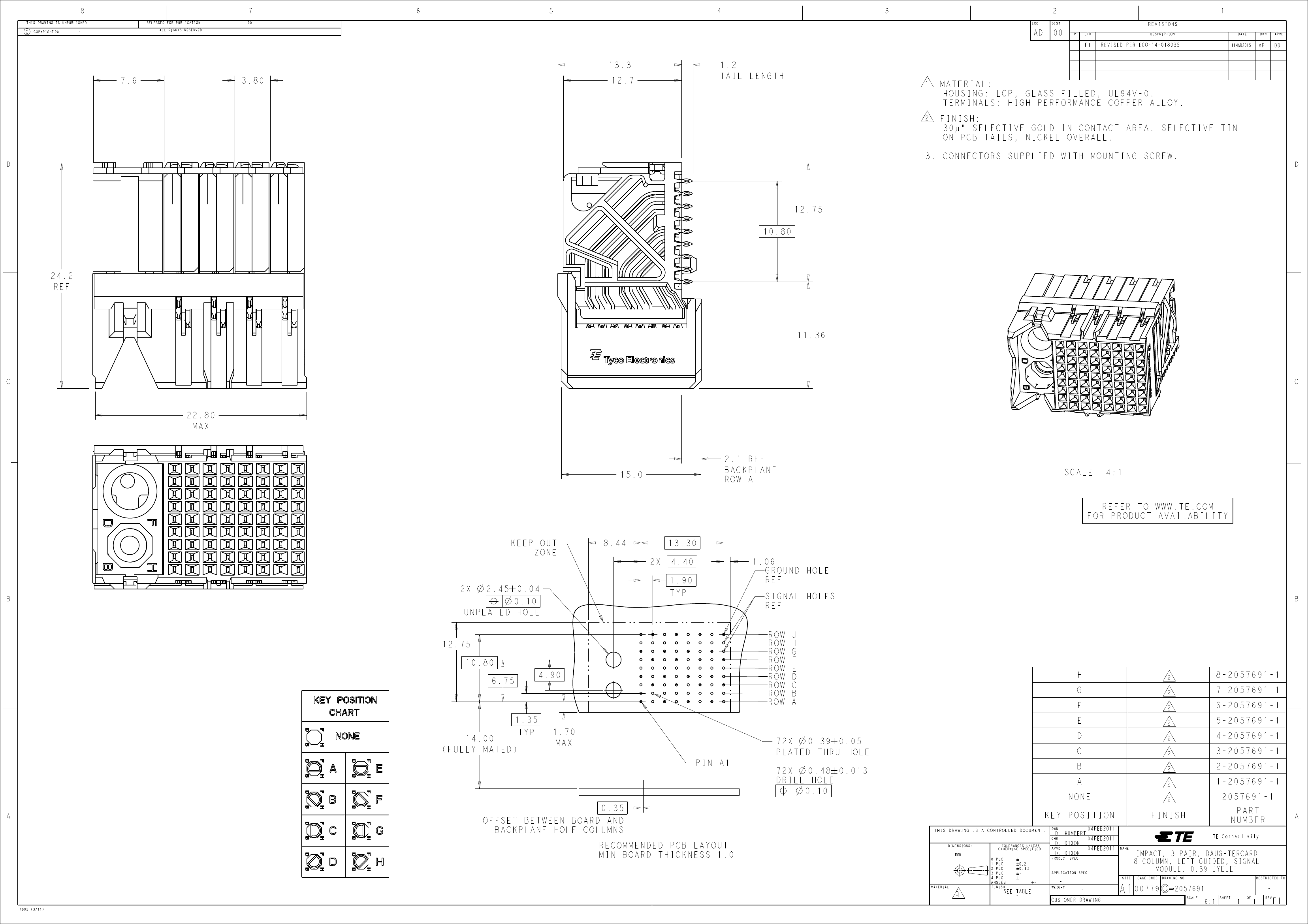

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

13.3

1.2

TAIL LENGTH

REVISED PER ECO-14-018035

11MAR2015

7.6

3.80

12.7

MATERIAL:

HOUSING: LCP, GLASS FILLED, UL94V-0.

TERMINALS: HIGH PERFORMANCE COPPER ALLOY.

FINISH:

30µ" SELECTIVE GOLD IN CONTACT AREA. SELECTIVE TIN

ON PCB TAILS, NICKEL OVERALL.

3. CONNECTORS SUPPLIED WITH MOUNTING SCREW.

12.75

10.80

24.2

REF

11.36

22.80

MAX

2.1 REF

BACKPLANE

ROW A

15.0

SCALE

4:1

REFER TO WWW.TE.COM

FOR PRODUCT AVAILABILITY

KEEP-OUT

ZONE

8.44

13.30

4.40

1.90

TYP

1.06

GROUND HOLE

REF

SIGNAL HOLES

REF

ROW

2.45

0.04

UNPLATED HOLE

12.75

10.80

6.75

4.90

NONE

KEY POSITION

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

8- 2057691 -1

7- 2057691 -1

6- 2057691 -1

5- 2057691 -1

4- 2057691 -1

3- 2057691 -1

2- 2057691 -1

1- 2057691 -1

2057691 -1

1.35

14.00

(FULLY MATED)

TYP

1.70

MAX

PIN A1

72X

0.39

PLATED THRU HOLE

72X

n0.48

DRILL HOLE

OFFSET BETWEEN BOARD AND

BACKPLANE HOLE COLUMNS

0.35

FINISH

D. HUMBERT

D. DIXON

04FEB2011

NAME

PART

NUMBER

TE Connectivity

RECOMMENDED PCB LAYOUT

MIN BOARD THICKNESS

1.0

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

0.13

PRODUCT SPEC

APPLICATION SPEC

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

IMPACT, 3 PAIR, DAUGHTERCARD

8 COLUMN, LEFT GUIDED, SIGNAL

MODULE, 0.39 EYELET

CAGE CODE

DRAWING NO

RESTRICTED TO

2057691

SCALE

4805 (3/11)

6:1

SHEET

REV
