NL453232-181K-S datasheet, PDF

Datasheet> All Categories > Passive components> inductor> NL453232-181K-S

NL453232-181K-S: DescriptionGeneral Purpose Inductor, 180uH, 10%, Ferrite-Core, 1812,; CategoryPassive components inductor; File Size140KB，17 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

NL453232-181K-S Overview

General Purpose Inductor, 180uH, 10%, Ferrite-Core, 1812,

NL453232-181K-S Parametric

Parameter Name	Attribute value
package instruction	1812
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	1812
structure	Wirewound Chi
core material	Ferrite
DC Resistance	9.5 Ω
Nominal inductance(L)	180 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package height	3.2 mm
Package length	4.5 mm
Package form	SMT
Package width	3.2 mm
method of packing	Bulk
Minimum quality factor (at nominal inductance)	40
Maximum rated current	0.102 A
self resonant frequency	5 MHz
series	NL453232
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

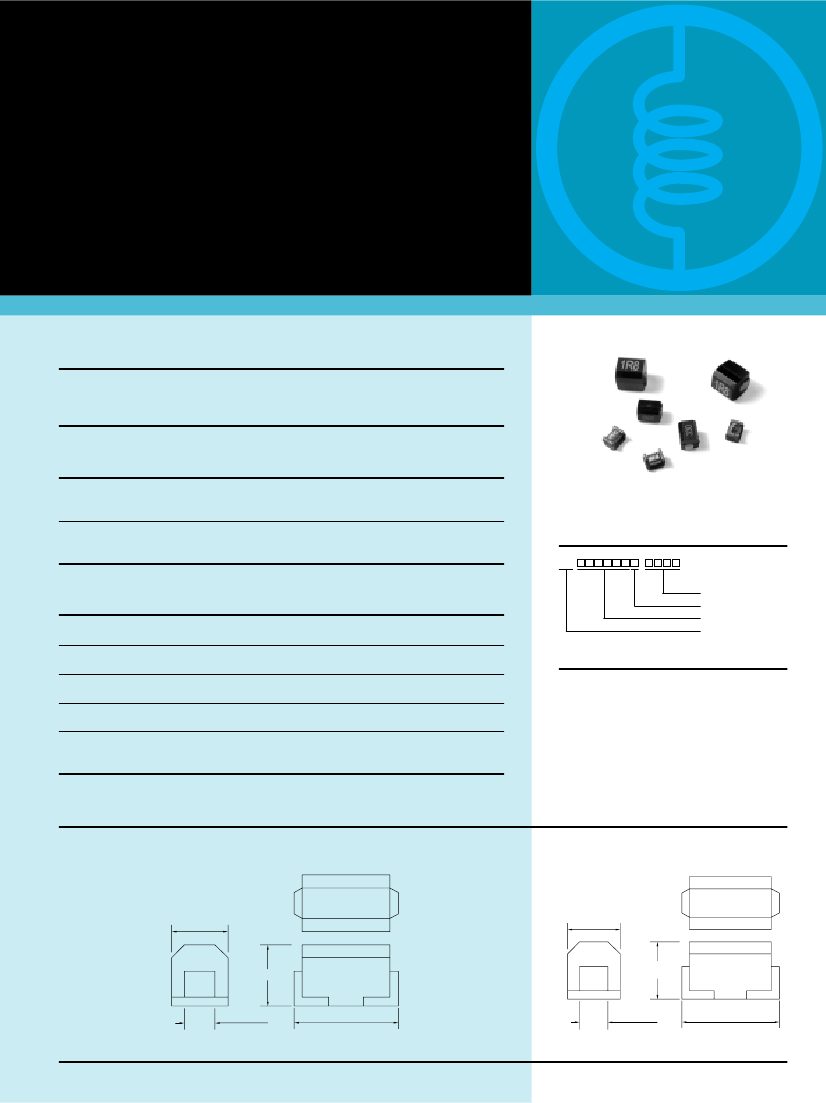

YAGEO CORPORATION

SMD INDUCTOR / BEADS

NL/NLC Series

APPLICATIONS

Microtelevisions, liquid crystal televisions, video cameras, portable VCRs, car radios, car

stereos, thin tape radios, television tuners, mobile telephones, radio and other electronic

devices.

Wound Chip Inductors

OUTLINE

These revolutionary, highly reliable wound chip inductors for automatic mounting have

been developed in response to the trend toward high density in electronic equipment.

With metal terminals and a body of heat resistant resin, these inductors offer many

superior features.

PRODUCT IDENTIFICATION

Inductance and Tolerance

Packaging Style (*)

Dimensions (A, B, C)

Product Symbol

FEATURES

Very strong solderability by flow soldering, soldering iron or wave soldering.

Highly accurate dimensions; can be mounted automatically.

Terminals are highly resistant to pull forces.

Highly resistant to mechanical shocks and pressure.

Highly reliable in environments of sudden temperature change and humidity. Super Q

characteristics.

* B : Bulk ; T : Tape and Reel

SHAPES AND DIMENSIONS

NL322522

NL453232

Dimensions : mm

2.5±0.2

3.2±0.2

2.2±0.2

3.2±0.2

1.2±0.2

3.2±0.2

1.4±0.2

4.5±0.3
