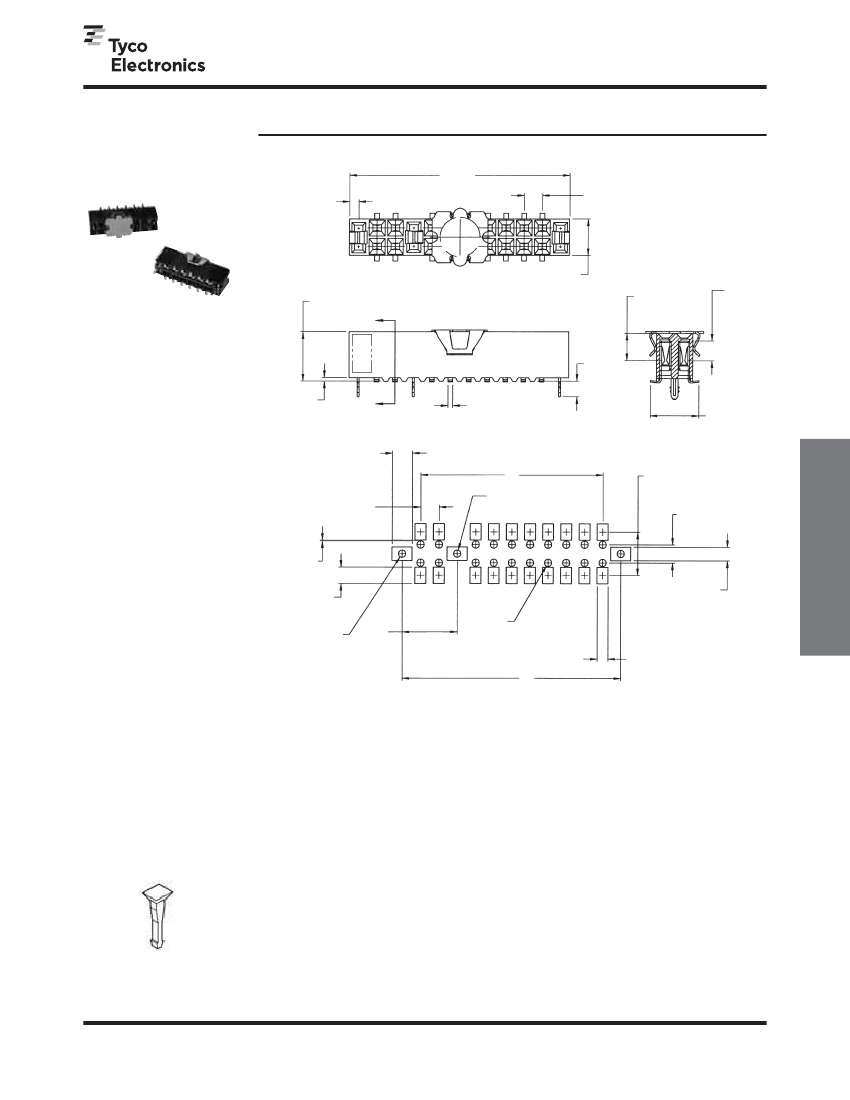

AMPMODU Interconnection System
Mod IV Surface Mount Receptacle Assemblies, Double-Row,
.100 x .100 [2.54 x 2.54] Centers
Surface Mount,Double Row,
Dual Entry with Holddowns
.050
[1.27]
Typ.
A
.100
[2.54]
Typ.
.198
[5.03]
.265
[6.73]
Typ.
.148
Point of
[3.76] Contact
Typ.
Material and Finish
Housing
— Glass-filled thermoplastic,
black, 94V-0 rated
Contacts
— Phosphor bronze, plated
as follows:
Plating A
— Duplex .000030 [0.00076]
gold on contact area, .000150-.000300
[0.00381-0.00762] matte tin on solder
area all over .000050 [0.00127] nickel
Plating B
— Duplex .000010
[0.000254] gold on contact area,
.000150-.000300 [0.00381-0.00762]
matte tin on solder area all over .000050
[0.00127] nickel
Plating C
— .000150-.000300
[0.00381-0.00762] matte tin on solder
leads, all over .000050 [0.00127] nickel
.107
[2.72]
Typ.
(Localized Gold
Plate Area)
.083
[2.12]
Typ.
.020
[0.51]
Typ.
.027±.002
[0.69±0.05] Typ.
.266
[6.75]
.110
[2.79]
Typ.
B
.100
[2.54] Typ.
.040±.003
[1.02±0.08]
.238
[6.05]
Typ.
.100
[2.54]
Typ.
Surface Mount Receptacle
Assemblies
Related Product Data
Mateable Headers
—
Refer to Mating Post Selection Guide —
page 90
Performance Specifications
—
page 186
.004
[0.10]
Typ.
.090
[2.29]
Typ.
.040±.003
[1.02±0.08]
D
.075
[1.91]
Typ.
.040
[1.02]
Typ.
(For bottom entry or
pass thru applications)
C
.060
[1.52]
Typ.
5
Technical Documents
— page 276
Product Specification
108-25022
Application Specification
114-25018
Additional receptacle assembly
sizes are available; minimum
order quantities may apply.
Consult Tyco Electronics.
Recommended PC Board Layout
(.008 [0.20] thick stencil)
Keying Plug
Part No. 86286-1
(Plugs into receptacle contact)
Material
— Natural color nylon
Note:
All part numbers are RoHS compliant.
189
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
AMPMODU Interconnection System
Mod IV Surface Mount Receptacle Assemblies, Double-Row,
.100 x .100 [2.54 x 2.54] Centers
(Continued)
No. of
A
Pos.
10
.700
[17.78]
14
.900
[22.86]
20
1.200
[30.48]
22
1.300
[33.02]
26
1.500
[38.10]
30
1.700
[43.18]
34
1.900
[48.26]
36
2.000
[50.08]
40
2.200
[55.88]
46
2.500
[63.50]
50
2.700
[68.58]
62
3.300
[83.82]
64
3.400
[86.36]
66
3.500
[88.90]
70
3.700
[95.98]
80
4.300
[109.22]
Dimensions
B
.400
[10.16]
.600
[15.24]
.900
[22.86]
1.000
[25.40]
1.200
[30.48]
1.400
[35.56]
1.600
[40.64]
1.700
[43.18]
1.900
[48.26]
2.200
[55.88]
2.400
[60.96]
3.000
[76.20]
3.100
[78.74]
3.200
[81.28]
3.400
[86.36]
3.900
[99.06]
C
.600
[15.24]
.800
[20.32]
1.100
[27.94]
1.200
[30.48]
1.400
[35.56]
1.600
[40.64]
1.800
[45.72]
1.900
[48.26]
2.100
[53.34]
2.400
[60.96]
2.600
[66.04]
3.200
[81.28]
3.300
[83.82]
3.400
[86.36]
3.600
[91.44]
4.200
[106.68]
D
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
See Note 1
2.100
[53.34]
Packaged in Tubes
Contact Plating/Part Nos.
Plating A
Plating B
Plating C
5-147102-5
5-147101-5 5-147103-5
5-147102-7
5-147101-7 5-147103-7
6-147102-0
6-147101-0 6-147103-0
6-147102-1
6-147101-1 6-147103-1
6-147102-3
6-147101-3 6-147103-3
6-147102-5
6-147101-5 6-147103-5
6-147102-7
6-147101-7 6-147103-7
6-147102-8
6-147101-8 6-147103-8
7-147102-0
7-147101-0 7-147103-0
7-147102-3
7-147101-3 7-147103-3
7-147102-5
7-147101-5 7-147103-5
8-147102-1
8-147101-1 8-147103-1
8-147102-2
8-147101-2 8-147103-2
8-147102-3
8-147101-3 8-147103-3
8-147102-5
8-147101-5 8-147103-5
9-147102-0
9-147101-0 9-147103-0
Packaged in Tape and Reel
Contact Plating/Part Nos.
Plating A
Plating B
Plating C
5-147747-5 5-147746-5 5-147745-5
5-147747-7 5-147746-7 5-147745-7
6-147747-0 6-147746-0 6-147745-0
6-147747-1 6-147746-1 6-147745-1
6-147747-3 6-147746-3 6-147745-3
6-147747-5 6-147746-5 6-147745-5
6-147747-7 6-147746-7 6-147745-7
6-147747-8 6-147746-8 6-147745-8
7-147747-0 7-147746-0 7-147745-0
7-147747-3 7-147746-3 7-147745-3
7-147747-5 7-147746-5 7-147745-5
8-147747-1 8-147746-1 8-147745-1
8-147747-2 8-147746-2 8-147745-2
8-147747-3 8-147746-3 8-147745-3
8-147747-5 8-147746-5 8-147745-5
9-147747-0 9-147746-0 9-147745-0
Notes:
1. No center holddown.
2. To obtain the minimum mating post length, add .020 [0.51] (not including the post lead in chamfer) to the maximum point-of-contact dimension and
.062 [1.57] for recommended board thickness in bottom entry applications.
5
Surface Mount Receptacle
Assemblies
Note:
All part numbers are RoHS compliant.
190
Catalog 1307819
Revised 8-08
www.tycoelectronics.com
Dimensions are in inches and
millimeters unless otherwise
specified. Values in brackets
are metric equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-1106-0803
South America: 55-11-2103-6000
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-8706-080-208
