8-829258-2

Description
EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL
CategoryThe connector    The connector
File Size186KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

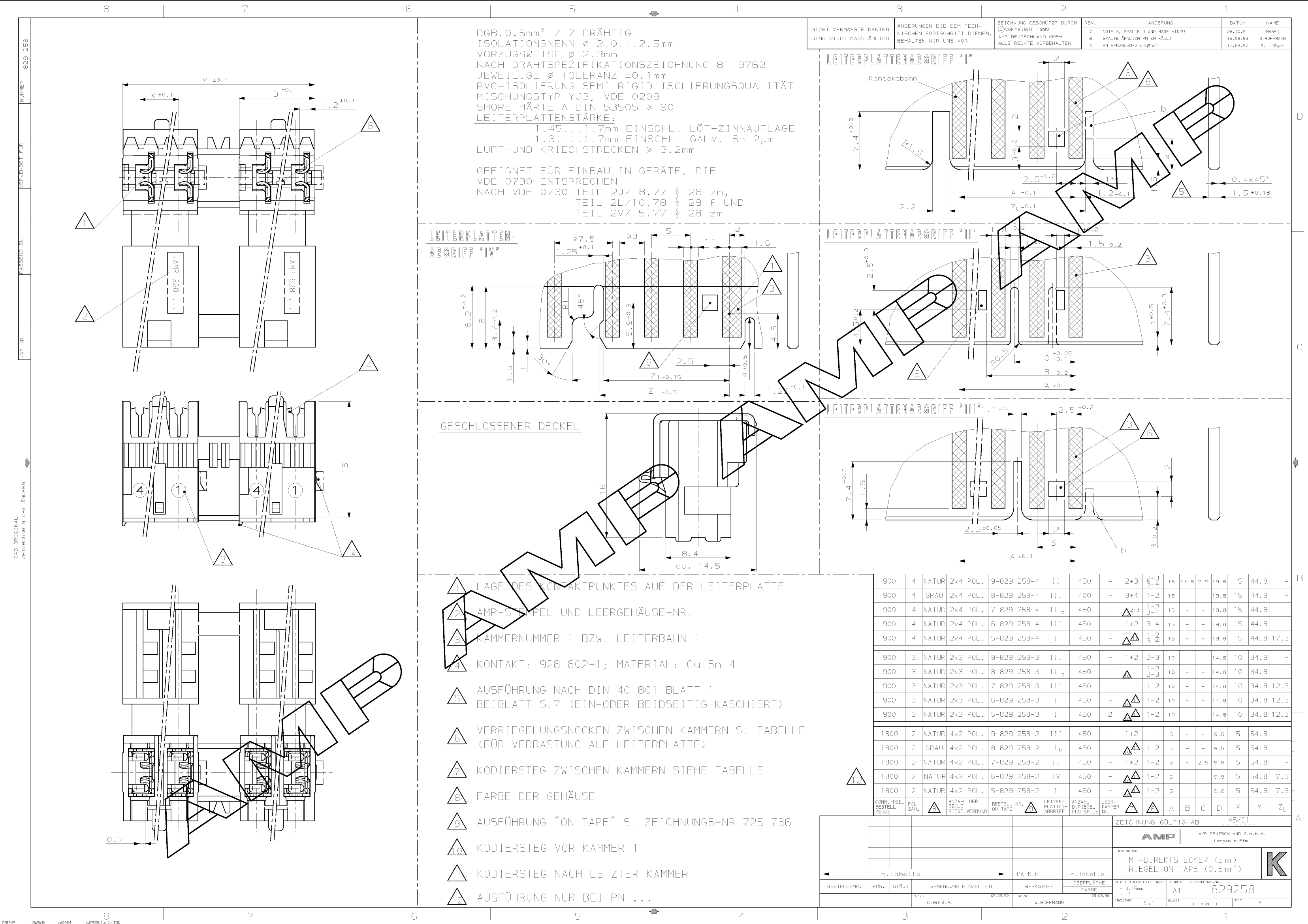

8-829258-2 Overview

EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL

8-829258-2 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codecompliant
Other featuresTUBE PACKAGING
Board mount optionsEDGE MOUNT
body width0.571 inch
subject depth0.63 inch
body length2.157 inch
Connector typeCARD EDGE CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationSN
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage3500VAC V
maximum insertion force8.0064 N
Minimum insulation diameter0.079 inch
Insulator colorGRAY
insulator materialPOLYAMIDE
Manufacturer's serial number829258
Plug contact pitch0.197 inch
Installation typeCABLE
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Plating thickness79u inch
Rated current (signal)6 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeIDC
Total number of contacts16
Maximum wire diameter18 AWG
Minimum wire diameter20 AWG
Evacuation force-minimum value3.9198 N

8-829258-2 Related Products

8-829258-2 7-829258-2 5-829258-3
Description EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL EDGE CONNECTOR,CABLE MNT,16 CONTACTS,2,IDC TERMINAL EDGE CONNECTOR,CABLE MNT,12 CONTACTS,2,IDC TERMINAL
Is it Rohs certified? conform to conform to conform to
Maker TE Connectivity TE Connectivity TE Connectivity
Reach Compliance Code compliant compliant compliant
Other features TUBE PACKAGING TUBE PACKAGING TUBE PACKAGING
Board mount options EDGE MOUNT EDGE MOUNT EDGE MOUNT
body width 0.571 inch 0.571 inch 0.571 inch
subject depth 0.63 inch 0.63 inch 0.63 inch
body length 2.157 inch 2.157 inch 1.37 inch
Connector type CARD EDGE CONNECTOR CARD EDGE CONNECTOR CARD EDGE CONNECTOR
Contactor design PREASSEM CONN PREASSEM CONN PREASSEM CONN
Contact to complete cooperation SN SN SN
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 10 mΩ 10 mΩ 10 mΩ
Contact style BELLOWED TYPE BELLOWED TYPE BELLOWED TYPE
Dielectric withstand voltage 3500VAC V 3500VAC V 3500VAC V
maximum insertion force 8.0064 N 8.0064 N 8.0064 N
Minimum insulation diameter 0.079 inch 0.079 inch 0.079 inch
Insulator color GRAY NATURAL NATURAL
insulator material POLYAMIDE POLYAMIDE POLYAMIDE
Manufacturer's serial number 829258 829258 829258
Plug contact pitch 0.197 inch 0.197 inch 0.197 inch
Installation type CABLE CABLE CABLE
Number of rows loaded 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C
Plating thickness 79u inch 79u inch 79u inch
Rated current (signal) 6 A 6 A 6 A
Guideline UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Termination type IDC IDC IDC
Total number of contacts 16 16 12
Maximum wire diameter 18 AWG 18 AWG 18 AWG
Minimum wire diameter 20 AWG 20 AWG 20 AWG
Evacuation force-minimum value 3.9198 N 3.9198 N 3.9198 N
