84980-4 datasheet, PDF - EEWORLD Datasheet

84980-4: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,32 CONTACTS,PIN,0.025 PITCH,PC TAIL TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

84980-4 Overview

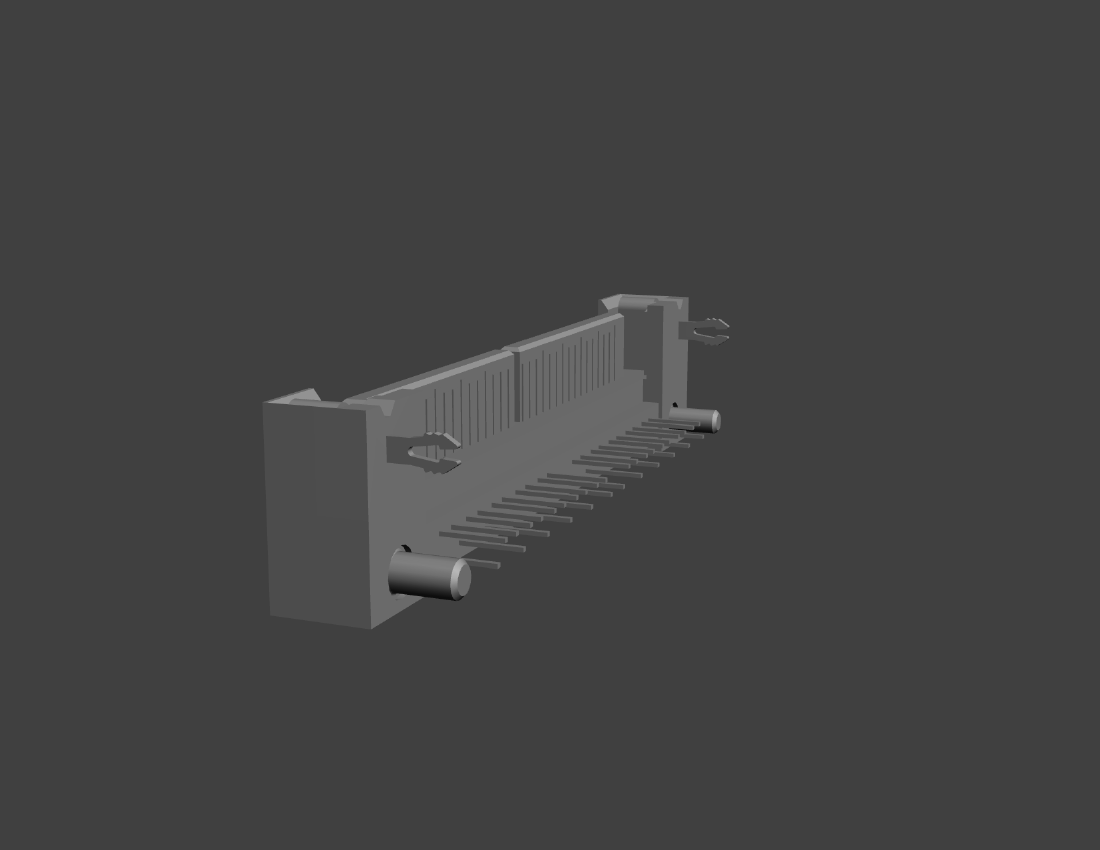

HEADER CONNECTOR,PCB MNT,PLUG,32 CONTACTS,PIN,0.025 PITCH,PC TAIL TERMINAL,LOCKING,BLACK

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Board mount options	PEG
body width	0.255 inch
body length	2.249 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	84980
Plug contact pitch	0.025 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Termination type	SOLDER
Total number of contacts	32
