MANO860_14: Description2 DDR3-1066/1333 MHz, max. up to 16 GB; File Size273KB，2 Pages; ManufacturerAxiomtek; Websitehttp://www.axiomtek.com/

Download Datasheet Compare View All

MANO860_14 Overview

2 DDR3-1066/1333 MHz, max. up to 16 GB

Preview

Download Datasheet

View All

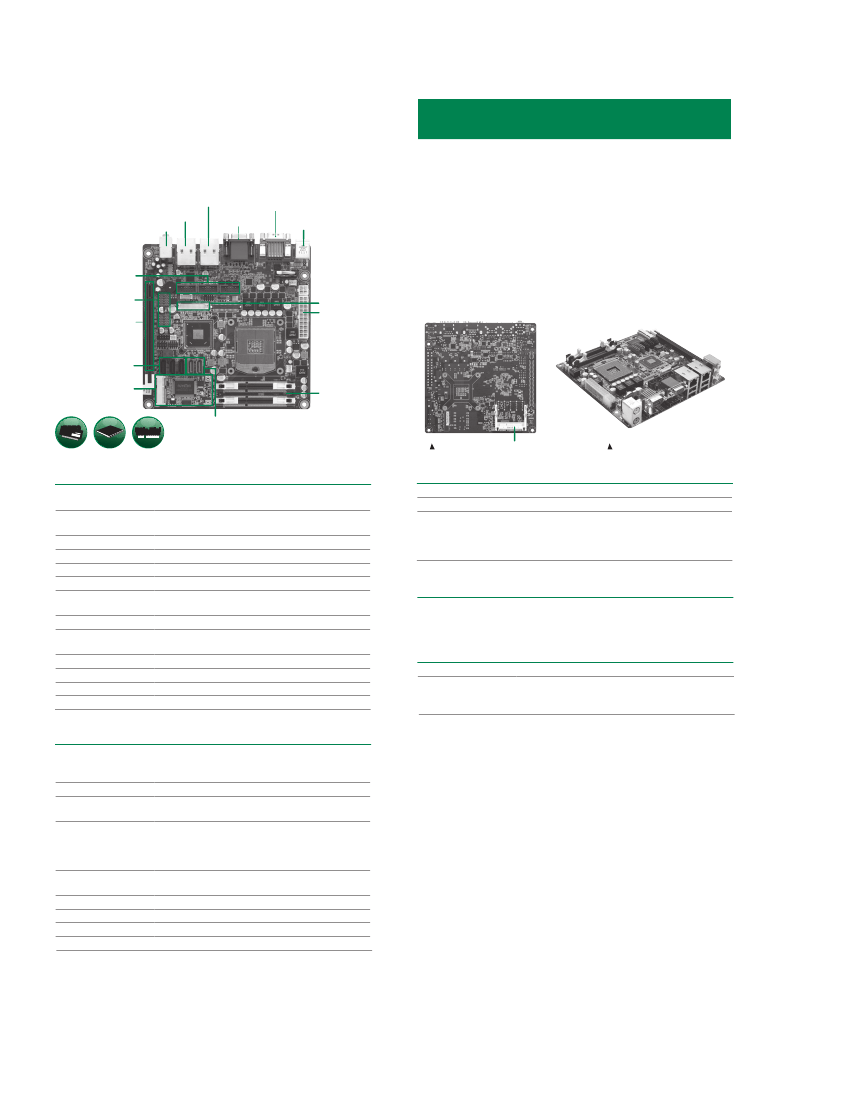

MANO860

Socket G2 Intel

Quad/Dual Core™ i7/ i5/

i3/ Celeron

Mini ITX SBC with Intel

QM67

PCH, DisplayPort/HDMI/VGA/LVDS,

SATA-600, Dual LANs and RAID

Ethernet 2+USB 3/4

COM 1+HDMI

Ethernet 1+USB 1/2

VGA+DP

Audio

PS/2 K/B+M/S

Features

●

Socket G2 (rPGA 988B) 2nd Generation Intel Quad/ Dual

Core™ i7/i5/ i3/ Celeron

processors

●

2 DDR3-1066/1333 MHz, max. up to 16 GB

●

PCIe x16 Gen. 2 supported

●

SATA-600 with RAID 0/1/5/10 supported

●

CFast™ supported

●

iAMT supported

●

TPM supported

●

Display: DisplayPort/HDMI/VGA/LVDS

COM 2/3/4

USB 5~12

PCIe x16

LVDS

ATX power input

SATA-300 3/4/5

PCI Express

Mini Card

DDR3

PCIe Mini

DDR3

SATA-600 1/2

Rear view

ast

CFast

Side view

DDR3

CFast

PCIe Mini

System

CPU

System Memory

Chipset

BIOS

SSD

Watchdog Timer

Expansion Interface

Battery

Power Requirements

Size

Board Thickness

Temperature

Operation Humidity

Socket G2 (rPGA 988B) for 2nd Generation Intel

Core™ i7/

i5/ i3/ Celeron

processors

2 x 204-pin SO-DIMM support DDR3-1066/1333 max.

up to 16 GB

Intel

QM67 PCH

AMI UEFI BIOS

1 x CFast™

255 levels, 1~255 sec.

1 x PCIe x16 Gen. 2

1 x PCI Express Mini Card

Lithium 3 V/ 220 mAH

+12V @ 4.86A, +5V @ 1.28A, +3.3V @ 1.05A,

+5VSB @ 0.36A, -12V @ 0.41A

170 x 170 mm

1.6 mm

0° ~ +60°C (32°F ~ 140°F), operation

10% ~ 95% relative humidity, non-condensing

Display

Chipset

Memory Size

Display Interface

Intel

HD Graphics 2000/3000

1.7 GB

1 x DP

1 x HDMI

1 x LVDS

1 x VGA

Packing List

User's manual/utility CD, SATA cable, I/O bracket

Ordering Information

Standard

MANO860PHGGA

(P/N: E38M860100)

Socket G2 Mini ITX SBC with Intel

Core™ i7/ i5/ i3, VGA/

DisplayPort/HDMI/LVDS, 2 10/100/1000Mbps Ethernet,

HD audio, 4 COM, 5 SATA and CFast™

I/O

MIO

1 x PS/2 keyboard

1 x PS/2 mouse

4 x RS-232 (COM 2/3/4); with +5V/+12V powered

2 x SATA-600 & 3 x SATA-300 with RAID 0/1/5/10

Detect CPU/system temperature, voltage and support Smart

fan control

1st port as 10/100/1000 Mbps supports Wake-on-LAN,

PXE Boot ROM with Intel

82579LM

2nd port as 10/100/1000 Mbps supports Wake-on-LAN,

PXE Boot ROM with Intel

82583V

HD Codec audio as MIC-in/Line-in/Line-out speaker-out

with Realtek ALC892

12 x USB 2.0 port

Infineon SLB9625 for trusted platform

System Management Bus for advanced monitoring/control

8 channels (4-IN & 4-OUT)

SATA

Hardware Monitoring

Ethernet

Audio

USB

TPM

SMBus

Digital I/O

159

* All specifications and photos are subject to change without notice.
