MANO872_14

Description
2 DDR3-1333/1600 MHz max. up to 16 GB memory capacity
File Size546KB,2 Pages
ManufacturerAxiomtek
Websitehttp://www.axiomtek.com/
Download Datasheet View All

MANO872_14 Overview

2 DDR3-1333/1600 MHz max. up to 16 GB memory capacity

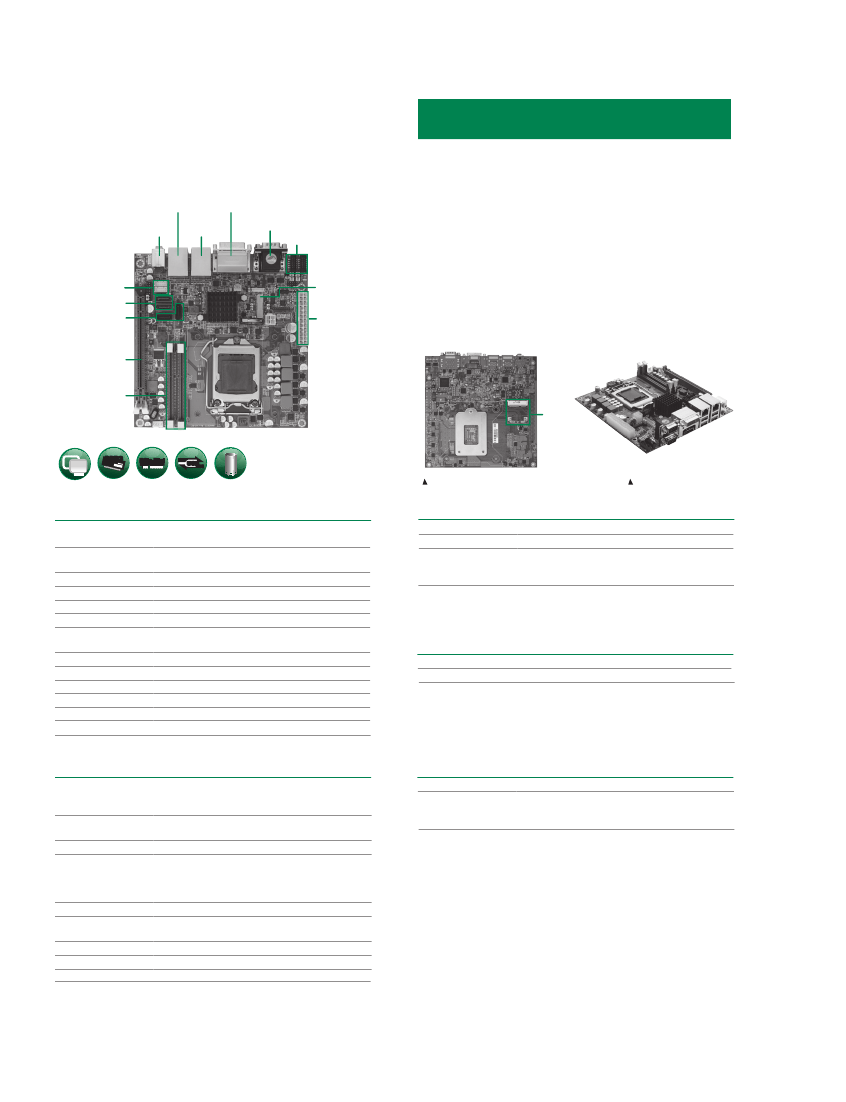

MANO872
LGA1155 Socket Intel
®
Core™ i7/ i5/ i3/
Celeron
®
Mini ITX SBC with Intel
®
Q77
PCH, DisplayPort/DVI-I/LVDS, Dual LANs
and USB 3.0
LAN 2 +
DP + DVI-I
USB 3.0 3-4
LAN 1 +
COM 1 -2
Audio USB 3.0 1-2
COM 3-4
Features
LGA1155 socket 3rd Generation Intel Core™ i7/ i5/ i3/
Celeron
®
processors
®
Intel Q77 PCH
2 DDR3-1333/1600 MHz max. up to 16 GB memory capacity
PCIe x16 Gen3 supported
2 SATA-600 with RAID 0,1
2 SATA-300 with 1 SATA DOM supported
4 USB 3.0
iAMT 8.0 supported
TPM 1.2 supported
Triple view display
®
USB 2.0 1- 4
SATA-600
SATA-300
LVDS
ATX
PCI
Express x16
DDR3
PCI Express
Mini Card
DDR3
DDR3
PCIe Mini
PCIe Mini
USB
ss
Low Power
DualView
DDR3
DDR3
PCIe Mini
PCIe Mini
USB 3.0
+12V
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Requirements
Size
Board Thickness
Temperature
Operation Humidity
Full Solid
Cap Design
Rear view
Side view
Display
Chipset
Memory Size
Display Interface
Intel
®
HD 2000/3000/4000 Graphics
Shared Memory
1 x DisplayPort
1 x DVI-I
1 x LVDS
LGA1155 Socket 3rd Generation Intel
®
Core™ i7/ i5/ i3/
Celeron
®
processor
2 x 204-pin SO-DIMM dual channel DDR3-1333/1600 max.
up to 16 GB
Intel
®
Q77
AMI UEFI BIOS with OA 3.0 built
N/A
255 level, 1 ~ 255 sec.
1 x PCIe x16 Gen3
1 x PCI Express Mini Card
Lithium 3V/220 mAH
+5V @ 1.5A, +12V @ 6.8A, +5Vsb @ 0.5A, +3.3V @ 1A
170 x 170 mm
1.6 mm
0° ~ +60°C (32°F ~ 140°F), operation
10% ~ 95% relative humidity, non-condensing
Packing List
Standard
User’s manual/utility CD, cable, I/O bracket
I/O
MIO
1 x RS-232/422/485 (COM 1)
3 x RS-232 (COM 2~4); COM 1 and COM 3 with 5V/12V
power
2 x SATA-300; 1 SATA-300 supports SATA DOM
2 x SATA-600 support RAID 0/1
Detect CPU/System temperature, voltage and fan speed
1st port as 10/100/1000 Mbps support WOL, PXE
with Intel
®
82579LM/V (LAN 1)
2nd port as 10/100/1000 Mbps support WOL, PXE
with Intel
®
82583V (LAN 2)
HD Audio as Mic-in/Line-out with Realtek ALC662
4 x USB 3.0
4 x USB 2.0
Infineon TPM1.2 SLB9635
8 Channels (4-IN & 4-OUT)
N/A
Ordering Information
Standard
MANO872
LGA1155 socket Mini ITX SBC with Intel
®
Core™ i7/ i5/ i3/
Celeron
®
, DisplayPort/DVI-I/LVDS, 2 10/100/1000Mbps and
4 USB 3.0
SATA
Hardware Monitoring
Ethernet
Audio
USB
TPM
Digital I/O
SM BUS
155
* All specifications and photos are subject to change without notice.
