71308-4046N: Description2.54mm Pitch C-GridÂ® Header, Surface Mount, Dual Row, Vertical, 46 Circuits, Tin (Sn) Plating, with 3.30mm PCB Locator Pegs; File Size29KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

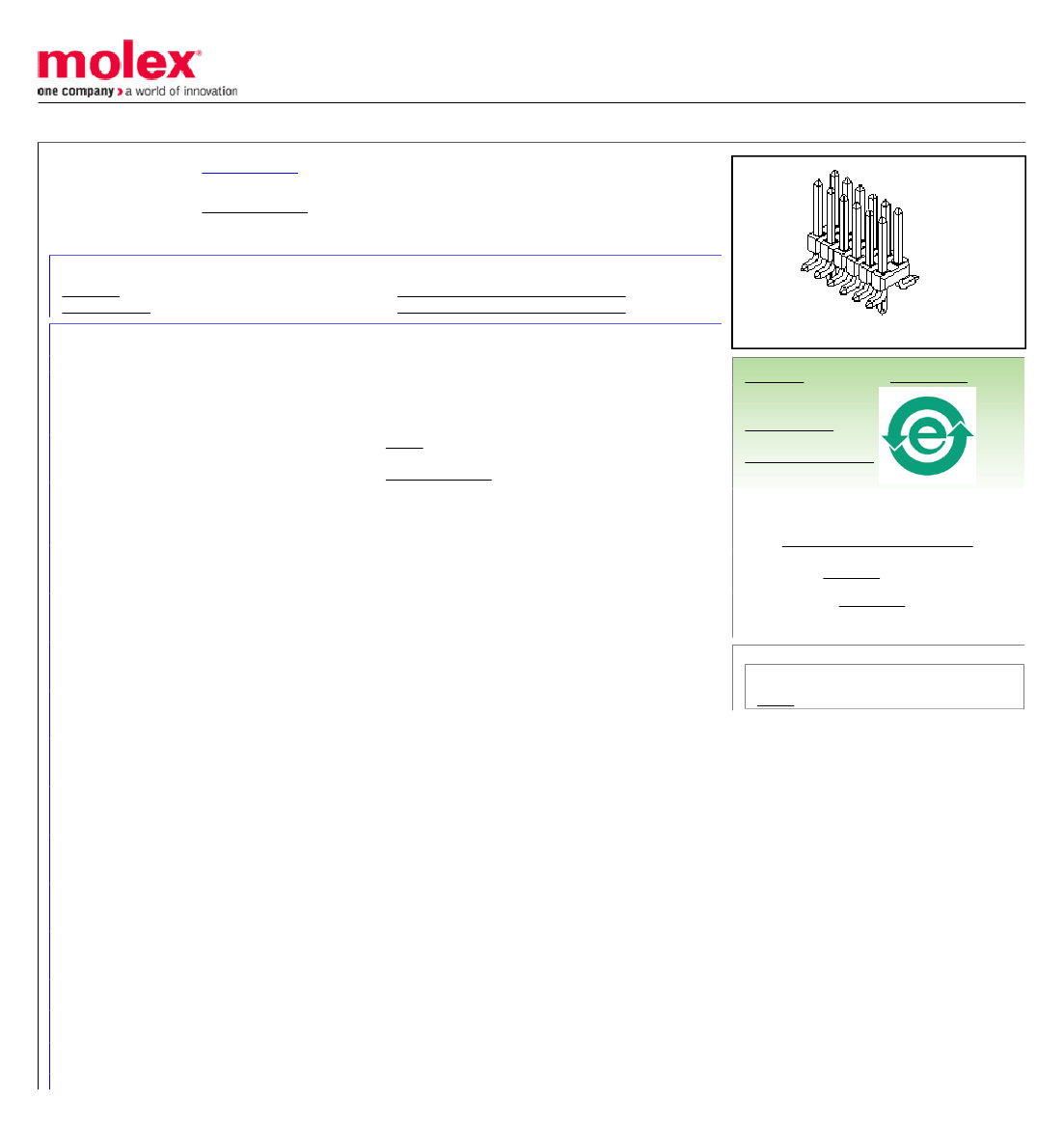

71308-4046N Overview

2.54mm Pitch C-GridÂ® Header, Surface Mount, Dual Row, Vertical, 46 Circuits, Tin (Sn) Plating, with 3.30mm PCB Locator Pegs

Preview

Download Datasheet

View All

This document was generated on 01/24/2014

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

15-91-1461

Active

C-Grid® Products

2.54mm Pitch C-Grid® Header, Surface Mount, Dual Row, Vertical, 46 Circuits, Tin

(Sn) Plating, with 3.30mm PCB Locator Pegs

Documents:

3D Model

Drawing (PDF)

Product Specification PS-71308 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

LR19980

E29179

EU RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Low-Halogen Status

Low-Halogen

China RoHS

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

PCB Headers

71308

Board-to-Board, Signal, Wire-to-Board

C-Grid® Products

C-Grid®

800753771024

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Yes

Black

94V-0

None

Phosphor Bronze

Tin

High Temperature Thermoplastic

2.875/g

Vertical

Yes

Tube

2.54mm

3.810µm

Yes

-40°C to +105°C

Surface Mount

Search Parts in this Series

71308Series

Electrical

Current - Maximum per Contact

Voltage - Maximum

250V

Solder Process Data

Duration at Max. Process Temperature (seconds)
